Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#20666) — 72 parça
◀

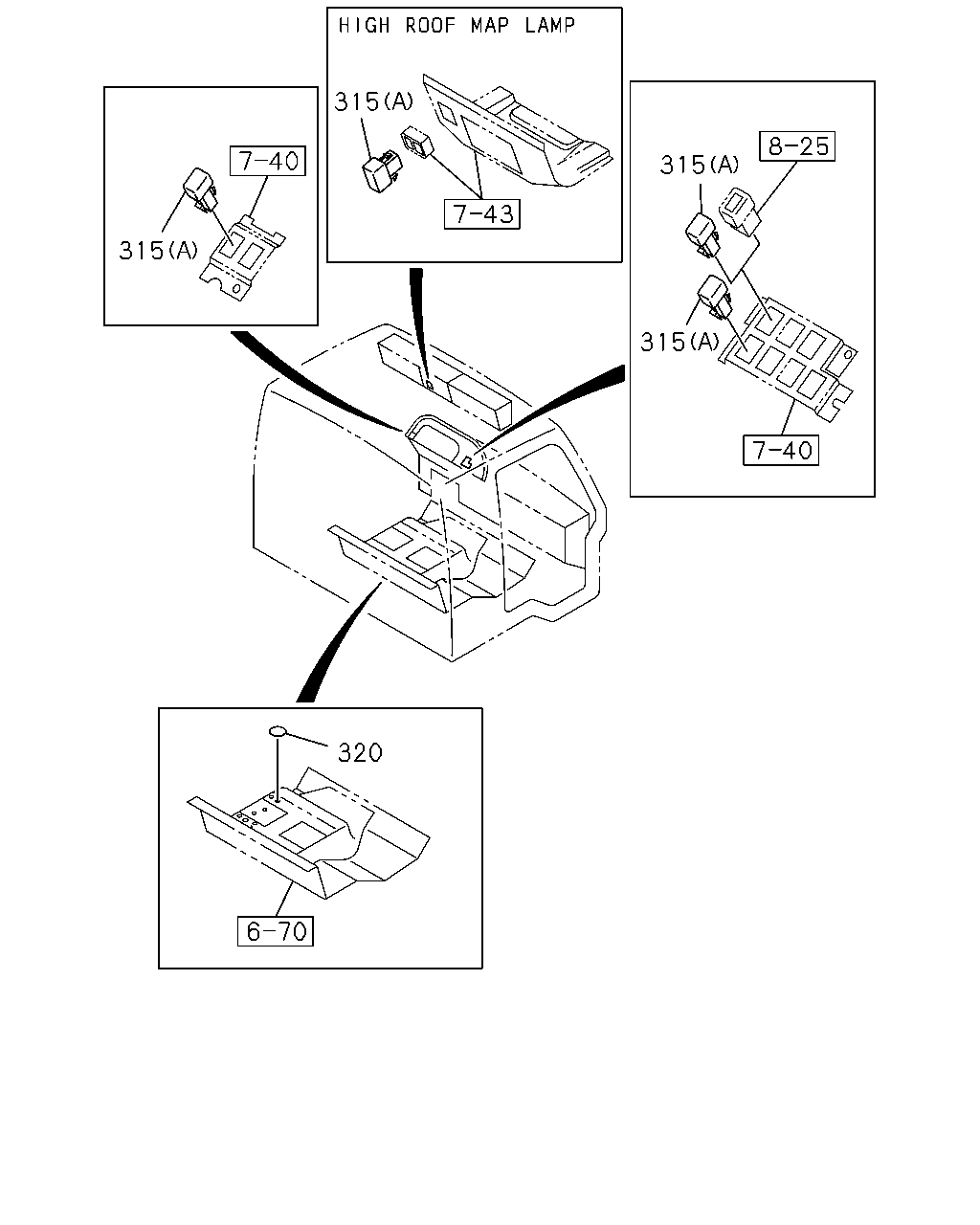

[745A] SEAL AND HOLE COVER (22 parça)
[745A] COMPONENT (18 parça)
[745A] TRAY ASM AND COVER (32 parça)
▶
315
315
315
315
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
HIGH ROOF<S2F> (A)
1-82359-069-2
02
1
9510-9603
315
COVER; HOLE,SW
MAP LAMP<C85> (A)
1-82359-069-2
02
1
9510-9603
315
COVER; HOLE,SW
PTO CONTROL<SV6> (A)
1-82359-069-2
06
1
9510-9802
315
COVER; HOLE,SW
(A)
1-82359-069-2
05
1
9803-9806
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
07
1
0005-0010
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
0011-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
07
1
9510-9802
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
9803-9806
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9803-9806
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0005-0010
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0005-0010
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-97043-732-1
06
1
9803-
315
COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-97043-732-1
04
1
9510-
320
SEAL; HOLE,TRAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
03
1
9510-
320
SEAL; HOLE,TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
04
1
9510-
113
106
311
313
8
312
35
311
307
171
288
313
312
310
36
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-179-3
01
1
9510-9603
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-182-1
02
1
9510-9603
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-09984-190-0
02
1
9602-9603
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-180-0
01
1
9510-9603
113
BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-175-5
01
1
9510-9601
113
BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-225-0
01
1
9602-9603
171
SCREW; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
9510-9603
189
NUT; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M8 FLANGE
0-91150-108-0
02
1
9510-9601
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-190-0
01
1
9510-9603
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-166-0
02
1
9510-9603
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-166-0
02
1
9510-9603
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-166-0
02
1
9604-0004
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-76337-461-0
02
1
0005-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-187-0
02
1
9510-9603
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-188-2
02
1
9510-9603
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-186-1
02
1
9510-9603
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (A)
1-72538-184-3
01
1
9510-9603
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> (B)
1-72538-185-3
01
1
9510-9603
307
315
306
242
100
317
316
315
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-161-3
01
1
9510-0004
100
RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-97535-034-0
01
1
0005-
242
TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-198-2
01
1
9510-0004
242
TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-97535-131-0
01
1
0005-
306
SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER
8-94279-404-0
03
1
9510-0202
306
SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER
8-94279-403-0
03
1
0203-
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-166-0
02
1
9510-9603
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F>
1-72538-166-0
02
1
9510-9603
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-166-0
02
1
9604-0004
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-76337-461-0
02
1
0005-
315
COVER; HOLE,SW
HIGH ROOF<S2F> (A)
1-82359-069-2
02
1
9510-9603
315
COVER; HOLE,SW
MAP LAMP<C85> (A)
1-82359-069-2
02
1
9510-9603
315
COVER; HOLE,SW
PTO CONTROL<SV6> (A)
1-82359-069-2
06
1
9510-9802
315
COVER; HOLE,SW
(A)
1-82359-069-2
05
1
9803-9806
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
07
1
0005-0010
315
COVER; HOLE,SW
(A)
1-82359-069-2
06
1
0011-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
07
1
9510-9802
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
9803-9806
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9803-9806
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
9807-0004
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0005-0010
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0005-0010
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
(A)
1-82359-069-2
01
1
0011-
315
COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-97043-732-1
06
1
9803-
315
COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-97043-732-1
04
1
9510-
316
BOX; COIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-94482-280-2
02
1
9803-
317
CONSENT
1-82523-020-2
01
1
9510-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
