◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#20665) — 109 parça

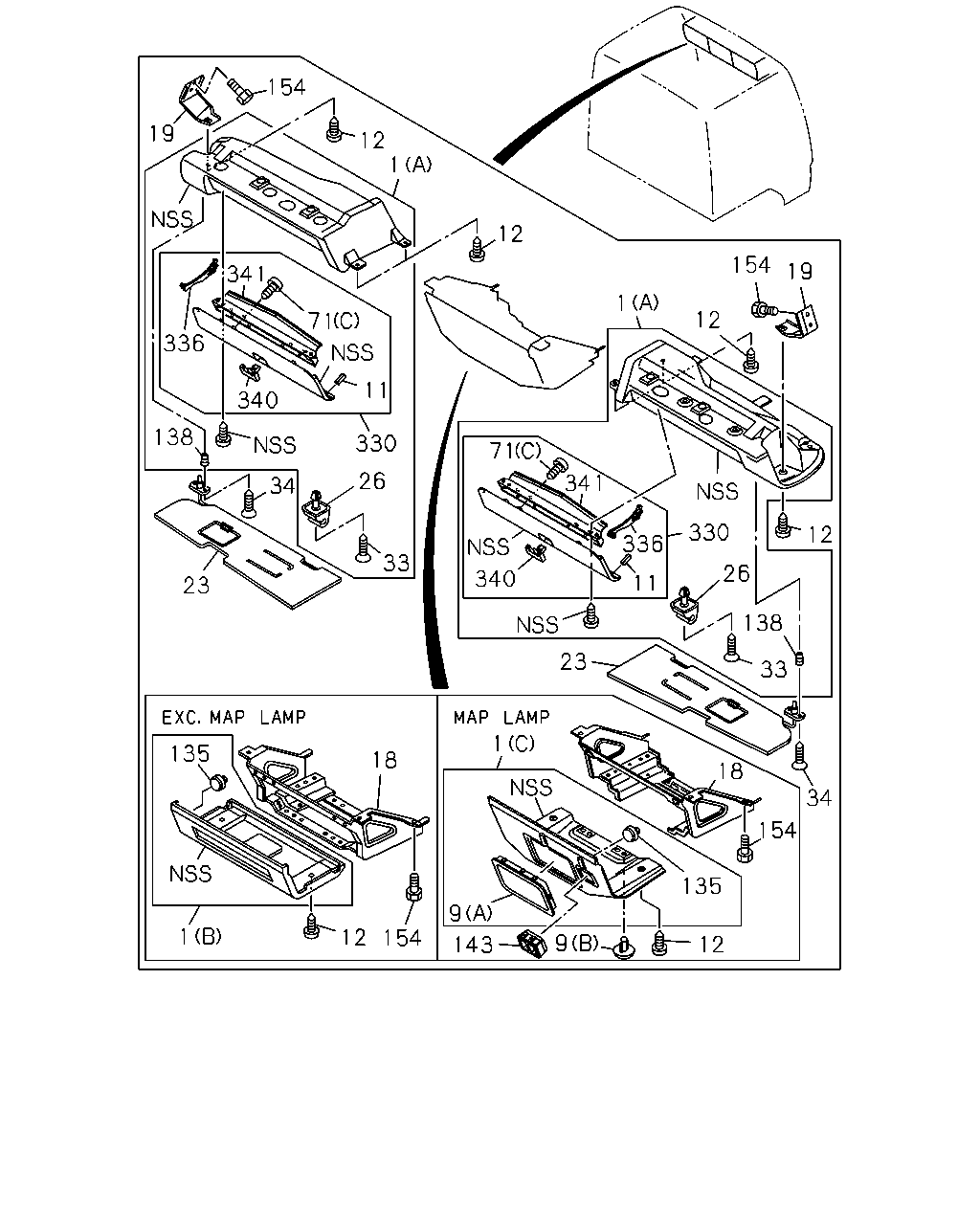

çizim 16610
154 19 12 1 12 154 19 341 1 12 71 336 11 340 138 330 71 26 341 34 330 12 336 33 26 340 11 23 138 23 33 1 135 18 18 34 154 135 9 1 12 154 9 12 143
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9511-9603
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9511-9603
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER 		1-72448-568-0 01 1 9510-9603
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (C) CENTER 		1-72448-573-0 01 1 9510-9603
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-72448-547-2 01 1 9510-9603
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-9603
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510-9603
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9512
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9601-9603
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		1-72448-552-4 01 1 9510-9603
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-574-2 01 1 9510-9603
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510-9603
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510-9603
23 SUN VISOR 1-73138-150-1 01 1 9510-9802
23 SUN VISOR 1-73138-150-1 01 1 9803-0004
23 SUN VISOR 1-73138-157-1 01 1 0005-
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9604-0004
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-1 01 1 0005-
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-9603
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005-
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-9603
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0101
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604-
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9511-9603
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9604-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9604-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0211
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212-
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9603
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-9603
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> OD=7.9 BLACK 		8-94279-974-1 03 1 9510-9603
138 NUT; BRKT,HEADER SHELF
HIGH ROOF<S2F> 		1-09984-166-0 04 1 9510-9603
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9510-9603
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-9603
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510-9603
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510-9603
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510-9603
çizim 64962
24 24 24 26 14 121 26 33 24 14 33 121 34 23 23 34
BalonParca AdiParca NoAdetTipApplied Date
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-9603
14 SCREW; BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-
23 SUN VISOR 1-73138-150-1 01 1 9510-9802
23 SUN VISOR 1-73138-150-1 01 1 9803-0004
23 SUN VISOR 1-73138-157-1 01 1 0005-
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9604-0004
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-1 01 1 0005-
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 9510-9603
24 BRACKET; SUN VISOR
(B) 		1-73138-145-0 02 1 9604-
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 9510-9603
24 BRACKET; SUN VISOR
(A) 		1-73138-144-1 01 1 9604-
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 9510-9603
24 BRACKET; SUN VISOR
(A) 		1-73138-143-1 01 1 9604-
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-9603
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9604-0004
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005-
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-9603
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9604-0101
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604-
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9511-9603
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9603
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9604-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9604-
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-9603
121 SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9604-

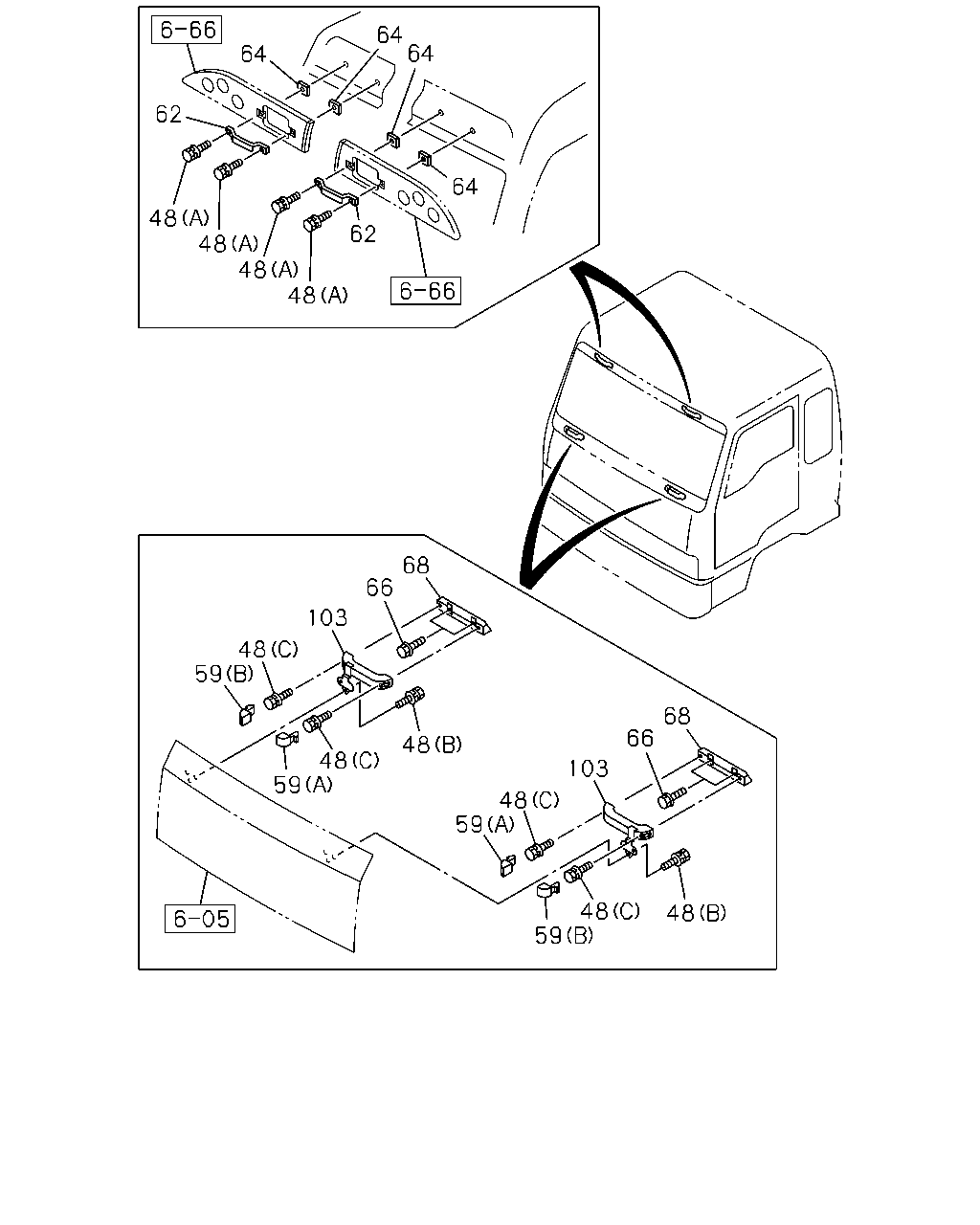

çizim 65369
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603-0411
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412-
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9510-
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510-
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9510-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9510-
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> 		1-71997-895-1 02 1 9510-9603
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 9510-9603
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 9510-
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 9510-
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 9510-

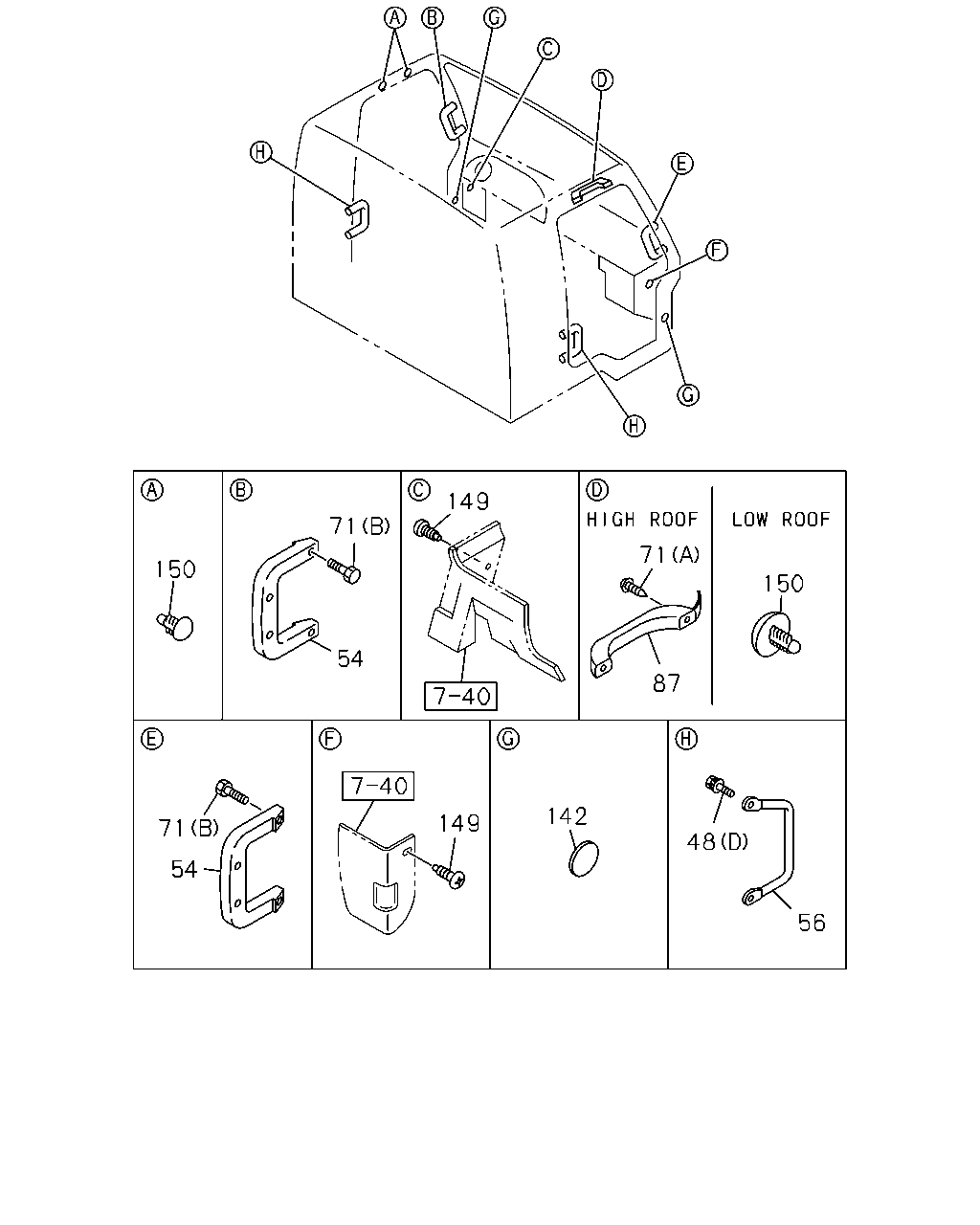

çizim 65499
149 71 71 150 150 54 87 142 149 71 48 54 56
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603-0411
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0412-
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9510-
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510-
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 9510-0211
54 GRIP; ASSIST,QUARTER SIDE 1-73618-185-1 02 1 0212-
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 9510-0402
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0211
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212-
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9603
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601-9603
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9510-9603
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 03 1 0005-
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 9510-0302
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0303-
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9510-9510
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-9603
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9510-9603
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9604-
