◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#20661) — 46 parça
çizim 16499
119 7 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 8-94395-931-0 01 1 9510-0210
4 LABEL; ENG MAINTENANCE 8-94390-593-0 01 1 0211-
7 LABEL; EMISSION 8-94391-418-0 01 1 0211-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-726-0 01 1 9510-9606
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 9607-

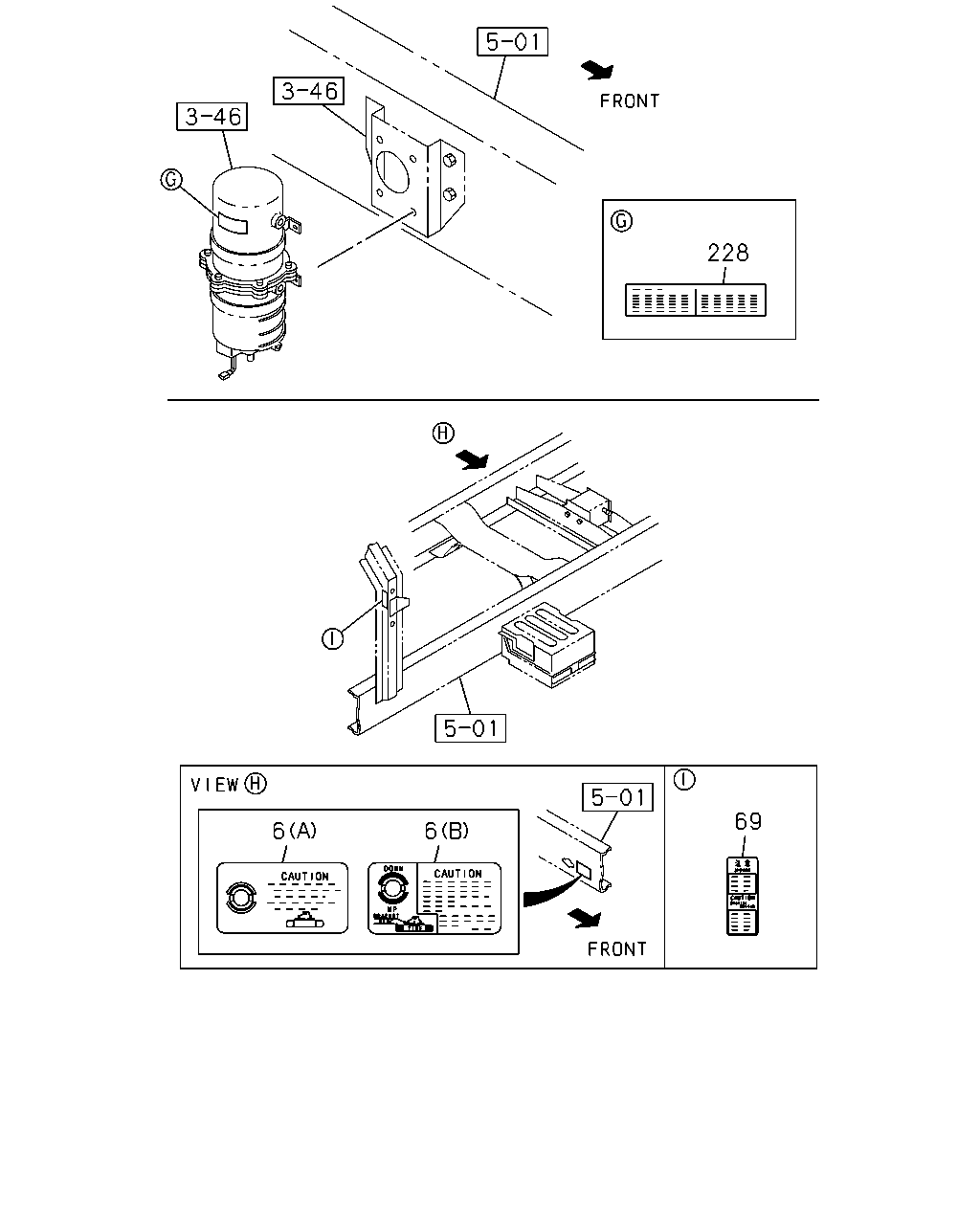

çizim 16535
228 69 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 9510-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 9510-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		8-98082-437-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 9510-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B) 		8-98082-440-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 9510-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (B) 		8-98082-439-0 01 1 0709-
69 PLATE; CAUTION,STARTER SW
CAUTIONS ARABIAN<WJ7> 		1-85887-537-0 01 1 9510-0302
69 PLATE; CAUTION,STARTER SW
CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D> 		1-85887-537-0 01 1 0303-
69 PLATE; CAUTION,STARTER SW
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85887-389-0 01 1 9510-0302
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85887-389-0 01 1 0303-
69 PLATE; CAUTION,STARTER SW
CAUTIONS FRENCH<WJ8> 		1-85887-535-0 01 1 9510-0302
69 PLATE; CAUTION,STARTER SW
CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D> 		1-85887-535-0 01 1 0303-
69 PLATE; CAUTION,STARTER SW
CAUTIONS SPANISH<YN1> 		9-83999-419-0 01 1 9510-0302
69 PLATE; CAUTION,STARTER SW
CAUTIONS SPANISH<YN1> EXC. STARTER SWITCH DELETION<E5D> 		9-83999-419-0 01 1 0303-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-48199-326-0 01 1 0110-1001
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8> 		1-48199-325-0 01 1 0110-1001

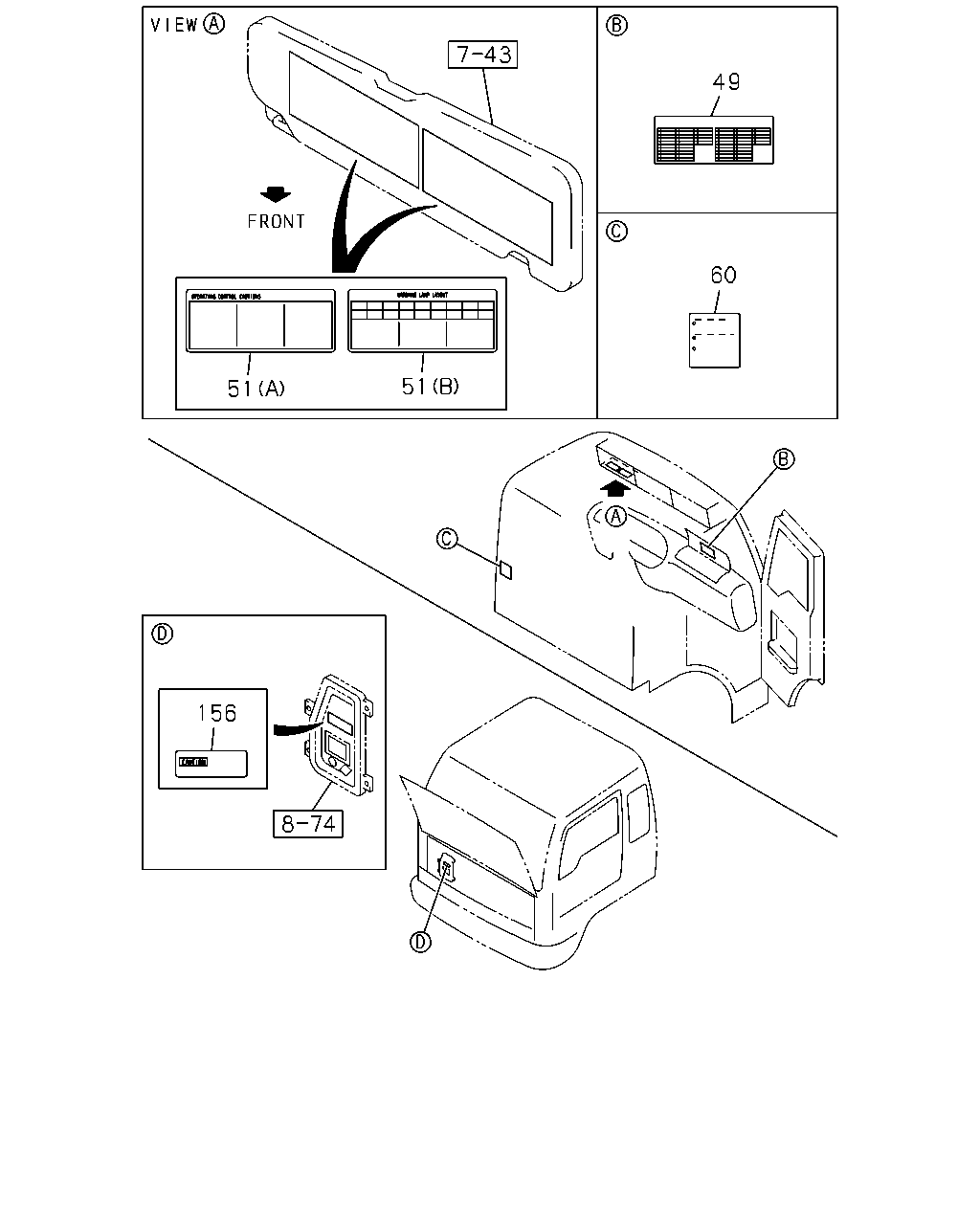

çizim 65056
49 60 51 51 156
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85888-558-0 01 1 9510-0109
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-224-0 01 1 0110-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85888-554-2 01 1 9510-9802
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85877-623-0 01 1 9803-0004
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-278-0 01 1 0005-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85888-557-0 01 1 9510-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85888-556-0 01 1 9510-0805
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-460-0 01 1 0806-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-710-0 01 1 9510-9601
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-709-1 01 1 9602-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-560-2 01 1 9510-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-707-1 01 1 9510-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-559-2 01 1 9510-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-709-0 01 1 9510-9601
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-710-1 01 1 9602-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-173-0 01 1 9510-9601
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-172-0 01 1 9602-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-169-0 01 1 9510-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-172-0 01 1 9510-9601
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-173-0 01 1 9602-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-170-0 01 1 9510-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97065-990-0 01 1 9510-9603
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97065-990-0 01 1 0011-0504
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
