Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#2066) — 240 parça

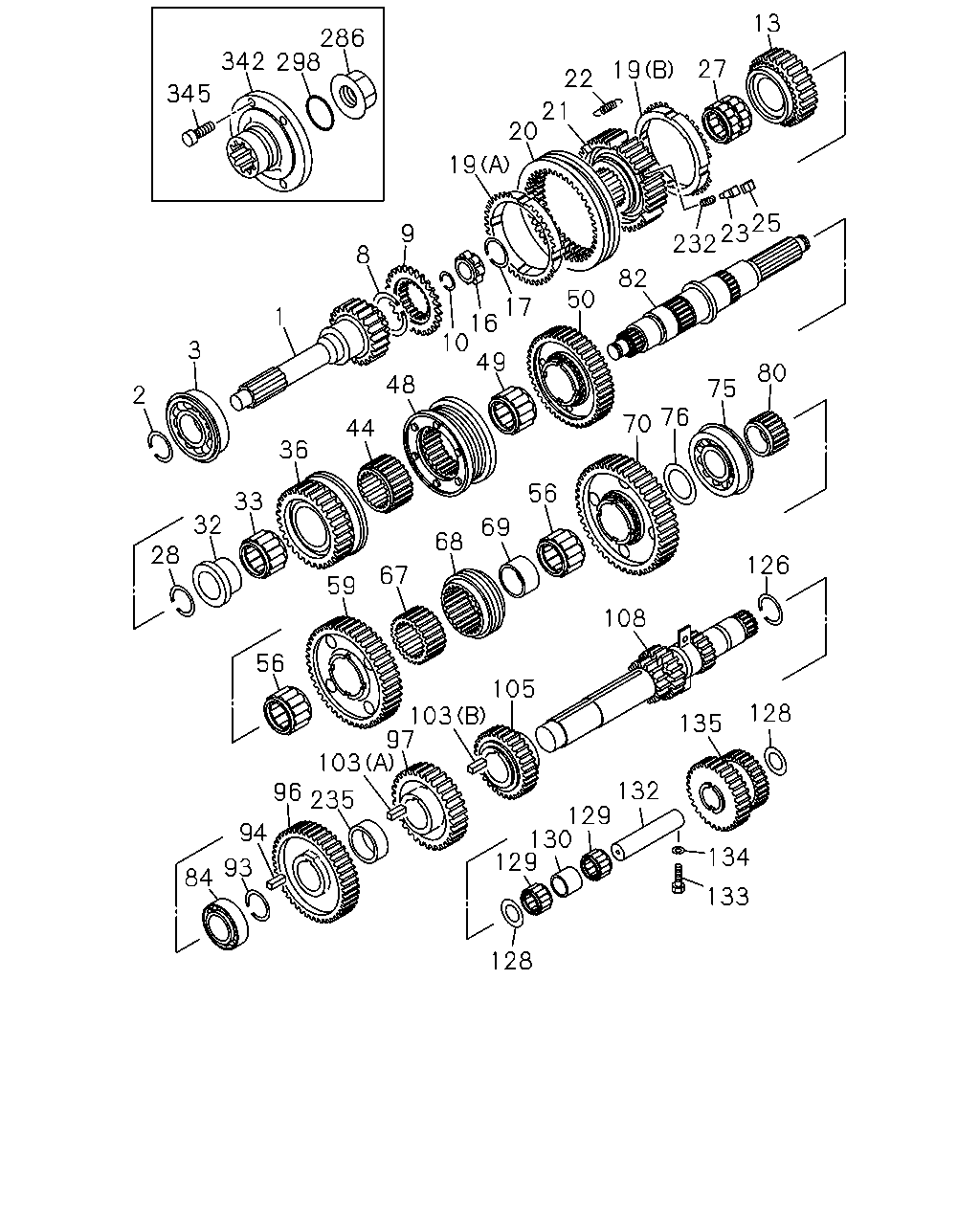

13 286 298 342 27 19 22 345 21 20 19 25 23 232 9 8 82 50 17 16 10 49 1 3 80 48 75 2 76 70 44 36 56 33 32 69 68 28 126 67 59 108 56 105 103 97 128 135 103 132 129 130 129 96 235 94 134 93 84 133 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-276-2	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=24	1-33211-338-2	01	1	9001-		●	●	●
1	SHAFT; TOP GEAR,TRANS EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=24	1-33211-390-0	01	1	9001-		●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9001-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9001-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9001-	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9001-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9001-	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9001-	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9001-	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-360-0	01	1	9001-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9001-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9001-	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9101-9503	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9504-9908	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-199-3	01	1	9101-9503		●	●	●
20	SLEEVE	1-33262-097-1	01	1	9001-9204	●	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9205-	●
20	SLEEVE	1-33262-072-1	01	1	9205-		●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9001-9204	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9001-	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9001-	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9001-	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9001-	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9001-	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9001-9201	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9202-9203	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9001-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-199-1	01	1	9001-			●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9001-				●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9001-	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9001-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-096-1	01	1	9001-		●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9001-	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9001-	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9001-	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-003-1	01	1	9001-9001	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9001-	●	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9001-	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9001-9302	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-0012	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-097-0	01	1	0101-	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-004-1	01	1	9001-9001	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09800-051-1	01	1	9001-	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09800-110-0	01	1	9001-	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9001-	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-031-1	01	1	9001-	●	●	●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9101-		●		●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9101-	●		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-066-0	01	1	9001-	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-099-0	01	1	9001-	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9001-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9001-9103	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9104-	●		●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9104-		●		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9001-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-128-1	01	1	9001-			●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-118-1	01	1	9001-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-155-3	01	1	9001-	●
97	GEAR; 5TH,COUNTER Z=43	1-33338-177-3	01	1	9001-9207			●
97	GEAR; 5TH,COUNTER Z=43	1-33338-177-3	01	1	9208-			●
103	KEY; COUNTER GEAR (B) L=45	1-09735-032-0	01	1	9001-	●	●	●	●
103	KEY; COUNTER GEAR (A) L=47	1-09735-034-0	01	1	9001-	●	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9001-				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9001-		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9001-9207			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9208-			●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9001-9201	●		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9202-9202	●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-163-0	01	1	9001-9001		●		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●		●
126	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9001-	●		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9001-		●		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9001-		●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9001-	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9001-	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9001-	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9001-	●	●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9001-	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9001-9201	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9202-9203	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-040-1	01	1	9001-9001	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9202-9202	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●	●
232	SPRING; PLUNGER	1-09580-091-1	03	1	9001-	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9001-9103	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9104-	●		●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9001-	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9001-	●	●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9001-9605	●	●	●	●
342	FLANGE; OUTPUT	1-37243-305-0	01	1	9606-	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9001-9412	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●

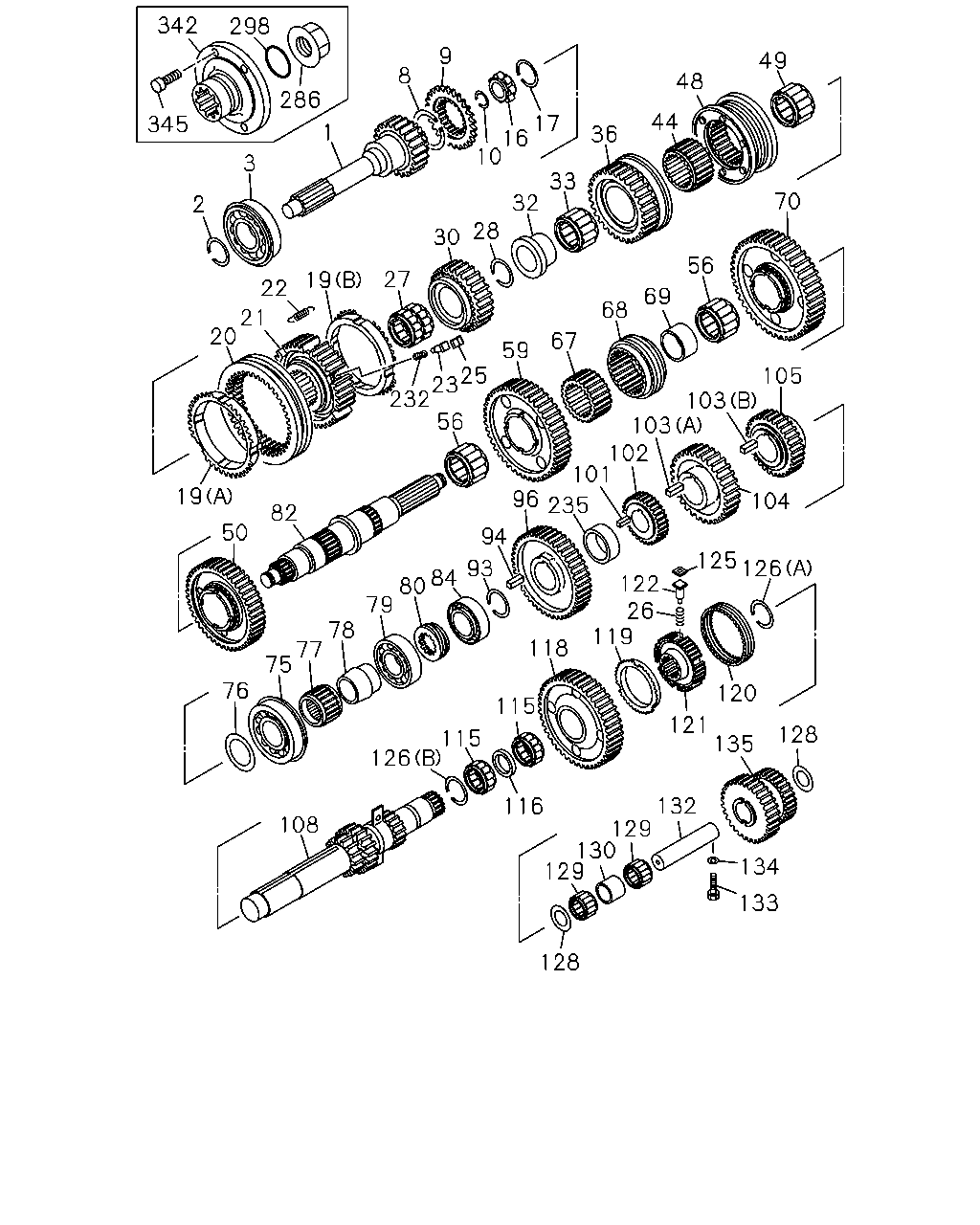

342 298 9 49 8 48 286 44 17 16 10 345 1 36 3 33 70 32 2 28 30 56 27 19 22 69 68 21 20 67 59 25 23 232 56 105 103 103 102 101 19 96 235 104 82 50 94 125 126 93 84 80 79 122 26 119 78 77 75 118 76 120 115 121 128 115 126 135 132 129 130 129 116 108 134 133 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-276-2	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=24	1-33211-338-2	01	1	9001-		●	●	●
1	SHAFT; TOP GEAR,TRANS EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=24	1-33211-390-0	01	1	9001-		●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9001-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9001-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9001-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9001-	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9001-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9001-	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9001-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9001-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9001-	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9101-9503	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9504-9908	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-199-3	01	1	9101-9503		●	●	●
20	SLEEVE	1-33262-097-1	01	1	9001-9204	●	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9205-	●
20	SLEEVE	1-33262-072-1	01	1	9205-		●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9001-9204	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9001-	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9001-	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9001-		●		●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9001-	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9001-	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9001-	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=30	1-33253-358-0	01	1	9001-		●		●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9001-9201	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9202-9203	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9001-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-199-1	01	1	9001-			●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9001-				●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9001-	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9001-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-096-1	01	1	9001-		●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9001-	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9001-	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9001-	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-003-1	01	1	9001-9001	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9001-	●	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9001-	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9001-9302	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-0012	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-097-0	01	1	0101-	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-004-1	01	1	9001-9001	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09800-051-1	01	1	9001-	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09800-110-0	01	1	9001-	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9001-	●	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-355-0	01	1	9001-		●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9001-		●		●
79	BEARING; BALL,MAINSHAFT	1-09800-183-0	01	1	9001-		●		●
80	GEAR; SPD DRIVE Z=5	1-33371-031-1	01	1	9001-	●	●	●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9101-		●		●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9101-	●		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-066-0	01	1	9001-	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-099-0	01	1	9001-	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9001-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9001-9103	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9104-	●		●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9104-		●		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9001-	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-128-1	01	1	9001-			●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-118-1	01	1	9001-		●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9104-		●		●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9104-		●		●
103	KEY; COUNTER GEAR (B) L=45	1-09735-032-0	01	1	9001-	●	●	●	●
103	KEY; COUNTER GEAR (A) L=47	1-09735-034-0	01	1	9001-	●	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33338-178-1	01	1	9001-		●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9001-				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9001-		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9001-9207			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9208-			●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9001-9201	●		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9202-9202	●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-163-0	01	1	9001-9001		●		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9001-		●		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9001-		●		●
116	COLLAR; DIST,COUNTER SHAFT	1-33315-001-0	01	1	9001-		●		●
118	GEAR; 6TH,COUNTER Z=43	1-33338-207-2	01	1	9001-		●		●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9001-9203		●		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●		●
120	SLEEVE	1-33262-071-3	01	1	9001-		●		●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9001-9204		●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-		●		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9001-		●		●
126	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9001-	●		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9001-		●		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9001-		●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9001-	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9001-	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9001-	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9001-	●	●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9001-	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9001-9201	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9202-9203	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-040-1	01	1	9001-9001	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9202-9202	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●	●
232	SPRING; PLUNGER	1-09580-091-1	03	1	9001-	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9001-9103	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9104-	●		●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9001-	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9001-	●	●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9001-9605	●	●	●	●
342	FLANGE; OUTPUT	1-37243-305-0	01	1	9606-	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9001-9412	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
