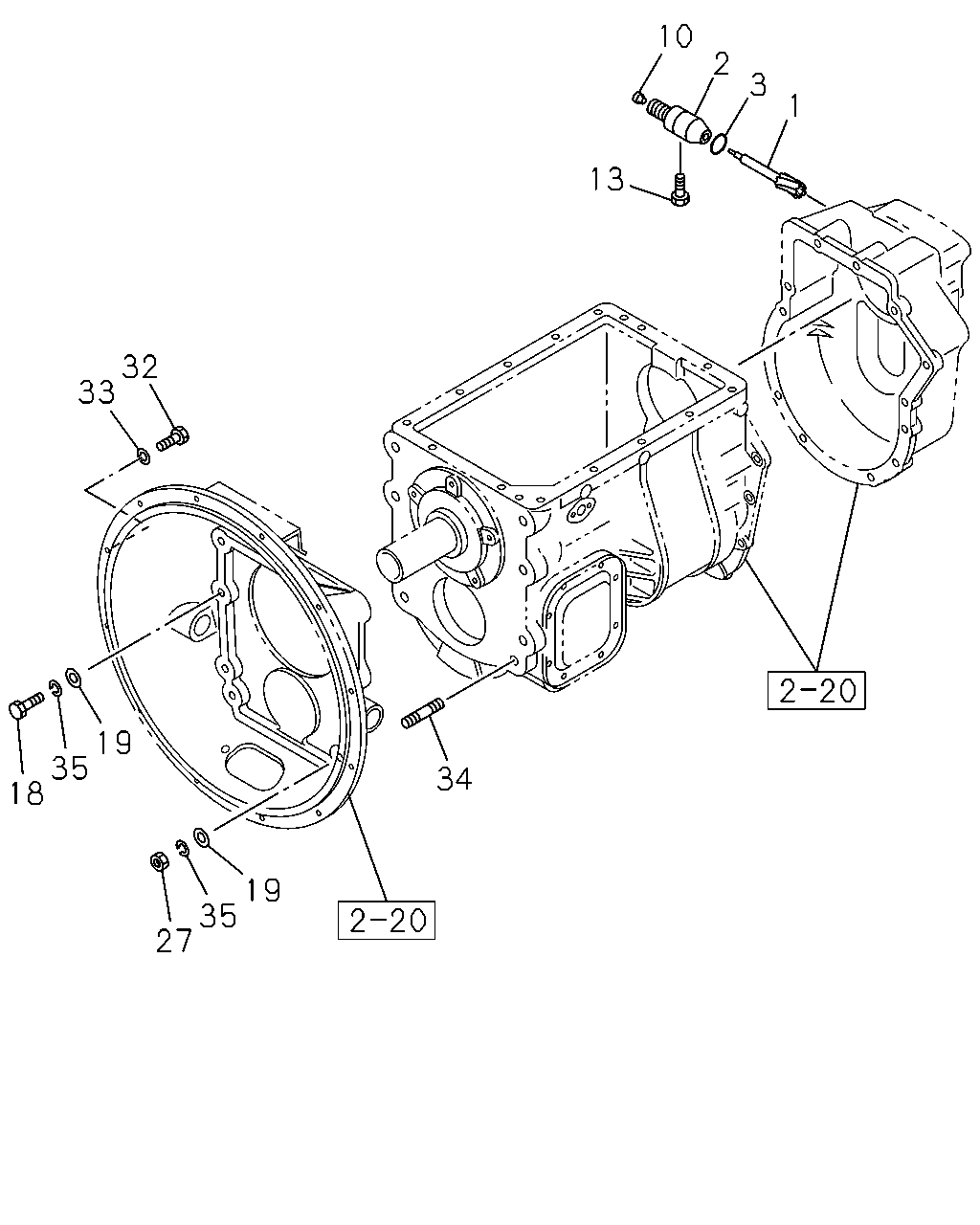

2-25B — SPEEDOMETER DRIVEN GEAR (#2065) — 58 parça

10 2 3 1 13 32 33 19 35 18 34 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD Z=13	1-33372-063-4	01	1	9001-9012	●
1	GEAR; DRIVEN,SPD FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=13	1-33372-139-4	01	1	9308-		●
1	GEAR; DRIVEN,SPD EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=11	1-33372-082-6	01	1	9001-		●
1	GEAR; DRIVEN,SPD LEFT HAND DRIVE(LVR6FB) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=13	1-33372-139-2	01	1	9001-9106		●
1	GEAR; DRIVEN,SPD LEFT HAND DRIVE(LVR6FB) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=13	1-33372-138-4	01	1	9107-		●
1	GEAR; DRIVEN,SPD RIGHT HAND DRIVE(LVR5FB) 6QA1 STD ENG(L24) FINAL GEAR 43/7 16.5"(W3L) Z=20	1-33372-146-2	01	1	9001-9012			●
1	GEAR; DRIVEN,SPD RIGHT HAND DRIVE(LVR5FB) FINAL GEAR 43/7 16.5"(W3L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) Z=20	1-33372-146-4	01	1	9101-			●
1	GEAR; DRIVEN,SPD LEFT HAND DRIVE(LVR6FB) 6RB1 STD ENG(07L) FINAL GEAR 39/9 16.5"(W4Q) Z=14	1-33372-140-2	01	1	9001-9012			●
1	GEAR; DRIVEN,SPD LEFT HAND DRIVE(LVR6FB) FINAL GEAR 39/9 16.5"(W4Q) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=14	1-33372-140-4	01	1	9101-			●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/7 16.5"(W3B) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) RR TIRE 11.00-20<97X> Z=18	1-33372-144-2	01	1	9206-9207				●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/7 16.5"(W3B) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) RR TIRE 11.00-20<97X> Z=18	1-33372-144-4	01	1	9208-		●		●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/8 16.5"(W3A) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=16	1-33372-142-2	01	1	9206-9207				●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/8 16.5"(W3A) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=16	1-33372-142-2	01	1	9208-9401		●		●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/8 16.5"(W3A) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=16	1-33372-142-4	01	1	9402-		●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/8 16.5"(W3P) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=17	1-33372-143-2	01	1	9206-9207				●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/8 16.5"(W3P) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=17	1-33372-143-4	01	1	9208-		●		●	●
1	GEAR; DRIVEN,SPD LEFT HAND DRIVE(LVR6FB) 6QA1 STD ENG(L24) FINAL GEAR 39/7 16.5"(W3B) Z=19	1-33372-145-2	01	1	9001-9012				●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/7 16.5"(W3B) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) Z=19	1-33372-145-2	01	1	9101-9205				●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/7 16.5"(W3B) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) RR TIRE 10.00-20<96X> Z=19	1-33372-145-2	01	1	9206-9207				●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/7 16.5"(W3B) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) RR TIRE 10.00-20<96X> Z=19	1-33372-145-4	01	1	9208-		●		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-056-2	01	1	9001-9309	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9310-		●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9001-	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-09625-113-0	01	1	9001-9003		●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-09625-510-0	01	1	9004-		●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9001-	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50	9-92351-650-0	06	1	9001-9005	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50	0-23801-650-0	06	1	9006-9201	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50	0-23801-650-0	06	1	9202-9203		●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9204-		●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9001-	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9001-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X16,M12X35 L=59	1-09029-031-1	01	1	9001-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X16,M12X35 L=59	1-09029-031-1	01	1	9001-			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X35	9-01931-235-0	11	1	9001-9005		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M12X35	9-01931-235-0	11	1	9001-9005			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X35 W/LK WASHER	0-50051-235-0	11	1	9006-9606		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M12X35 W/LK WASHER	0-50051-235-0	11	1	9006-9606			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X35 FLANGE	0-28781-035-0	11	1	9607-9704		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X35 FLANGE	0-28781-035-0	11	1	9607-9704			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X35 FLANGE	0-28781-235-0	11	1	9705-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M12X35 FLANGE	0-28781-235-0	11	1	9705-			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X32 W/LK WASHER	1-09029-001-1	01	1	9001-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	1-09029-001-1	01	1	9001-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X32 W/LK WASHER	9-01931-032-0	11	1	9001-9002		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	9-01931-032-0	11	1	9001-9002	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X32 W/LK WASHER	0-50051-032-0	11	1	9003-9606		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	0-50051-032-0	11	1	9003-9606	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X30 FLANGE	0-28781-030-0	11	1	9607-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28781-030-0	11	1	9607-	●
33	WASHER; LK,CLU HSG 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=12.2	9-09150-612-0	01	1	9001-		●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	01	1	9001-			●	●	●
33	WASHER; LK,CLU HSG EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2	9-09150-610-0	01	1	9001-		●
33	WASHER; LK,CLU HSG ID=10.2	9-09150-610-0	01	1	9001-	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9001-	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-616-0	08	1	9001-9201	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-616-0	08	1	9202-9203		●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9204-		●	●	●	●
