6-47 — MUD GUARD AND INSULATOR (#20649) — 147 parça

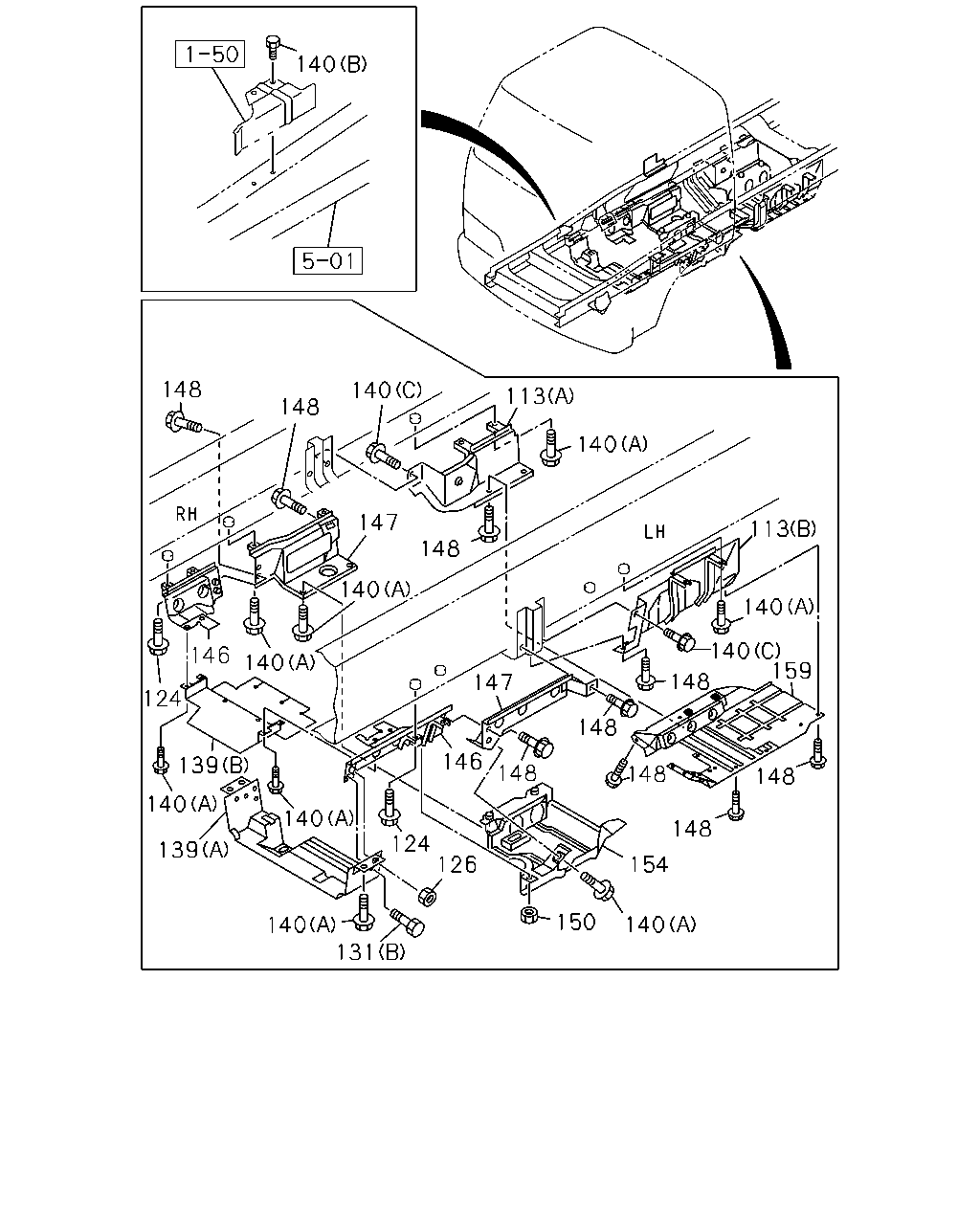

140 148 140 113 148 140 147 113 148 140 140 140 159 146 140 148 147 124 148 146 139 148 148 148 140 140 148 124 126 139 154 150 140 140 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE (A)	1-53192-909-2	01	1	0211-0212
113	PANEL; SIDE (A)	1-53194-388-0	01	1	0301-
113	PANEL; SIDE (B)	1-53192-911-2	01	1	0211-0302
113	PANEL; SIDE (B)	1-53194-390-0	01	1	0303-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0211-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
126	NUT; PANEL M8 FLANGE	0-91150-108-0	01	1	0211-0602
126	NUT; PANEL M8 FLANGE	0-91180-108-0	01	1	0603-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-
131	BOLT; PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0211-
139	PANEL; SIDE (A)	1-53192-591-0	01	1	0211-
139	PANEL; SIDE (B)	1-53192-917-2	01	1	0211-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	09	1	0211-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	09	1	0601-
140	BOLT; SIDE PANEL (C) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 8.5"(B1S) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
146	PANEL; SIDE,UNDER,FRT	1-53192-936-0	01	1	0211-
146	PANEL; SIDE,UNDER,FRT	1-53192-938-0	01	1	0211-
147	PANEL; SIDE,UNDER,RR	1-53192-924-0	01	1	0211-
147	PANEL; SIDE,UNDER,RR	1-53193-043-1	01	1	0211-
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0211-
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	01	1	0211-0602
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	01	1	0603-
154	PANEL; SIDE,UNDER ENG CTR	1-53193-142-0	01	1	0211-
159	PANEL; SIDE,TRANS,CTR	1-53193-116-1	01	1	0211-

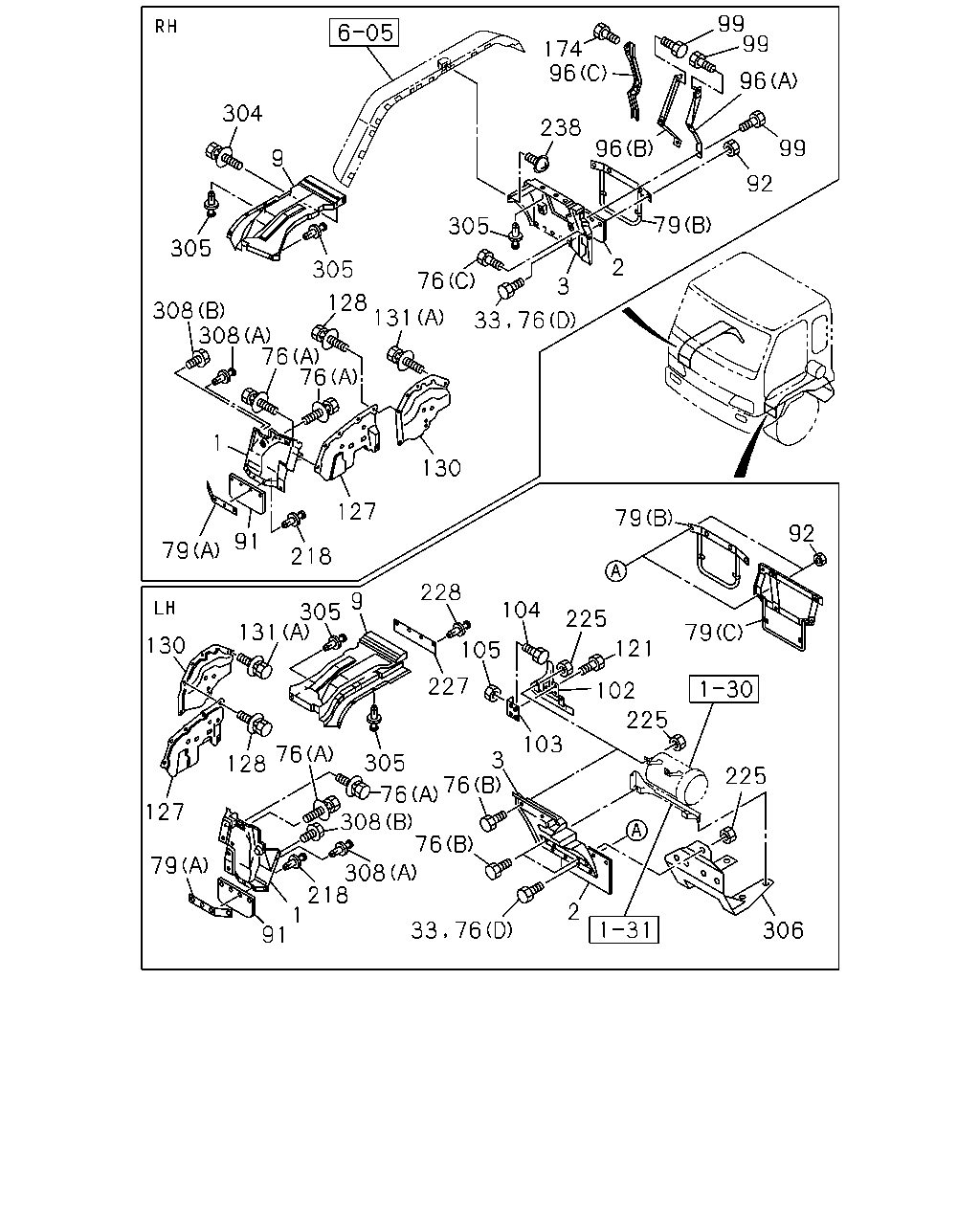

99 99 174 96 96 304 238 99 96 9 92 79 305 305 2 305 76 3 128 131 308 308 76 76 1 130 127 79 92 91 79 218 228 9 104 305 225 131 79 130 121 105 227 102 225 103 76 128 3 76 305 225 76 308 76 127 79 308 218 1 2 306 91 33 76 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9510-
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9510-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79931-117-0	01	1	9510-9511
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79931-228-0	01	1	9512-9601
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79931-255-2	01	1	9602-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79931-175-0	01	1	9510-9511
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79931-222-0	01	1	9512-9606
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79938-973-2	01	1	9607-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-484-1	01	1	9510-9511
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79931-224-0	01	1	9512-9610
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-693-1	01	1	9611-0605
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-693-1	01	1	0607-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-693-0	01	1	9510-9511
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79931-217-0	01	1	9512-9610
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-484-2	01	1	9611-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-826-9	01	1	9510-9605
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-959-1	01	1	9606-9711
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-998-0	01	1	9712-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-827-9	01	1	9510-9607
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-971-1	01	1	9608-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-933-2	01	1	9510-9604
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-961-2	01	1	9605-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-932-4	01	1	9510-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9510-9802
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-1	01	1	9803-0305
9	GUARD; SPLASH,WHEEL HOUSE FRONT FENDER WIDE<SA4>	1-79936-007-2	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9510-9601
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-2	01	1	9602-0305
9	GUARD; SPLASH,WHEEL HOUSE FRONT FENDER WIDE<SA4>	1-79938-955-3	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE EXC. FRONT FENDER WIDE<SA4>	1-79936-043-1	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE EXC. FRONT FENDER WIDE<SA4>	1-79936-041-1	01	1	0306-
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9510-9609
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702
33	BOLT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9510-9702
33	BOLT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9703-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9510-9605
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0805
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9510-
76	BOLT; MUD GUARD FRONT FENDER WIDE<SA4> (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712
76	BOLT; MUD GUARD FRONT FENDER WIDE<SA4> (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9510-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-176-1	01	1	9510-9511
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79938-957-0	01	1	9512-9601
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-253-0	01	1	9602-9611
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (C)	1-79931-278-1	01	1	9612-9711
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (C)	1-79931-304-0	01	1	9712-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79938-956-0	01	1	9512-9601
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-174-1	01	1	9602-9606
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-252-0	01	1	9607-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (B) L=509	1-79930-695-1	01	1	9510-0605
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (B) L=509	1-79930-695-1	01	1	0607-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (B)	1-79930-962-1	01	1	9510-
91	COVER; MUD,FRT	1-79931-043-0	02	1	9510-9511
91	COVER; MUD,FRT	1-79931-214-1	02	1	9512-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9510-9607
92	NUT; MUD COVER FRONT FENDER WIDE<SA4> M6	9-09110-406-0	07	1	9608-9609
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-0602
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-
92	NUT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6	9-09110-406-0	09	1	9608-9609
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9510-9607
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (A)	1-79938-737-0	01	1	9608-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (B)	1-79938-738-0	01	1	9510-9607
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (B)	1-79938-968-2	01	1	9608-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (A)	1-79938-969-1	01	1	9608-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (C)	1-79938-996-0	01	1	9712-
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (B)	1-79938-925-1	01	1	9510-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9510-
102	STAY; LWR,MUD GUARD	1-53497-528-0	01	1	0607-0607
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0607-0607
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0607-0607
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0607-0607
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0607-0607
127	APRON; FRT	1-53192-301-3	01	1	9510-
127	APRON; FRT	1-53193-222-0	01	1	9510-9611
127	APRON; FRT	1-53193-223-1	01	1	9612-
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9510-
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9510-9611
130	PANEL; SHUTTER NOISE	1-53192-308-3	01	1	9612-
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	9510-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-
131	BOLT; PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	0211-
174	BOLT; STAY FIX FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-
218	FASTENER; RUBBER	1-09470-001-0	08	1	9510-
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9510-9612
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-0602
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9510-9601
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9510-
238	SCREW; MUD GUARD FRONT FENDER WIDE<SA4> M6X30	1-65481-387-0	01	1	9510-9705
238	SCREW; MUD GUARD FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-0	07	1	9510-9510
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9510-9710
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9802
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9803-0004
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9510-9802
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9803-0004
305	FASTENER; SPLASH GUARD FRONT FENDER WIDE<SA4> D8X13.5	1-09987-248-1	01	1	0405-
305	FASTENER; SPLASH GUARD EXC. FRONT FENDER WIDE<SA4> D8X13.5	1-09987-248-1	10	1	9510-
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0607-0607
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	04	1	9510-9602
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	02	1	9606-0004
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	02	1	0005-0404
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	04	1	0405-
308	FASTENER; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	04	1	9510-9602
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	02	1	9606-0004
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	02	1	0005-0404
308	FASTENER; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	04	1	9606-
