◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#20646) — 72 parça

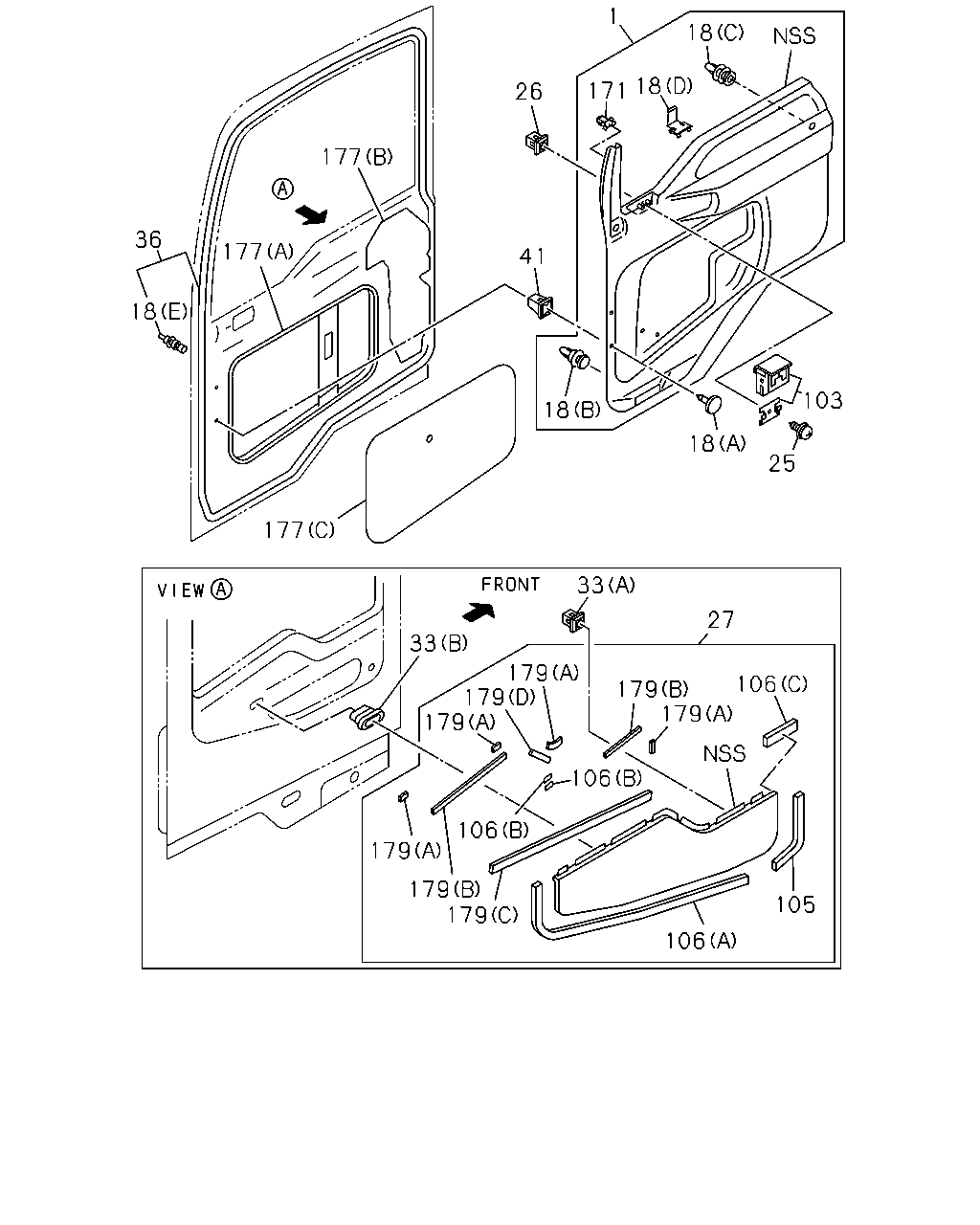

çizim 65171
1 26 177 177 36 18 177 18 41 18 103 25 27 106 179 179 33 106 105 106 179 179 179 33 179 179 179 171 18 106 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9604-0004
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR 1-73337-515-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9604-0004
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR 1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-9603
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-9603
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 0005-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9510-
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9510-1210
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-
103 TRAY ASM; ASH,DOOR 1-76458-070-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-069-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0005-
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512-
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510-9603
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 9604-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-0 01 1 9510-9603
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-4 01 1 9510-9603
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9510-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9510-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9510-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9510-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9510-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9510-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9510-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
