6-05 — FRONT PANEL (#20640) — 273 parça

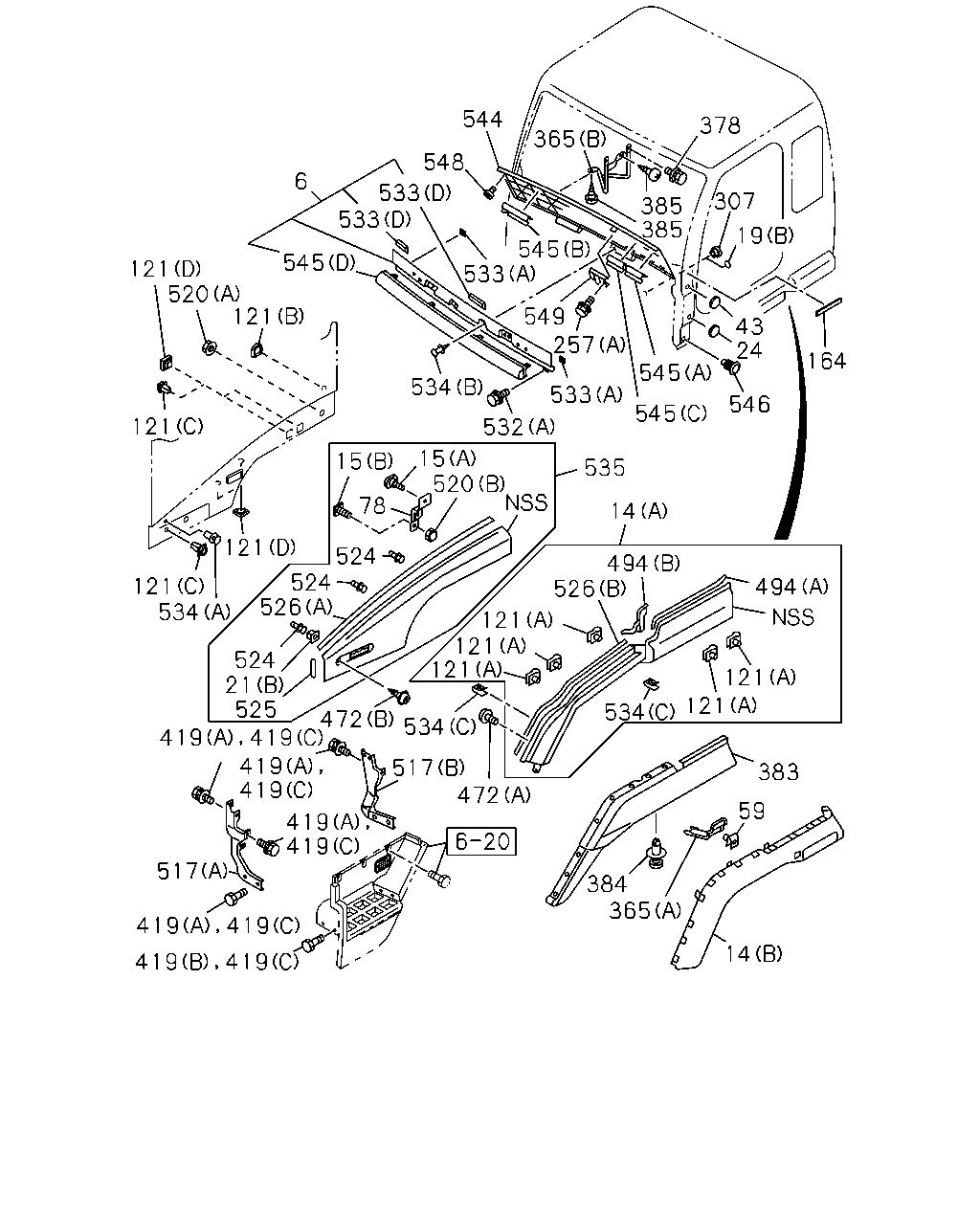

çizim 15761
544 378 365 548 6 533 533 307 385 385 19 545 533 545 121 520 121 549 257 43 24 164 545 534 533 546 545 121 532 15 520 78 15 535 14 121 524 524 526 494 526 121 534 494 121 121 121 24 21 525 472 419 419 121 121 534 534 419 517 472 383 59 419 419 517 384 365 419 14 419 419 419 419
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9510-9807
6 PANEL; FRONT 1-65481-744-2 01 1 9808-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) 		1-71996-149-5 01 1 9510-9703
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-178-1 01 1 9704-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) 		1-71996-148-4 01 1 9510-9703
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-177-1 01 1 9704-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) 		1-65481-638-1 01 1 9510-0209
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) 		1-65481-637-1 01 1 9510-0209
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65481-447-1 01 1 9510-0209
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-023-1 01 1 0210-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65481-446-1 01 1 9510-0209
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-022-1 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9510-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9510-9601
24 SEAL; FRT PANEL LWR
FRONT FENDER WIDE<SA4> DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9602-9603
24 SEAL; FRT PANEL LWR
FRONT FENDER WIDE<SA4> OD=25 BLACK 		1-76798-019-0 06 1 9604-9811
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812-
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> EXC. FRONT FENDER WIDE<SA4> OD=25 BLACK 		1-76798-019-0 04 1 9602-9603
24 SEAL; FRT PANEL LWR
EXC. FRONT FENDER WIDE<SA4> OD=25 BLACK 		1-76798-019-0 04 1 9604-9811
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9510-9603
43 GROMMET; LOCATION HOLE,A-POST
OD=45 T=0.08 BLACK 		8-94291-688-2 02 1 9510-9510
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9510-
59 GROMMET; SCREW
FRONT FENDER WIDE<SA4> 		8-94279-723-0 03 1 9510-9705
59 GROMMET; SCREW
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 9706-
78 BRACKET; FENDER 1-71268-323-0 01 1 9510-
78 BRACKET; FENDER 1-71268-322-0 01 1 9510-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9510-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-9601
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9510-9601
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9510-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9510-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-9603
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9510-9703
365 SUPPORT; FENDER
FRONT FENDER WIDE<SA4> (A) 		1-71996-077-2 01 1 9510-9510
365 SUPPORT; FENDER
FRONT FENDER WIDE<SA4> (A) 		1-71996-076-2 01 1 9510-9510
365 SUPPORT; FENDER
FRONT FENDER WIDE<SA4> (B) 		1-71996-147-1 01 1 9510-
378 BOLT; SUPPORT
FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9510-9511
378 BOLT; SUPPORT
FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9512-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-061-3 01 1 9510-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-062-3 01 1 9510-
384 CLIP; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> D8X13.5 		1-09987-248-1 06 1 9510-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 01 1 9510-9511
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X22 		1-65481-386-0 02 1 9510-9601
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 04 1 9510-9510
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 02 1 9510-9601
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 04 1 9602-
385 SCREW; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 01 1 9809-
419 BOLT; STEP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9510-0009
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9510-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 35 1 9510-9510
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 21 1 9510-9601
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 06 1 9602-9602
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 16 1 9510-9601
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 27 1 9602-9602
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 33 1 9603-9606
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 36 1 9607-9607
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 34 1 9607-9607
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 32 1 9608-9802
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 28 1 9803-9804
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 26 1 9805-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X25 		1-65481-736-0 04 1 9602-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 02 1 9607-9802
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 07 1 9803-9804
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 08 1 9805-
472 SCREW; FENDER TO CAB
EXC. FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 17 1 9510-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9510-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9510-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9510-
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 9510-
517 SUPPORT; STEP PANEL
(B) 		1-71998-782-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9601-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9510-
517 SUPPORT; STEP PANEL
(B) 		1-71998-781-2 01 1 9510-9512
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9601-
520 NUT; FENDER
(B) M6 CAP 		1-09984-031-0 02 1 9510-9510
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9511-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9510-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9510-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9510-0610
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0611-
526 FINISHER; FENDER
(A) 		1-71268-276-1 01 1 9510-0209
526 FINISHER; FENDER
(A) 		1-71268-275-1 01 1 9510-0209
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9510-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9808-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9510-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9510-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9510-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 18 1 9510-9510
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 20 1 9510-0004
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 04 1 0005-0404
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 06 1 0405-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 06 1 9510-9602
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 02 1 9603-9605
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 04 1 9606-0004
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 20 1 0005-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9510-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT 1-71108-073-3 01 1 9510-9703
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9802
544 LID; FRT
CHEV BRAND PACKAGE<PS2> WHITE 		1-71108-118-1 01 1 9803-0004
544 LID; FRT
CHEV BRAND PACKAGE<PS2> FRONT PANEL CARGO FACE<NGD> WHITE 		1-71108-118-1 01 1 0005-
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-228-3 01 1 0005-
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 9803-0004
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2> 		1-71108-235-3 01 1 0005-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> EXC. CHEV BRAND PACKAGE<PS2> MITRAS 		1-71108-116-0 01 1 0007-0411
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9510-9908
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9510-
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9510-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9510-0411
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0412-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9510-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9510-
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9510-0301
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0412-

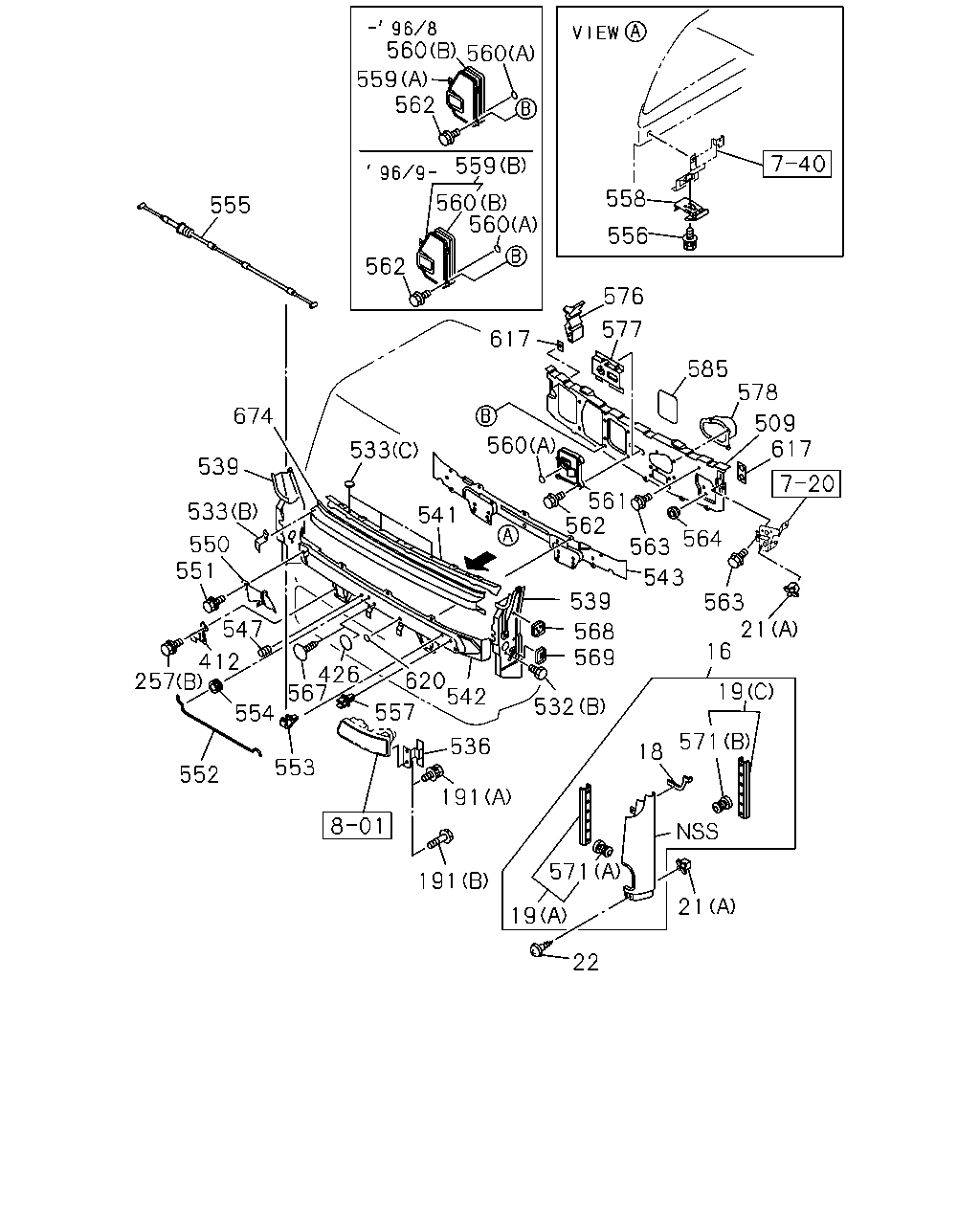

çizim 15894
560 559 562 559 558 560 560 555 556 562 576 577 617 585 578 674 509 617 539 561 562 533 541 564 550 551 563 543 539 563 21 16 547 568 569 412 426 567 620 542 557 19 532 554 571 536 18 553 552 191 571 191 21 19 22 560 560 533 257
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 9510-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 9510-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9510-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9510-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9510-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9510-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9510-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9510-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0708
191 BOLT; HINGE
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709-
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-9603
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9510-0411
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-9603
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-2 01 1 9510-9603
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-2 01 1 9510-9603
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0004
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0005-0010
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0011-0112
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0201-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 9805-0004
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0005-0112
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-2 01 1 9510-9603
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-4 01 1 9604-0010
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-198-4 01 1 0011-
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-2 01 1 9510-9603
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-216-4 01 1 9604-0010
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-216-4 01 1 0011-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9510-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9510-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9510-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9808-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9510-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9510-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9510-
536 HINGE 1-86830-004-5 01 1 0005-
536 HINGE 1-86830-003-5 01 1 0005-
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9510-9603
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9510-9603
539 CLOSING; PILLAR 1-61480-762-1 01 1 9510-
539 CLOSING; PILLAR 1-61480-763-1 01 1 9510-
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9510-
542 RAIL; FRT MOUNTING 1-61480-768-5 01 1 9510-
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9510-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9510-
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 9510-
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 9510-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510-
552 STAY; FRT LID 1-71996-046-2 01 1 9510-0205
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-353-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 9510-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9510-
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9510-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9510-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9510-
558 LEVER; FRT LID 1-79338-003-1 01 1 9510-9601
558 LEVER; FRT LID 8-97865-110-0 01 1 9602-
559 COVER; EVAPOLATOR
(A) 		1-71998-994-1 01 1 9510-9608
559 COVER; EVAPOLATOR
(B) 		1-71996-193-1 01 1 9609-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9510-9608
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9609-
560 SEAL; COVER
(A) OD=25 BLACK 		1-76798-019-0 01 1 9510-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 BLACK 		1-76798-018-0 01 1 9510-9603
560 SEAL; COVER
(A) OD=36 BLACK 		1-76798-018-0 01 1 9604-9806
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0010
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0011-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9510-9603
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9604-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0010
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0011-
561 COVER; HEATER CORE 1-71998-993-2 01 1 9510-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9510-9707
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9510-9707
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9510-
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9510-9510
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9510-9803
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9510-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9510-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9510-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9510-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9510-
576 FRAME; INST SIDE 1-62280-200-2 01 1 9510-
576 FRAME; INST SIDE 1-62280-201-2 01 1 9510-
577 BRACKET; IDLER 1-62280-202-0 01 1 9510-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9510-
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 9510-9603
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-71996-084-1 01 1 9604-0010
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 0011-
617 SEAL; DASH 1-61281-497-1 02 1 9510-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9511-
674 PANEL; UPR 1-61480-677-4 01 1 9510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
