Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

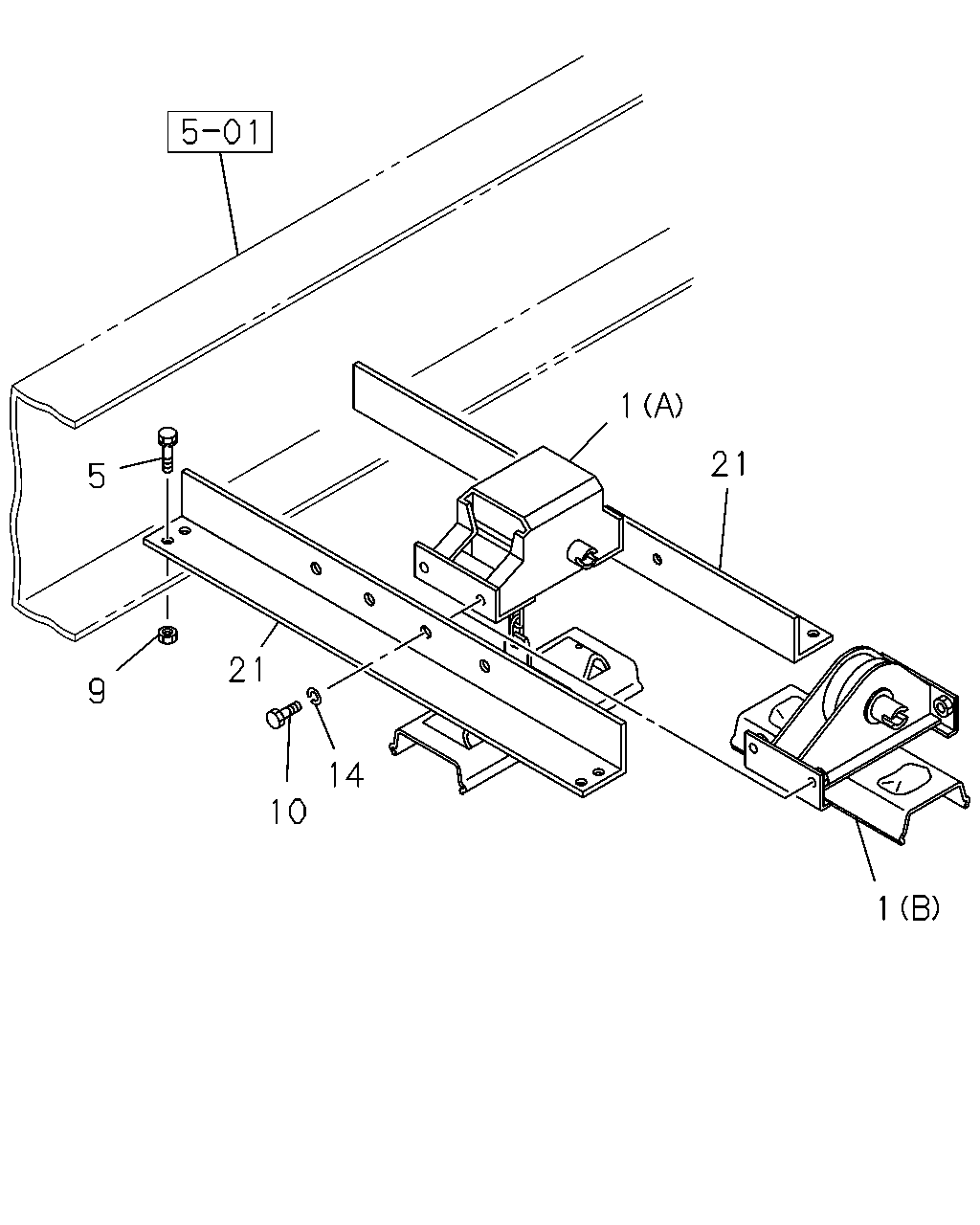

5-30 — SPARE TIRE CARRIER AND COVER
(#20636) — 15 parça
1
21
5
21
9
14
10
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)
1-53630-147-2
01
1
9510-9608
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)
1-53630-208-3
01
1
9609-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28081-025-0
08
1
9510-9606
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28681-030-0
08
1
9607-9608
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28081-025-0
08
1
9609-0512
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE
0-28051-025-0
08
1
0601-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10
9-09110-510-0
08
1
9510-9606
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91150-210-0
08
1
9607-0602
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
0603-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30
0-20801-630-0
04
1
9510-9608
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28681-230-0
04
1
9609-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
0601-
14
WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2
9-09150-516-0
04
1
9510-9608
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-201-0
02
1
9510-9608
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-394-0
02
1
9609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
