5-10 — CAB MOUNTING; FRAME SIDE (#20633) — 159 parça

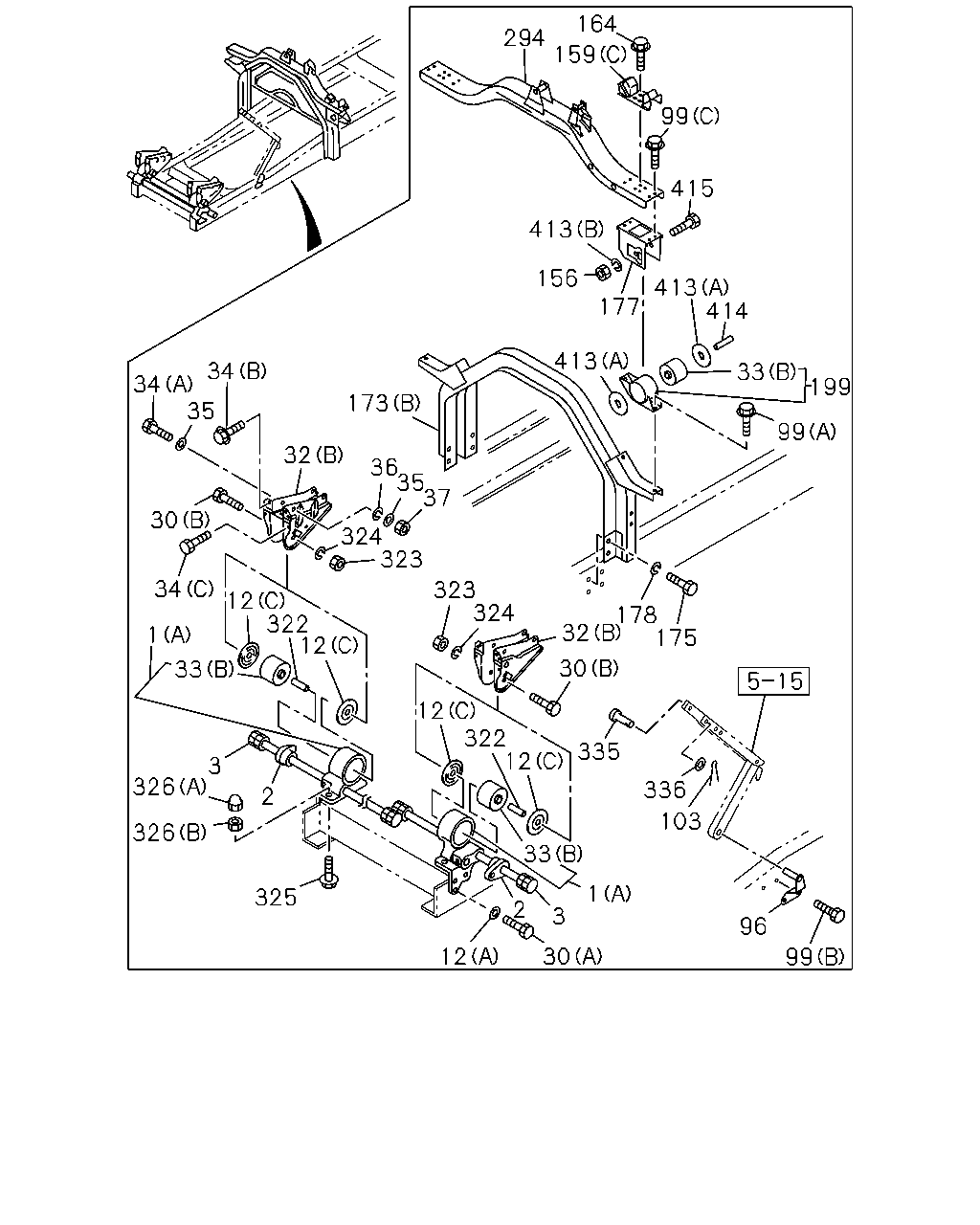

164 294 159 99 415 413 156 413 414 177 413 34 33 34 35 199 173 99 32 36 35 37 30 324 323 34 323 324 12 322 2 178 32 175 1 33 30 12 322 12 335 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-248-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-248-0	01	1	9604-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-247-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-247-0	01	1	9604-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-256-0	01	1	9510-9603
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-255-0	01	1	9510-9603
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-
3	TORSION BAR	1-09585-129-0	01	1	9510-
3	TORSION BAR	1-09585-130-0	01	1	9510-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-9603
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9604-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) ID=23	1-53458-693-0	04	1	9510-9603
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0512
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71> (A)	1-62580-233-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE (A)	1-62580-233-4	01	1	9604-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71> (A)	1-62580-232-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE (A)	1-62580-232-4	01	1	9604-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71> (B)	1-62580-231-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71> (B)	1-62580-230-4	01	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	1-53458-636-1	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-636-1	02	1	9604-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-836-0	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-836-0	02	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0010
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0011-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0011-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-9603
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9510-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9603
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-
156	NUT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9604-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9604-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-9603
164	BOLT; CUSHION RUBBER,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	04	1	9510-9603
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71> (A)	1-53454-618-0	01	1	9510-9603
173	MEMBER; CAB MTG RR (A)	1-53454-618-0	01	1	9604-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53454-597-1	01	1	9510-9603
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0512
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-528-1	01	1	9510-9603
177	BRACKET; MEMBER CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-529-1	01	1	9510-9603
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-526-1	02	1	9510-9603
294	MEMBER; FLOATING CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-530-1	01	1	9510-9603
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9510-9603
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0512
326	NUT; GUIDE NUT (B) M12	0-91110-512-0	02	1	0601-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9510-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9510-
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=23	1-53458-693-0	04	1	9510-9603
413	WASHER; LK,CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=16.2	9-09150-816-0	02	1	9510-9603
414	COLLAR; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9510-9603
415	PIN; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9510-9603

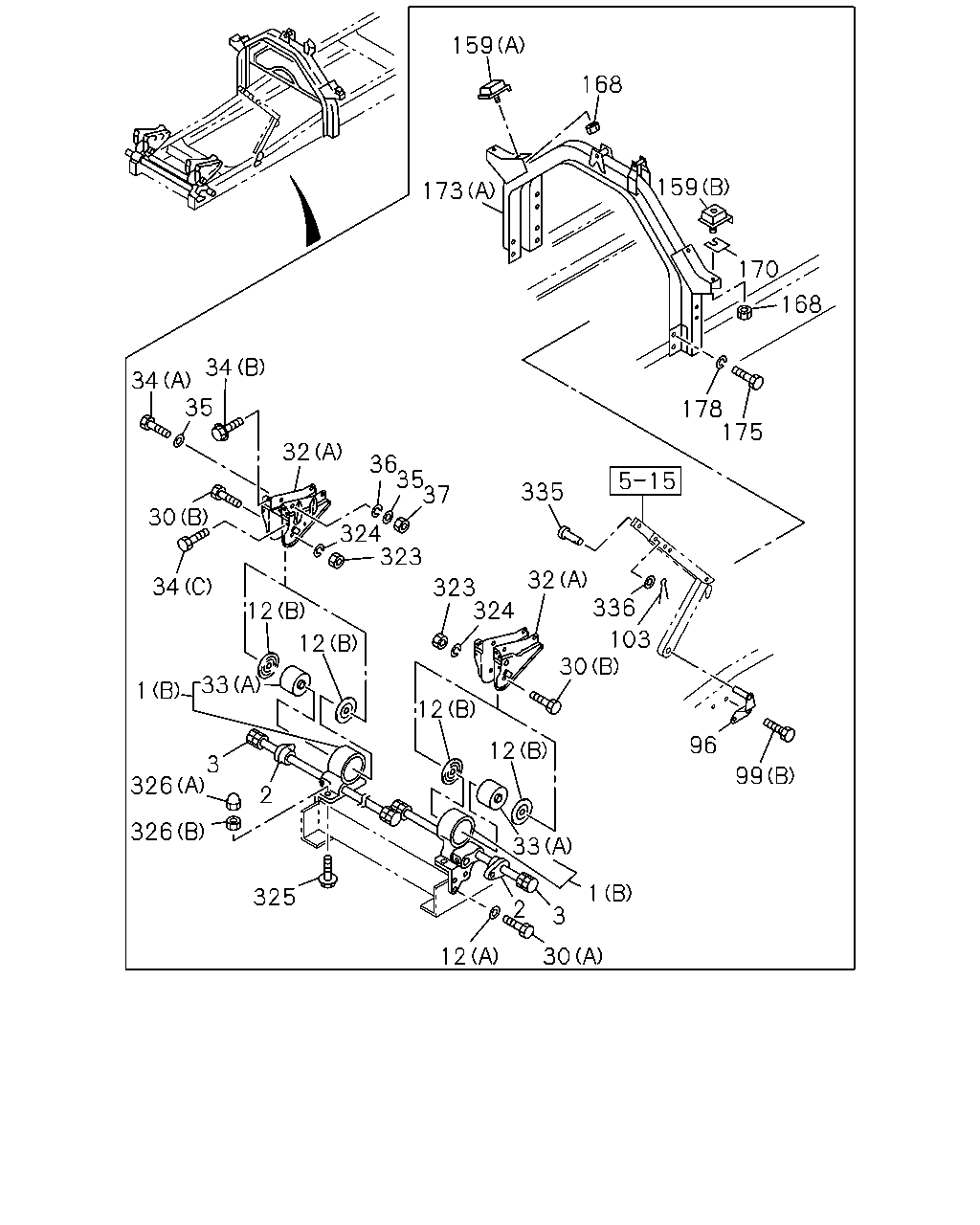

159 168 159 173 170 168 34 34 35 178 175 32 36 35 37 335 30 324 323 32 336 34 323 324 12 103 30 2 33 1 12 12 96 3 99 326 2 326 33 1 325 2 3 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-248-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-248-0	01	1	9604-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53453-247-0	01	1	9510-9603
1	BRACKET; CAB MTG (B)	1-53453-247-0	01	1	9604-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-256-0	01	1	9510-9603
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	1-53453-255-0	01	1	9510-9603
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9510-
3	TORSION BAR	1-09585-129-0	01	1	9510-
3	TORSION BAR	1-09585-130-0	01	1	9510-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9510-1201
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-
12	WASHER; LK,BRKT CAB SUSPENSION RIGID<W71> (B) ID=34.5	1-53458-281-1	04	1	9510-9603
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	9604-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) ID=23	1-53458-693-0	04	1	9510-9603
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9510-
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	9510-0512
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71> (A)	1-62580-233-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE (A)	1-62580-233-4	01	1	9604-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION RIGID<W71> (A)	1-62580-232-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE (A)	1-62580-232-4	01	1	9604-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71> (B)	1-62580-231-4	01	1	9510-9603
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION RIGID<W71> (B)	1-62580-230-4	01	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	1-53458-636-1	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-636-1	02	1	9604-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-836-0	02	1	9510-9603
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-836-0	02	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9510-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9603
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0010
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0011-0904
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0011-0904
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-9603
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9510-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9510-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9510-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9510-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (C) M8X20 FLANGE	0-28080-820-0	08	1	9510-9603
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12X25 FLANGE	0-28081-225-0	04	1	9510-9603
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9510-9606
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9510-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (A)	1-53459-619-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9604-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION RIGID<W71> (B)	1-53459-620-3	02	1	9510-9603
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9604-
159	RUBBER; CUSHION,CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (C)	1-53458-285-0	02	1	9510-9603
168	NUT; CUSHION RUBBER,BODY MTG CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91150-112-0	04	1	9510-9603
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9604-9606
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-212-0	04	1	9607-0602
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	04	1	0603-
170	SHIM; CUSHION RUBBER CAB SUSPENSION RIGID<W71> T=1.6	1-53459-621-0	AR	1	9510-9603
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9604-
173	MEMBER; CAB MTG RR CAB SUSPENSION RIGID<W71> (A)	1-53454-618-0	01	1	9510-9603
173	MEMBER; CAB MTG RR (A)	1-53454-618-0	01	1	9604-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53454-597-1	01	1	9510-9603
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9510-0512
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9510-0603
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9510-0512
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9510-0603
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28081-230-0	02	1	9510-9606
325	BOLT; GUIDE NUT M12X30 FLANGE	0-28681-230-0	02	1	9607-9612
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9510-9612
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9510-0512
326	NUT; GUIDE NUT (B) M12	0-91110-512-0	02	1	0601-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9510-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9510-
