◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#20632) — 90 parça

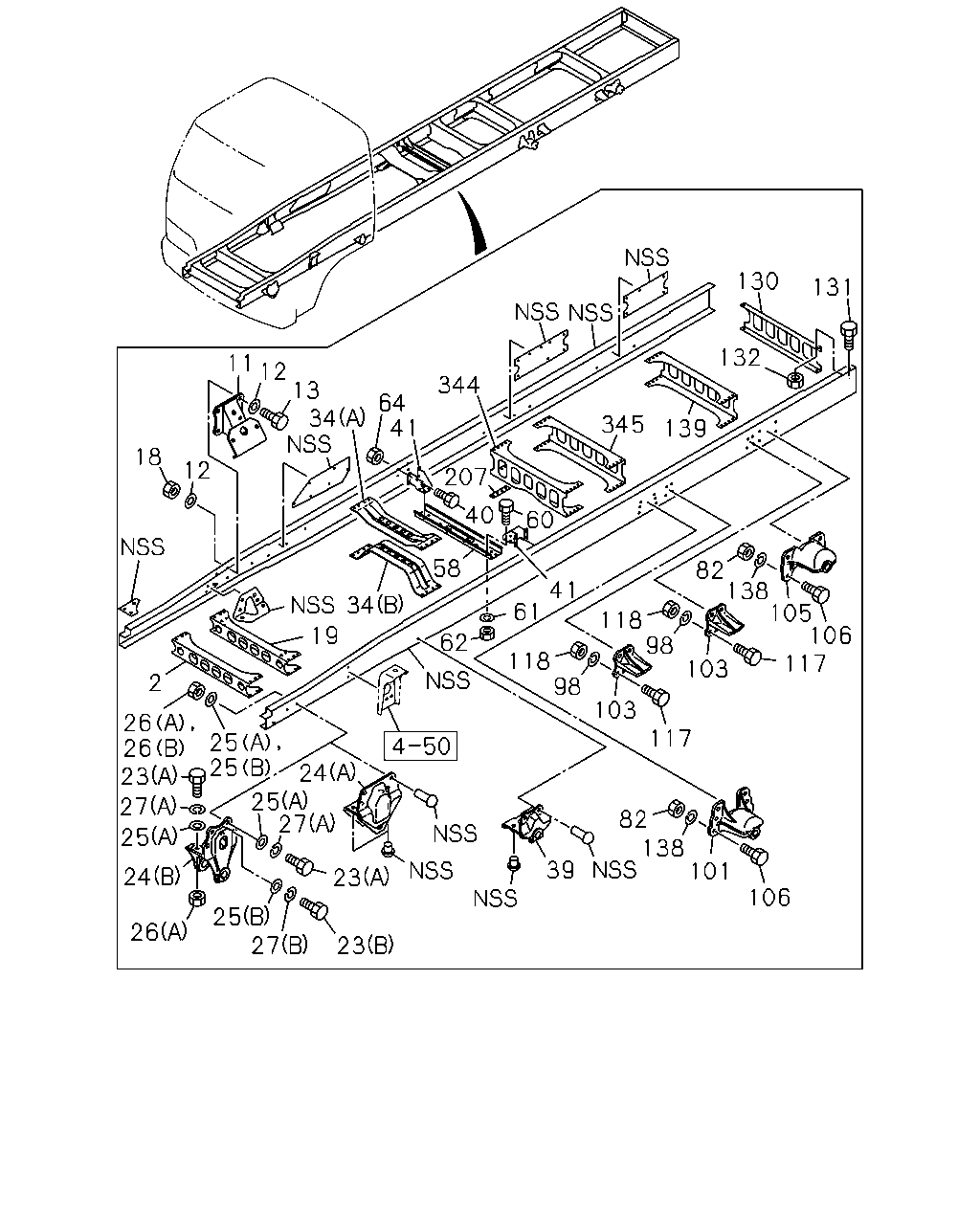

çizim 15764
130 131 132 11 12 13 34 344 64 41 345 139 18 12 40 60 58 82 138 105 106 117 41 34 61 118 98 19 62 118 98 103 2 103 25 25 26 26 23 117 24 25 27 27 82 138 101 2 39 24 23 106 25 27 26 23 207
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 9510-0407 ● ● ●
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0408- ● ● ●
11 BRACKET; ENG MTG 1-53211-197-0 02 1 9510- ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 		9-92061-240-0 08 1 9510-9802 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28691-240-0 08 1 9803-0512 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0601- ● ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0602 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT AXLE F049(FS4) 		1-53181-716-7 01 1 9510-0004 ● ● ●
19 MEMBER; CROSS,2ND 1-53181-716-8 01 1 0005- ● ● ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-4 01 1 9706-9802 ●
19 MEMBER; CROSS,2ND
FRONT AXLE F049(FS4) 		1-53181-661-7 01 1 9803-0004 ● ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X60 		9-91066-460-0 08 1 9706-9802 ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14X50 		9-91066-450-0 08 1 9803-0004 ● ● ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 9706-9802 ●
23 BOLT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16X60 		9-91066-660-0 04 1 9803-0004 ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. FRONT AXLE F049(FS4) (A) 		1-53351-166-0 02 1 9510-0004 ● ● ●
24 BRACKET; FRT SPR,FRT
(A) 		1-53351-166-0 02 1 0005- ● ● ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-5 02 1 9706-9802 ●
24 BRACKET; FRT SPR,FRT
FRONT AXLE F049(FS4) (B) 		1-53351-115-5 02 1 9803-0004 ● ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 9706-9802 ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (A) ID=16.2 		1-09503-223-0 08 1 9803-0004 ● ● ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 9706-9802 ●
25 WASHER; PL,BRKT
FRONT AXLE F049(FS4) (B) ID=15 		9-09651-069-0 16 1 9803-0004 ● ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 9706-9802 ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (A) M14 		9-99110-514-0 08 1 9803-0004 ● ● ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 9706-9802 ●
26 NUT; BRKT,SPR
FRONT AXLE F049(FS4) (B) M16 		9-99110-516-0 04 1 9803-0004 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
FRONT AXLE F049(FS4) (A) ID=14.2 		9-09150-614-0 08 1 9706-9802 ●
27 WASHER; LK,BRKT,FRT SPR
FRONT AXLE F049(FS4) (B) ID=16.2 		9-09150-616-0 04 1 9706-9802 ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 9510- ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 9510- ● ● ●
39 BRACKET; FRT SPR,RR
EXC. FRONT AXLE F049(FS4) 		1-53352-154-1 02 1 9510-0004 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0005- ● ● ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 9706-9802 ●
39 BRACKET; FRT SPR,RR
FRONT AXLE F049(FS4) 		1-53352-052-1 02 1 9803-0004 ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 08 1 9803-0512 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9510- ●
58 MEMBER; CENTER BRG 1-37529-076-0 01 1 9510- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9803-0512 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9803-0602 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 9510-0512 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0601- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-0603 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 9510- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 9510- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 9510- ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 22 1 9510-9802 ● ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 9803-0512 ● ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0601- ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510- ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9510-0512 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 9510- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9510-9802 ● ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28681-030-0 04 1 9803-0512 ● ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ●
132 NUT; END C/MBR
M10 		9-09110-410-0 04 1 9510-9802 ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 9510-0603 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0604- ● ● ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 9510- ● ● ●
207 SPACER; 4TH C/MBR
EXC. FRONT AXLE F049(FS4) T=7.0 		1-53168-321-0 02 1 9510-9705 ● ●
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 9706-9802 ● ●
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 9803-0004 ● ●
207 SPACER; 4TH C/MBR
EXC. FRONT AXLE F049(FS4) T=7.0 		1-53168-321-0 02 1 0005- ● ●
207 SPACER; 4TH C/MBR
EXC. FRONT AXLE F049(FS4) T=4.5 		1-53168-357-0 02 1 9510-9705 ● ●
207 SPACER; 4TH C/MBR
T=4.5 		1-53168-357-0 02 1 9706-9802 ● ●
207 SPACER; 4TH C/MBR
T=4.5 		1-53168-357-0 02 1 9803-0004 ● ●
207 SPACER; 4TH C/MBR
EXC. FRONT AXLE F049(FS4) T=4.5 		1-53168-357-0 02 1 0005- ● ●
344 MEMBER; CROSS,4TH 1-53181-465-9 01 1 9510- ●
344 MEMBER; CROSS,4TH
EXC. FRONT AXLE F049(FS4) 		1-53181-604-0 01 1 9510-9705 ● ●
344 MEMBER; CROSS,4TH 1-53181-604-0 01 1 9706-9802 ● ●
344 MEMBER; CROSS,4TH 1-53181-604-1 01 1 9803-0004 ● ●
344 MEMBER; CROSS,4TH
EXC. FRONT AXLE F049(FS4) 		1-53181-604-3 01 1 0005- ● ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 9510- ● ● ●
