4-50 — FRONT SUSPENSION (#20627) — 141 parça

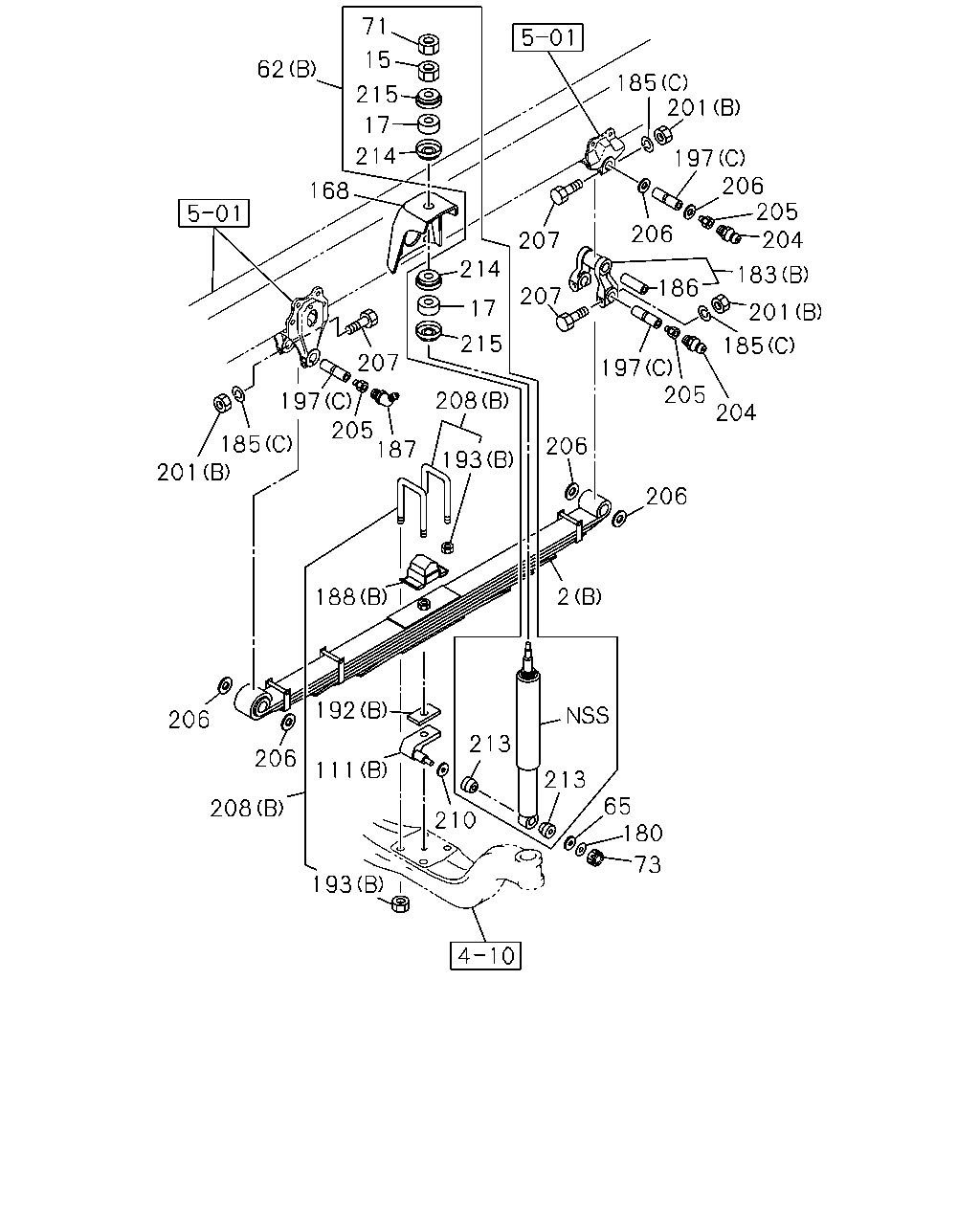

62 201 185 197 187 208 205 193 215 214 207 197 186 183 185 204 205 206 2 206 204 201 205 206 197 201 185 207 207 92 188 206 206 208 193 111 210 213 213 65 180 73 71 215 15 17 168 214 17 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> (B)	1-51130-341-0	02	1	9510-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51130-433-1	02	1	9510-
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9510-0910
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	9510-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B)	1-51630-180-4	02	1	9510-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51630-302-1	02	1	9510-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) BEST VALUE PARTS	1-87610-153-0	02	1	9510-0004
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9510-
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9510-0910
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	9510-9702
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	9703-0206
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-721-1	01	1	9510-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-720-1	01	1	9510-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-642-2	01	1	9510-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-641-2	01	1	9510-
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	9510-
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9510-0605
180	WASHER; PL,PIN ID=17 OD=30	0-91610-516-0	02	1	0606-
183	SHACKLE; FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51162-029-5	02	1	9510-
183	SHACKLE; FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51162-037-0	02	1	9510-
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2	9-09150-612-0	12	1	9510-0603
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	1-09503-011-0	04	1	9510-0910
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	8-98010-404-0	04	1	0911-
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (B) ID=23	1-51169-003-0	02	1	9510-0910
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (B) ID=23	8-98010-411-0	02	1	0911-
186	BUSHING; SHACKLE FRONT SPRING HEAVY DUTY<F60> OD=38	1-51351-009-0	02	1	9510-0902
186	BUSHING; SHACKLE FRONT SPRING HEAVY DUTY<F60> OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9510-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> (B)	1-51172-085-2	02	1	9510-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-107-0	02	1	9510-0004
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-112-0	02	1	0005-
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	9-09112-822-0	08	1	9510-0512
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	1-09440-028-1	08	1	9510-0503
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	8-94107-767-0	08	1	0504-0706
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	8-97360-121-0	08	1	0707-
197	PIN; FRT SPR,FRT FRONT SPRING HEAVY DUTY<F60> (C)	1-51161-031-0	06	1	9510-
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51161-004-3	02	1	9510-0911
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	8-98060-335-0	02	1	0912-
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (B)	1-51161-005-3	04	1	9510-0911
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (B)	8-98060-333-0	04	1	0912-
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	9-99110-512-0	12	1	9510-0512
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	0-91110-512-0	12	1	0601-
201	NUT; PIN LK EXC. FRONT SPRING HEAVY DUTY<F60> (A) M22	9-09111-522-0	06	1	9510-0512
201	NUT; PIN LK EXC. FRONT SPRING HEAVY DUTY<F60> (A) M22	0-91111-522-0	06	1	0601-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
205	ATTACHMENT; GREASE NIPPLE FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	06	1	9510-
205	ATTACHMENT; GREASE NIPPLE EXC. FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	04	1	9510-
206	WASHER; LK,SPRING PIN FRONT SPRING HEAVY DUTY<F60> ID=32.4	1-51169-018-0	12	1	9510-
207	BOLT; SPR TO SHACKLE FRONT SPRING HEAVY DUTY<F60> M12X80	0-10806-280-0	12	1	9510-0512
207	BOLT; SPR TO SHACKLE FRONT SPRING HEAVY DUTY<F60> M12X80	0-10856-280-0	12	1	0601-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-0	08	1	9510-9510
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-2	04	1	9510-
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-350-0	04	1	9510-0004
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-407-0	04	1	0005-0503
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-447-0	04	1	0504-0706
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-483-0	04	1	0707-
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9510-
213	BUSHING; RUBBER,LWR	1-51631-009-1	04	1	9510-
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	9510-
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	9510-

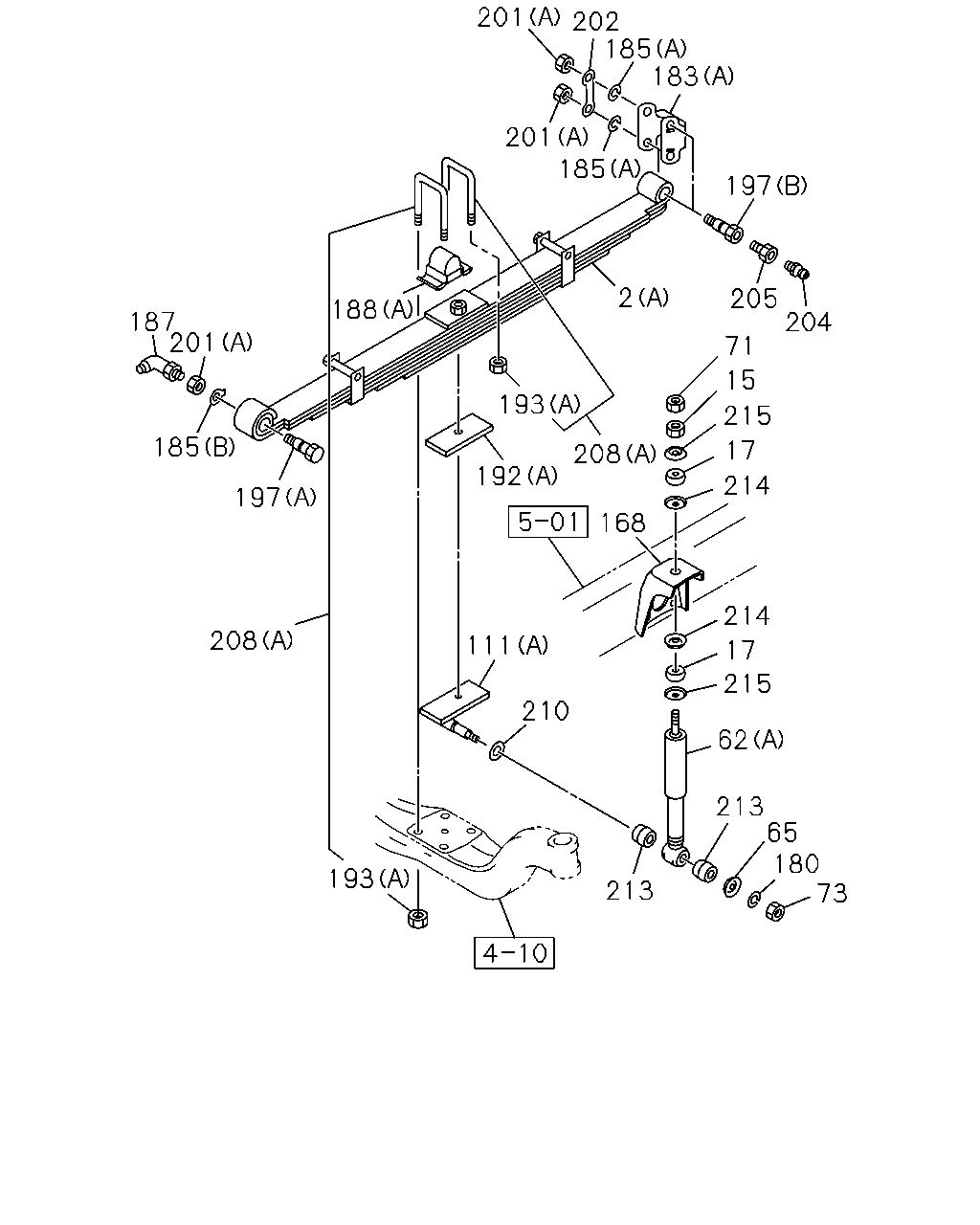

201 202 185 183 201 185 197 2 205 204 188 187 201 71 15 193 215 185 17 208 192 214 197 168 214 208 111 17 215 210 62 213 65 180 73 193 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> (B)	1-51130-341-0	02	1	9510-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51130-433-1	02	1	9510-
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9510-0910
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	9510-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B)	1-51630-180-4	02	1	9510-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51630-302-1	02	1	9510-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) BEST VALUE PARTS	1-87610-153-0	02	1	9510-0004
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9510-
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9510-0910
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	9510-9702
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	9703-0206
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-721-1	01	1	9510-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-720-1	01	1	9510-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-642-2	01	1	9510-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-641-2	01	1	9510-
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	9510-
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9510-0605
180	WASHER; PL,PIN ID=17 OD=30	0-91610-516-0	02	1	0606-
183	SHACKLE; FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51162-029-5	02	1	9510-
183	SHACKLE; FRT SUSP EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51162-037-0	02	1	9510-
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2	9-09150-612-0	12	1	9510-0603
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	1-09503-011-0	04	1	9510-0910
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	8-98010-404-0	04	1	0911-
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (B) ID=23	1-51169-003-0	02	1	9510-0910
185	WASHER; LK,PIN EXC. FRONT SPRING HEAVY DUTY<F60> (B) ID=23	8-98010-411-0	02	1	0911-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9510-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> (B)	1-51172-085-2	02	1	9510-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-107-0	02	1	9510-0004
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-112-0	02	1	0005-
192	PIECE; DIST FRONT SPRING HEAVY DUTY<F60> (B) 80X144 ID=17.5	1-51177-284-1	01	1	9510-
192	PIECE; DIST EXC. FRONT SPRING HEAVY DUTY<F60> (A) T=4.5	1-51177-149-0	01	1	9510-
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	9-09112-822-0	08	1	9510-0512
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	1-09440-028-1	08	1	9510-0503
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	8-94107-767-0	08	1	0504-0706
193	NUT; U BOLT EXC. FRONT SPRING HEAVY DUTY<F60> (A) M16	8-97360-121-0	08	1	0707-
197	PIN; FRT SPR,FRT FRONT SPRING HEAVY DUTY<F60> (C)	1-51161-031-0	06	1	9510-
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	1-51161-004-3	02	1	9510-0911
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (A)	8-98060-335-0	02	1	0912-
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (B)	1-51161-005-3	04	1	9510-0911
197	PIN; FRT SPR,FRT EXC. FRONT SPRING HEAVY DUTY<F60> (B)	8-98060-333-0	04	1	0912-
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	9-99110-512-0	12	1	9510-0512
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	0-91110-512-0	12	1	0601-
201	NUT; PIN LK EXC. FRONT SPRING HEAVY DUTY<F60> (A) M22	9-09111-522-0	06	1	9510-0512
201	NUT; PIN LK EXC. FRONT SPRING HEAVY DUTY<F60> (A) M22	0-91111-522-0	06	1	0601-
202	PLATE; LK,SPR PIN EXC. FRONT SPRING HEAVY DUTY<F60>	1-51169-016-0	02	1	9510-0910
202	PLATE; LK,SPR PIN EXC. FRONT SPRING HEAVY DUTY<F60>	8-98010-648-0	02	1	0911-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
205	ATTACHMENT; GREASE NIPPLE FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	06	1	9510-
205	ATTACHMENT; GREASE NIPPLE EXC. FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	04	1	9510-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-0	08	1	9510-9510
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-2	04	1	9510-
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-350-0	04	1	9510-0004
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-407-0	04	1	0005-0503
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-447-0	04	1	0504-0706
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> (A) L=165	1-87870-483-0	04	1	0707-
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9510-
213	BUSHING; RUBBER,LWR	1-51631-009-1	04	1	9510-
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	9510-
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	9510-
