Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

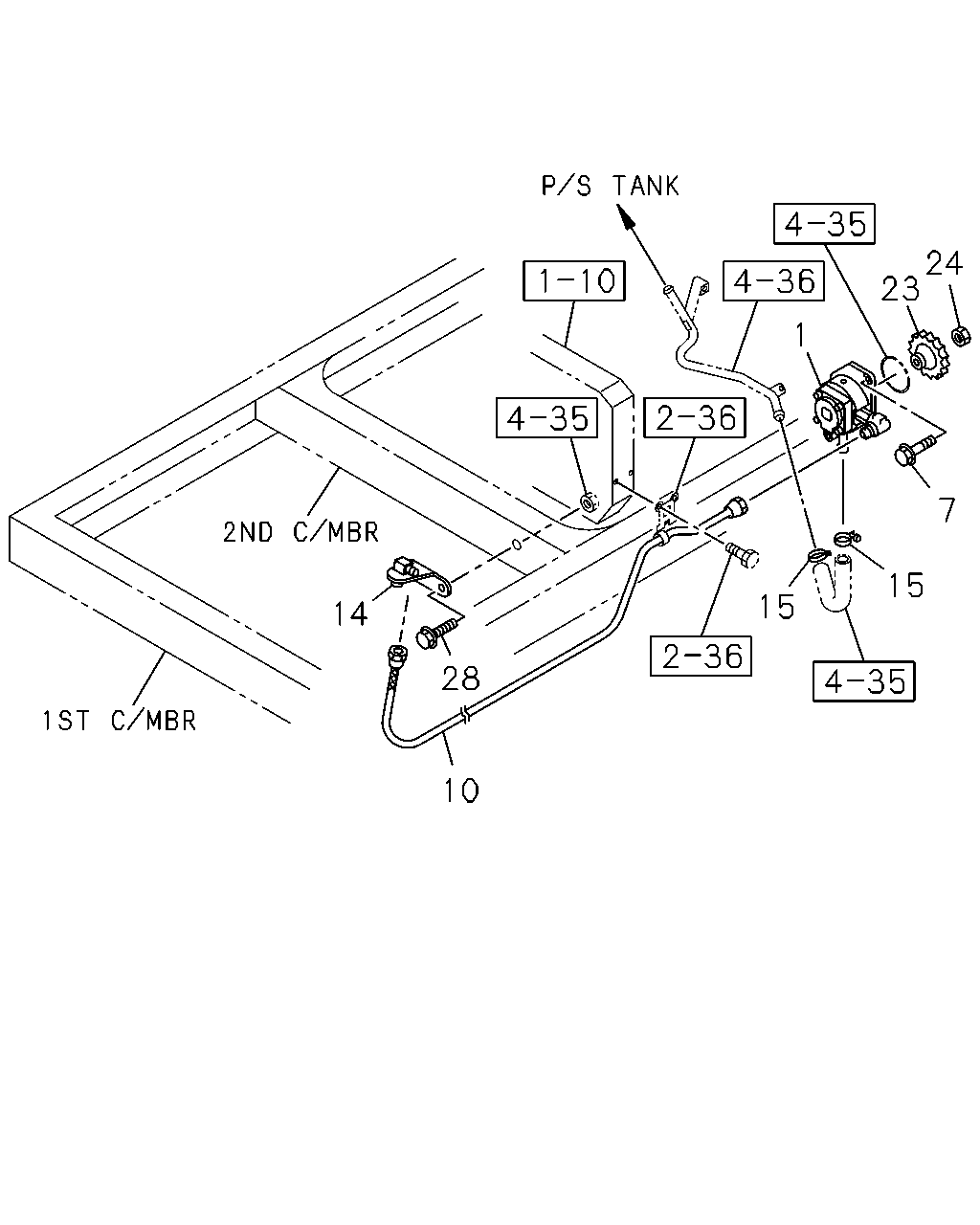

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#20624) — 18 parça
24
23
1
7
15
15
14
28
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-465-0
01
1
9510-0202
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-589-1
01
1
0203-1112
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
8-98202-666-0
01
1
1201-
7
BOLT; OIL PUMP,P/S
M10X55 FLANGE
8-94399-863-1
02
1
9510-0805
7
BOLT; OIL PUMP,P/S
M10X55 FLANGE
8-97365-449-0
02
1
0806-
10
HOSE; FLEX,P/S OIL PUMP,INL
L=810
1-09364-808-2
01
1
9510-9802
10
HOSE; FLEX,P/S OIL PUMP,INL
L=820
1-09364-931-0
01
1
9803-0004
10
HOSE; FLEX,P/S OIL PUMP,INL
L=820
1-09365-128-0
01
1
0005-
14
UNION; FLEX HOSE,P/S
1-47470-394-3
01
1
9510-
15
CLIP; OIL PIPE SUCTION
ID=32
1-09704-085-0
02
1
9510-
23
GEAR; OIL PUMP
Z=30
8-94396-957-3
01
1
9510-
24
NUT; GEAR,P/S PUMP
M14 FLANGE
0-91150-114-0
01
1
9510-0712
24
NUT; GEAR,P/S PUMP
M14 FLANGE
0-91180-114-0
01
1
0801-
28
BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
28
BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE
0-28680-825-0
02
1
9607-9801
28
BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE
0-28680-820-0
02
1
9802-0512
28
BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE
0-28650-820-0
02
1
0601-
28
BOLT; BRKT,FLEX HOSE,P/S
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
9510-0012
