4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#20623) — 79 parça

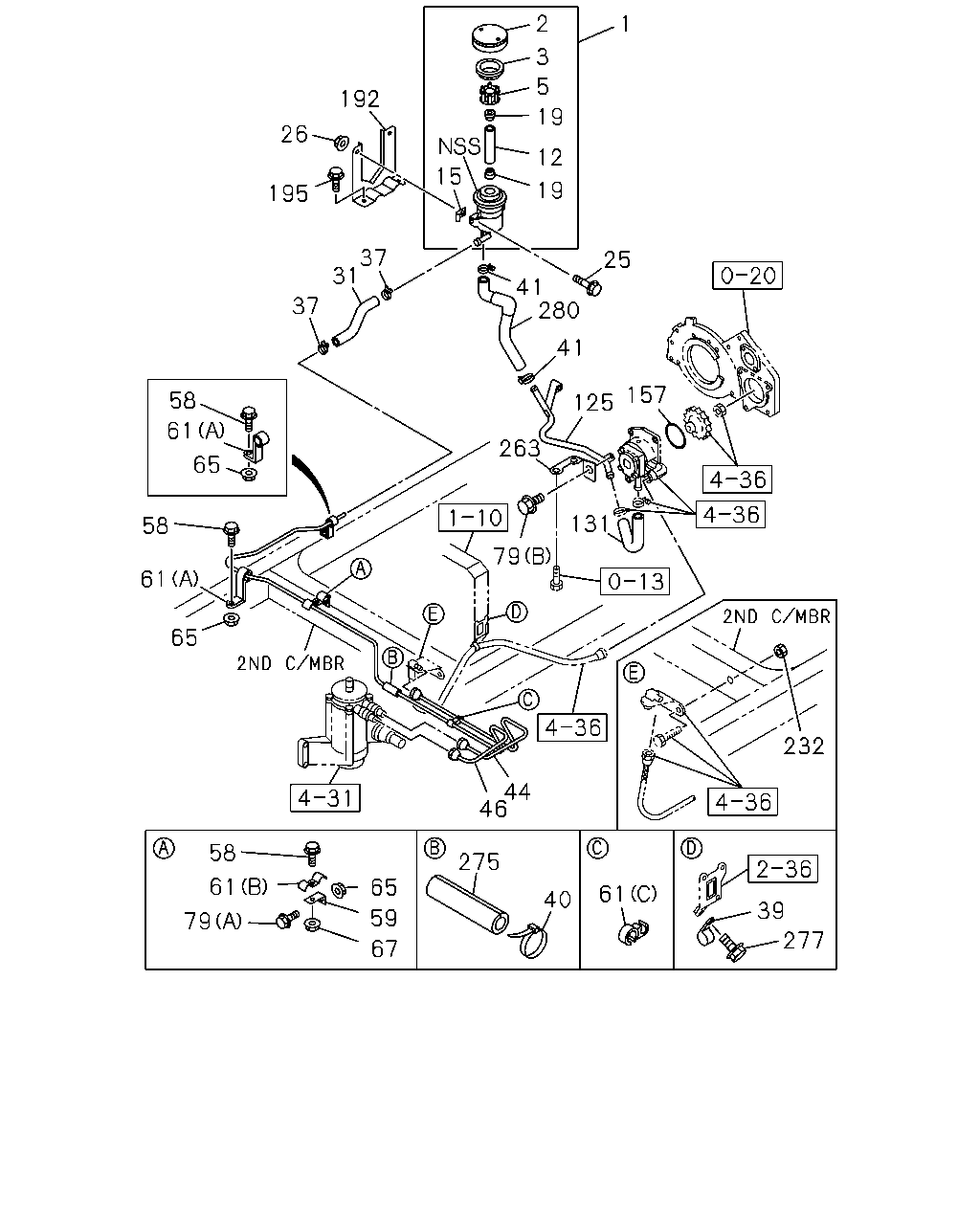

çizim 16830
2 1 3 5 192 19 26 12 15 19 195 37 31 25 41 280 37 41 157 58 125 61 263 65 131 58 61 65 232 44 46 58 275 61 65 61 40 39 59 79 277 67 79
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9510-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9510-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9510-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9510-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9510-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9510-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9510-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9510-9606
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9510-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9510-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9510-
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 9901-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9510-
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21115-428-0 01 1 9510-9901
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21116-342-0 01 1 9902-
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21115-426-0 01 1 9510-9901
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21116-341-0 01 1 9902-
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21115-429-0 01 1 9510-9712
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-022-0 01 1 9801-9802
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-026-1 01 1 9803-9809
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-206-0 01 1 9810-
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21115-427-0 01 1 9510-9712
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-021-0 01 1 9801-9802
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-025-1 01 1 9803-9809
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-205-0 01 1 9810-
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-9802
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 9803-0512
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
58 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9510-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9510-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9510-
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9510-
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9510-9606
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
67 NUT; BRKT
M8 		9-09110-408-0 01 1 9510-9606
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0602
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
(B) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512
79 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
79 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0512
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
125 CONNECTOR; P/S PUMP 8-94394-319-0 01 1 9510-9605
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9606-9901
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9902-0210
125 CONNECTOR; P/S PUMP
EXC. HEATER & DEFROSTER(C41) 		8-97600-113-0 01 1 0211-0212
125 CONNECTOR; P/S PUMP
HEATER & DEFROSTER(C41) 		8-97600-115-0 01 1 0211-0212
125 CONNECTOR; P/S PUMP 8-97600-115-0 01 1 0301-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9510-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9510-
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9607-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601-
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9510-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-
275 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9901-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9510-0004
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-
