1 |
ARM; PITMAN,STRG

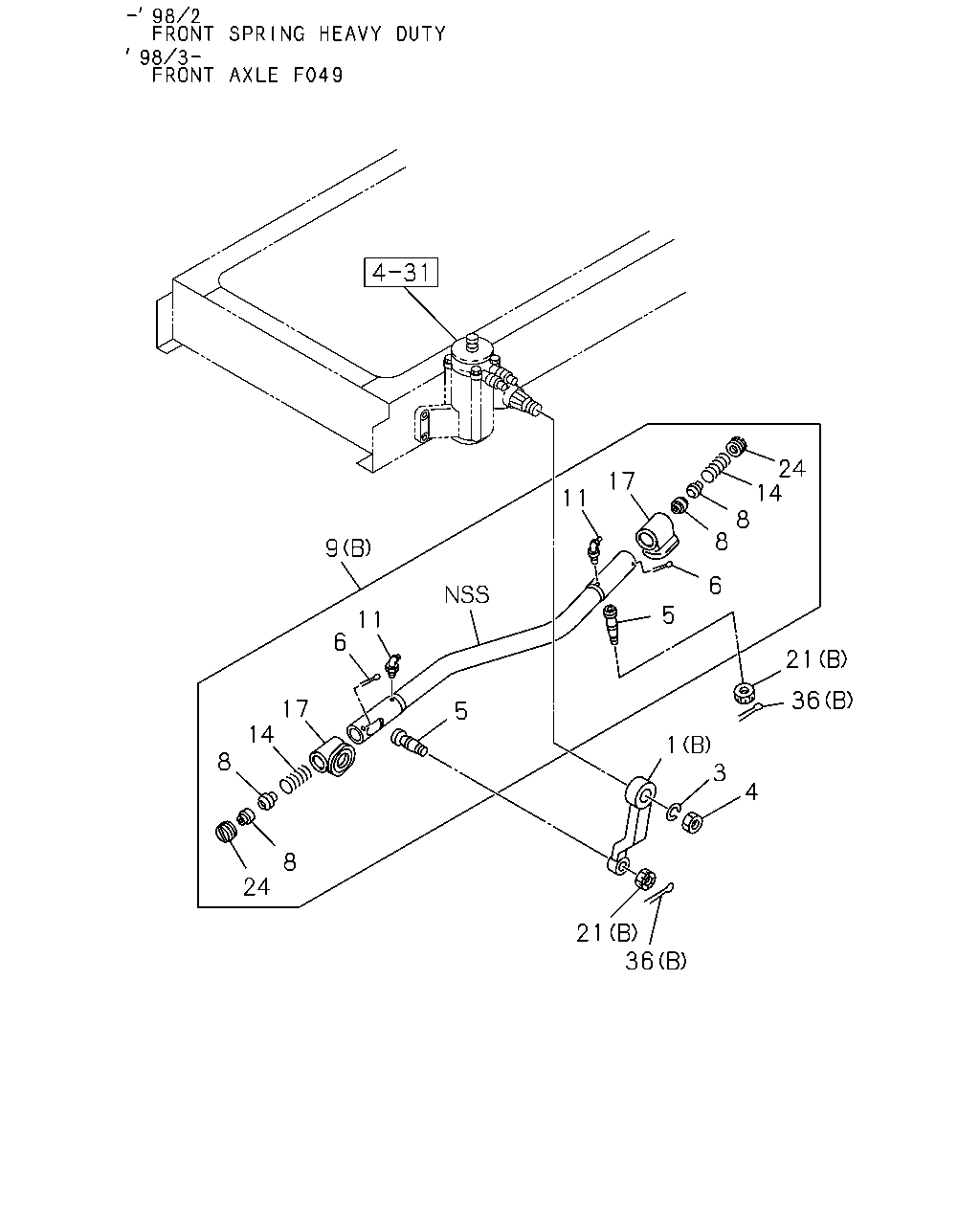

FRONT SPRING HEAVY DUTY<F60>
(B)
|
1-44341-310-2 |
01 |
1 |
9510-9802 |
| |
1 |
ARM; PITMAN,STRG
FRONT AXLE F049(FS4)
(B)
|
1-44341-310-3 |
01 |
1 |
9803- |
| |
1 |
ARM; PITMAN,STRG

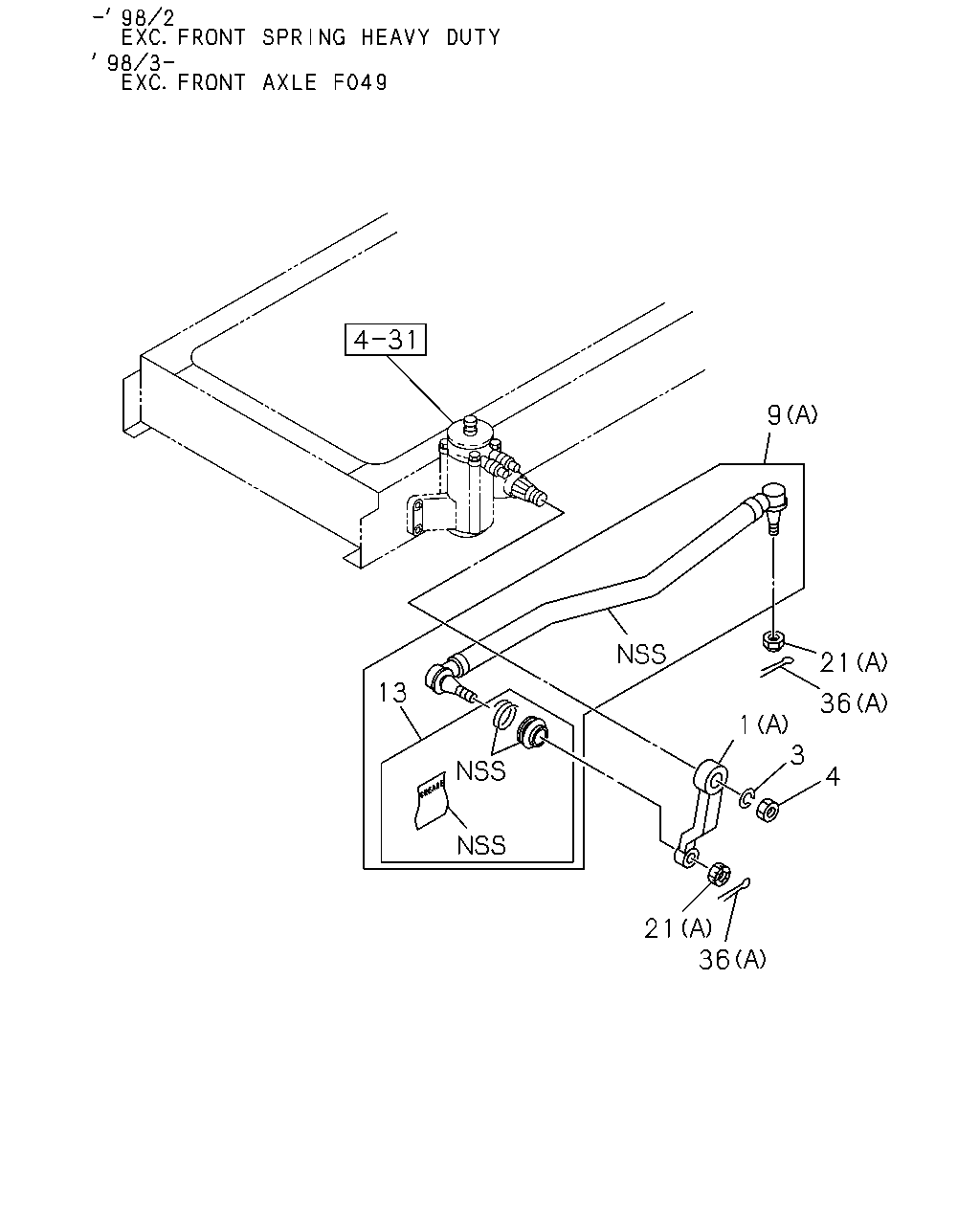

EXC. FRONT SPRING HEAVY DUTY<F60>
(A)
|
1-44341-447-0 |
01 |
1 |
9510-9802 |
| |
1 |
ARM; PITMAN,STRG
EXC. FRONT AXLE F049(FS4)
(A)
|
1-44341-447-0 |
01 |
1 |
9803-0211 |
| |
1 |
ARM; PITMAN,STRG
EXC. FRONT AXLE F049(FS4)
(A)
|
1-44341-481-1 |
01 |
1 |
0212- |
| |
3 |
WASHER; LK,PITMAN ARM
ID=30.5
|
1-09500-026-0 |
01 |
1 |
9510-0805 |
| |
3 |
WASHER; LK,PITMAN ARM
ID=30.5
|
1-09500-055-0 |
01 |
1 |
0806- |
| |
4 |
NUT; PITMAN ARM
M30
|
1-09400-050-0 |
01 |
1 |
9510-0805 |
| |
4 |
NUT; PITMAN ARM
M30
|
1-09400-166-0 |
01 |
1 |
0806- |
| |
5 |
BALL; JOINT,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
|
1-44361-110-1 |
02 |
1 |
9510-9802 |
| |
5 |
BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4)
|
1-44361-110-1 |
02 |
1 |
9803- |
| |
6 |
PIN; SPLIT,ADJ SCREW
FRONT SPRING HEAVY DUTY<F60>
|
9-08115-065-0 |
03 |
1 |
9510-9802 |
| |
6 |
PIN; SPLIT,ADJ SCREW
FRONT AXLE F049(FS4)
|
9-08115-065-0 |
03 |
1 |
9803- |
| |
8 |
SEAT; SPR,ROD END
FRONT SPRING HEAVY DUTY<F60>
OD=36
|
9-09881-340-0 |
04 |
1 |
9510-9802 |
| |
8 |
SEAT; SPR,ROD END
FRONT AXLE F049(FS4)
OD=36
|
9-09881-340-0 |
04 |
1 |
9803- |
| |
9 |
LINK; DRAG
FRONT SPRING HEAVY DUTY<F60>
(B)
|
1-44380-084-1 |
01 |
1 |
9510-9802 |
| |
9 |
LINK; DRAG
FRONT AXLE F049(FS4)
(B)
|
1-44380-084-1 |
01 |
1 |
9803- |
| |
9 |
LINK; DRAG
EXC. FRONT SPRING HEAVY DUTY<F60>
(A)
|
1-44380-134-0 |
01 |
1 |
9510-9802 |
| |
9 |
LINK; DRAG
EXC. FRONT AXLE F049(FS4)
(A)
|
1-44380-134-0 |
01 |
1 |
9803-0004 |
| |
9 |
LINK; DRAG
EXC. FRONT AXLE F049(FS4)
(A)
|
1-44380-239-0 |
01 |
1 |
0005-0109 |
| |
9 |
LINK; DRAG
EXC. FRONT AXLE F049(FS4)
(A)
|
1-44380-134-0 |
01 |
1 |
0110- |
| |
11 |
NIPPLE; GREASE,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9510-9802 |
| |
11 |
NIPPLE; GREASE,DRAG LINK
FRONT AXLE F049(FS4)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9803-0512 |
| |
11 |
NIPPLE; GREASE,DRAG LINK
FRONT AXLE F049(FS4)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
0601- |
| |
14 |
SPRING; COIL,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
|
9-09940-639-1 |
02 |
1 |
9510-9802 |
| |
14 |
SPRING; COIL,DRAG LINK
FRONT AXLE F049(FS4)
|
9-09940-639-1 |
02 |
1 |
9803- |
| |
17 |
GUARD; MUD,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
|
1-44365-020-0 |
02 |
1 |
9510-9802 |
| |
17 |
GUARD; MUD,DRAG LINK
FRONT AXLE F049(FS4)
|
1-44365-020-0 |
02 |
1 |
9803- |
| |
21 |
NUT; LK,JOINT BALL
FRONT SPRING HEAVY DUTY<F60>
(B)
M24 SLOTTED
|
1-09442-020-0 |
02 |
1 |
9510-9802 |
| |
21 |
NUT; LK,JOINT BALL
FRONT AXLE F049(FS4)
(B)
M24 SLOTTED
|
1-09442-020-0 |
02 |
1 |
9803-0805 |
| |
21 |
NUT; LK,JOINT BALL
FRONT AXLE F049(FS4)
(B)
M24
|
1-09442-032-0 |
02 |
1 |
0806- |
| |
21 |
NUT; LK,JOINT BALL
EXC. FRONT SPRING HEAVY DUTY<F60>
(A)
M16 SLOTTED
|
1-09442-021-1 |
02 |
1 |
9510-9802 |
| |
21 |
NUT; LK,JOINT BALL
EXC. FRONT AXLE F049(FS4)
(A)
M16 SLOTTED
|
1-09442-021-1 |
02 |
1 |
9803-0805 |
| |
21 |
NUT; LK,JOINT BALL
EXC. FRONT AXLE F049(FS4)
(A)
M16 SLOTTED
|
1-09442-031-0 |
02 |
1 |
0806- |
| |
24 |
PLUG; ADJ,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
|
9-44375-021-0 |
02 |
1 |
9510-9802 |
| |
24 |
PLUG; ADJ,DRAG LINK
FRONT AXLE F049(FS4)
|
9-44375-021-0 |
02 |
1 |
9803- |
| |
36 |
PIN; SPLIT,DRAG LINK
FRONT SPRING HEAVY DUTY<F60>
(B)
OD=4.6 L=35
|
9-08115-035-0 |
02 |
1 |
9510-9802 |
| |
36 |
PIN; SPLIT,DRAG LINK
FRONT AXLE F049(FS4)
(B)
OD=4.6 L=35
|
9-08115-035-0 |
02 |
1 |
9803-0606 |
| |
36 |
PIN; SPLIT,DRAG LINK
FRONT AXLE F049(FS4)
(B)
OD=4.6 L=35
|
0-81125-035-0 |
02 |
1 |
0607- |
| |
36 |
PIN; SPLIT,DRAG LINK
EXC. FRONT SPRING HEAVY DUTY<F60>
(A)
OD=3.7 L=25
|
9-08114-025-0 |
02 |
1 |
9510-9802 |
| |
36 |
PIN; SPLIT,DRAG LINK
EXC. FRONT AXLE F049(FS4)
(A)
OD=3.7 L=25
|
9-08114-025-0 |
02 |
1 |
9803-0606 |
| |
36 |
PIN; SPLIT,DRAG LINK
EXC. FRONT AXLE F049(FS4)
(A)
OD=3.7 L=25
|
0-81124-025-0 |
02 |
1 |
0607- |
