Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#2062) — 246 parça

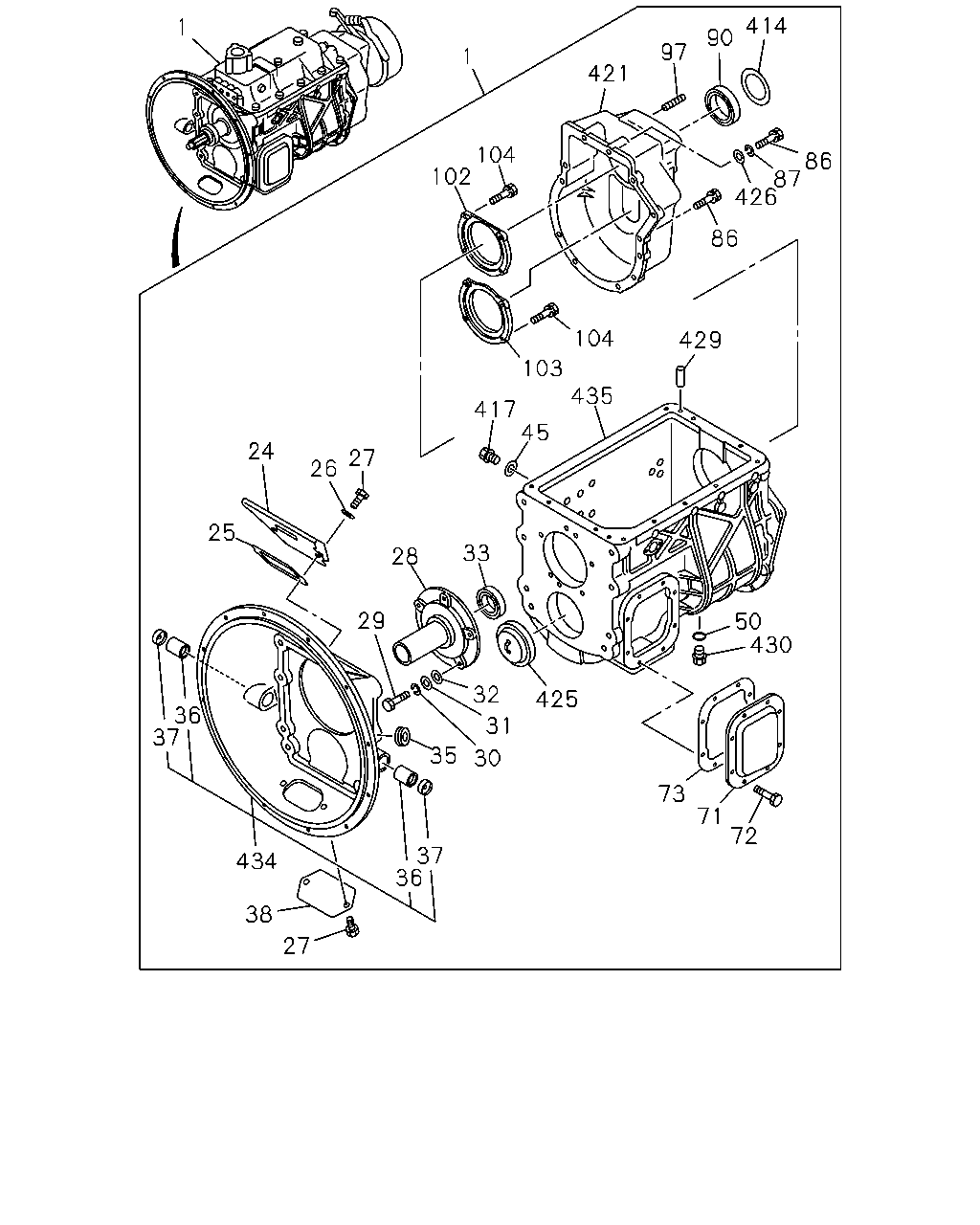

414 1 90 97 1 421 104 102 86 87 426 86 104 429 103 435 417 45 24 27 26 25 33 28 29 50 430 32 425 36 37 31 35 30 73 71 72 37 36 434 38 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL	1-33015-038-0	01	1	9001-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-527-0	01	1	9101-9204		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-528-0	01	1	9101-9204		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-529-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/7 16.5"(W3B) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-531-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-530-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-532-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-527-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-528-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-529-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24),6RA1 STD ENG(14L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-530-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/7 16.5"(W3B)	1-33011-531-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P)	1-33011-532-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/7 16.5"(W3B) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-537-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-539-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-536-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL 6RA1 STD ENG(14L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-539-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/7 16.5"(W3B)	1-33011-537-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P)	1-33011-536-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-555-0	01	1	9101-				●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-557-0	01	1	9101-				●
1	TRANSMISSION ASM; MANUAL 6RA1 STD ENG(14L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P)	1-33011-555-0	01	1	9001-9012				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P)	1-33011-557-0	01	1	9001-9012				●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9001-9710	●
24	COVER; CHECK HOLE,DUST 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-030-0	01	1	9001-9710		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9711-	●
24	COVER; CHECK HOLE,DUST 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-037-0	01	1	9711-		●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9001-	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31139-008-0	01	1	9001-		●	●	●
26	WASHER; PL,COVER ID=8.4 OD=22	9-09160-708-0	02	1	9001-9205	●
26	WASHER; PL,COVER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=8.4 OD=22	9-09160-708-0	02	1	9001-9205		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9001-9204	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	9-01900-816-0	04	1	9001-9204		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-0104	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 FLANGE	0-28080-812-0	04	1	9206-0104		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 FLANGE	0-28080-816-0	04	1	0105-		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	9-01900-812-0	02	1	9001-9012		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	9-01900-812-0	02	1	9101-9204		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	0-50040-812-0	02	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	9-01900-816-0	02	1	9001-9204		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 FLANGE	0-28080-812-0	02	1	9206-0104		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 FLANGE	0-28080-816-0	02	1	0105-		●	●	●
28	COVER; FRT,TRANS CASE	1-33121-067-2	01	1	9001-	●
28	COVER; FRT,TRANS CASE 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33121-067-2	01	1	9001-		●	●	●
28	COVER; FRT,TRANS CASE EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33121-075-2	01	1	9101-		●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	05	1	9001-9205	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9206-	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	05	1	9001-9205	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	05	1	9001-9205	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9001-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9001-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-497-0	01	1	9001-		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-155-0	01	1	9001-9003		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-502-0	01	1	9004-9306		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-565-1	01	1	9307-		●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9001-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9001-	●
36	BEARING; NEEDLE,CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09811-087-0	02	1	9001-		●	●	●
36	BEARING; NEEDLE,CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09811-002-1	02	1	9001-		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9001-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-003-0	02	1	9001-		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-002-0	02	1	9001-		●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9001-	●
38	COVER; CHECK HOLE,LWR 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-003-0	01	1	9001-		●	●	●
38	COVER; CHECK HOLE,LWR EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-31131-078-0	01	1	9001-		●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9001-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9001-	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	9001-	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9001-9204	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-037-0	01	1	9001-9411	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	9412-	●	●	●	●
86	BOLT; RR COVER M10X22 W/LK WASHER	9-01931-022-0	01	1	9001-9001	●	●
86	BOLT; RR COVER M10X22	1-09033-005-0	01	1	9002-9205	●	●
86	BOLT; RR COVER M14X20	1-09044-078-0	01	1	9206-	●	●
86	BOLT; RR COVER M12X70	9-01656-270-0	02	1	9001-9205			●	●
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9206-0011			●	●
86	BOLT; RR COVER M12X65 FLANGE	1-09044-113-0	02	1	0012-			●	●
86	BOLT; RR COVER M10X16,M12X35 L=59	1-09029-031-0	02	1	9001-9012	●	●	●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-			●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	11	1	9001-9001			●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	11	1	9001-9205			●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	11	1	9206-9512			●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9601-			●	●
86	BOLT; RR COVER M12X40	9-01931-240-0	09	1	9001-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-9512	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9601-	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	04	1	9001-9205	●	●	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9001-9205			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-474-0	01	1	9001-9406	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-579-1	01	1	9407-	●	●	●	●
97	STUD; PARKING BRK M16X62	1-09302-033-0	01	1	9001-9001	●	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9002-	●	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	9-33151-014-0	01	1	9001-			●	●
103	RETAINER; BRG	9-33151-015-0	01	1	9001-			●	●
104	BOLT; BRG RET M10X30	9-01931-030-0	08	1	9001-9002			●	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9003-9205			●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-			●	●
414	COVER; DUST,RR COVER	1-33139-004-0	01	1	9001-	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9001-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-	●	●	●	●
421	COVER; RR,TRANS	1-33131-108-1	01	1	9001-9604	●	●
421	COVER; RR,TRANS	1-33131-187-1	01	1	9605-	●	●
421	COVER; RR,TRANS	1-33131-096-3	01	1	9001-9605			●	●
421	COVER; RR,TRANS	1-33131-189-2	01	1	9606-			●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33319-055-1	01	1	9001-9707	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33319-195-0	01	1	9708-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-367-0	01	1	9001-		●	●	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9001-9205			●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9001-	●	●	●	●
434	HOUSING; CLU	1-31110-123-5	01	1	9001-	●
434	HOUSING; CLU 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31110-133-3	01	1	9001-		●	●	●
434	HOUSING; CLU EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31110-054-2	01	1	9001-		●	●	●
435	CASE; TRANS	1-33111-199-5	01	1	9001-	●
435	CASE; TRANS	1-33111-185-3	01	1	9001-9003		●
435	CASE; TRANS	1-33111-192-5	01	1	9004-		●
435	CASE; TRANS	1-33111-184-3	01	1	9001-9003			●	●
435	CASE; TRANS	1-33111-189-5	01	1	9004-			●	●

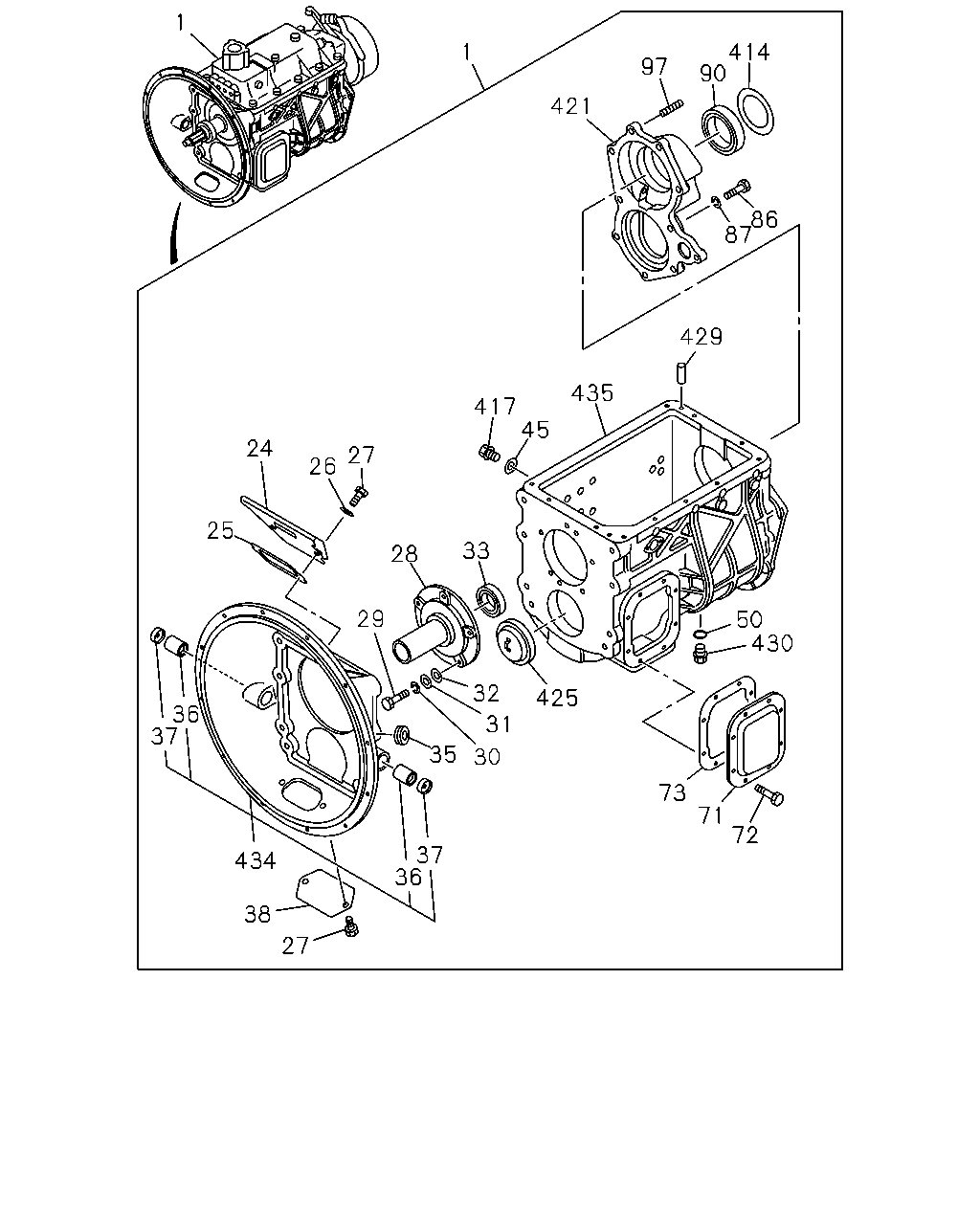

1 1 414 90 97 421 86 87 429 435 417 45 24 27 26 25 33 28 29 50 430 32 425 36 37 31 35 30 73 71 72 37 36 434 38 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL	1-33015-038-0	01	1	9001-	●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-527-0	01	1	9101-9204		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-528-0	01	1	9101-9204		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-529-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/7 16.5"(W3B) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-531-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-530-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-532-0	01	1	9101-		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-527-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-528-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 39/7 16.5"(W3B) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-529-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6QA1 STD ENG(L24),6RA1 STD ENG(14L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-530-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/7 16.5"(W3B)	1-33011-531-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P)	1-33011-532-0	01	1	9001-9012		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/7 16.5"(W3B) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-537-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-539-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-536-0	01	1	9101-			●
1	TRANSMISSION ASM; MANUAL 6RA1 STD ENG(14L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-539-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/7 16.5"(W3B)	1-33011-537-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P)	1-33011-536-0	01	1	9001-9012			●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-555-0	01	1	9101-				●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33011-557-0	01	1	9101-				●
1	TRANSMISSION ASM; MANUAL 6RA1 STD ENG(14L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P)	1-33011-555-0	01	1	9001-9012				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P)	1-33011-557-0	01	1	9001-9012				●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9001-9710	●
24	COVER; CHECK HOLE,DUST 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-030-0	01	1	9001-9710		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9711-	●
24	COVER; CHECK HOLE,DUST 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-037-0	01	1	9711-		●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9001-	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31139-008-0	01	1	9001-		●	●	●
26	WASHER; PL,COVER ID=8.4 OD=22	9-09160-708-0	02	1	9001-9205	●
26	WASHER; PL,COVER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=8.4 OD=22	9-09160-708-0	02	1	9001-9205		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9001-9204	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	9-01900-816-0	04	1	9001-9204		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-0104	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 FLANGE	0-28080-812-0	04	1	9206-0104		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●
27	BOLT; COVER TO CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 FLANGE	0-28080-816-0	04	1	0105-		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	9-01900-812-0	02	1	9001-9012		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	9-01900-812-0	02	1	9101-9204		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 W/LK WASHER	0-50040-812-0	02	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	9-01900-816-0	02	1	9001-9204		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12 FLANGE	0-28080-812-0	02	1	9206-0104		●	●	●
27	BOLT; COVER TO CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X16 FLANGE	0-28080-816-0	02	1	0105-		●	●	●
28	COVER; FRT,TRANS CASE	1-33121-067-2	01	1	9001-	●
28	COVER; FRT,TRANS CASE 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33121-067-2	01	1	9001-		●	●	●
28	COVER; FRT,TRANS CASE EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33121-075-2	01	1	9101-		●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	05	1	9001-9205	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9206-	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	05	1	9001-9205	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	05	1	9001-9205	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9001-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9001-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-497-0	01	1	9001-		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-155-0	01	1	9001-9003		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-502-0	01	1	9004-9306		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-565-1	01	1	9307-		●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9001-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9001-	●
36	BEARING; NEEDLE,CLU HSG 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09811-087-0	02	1	9001-		●	●	●
36	BEARING; NEEDLE,CLU HSG EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09811-002-1	02	1	9001-		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9001-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-003-0	02	1	9001-		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09625-002-0	02	1	9001-		●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9001-	●
38	COVER; CHECK HOLE,LWR 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31131-003-0	01	1	9001-		●	●	●
38	COVER; CHECK HOLE,LWR EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-31131-078-0	01	1	9001-		●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9001-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9001-	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	9001-	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9001-9204	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-037-0	01	1	9001-9411	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	9412-	●	●	●	●
86	BOLT; RR COVER M10X22 W/LK WASHER	9-01931-022-0	01	1	9001-9001	●	●
86	BOLT; RR COVER M10X22	1-09033-005-0	01	1	9002-9205	●	●
86	BOLT; RR COVER M14X20	1-09044-078-0	01	1	9206-	●	●
86	BOLT; RR COVER M12X70	9-01656-270-0	02	1	9001-9205			●	●
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9206-0011			●	●
86	BOLT; RR COVER M12X65 FLANGE	1-09044-113-0	02	1	0012-			●	●
86	BOLT; RR COVER M10X16,M12X35 L=59	1-09029-031-0	02	1	9001-9012	●	●	●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-			●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	11	1	9001-9001			●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	11	1	9001-9205			●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	11	1	9206-9512			●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9601-			●	●
86	BOLT; RR COVER M12X40	9-01931-240-0	09	1	9001-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-9512	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9601-	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	04	1	9001-9205	●	●	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9001-9205			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-474-0	01	1	9001-9406	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-579-1	01	1	9407-	●	●	●	●
97	STUD; PARKING BRK M16X62	1-09302-033-0	01	1	9001-9001	●	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9002-	●	●	●	●
414	COVER; DUST,RR COVER	1-33139-004-0	01	1	9001-	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9001-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-	●	●	●	●
421	COVER; RR,TRANS	1-33131-108-1	01	1	9001-9604	●	●
421	COVER; RR,TRANS	1-33131-187-1	01	1	9605-	●	●
421	COVER; RR,TRANS	1-33131-096-3	01	1	9001-9605			●	●
421	COVER; RR,TRANS	1-33131-189-2	01	1	9606-			●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33319-055-1	01	1	9001-9707	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33319-195-0	01	1	9708-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-367-0	01	1	9001-		●	●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9001-	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9001-	●	●	●	●
434	HOUSING; CLU	1-31110-123-5	01	1	9001-	●
434	HOUSING; CLU 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31110-133-3	01	1	9001-		●	●	●
434	HOUSING; CLU EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31110-054-2	01	1	9001-		●	●	●
435	CASE; TRANS	1-33111-199-5	01	1	9001-	●
435	CASE; TRANS	1-33111-185-3	01	1	9001-9003		●
435	CASE; TRANS	1-33111-192-5	01	1	9004-		●
435	CASE; TRANS	1-33111-184-3	01	1	9001-9003			●	●
435	CASE; TRANS	1-33111-189-5	01	1	9004-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
