1-01 — ACCELERATOR PEDAL AND CONTROL (#20610) — 51 parça

392 60 61 60 316 54 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2330	8-97208-002-1	01	1	0009-	●	●
54	CABLE; ENG CONT (A) L=2703	8-97071-711-5	01	1	0009-			●
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0009-			●
60	BOLT; CABLE M6X12 FLANGE	0-28080-612-0	01	1	0009-	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	02	1	0009-	●	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	01	1	0009-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X12 FLANGE	0-28080-612-0	01	1	0009-	●	●
316	CLIP; LAMP BRKT ID=9 THA	5-09707-027-0	01	1	0009-	●	●	●
318	NUT; LAMP BRKT M8 W/LK WASHER	8-94327-073-0	02	1	0009-	●	●	●
392	CLIP; ACCEL CONT CABLE ID=16	9-09525-522-0	01	1	0009-	●	●

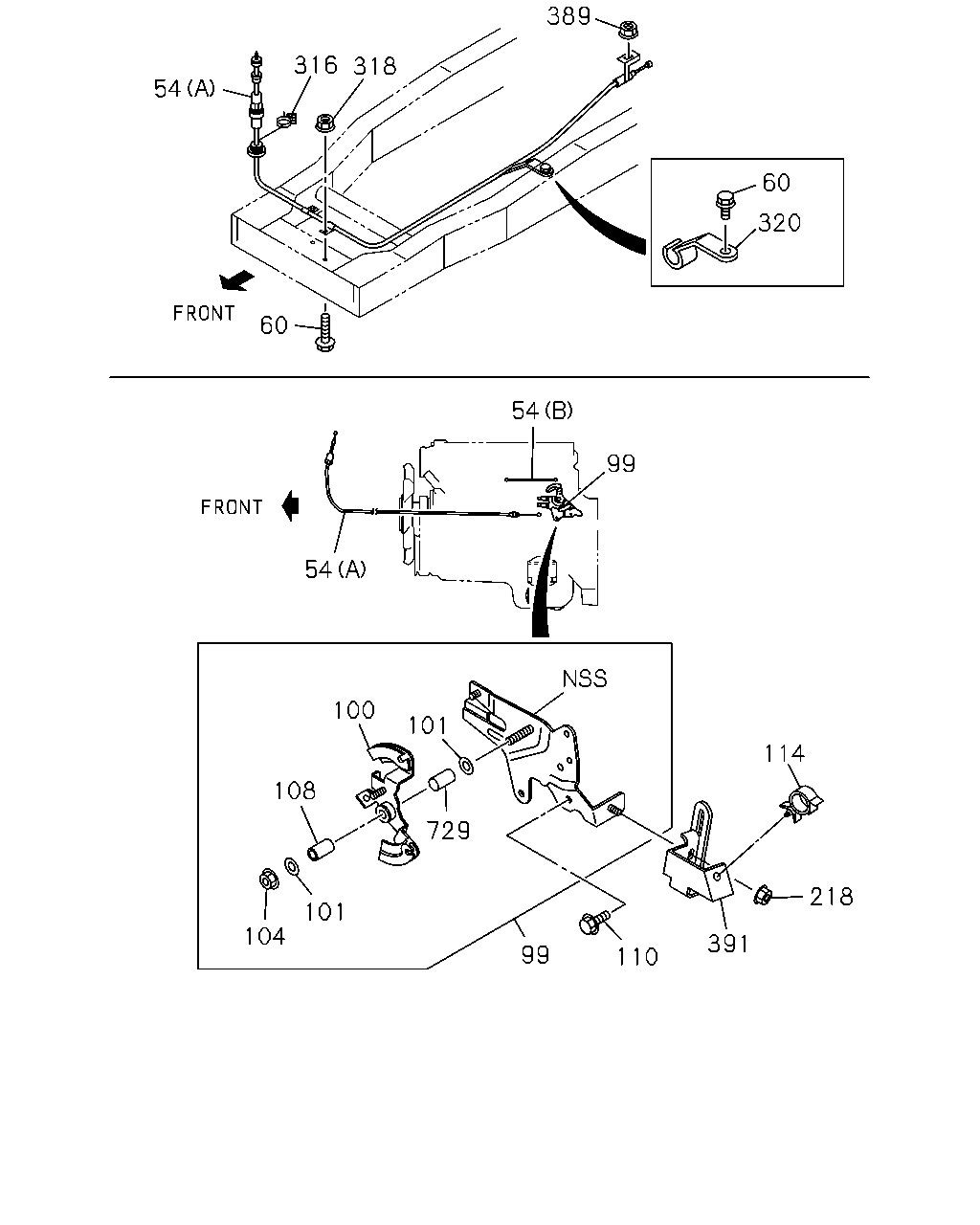

389 316 318 54 60 320 60 54 99 54 100 101 114 108 729 218 101 104 391 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT L=2330	8-97208-002-1	01	1	0009-	●	●
54	CABLE; ENG CONT (A) L=2703	8-97071-711-5	01	1	0009-			●
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0009-			●
60	BOLT; CABLE M6X12 FLANGE	0-28080-612-0	01	1	0009-	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	02	1	0009-	●	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	01	1	0009-			●
99	BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	0009-			●
100	SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0009-			●
101	WASHER; ENG CONT	8-94142-117-0	02	1	0009-			●
104	NUT; ENG CONT M8 FLANGE	0-91150-108-0	01	1	0009-			●
108	BUSHING; ENG CONT	8-97120-004-0	01	1	0009-			●
110	BOLT; BRKT TO HANGER M8X16 FLANGE	0-28080-816-0	03	1	0009-			●
114	CLIP; HARNESS CONNECTOR ID=7-10 THA	8-94472-578-0	01	1	0009-			●
218	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0009-			●
316	CLIP; LAMP BRKT ID=9 THA	5-09707-027-0	01	1	0009-	●	●	●
318	NUT; LAMP BRKT M8 W/LK WASHER	8-94327-073-0	02	1	0009-	●	●	●
320	CLIP; FRAME	8-94178-110-0	01	1	0009-			●
389	NUT; ACCEL CONT CABLE FIX M6 FLANGE	0-91150-106-0	01	1	0009-			●
391	BRACKET; ENG CONT	8-97172-882-0	01	1	0009-			●
729	COLLAR; JOINT	8-97118-760-0	01	1	0009-			●

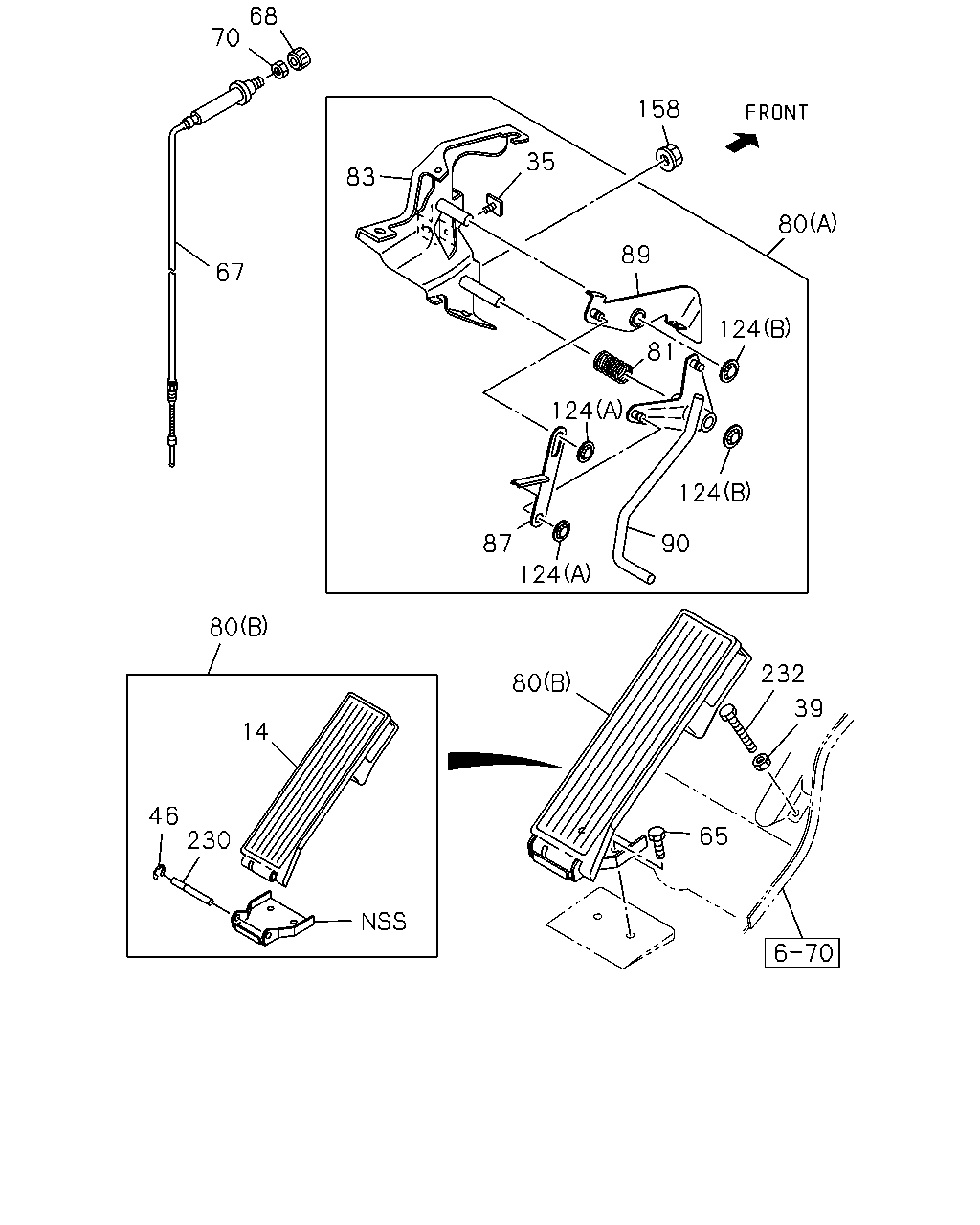

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0009-	●	●	●
35	STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	0009-0012	●	●	●
35	STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0009-	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0009-	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0009-	●	●	●
67	CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0009-	●	●	●
68	KNOB; IDLE CONT	8-97853-765-1	01	1	0009-	●	●	●
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	0009-	●	●	●
80	LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0009-	●	●	●
80	LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0009-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0009-	●	●	●
83	BRACKET; CONT LINK	8-97853-201-4	01	1	0009-	●	●	●
87	LINK; ENG CONT	8-97853-204-1	01	1	0009-	●	●	●
89	LEVER; RELAY	8-97868-042-0	01	1	0009-	●	●	●
90	LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0009-	●	●	●
124	NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0009-	●	●	●
124	NUT; LEVER (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0009-	●	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0009-	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0009-	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	0009-	●	●	●
