◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10B - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10B — REPAIR KIT; TRANSMISSION OVERHAUL (#2061) — 17 parça

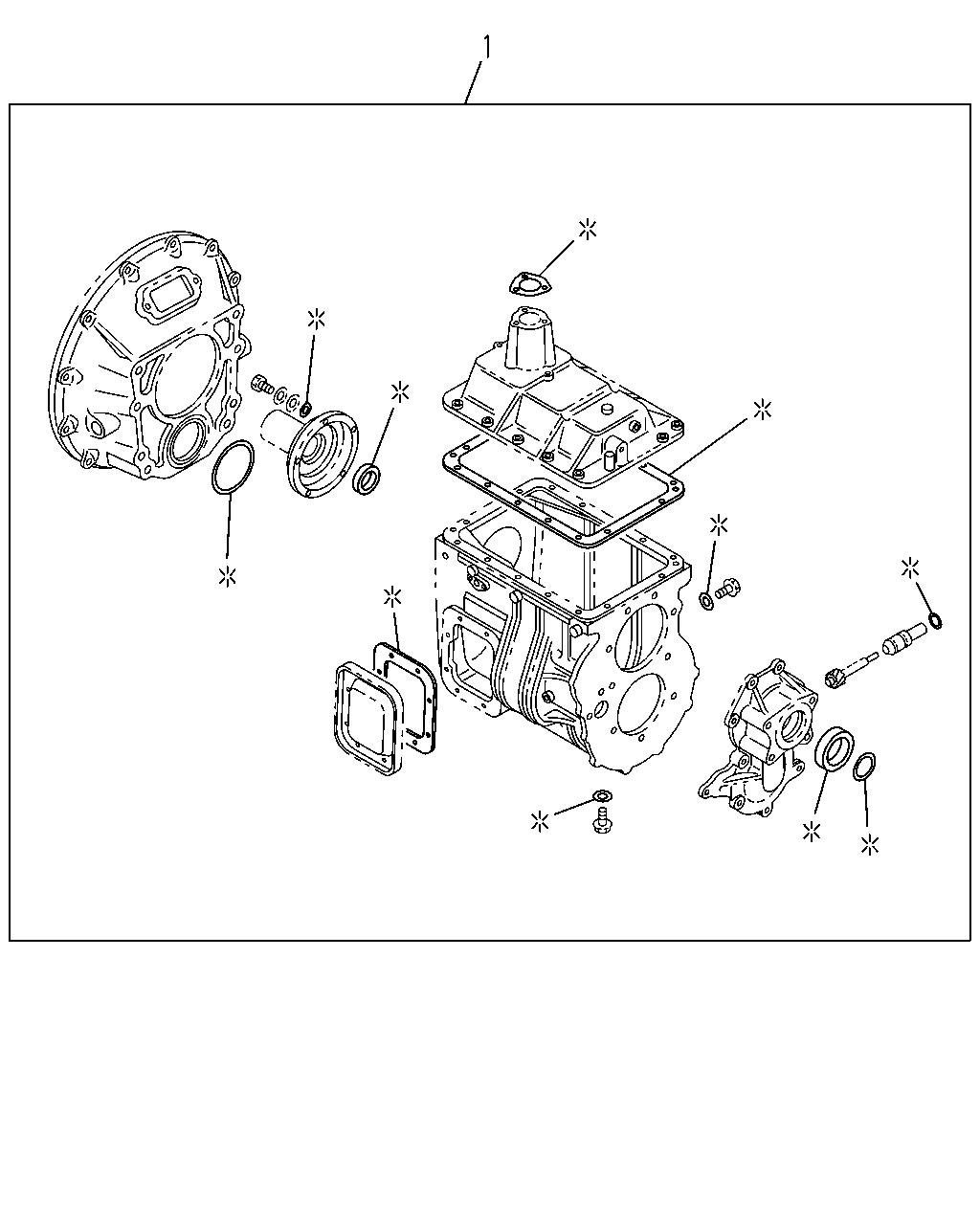

çizim 94504
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GASKET SET; TRANS OVERHAUL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-503-2 01 1 9001-9003 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-503-2 01 1 9001-9003 ● ● ●
1 GASKET SET; TRANS OVERHAUL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-723-0 01 1 9004-9406 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-723-0 01 1 9004-9406 ● ● ●
1 GASKET SET; TRANS OVERHAUL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-753-0 01 1 9407-9411 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-753-0 01 1 9407-9411 ● ● ●
1 GASKET SET; TRANS OVERHAUL
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-791-0 01 1 9412- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-791-0 01 1 9412- ● ● ●
1 GASKET SET; TRANS OVERHAUL 1-87830-576-1 01 1 9001-9012 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-576-1 01 1 9001-9306 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-722-0 01 1 9307-9307 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-722-0 01 1 9308-9406 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-722-0 01 1 9308-9406 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-752-0 01 1 9407-9411 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-752-0 01 1 9407-9411 ●
1 GASKET SET; TRANS OVERHAUL
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-790-0 01 1 9412- ●
1 GASKET SET; TRANS OVERHAUL 1-87830-790-0 01 1 9412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
