Sayfa 0-85 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85 - AUTO TIMER; INJECTION PUMP ▶

0-85 — AUTO TIMER; INJECTION PUMP (#20608) — 90 parça

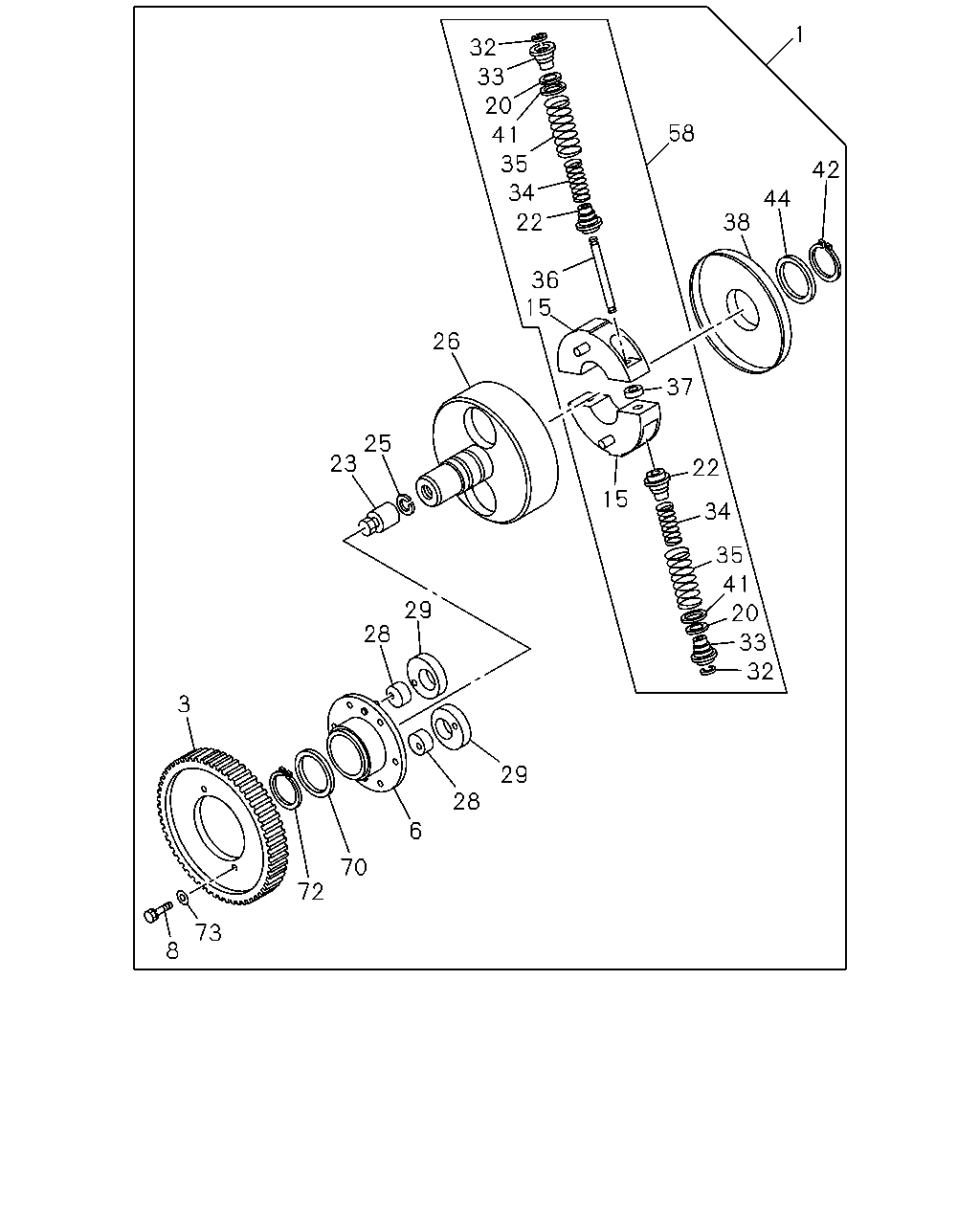

1 32 33 20 58 41 35 42 34 44 22 38 36 15 26 37 25 23 22 15 34 35 41 29 20 28 33 32 3 29 28 6 70 72 73 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-287-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-465-0	01	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-409-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-410-0	04	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-402-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97192-330-6	8-94227-495-0	01	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97178-485-5	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-399-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-94172-269-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-030-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-026-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-404-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-405-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-029-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15749-402-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-94227-500-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-037-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: B = 8-97192-330-6	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97192-330-6	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-97192-330-6	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-97192-330-6	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-97192-330-6	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: B = 8-97192-330-6	8-94227-499-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	8-97085-038-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: A = 8-97178-485-5	8-97085-039-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: A = 8-97178-485-5	8-97085-040-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: A = 8-97178-485-5	8-97085-041-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: A = 8-97178-485-5	8-97085-042-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: A = 8-97178-485-5	8-97085-043-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: A = 8-97178-485-5	8-97085-044-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: A = 8-97178-485-5	8-97085-045-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: A = 8-97178-485-5	8-97085-046-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: A = 8-97178-485-5	8-97085-047-0	AR	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97223-400-0	01	1	-
70	SHIM; FLANGE,TIMER T=0.20 ASM PART: A = 8-97178-485-5	8-97085-032-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.30 ASM PART: A = 8-97178-485-5	8-97085-033-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.40 ASM PART: A = 8-97178-485-5	8-97085-034-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.50 ASM PART: A = 8-97178-485-5	8-97085-035-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.80 ASM PART: A = 8-97178-485-5	8-97085-036-0	AR	1	-
72	RING; SNAP,FLANGE TIMER ASM PART: A = 8-97178-485-5	1-15749-205-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5	8-97211-797-0	04	1	-

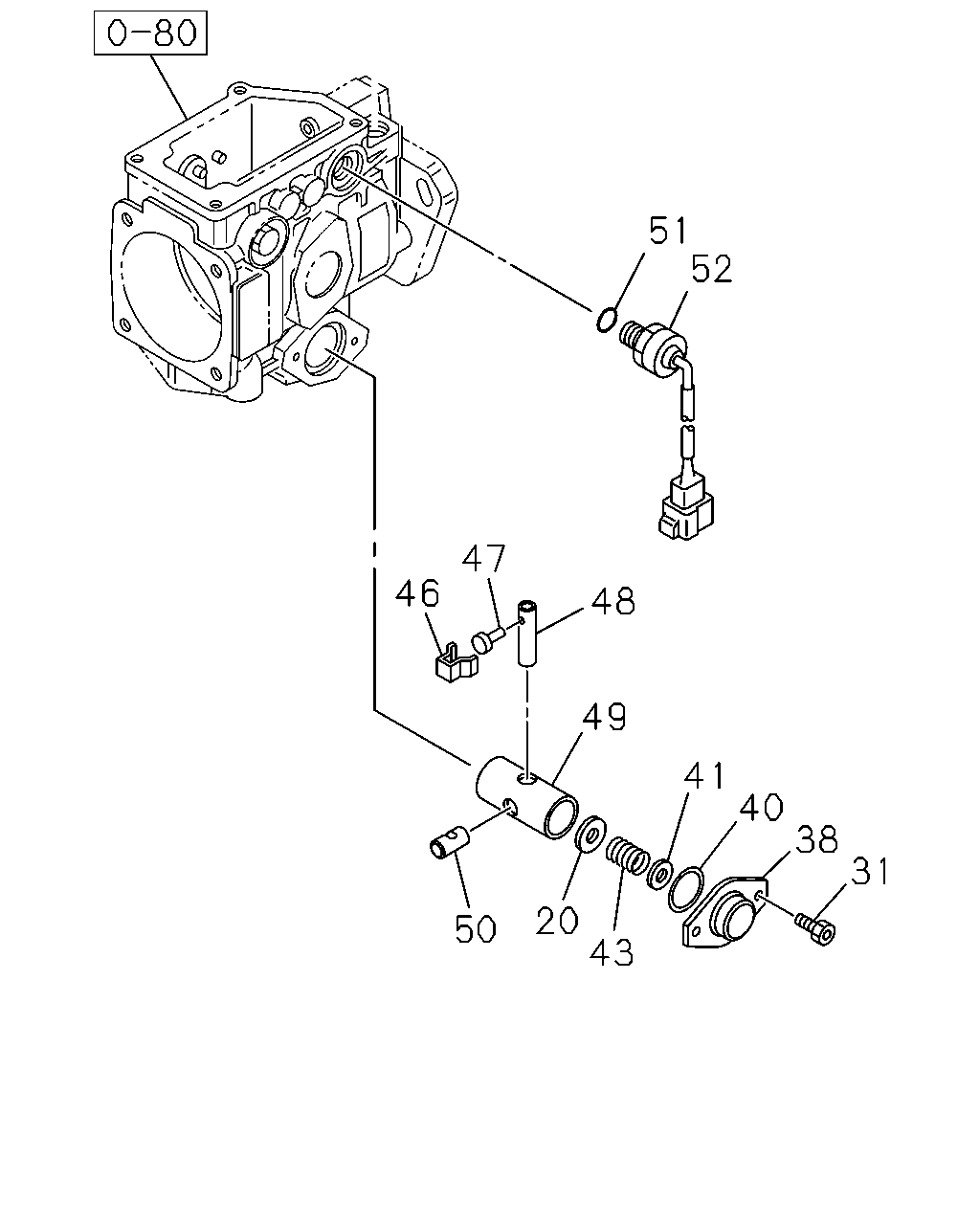

51 52 47 46 48 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97192-330-6	8-94227-495-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP ASM PART: B = 8-97192-330-6	8-97231-933-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-94227-500-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97178-485-5	8-97085-037-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: B = 8-97192-330-6	8-97224-532-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: B = 8-97192-330-6	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97192-330-6	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-97192-330-6	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-97192-330-6	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-97192-330-6	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: B = 8-97192-330-6	8-94227-499-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: B = 8-97192-330-6	8-97231-929-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: B = 8-97192-330-6	8-97231-930-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: B = 8-97192-330-6	8-97231-931-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-94227-488-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-94227-487-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-97214-493-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: B = 8-97192-330-6	8-97231-928-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: B = 8-97192-330-6	8-97218-961-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: B = 8-97192-330-6	8-94227-671-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: B = 8-97192-330-6	8-94343-307-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
