0-60 — ENGINE ELECTRICAL CONTROL PARTS (#20600) — 73 parça

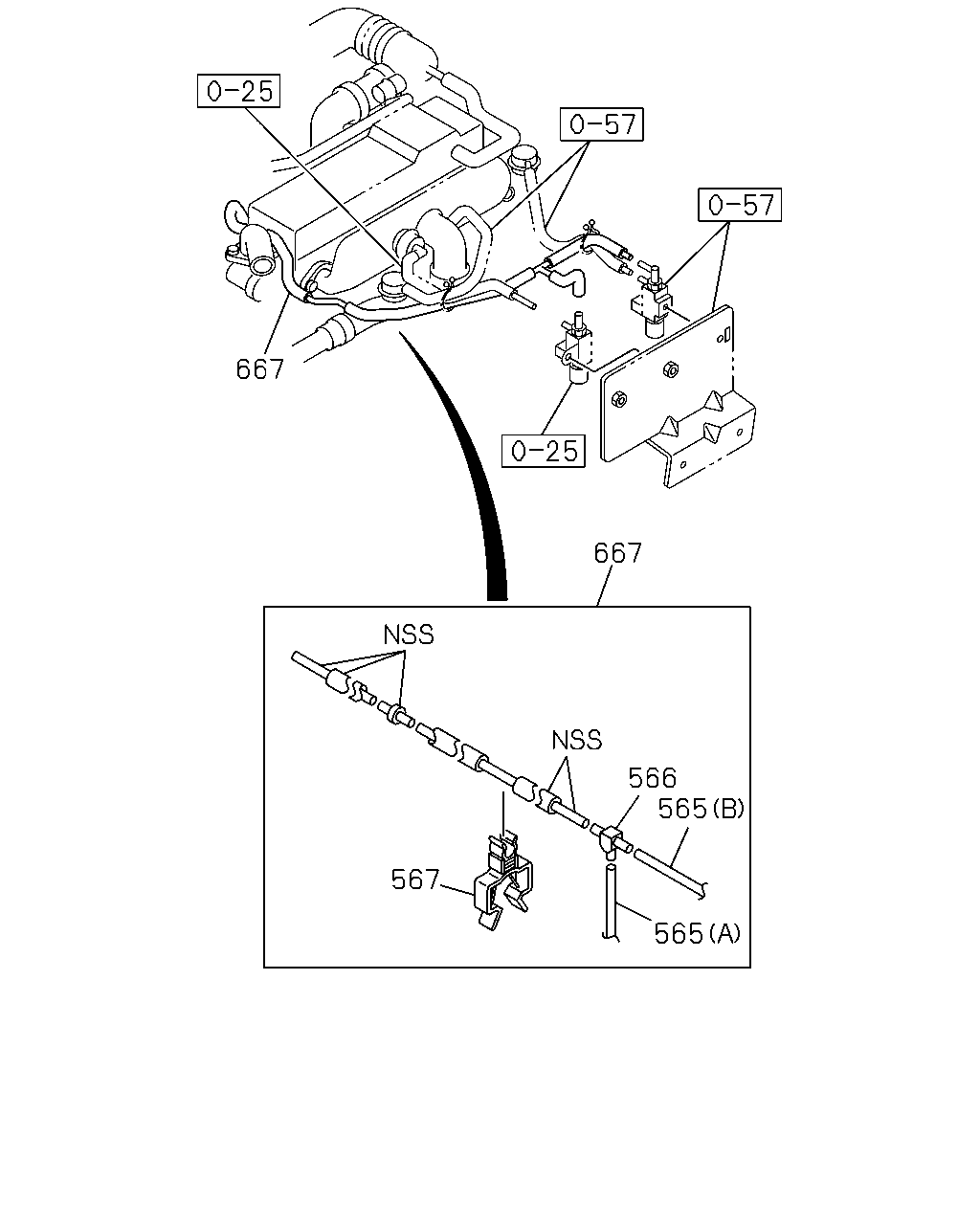

çizim 10391
667 667 566 565 567 565
BalonParca AdiParca NoAdetTipApplied Date A B
565 HOSE; RUBBER
EXHAUST BRAKE<NF8> (A) L=40 SERVICED BY L=3000 		0-04730-300-0 01 1 0009- ●
565 HOSE; RUBBER
EXHAUST BRAKE<NF8> (B) L=70 SERVICED BY L=3000 		0-04840-300-0 01 1 0009- ●
566 JOINT; 3 WAY
EXHAUST BRAKE<NF8> 3WAY 		8-94439-294-0 01 1 0009- ●
567 CLIP; VAC HOSE
ID=23.6 		8-94315-427-0 01 1 0009- ●
667 HOSE; VAC,PUMP TO VSV
EXHAUST BRAKE<NF8> 		8-97228-545-0 01 1 0009- ●
667 HOSE; VAC,PUMP TO VSV
EXC. EXHAUST BRAKE<NF8> 		8-97228-544-0 01 1 0009- ●

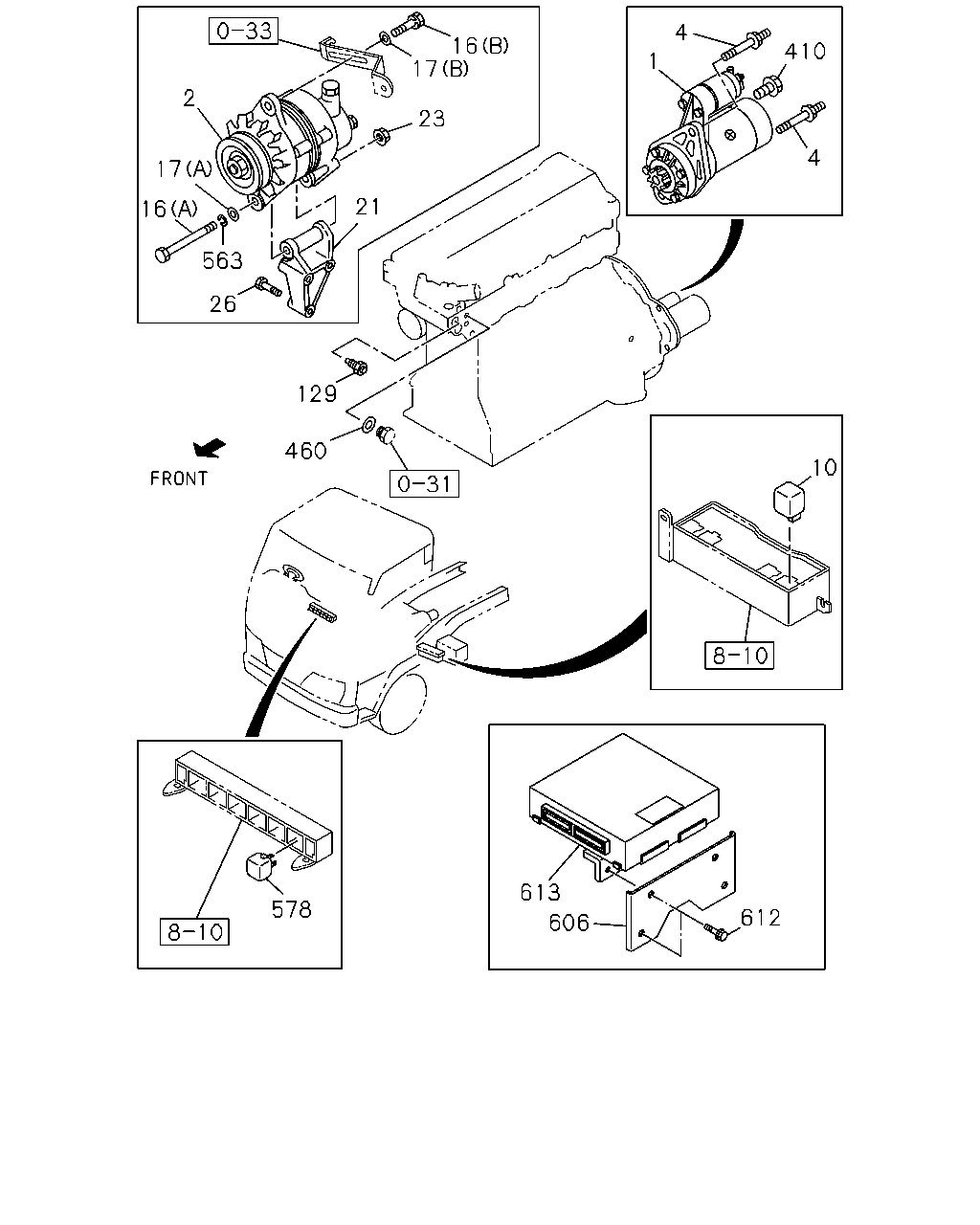

çizim 45886
4 16 17 410 1 2 23 4 17 21 16 563 26 129 460 10 613 578 612 606
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0009- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW THA 		8-97920-966-1 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97911-590-0 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A THA 		8-97918-343-2 01 1 0009- ●
4 BOLT; STARTER
M12X84 		8-94107-769-2 02 1 0009- ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0009- ●
10 RELAY; STARTER
12V 80A 		8-97173-951-0 01 1 0009- ●
10 RELAY; STARTER
24V 50A 		8-97173-947-0 01 1 0009- ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0009- ●
16 BOLT; GEN
(A) M10X115 THA 		8-97916-754-0 01 1 0009- ●
16 BOLT; GEN
(B) M8X32 W/LK WASHER 		0-50040-832-0 01 1 0009- ●
17 WASHER; PL,GEN
(B) ID=8.4 OD=18 		9-09160-608-0 01 1 0009- ●
17 WASHER; PL,GEN
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 0009- ●
21 BRACKET; GEN
THA 		8-97916-345-0 01 1 0009- ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0304- ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0009- ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 02 1 0304-0307 ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 03 1 0308- ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0009- ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0009- ●
129 SENSOR; GLOW PLUG,THERMO
UNISIA JECS 		8-97167-008-0 01 1 0009- ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0009- ●
410 BOLT; BRKT,GRAND
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0009- ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 0009- ●
563 WASHER; SPRING
ID=10.2 		9-09150-510-0 01 1 0009- ●
578 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0009- ●
578 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0009- ●
606 BRACKET; CONT UNIT 8-97187-422-1 01 1 0009- ●
612 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 04 1 0009- ●
613 CONTROL UNIT; ENG 8-97187-466-5 01 1 0009- ●
çizim 47759
222 4 219 211 209 403 211 553 489
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; STARTER
M12X84 		8-94107-769-2 02 1 0009- ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0009- ●
209 NUT; BRKT TO BODY
M10 FLANGE 		0-91150-110-0 02 1 0009- ●
211 NUT; CABLE FIX
(A) M10 FLANGE 		0-91150-210-0 01 1 0009- ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0009- ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
THA 		8-97921-681-0 01 1 0009- ●
222 WASHER; PL,CONT CABLE
ID=10.5 OD=26 		9-09164-710-0 01 1 0009- ●
403 CLIP; CABLE 8-97125-981-0 01 1 0009- ●
489 BOLT; ENG STOPPER
M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
553 MOTOR ASM; ENG STOP 8-97255-066-0 01 1 0009- ●

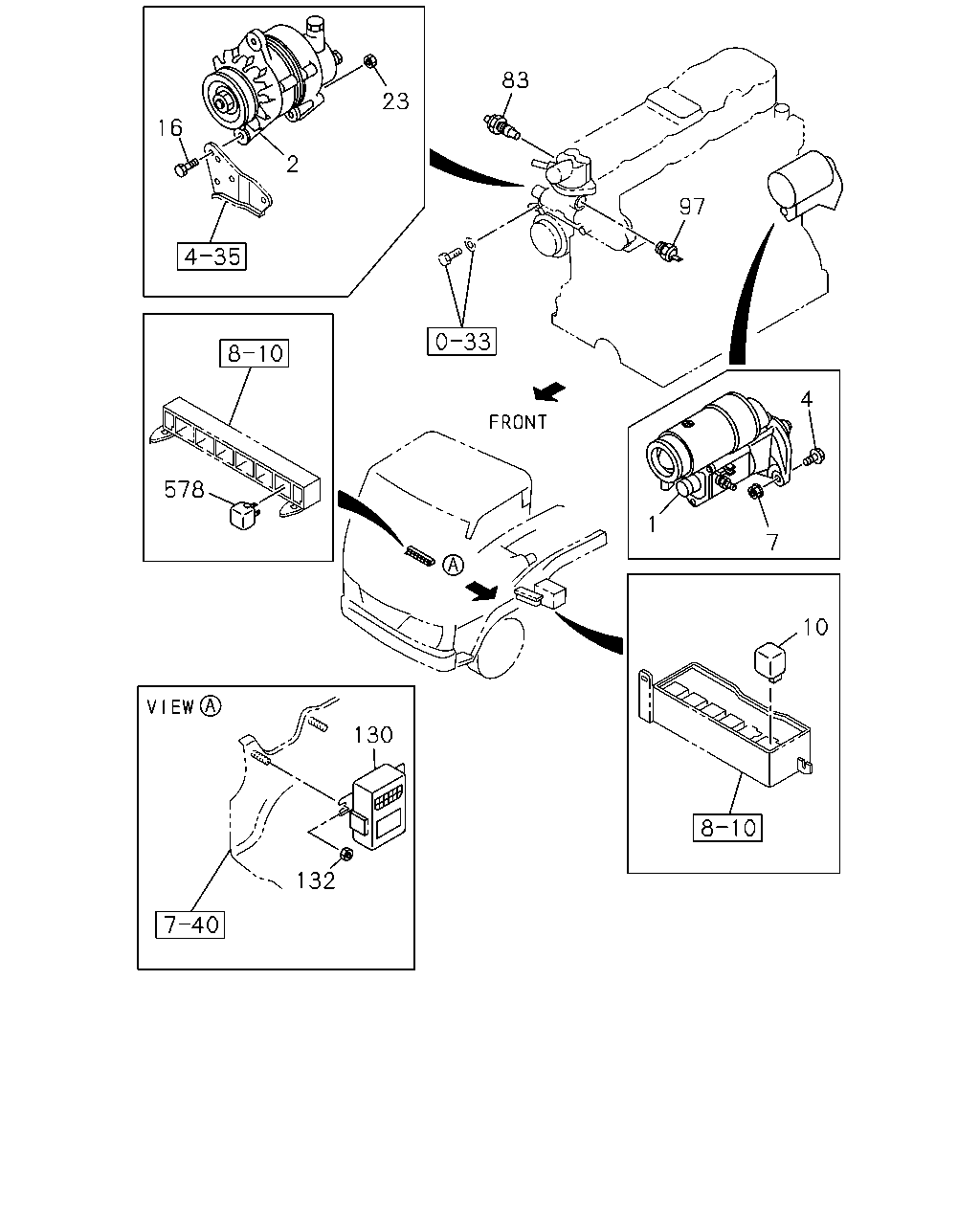

çizim 47857
83 23 16 2 97 4 578 1 7 10 130 132
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0009- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW THA 		8-97920-966-1 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97911-590-0 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A THA 		8-97918-343-2 01 1 0009- ●
4 BOLT; STARTER
M12X84 		8-94107-769-2 02 1 0009- ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0009- ●
7 NUT; STARTER
M12 FLANGE 		0-91150-112-0 02 1 0009- ●
10 RELAY; STARTER
12V 80A 		8-97173-951-0 01 1 0009- ●
10 RELAY; STARTER
24V 50A 		8-97173-947-0 01 1 0009- ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0009- ●
16 BOLT; GEN
(A) M10X115 THA 		8-97916-754-0 01 1 0009- ●
16 BOLT; GEN
(B) M8X32 W/LK WASHER 		0-50040-832-0 01 1 0009- ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0304- ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0009- ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 02 1 0304-0307 ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 03 1 0308- ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0009- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0009- ●
97 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 0009- ●
130 CONTROLLER; EGR 8-97201-734-3 01 1 0009- ●
132 NUT; CONTROLLER
M6 FLANGE 		0-91150-106-0 02 1 0009- ●
578 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0009- ●
578 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0009- ●
çizim 48540
667 667 567
BalonParca AdiParca NoAdetTipApplied Date A B
567 CLIP; VAC HOSE
ID=23.6 		8-94315-427-0 01 1 0009- ●
667 HOSE; VAC,PUMP TO VSV
EXHAUST BRAKE<NF8> 		8-97228-545-0 01 1 0009- ●
667 HOSE; VAC,PUMP TO VSV
EXC. EXHAUST BRAKE<NF8> 		8-97228-544-0 01 1 0009- ●
