◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10A - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10A — REPAIR KIT; TRANSMISSION OVERHAUL (#2060) — 15 parça

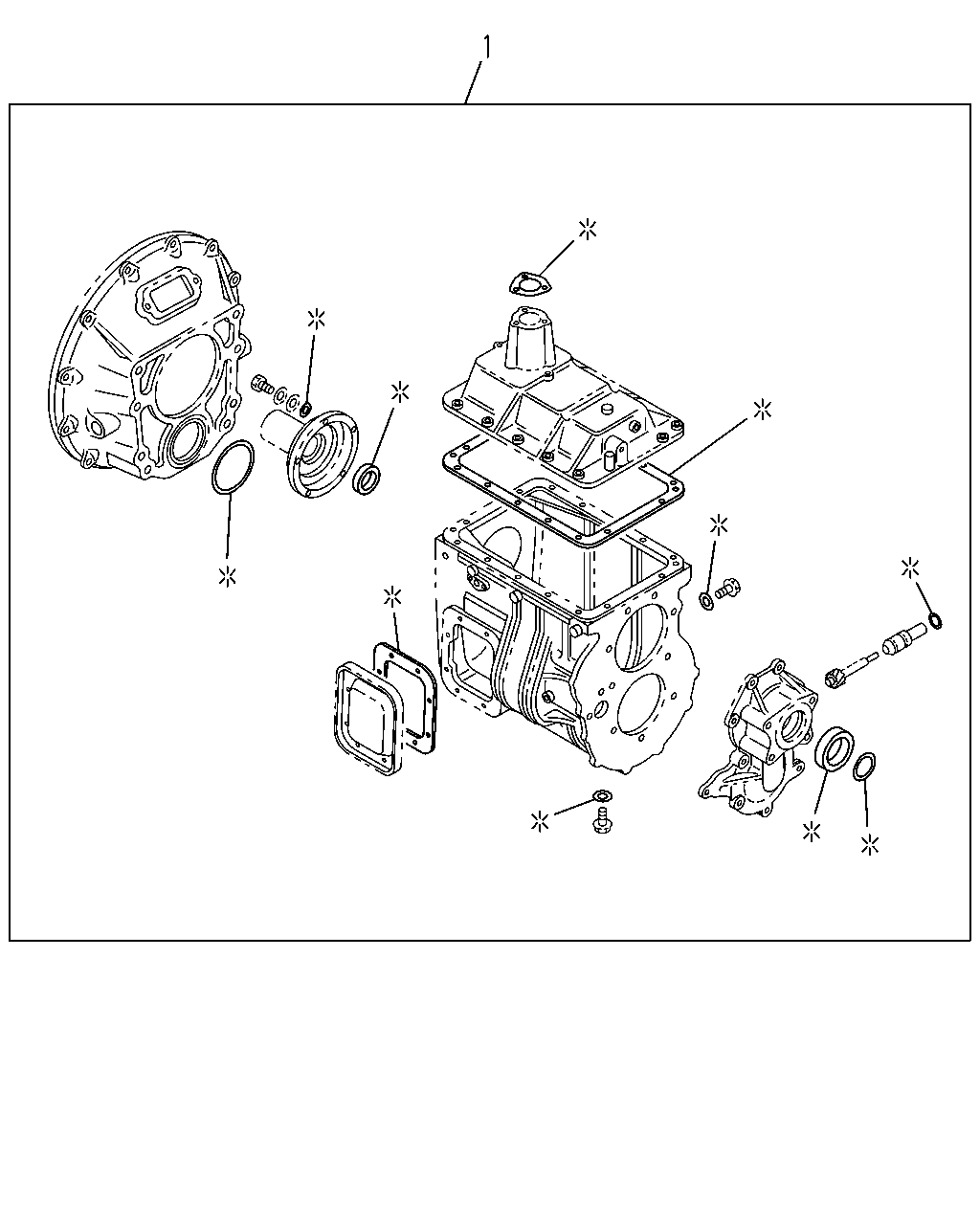

çizim 29757
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL 1-87830-503-2 01 1 9001-9003 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-723-0 01 1 9004-9406 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-753-0 01 1 9407-9411 ●
1 GASKET SET; TRANS OVERHAUL 1-87830-791-0 01 1 9412- ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 		1-87830-503-2 01 1 9001-9003 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 		1-87830-723-0 01 1 9004-9012 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-723-0 01 1 9101-9406 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-753-0 01 1 9407-9411 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-791-0 01 1 9412- ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-576-1 01 1 9001-9012 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-576-1 01 1 9101-9306 ● ● ●
1 GASKET SET; TRANS OVERHAUL
FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-722-0 01 1 9307-9406 ● ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-722-0 01 1 9308-9406 ● ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-752-0 01 1 9407-9411 ● ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-790-0 01 1 9412- ● ● ●
