Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#20599) — 58 parça
Tümü
A - 4JB1 ENG
B - 4HG1 ENG
◀
[057A] 4JB1 EGR VLV (9 parça)
[057A] 4HG1 VAC HOSE;EXC.EXH BRAKE (6 parça)
[057A] 4HG1 VAC HOSE;EXH BRAKE (9 parça)
[057A] 4JB1 VAC HOSE;EXH BRAKE (9 parça)
[057A] 4JB1 VAC HOSE;EXC.EXH BRAKE (9 parça)
[057A] 4HG1 EGR VLV AND EGR PIPE (16 parça)
▶
17
1
17
16
12
681
15
17

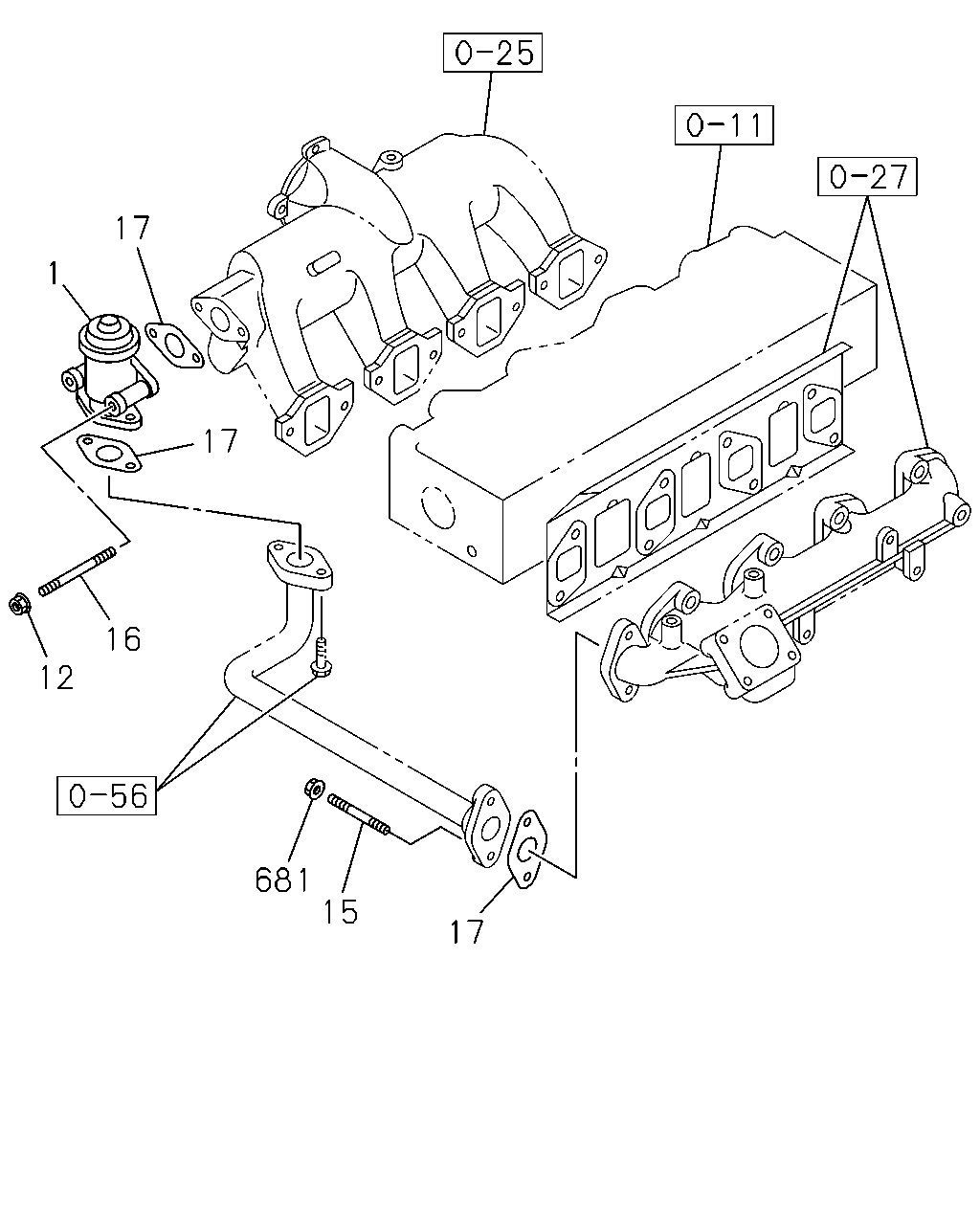

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97208-656-3
01
1
0009-
●
1
VALVE; EGR
8-97115-533-3
01
1
0009-
●
12
NUT; EGR VLV
M8 FLANGE
0-91150-208-0
02
1
0009-
●
15
STUD; EGR PIPE
M8X25 L=36
8-94156-470-2
02
1
0009-
●
16
STUD; EGR VLV
M8X55 L=67
9-04110-855-0
02
1
0009-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97192-765-0
03
1
0009-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97113-023-0
01
1
0009-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-208-0
02
1
0009-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-108-0
02
1
0009-
●
200
147
147

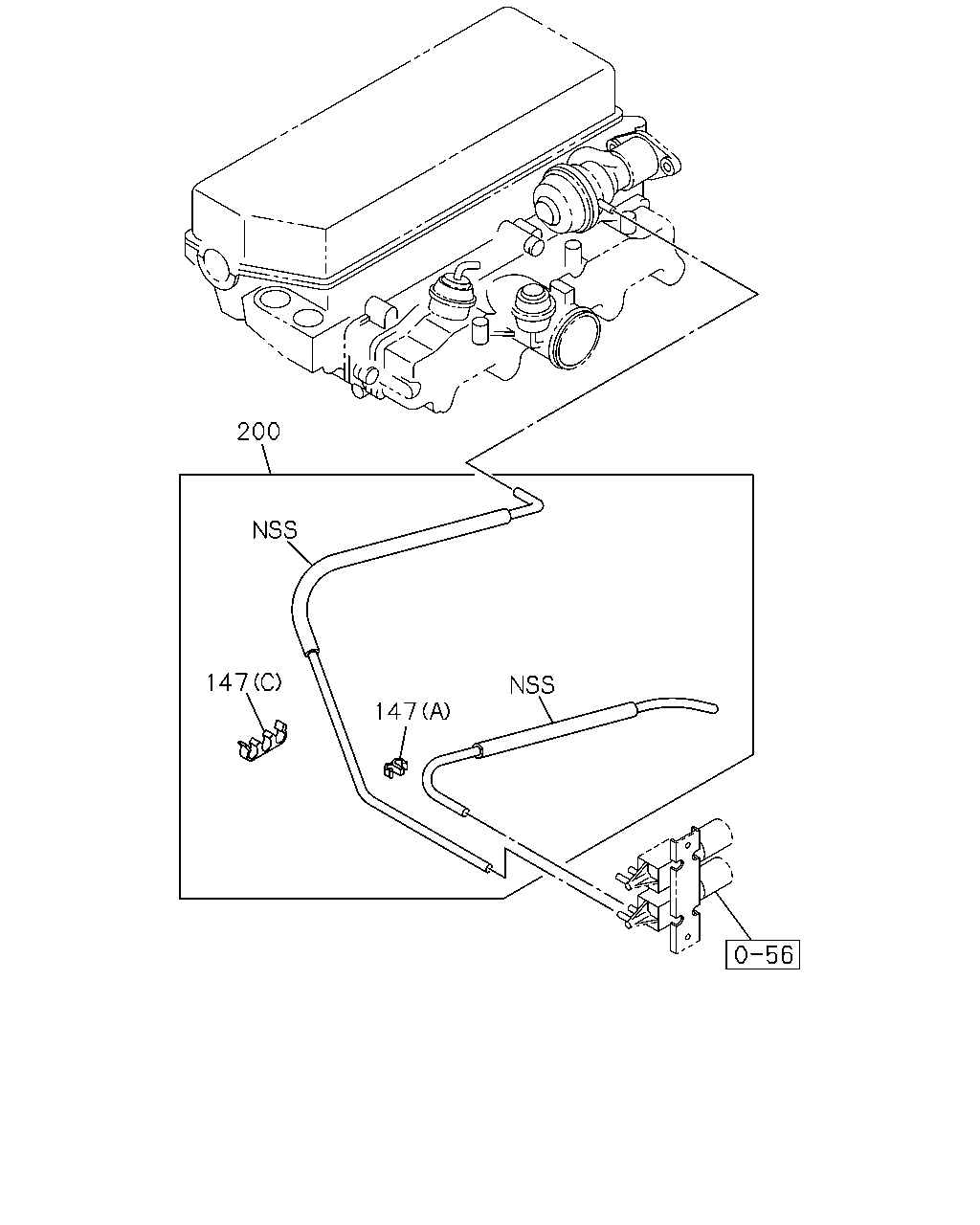

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
147
CLIP; RUBBER HOSE
EXHAUST BRAKE<NF8> (A) ID=6.8X2
8-94126-636-0
03
1
0009-
●
147
CLIP; RUBBER HOSE
EXHAUST BRAKE<NF8> (B) 4XID=6.8
8-94132-799-0
01
1
0009-
●
147
CLIP; RUBBER HOSE
EXC. EXHAUST BRAKE<NF8> (A) ID=6.8X2
8-94126-636-0
01
1
0009-
●
147
CLIP; RUBBER HOSE
EXC. EXHAUST BRAKE<NF8> (C) ID=6.8 & 6.8 & 6.8
8-94208-734-0
01
1
0009-
●
200
HOSE; VAC
EXHAUST BRAKE<NF8>
8-97207-664-2
01
1
0009-
●
200
HOSE; VAC
EXC. EXHAUST BRAKE<NF8>
8-97207-665-2
01
1
0009-
●
200
147
147
164
165
164

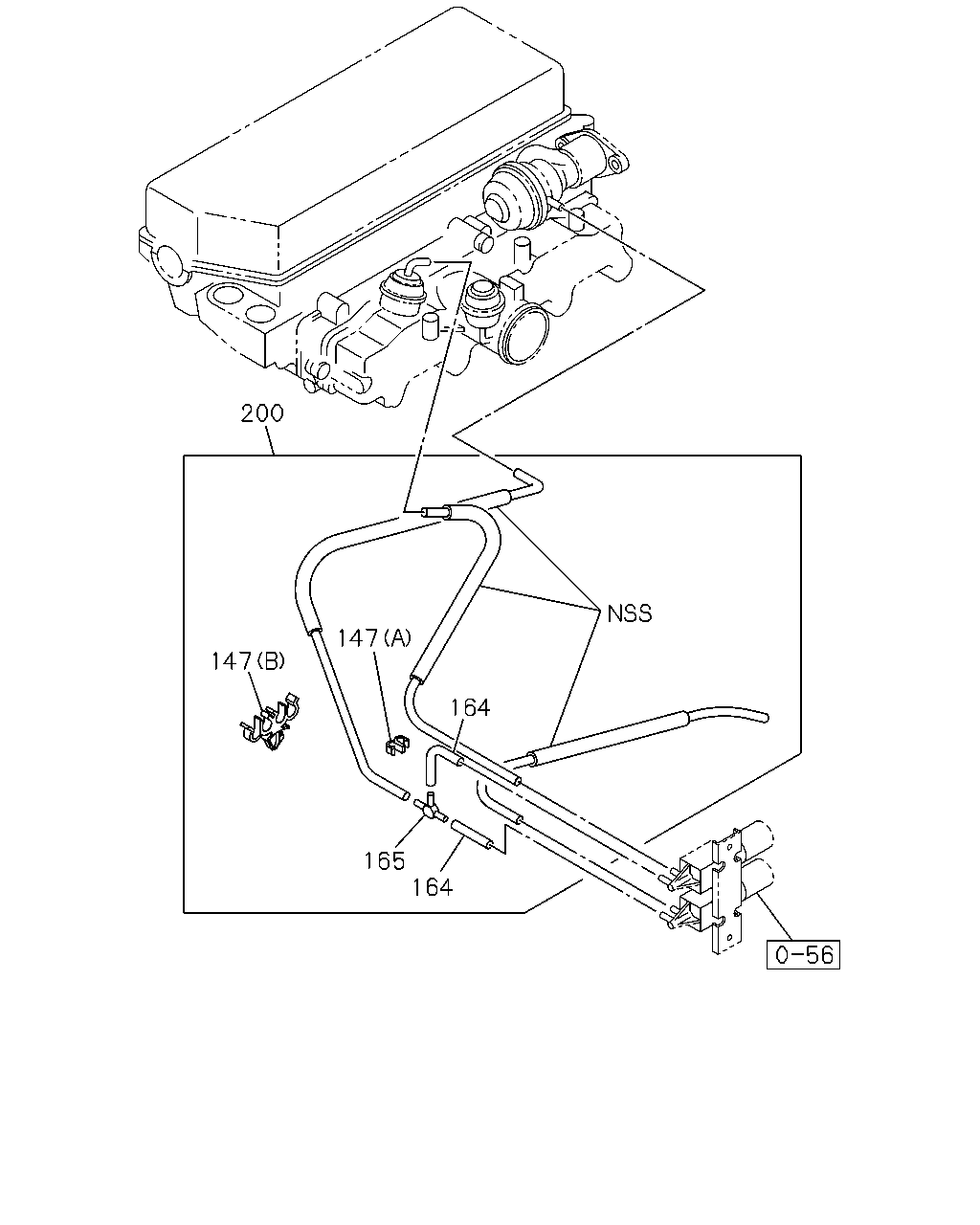

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
147
CLIP; RUBBER HOSE
EXHAUST BRAKE<NF8> (A) ID=6.8X2
8-94126-636-0
03
1
0009-
●
147
CLIP; RUBBER HOSE
EXHAUST BRAKE<NF8> (B) 4XID=6.8
8-94132-799-0
01
1
0009-
●
147
CLIP; RUBBER HOSE
EXC. EXHAUST BRAKE<NF8> (A) ID=6.8X2
8-94126-636-0
01
1
0009-
●
147
CLIP; RUBBER HOSE
EXC. EXHAUST BRAKE<NF8> (C) ID=6.8 & 6.8 & 6.8
8-94208-734-0
01
1
0009-
●
164
HOSE; RUBBER
EXHAUST BRAKE<NF8> L=65 SERVICED BY L=3000
0-04730-300-0
01
1
0009-
●
164
HOSE; RUBBER
EXHAUST BRAKE<NF8> L=40 SERVICED BY L=3000
0-04730-300-0
01
1
0009-
●
165
JOINT; HOSE
EXHAUST BRAKE<NF8> 3WAY
8-94208-695-0
01
1
0009-
●
200
HOSE; VAC
EXHAUST BRAKE<NF8>
8-97207-664-2
01
1
0009-
●
200
HOSE; VAC
EXC. EXHAUST BRAKE<NF8>
8-97207-665-2
01
1
0009-
●
414
73
255
194
73
303
271
73
73

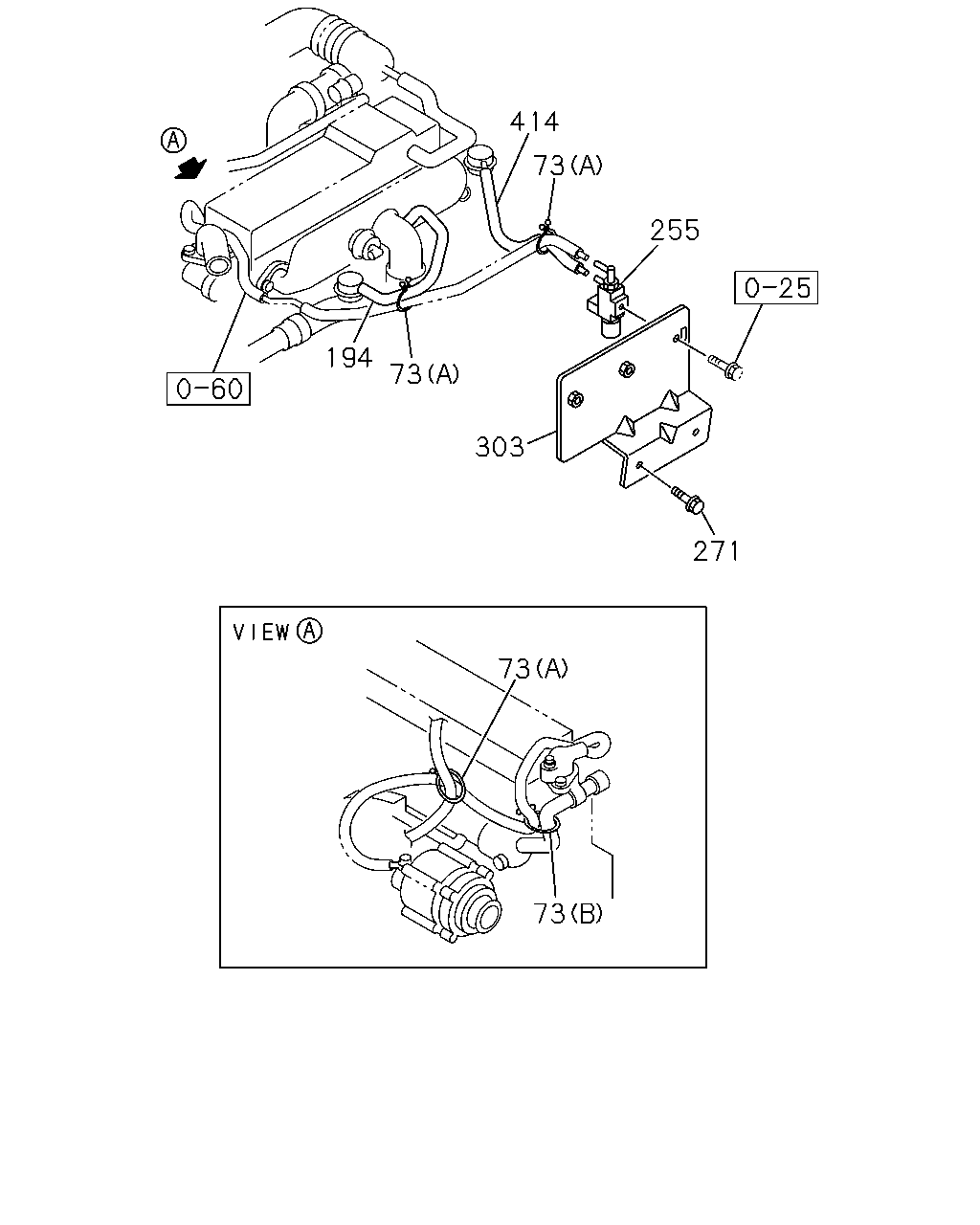

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
CLIP; VAC HOSE
(A) ID=30
8-94315-423-0
03
1
0009-
●
73
CLIP; VAC HOSE
(B) ID=37
8-94481-468-0
01
1
0009-
●
194
HOSE; VAC
8-97208-495-0
01
1
0009-
●
255
VALVE; VAC SW,EGR CONT
8-97171-030-0
01
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
303
BRACKET; VAC SW
8-97187-377-0
01
1
0009-
●
414
HOSE; RUBBER,EGR VLV TO VSV
8-97259-489-0
01
1
0009-
●
414
73
255
194
73
303
271
73
73

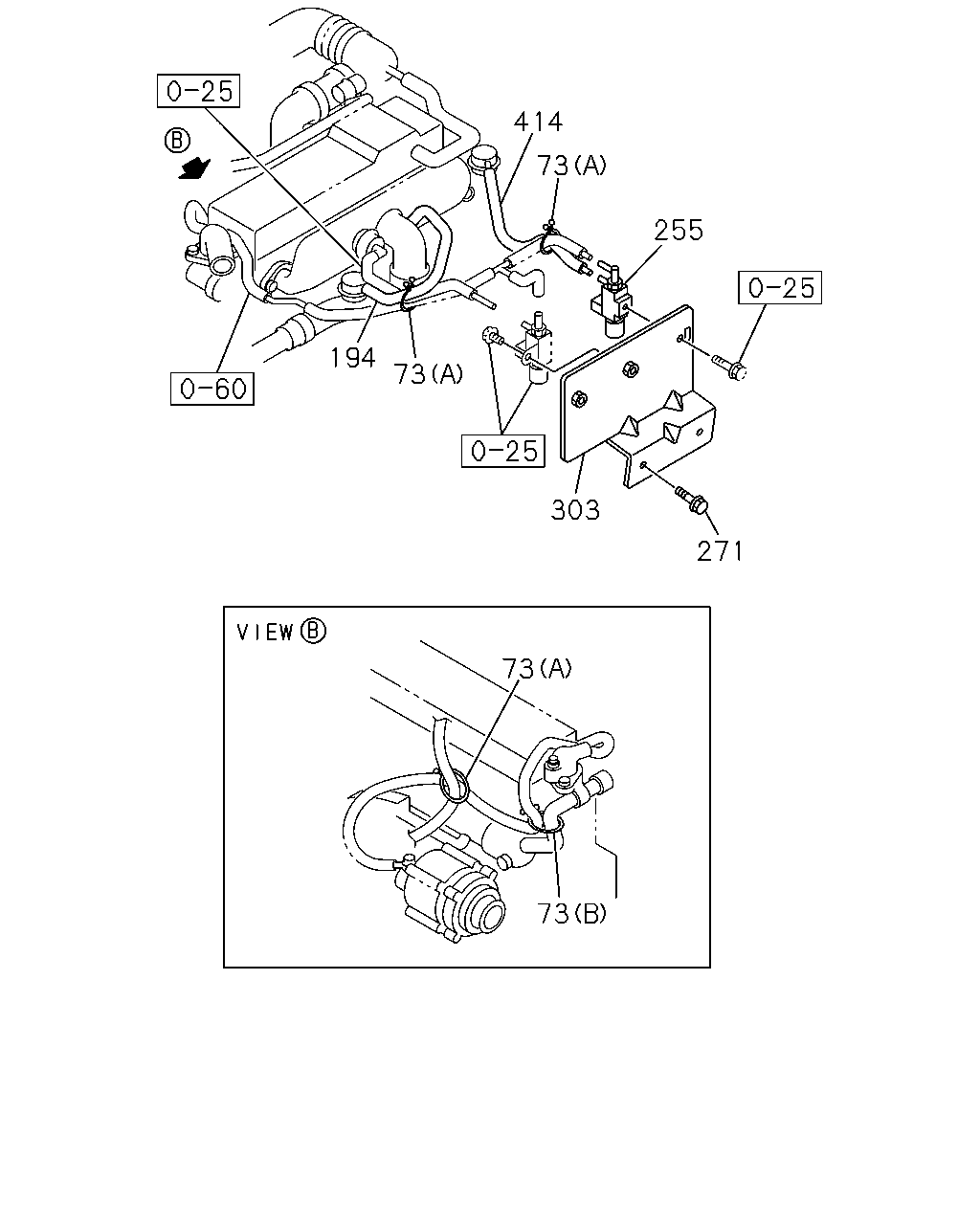

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
CLIP; VAC HOSE
(A) ID=30
8-94315-423-0
03
1
0009-
●
73
CLIP; VAC HOSE
(B) ID=37
8-94481-468-0
01
1
0009-
●
194
HOSE; VAC
8-97208-495-0
01
1
0009-
●
255
VALVE; VAC SW,EGR CONT
8-97171-030-0
01
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0009-
●
303
BRACKET; VAC SW
8-97187-377-0
01
1
0009-
●
414
HOSE; RUBBER,EGR VLV TO VSV
8-97259-489-0
01
1
0009-
●
577
58
676
58
58
681
17
1
676
2
486
707
708
135
685

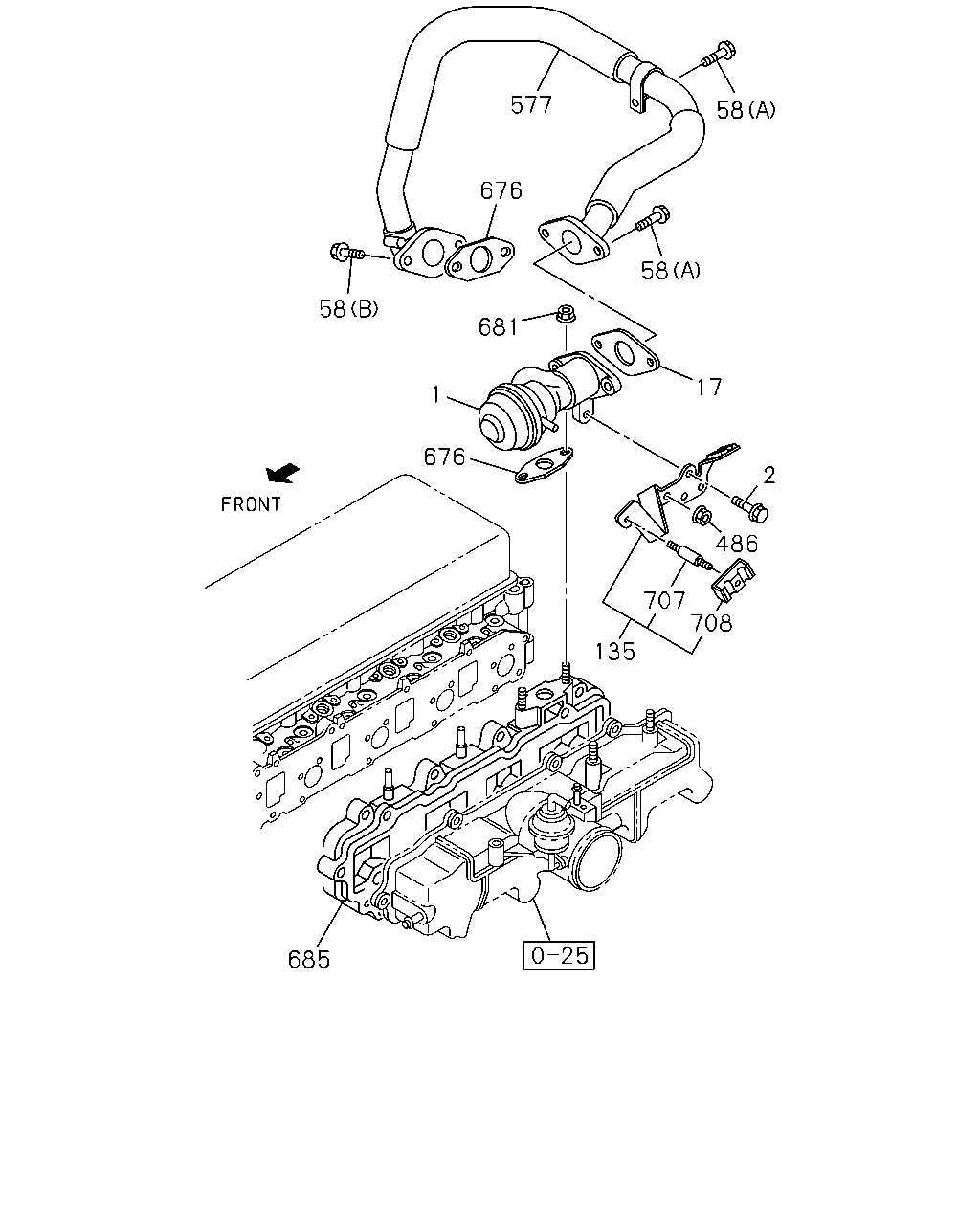

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97208-656-3
01
1
0009-
●
1
VALVE; EGR
8-97115-533-3
01
1
0009-
●
2
BOLT; EGR VLV
M8X20 FLANGE
0-28680-820-0
01
1
0009-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97192-765-0
03
1
0009-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97113-023-0
01
1
0009-
●
58
BOLT; PIPE
(A) M8X20 FLANGE
0-28680-820-0
03
1
0009-
●
58
BOLT; PIPE
(B) M8X23 FLANGE THA
8-94103-629-2
02
1
0009-
●
135
BRACKET; EGR
8-97221-358-1
01
1
0009-
●
486
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0009-
●
577
PIPE; AIR,EGR
8-97200-643-2
01
1
0009-
●
676
GASKET; PIPE
8-97146-683-0
02
1
0009-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-208-0
02
1
0009-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91150-108-0
02
1
0009-
●
685
CASE; INLET,EGR
8-97146-872-1
01
1
0009-
●
707
STUD; CLIP,INJ PIPE
M6X25 L=36
8-97214-234-0
01
1
0009-
●
708
CLIP; PIPE,INJ
8-97213-481-0
01
1
0009-
●
