Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

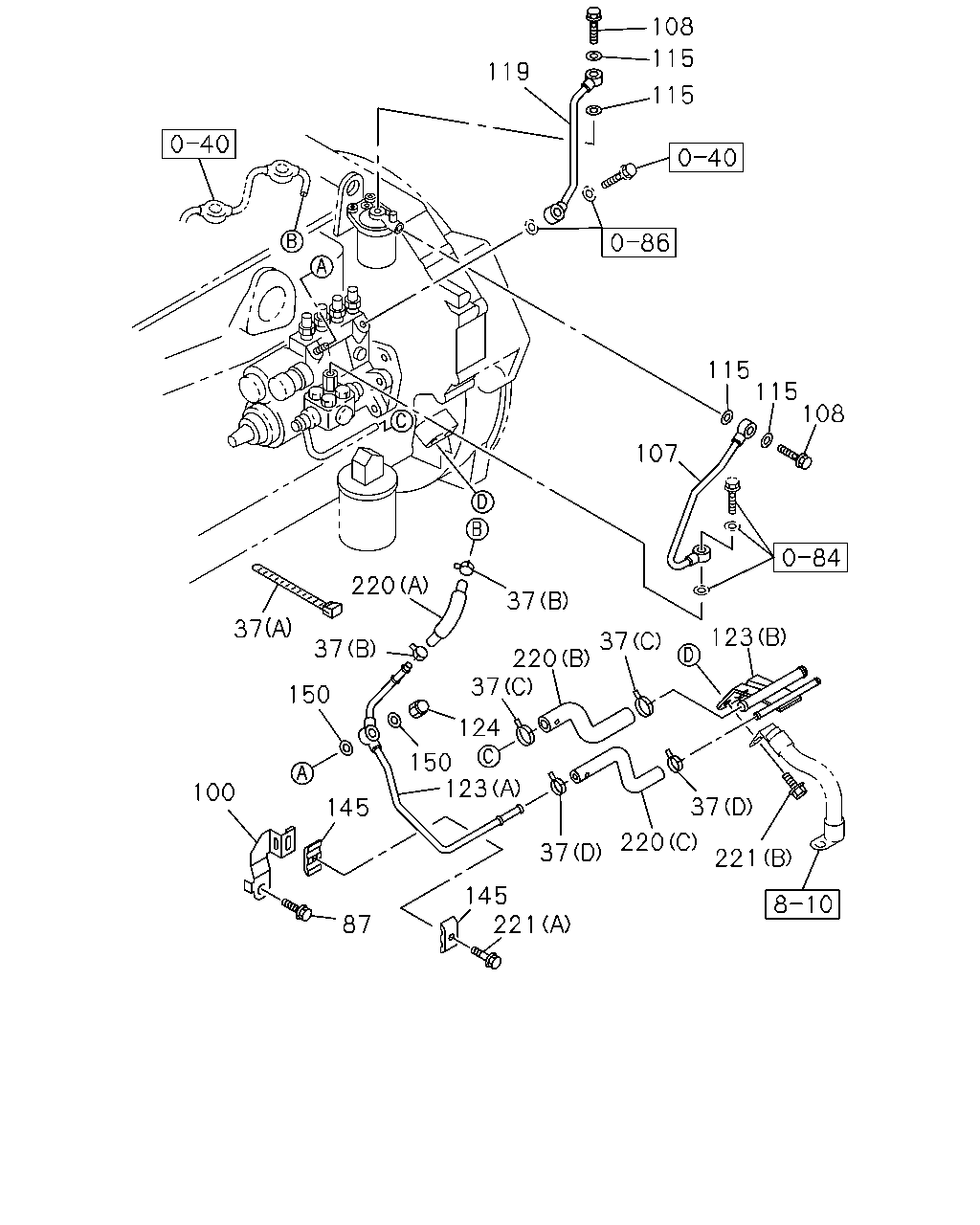

0-42 — FUEL PUMP AND PIPE
(#20594) — 20 parça
108
115
119
115
115
115
108
107
220
37
37
123
37
220
37
37
150
124
150
123
100
37
145
220
37
221
145
221
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
CLIP; FUEL HOSE
(A) L=140
5-09707-031-1
01
1
0009-
37
CLIP; FUEL HOSE
(C) ID=16
8-94238-568-0
02
1
0009-
37
CLIP; FUEL HOSE
(D) ID=13
8-94238-571-0
02
1
0009-
37
CLIP; FUEL HOSE
(B) ID=12
8-94238-610-0
02
1
0009-
87
BOLT; STAY,FUEL PIPE
M8X12 FLANGE
0-28080-812-0
01
1
0009-
100
CLIP; "B",FUEL PIPE
8-97108-315-0
01
1
0009-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97210-721-1
01
1
0009-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
0009-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0
9-09572-014-0
04
1
0009-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97211-323-1
01
1
0009-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97087-196-0
01
1
0009-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97223-179-0
01
1
0009-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0009-
145
CLIP; FUEL PIPE
ID=6.1 & 9.6
8-97016-323-0
02
1
0009-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0
9-09572-014-0
02
1
0009-
220
HOSE; FUEL
(B)
8-97087-227-1
01
1
0009-
220
HOSE; FUEL
(C)
8-97087-228-1
01
1
0009-
220
HOSE; FUEL
(A)
8-97208-874-0
01
1
0009-
221
BOLT; FUEL PIPE
(B) M8X16 FLANGE
0-28080-816-0
02
1
0009-
221
BOLT; FUEL PIPE
(A) M6X40 FLANGE
0-28680-640-0
01
1
0009-
