◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#20593) — 33 parça
çizim 48863
62 62 1 1 8 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
FUEL FILTER DUAL<S6B> 		8-97070-864-0 01 1 0009- ●
1 FILTER ASM; FUEL 8-97171-451-2 01 1 0009- ●
1 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL<S6B> THA 		8-97916-503-1 01 1 0009- ●
2 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA 		8-94144-613-0 02 1 0009- ●
2 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0009- ●
2 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97916-993-1 01 1 0009- ●
8 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97363-518-0 01 1 0009- ●
8 COVER; FUEL FILTER 8-97172-543-1 01 1 0009- ●
8 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97917-558-0 01 1 0009- ●
56 PLUG; FUEL FILTER
FUEL FILTER DUAL<S6B> 		5-13226-001-0 01 1 0009- ●
57 GASKET; PLUG
FUEL FILTER DUAL<S6B> ID=14.2 OD=20.0 		9-09571-414-0 01 1 0009- ●
62 NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> M10 FLANGE 		0-91150-210-0 02 1 0009- ●
62 NUT; FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0009- ●

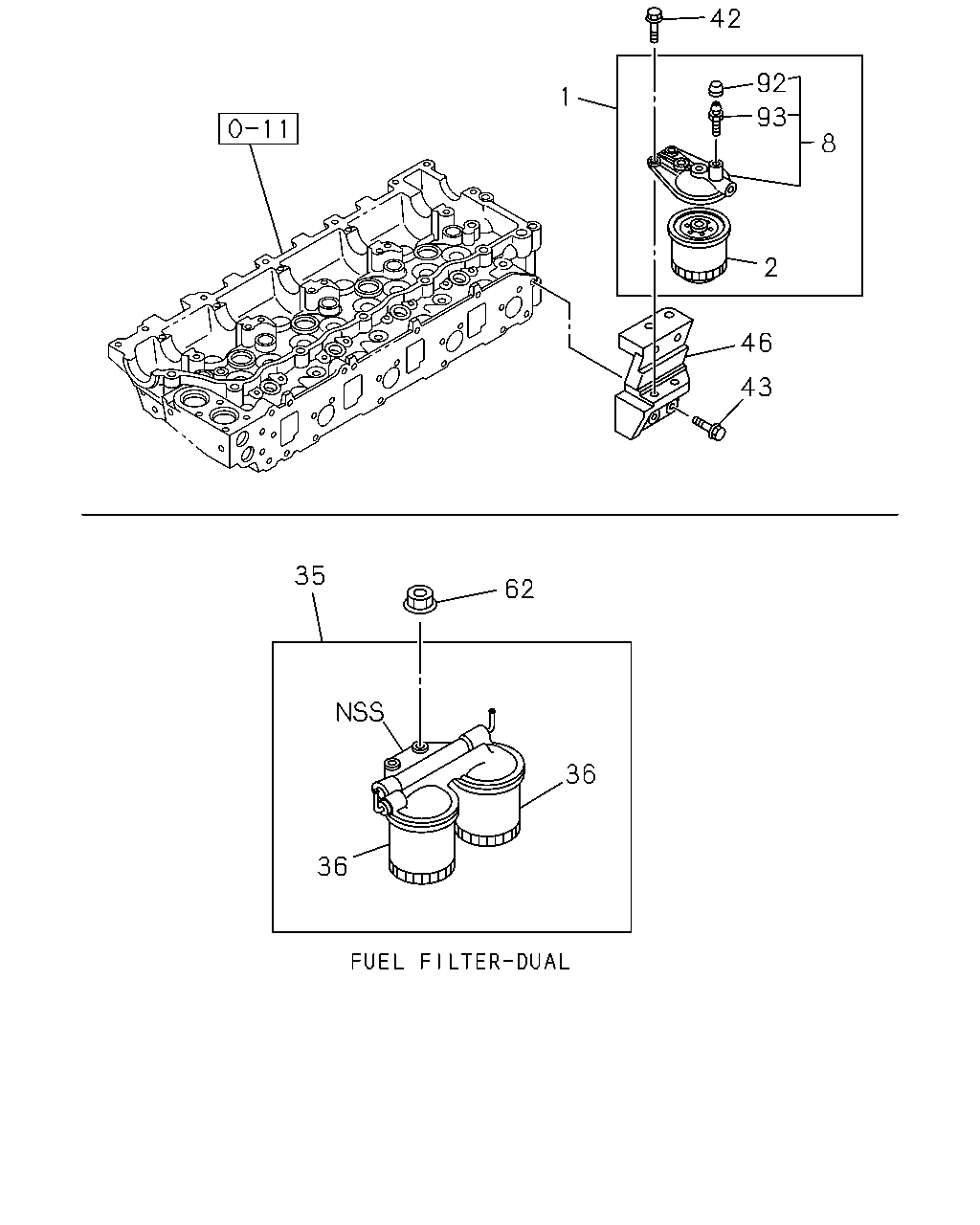

çizim 48865
42 92 1 93 8 2 46 43 35 62 36 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
FUEL FILTER DUAL<S6B> 		8-97070-864-0 01 1 0009- ●
1 FILTER ASM; FUEL 8-97171-451-2 01 1 0009- ●
1 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL<S6B> THA 		8-97916-503-1 01 1 0009- ●
2 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA 		8-94144-613-0 02 1 0009- ●
2 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0009- ●
2 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97916-993-1 01 1 0009- ●
8 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97363-518-0 01 1 0009- ●
8 COVER; FUEL FILTER 8-97172-543-1 01 1 0009- ●
8 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL<S6B> THA 		8-97917-558-0 01 1 0009- ●
35 FILTER ASM; SUB FUEL
FUEL FILTER DUAL<S6B> 		8-97070-864-0 01 1 0009- ●
36 ELEMENT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA 		8-94144-613-0 02 1 0009- ●
42 BOLT; FUEL FILTER
M10X30 FLANGE 		0-28781-030-0 02 1 0009- ●
43 BOLT; BRKT
M12X28 FLANGE 		0-28181-228-0 02 1 0009- ●
46 BRACKET 8-97061-452-0 01 1 0009- ●
56 PLUG; FUEL FILTER
FUEL FILTER DUAL<S6B> 		5-13226-001-0 01 1 0009- ●
57 GASKET; PLUG
FUEL FILTER DUAL<S6B> ID=14.2 OD=20.0 		9-09571-414-0 01 1 0009- ●
62 NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> M10 FLANGE 		0-91150-210-0 02 1 0009- ●
62 NUT; FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0009- ●
92 CAP; FUEL FILTER 8-97172-548-0 01 1 0009- ●
93 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 0009- ●
