Sayfa 0-40 - Isuzu EPC

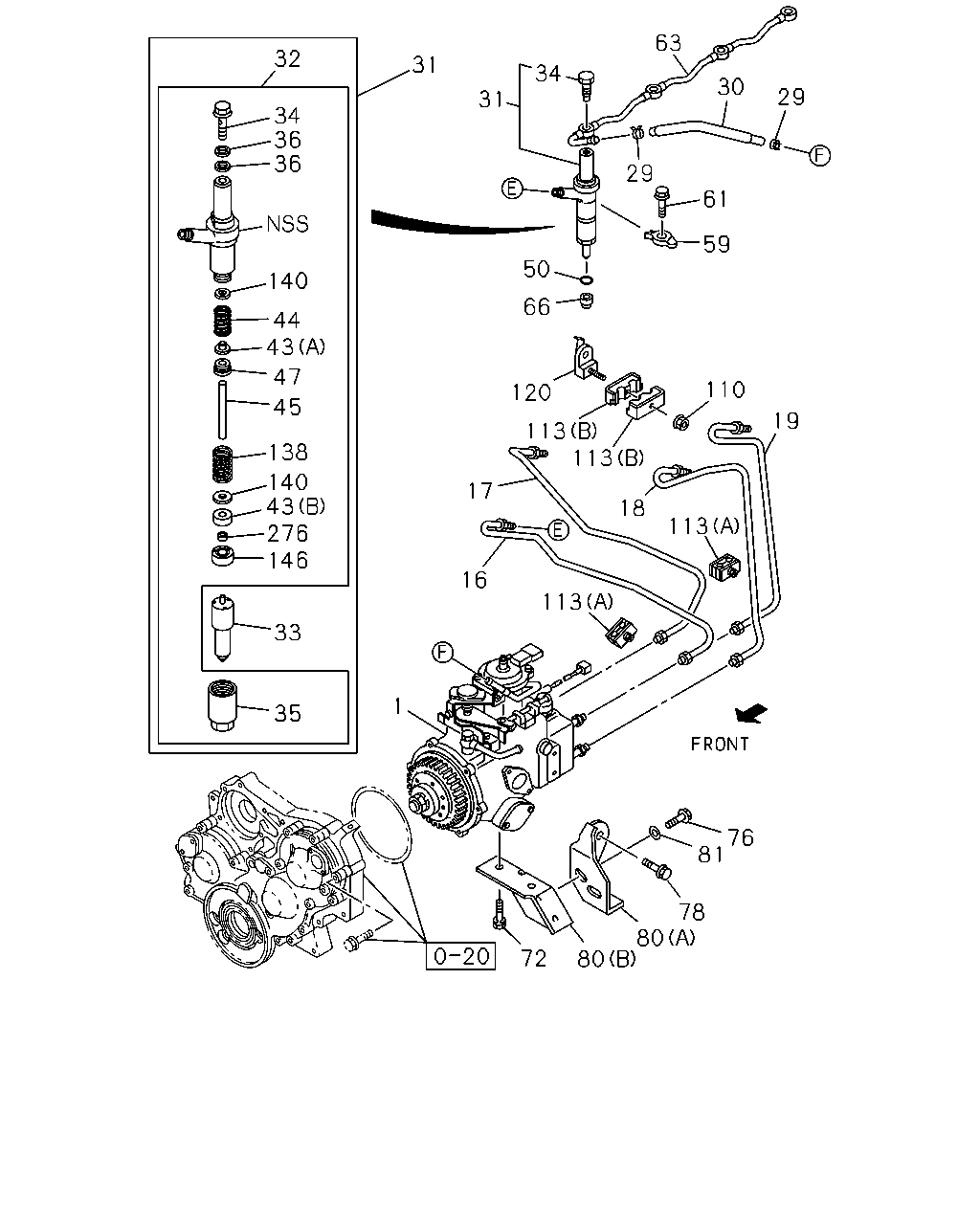

0-40 — FUEL INJECTION SYSTEM (#20592) — 376 parça

63 32 31 34 30 29 31 34 36 36 29 61 59 50 140 66 44 43 47 110 120 45 19 113 113 138 140 43 276 146 17 18 113 16 113 33 1 35 76 81 78 80 80 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97192-330-6	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0009-		●
16	PIPE; INJ NO.1	8-97223-923-1	01	1	0009-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0009-		●
17	PIPE; INJ NO.2	8-97223-924-1	01	1	0009-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0009-		●
18	PIPE; INJ NO.3	8-97223-925-1	01	1	0009-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0009-		●
19	PIPE; INJ NO.4	8-97223-926-1	01	1	0009-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0009-		●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	0009-0301	●
29	CLIP; HOSE ID=11	8-97173-219-0	02	1	0302-	●
29	CLIP; HOSE ID=11	8-97173-219-0	02	1	0302-	●
30	HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR THA	8-94427-501-2	01	1	0009-0301	●
30	HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-	●
30	HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-	●
31	NOZZLE ASM; INJ	8-97192-333-2	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97200-570-3	04	1	0009-0304		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0009-0304		●
32	HOLDER ASM; NOZZLE	8-97352-048-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0009-0304		●
32	HOLDER ASM; NOZZLE	8-97352-048-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97203-471-1	04	1	0009-	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0009-		●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0009-		●
34	BOLT; EYE,NOZZLE HOLDER	8-94320-307-0	04	1	0009-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0009-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-347-0	08	1	0009-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97361-697-0	04	1	0305-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97361-697-0	04	1	0305-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97349-452-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97349-452-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-97223-339-0	04	1	0009-0304	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97223-339-0	04	1	0305-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.00	8-97223-343-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.02	8-97223-344-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.04	8-97223-345-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.06	8-97223-346-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.08	8-97223-347-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.10	8-97223-348-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.12	8-97223-349-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.14	8-97223-350-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.16	8-97223-351-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.18	8-97223-352-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.20	8-97223-353-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.22	8-97223-354-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.24	8-97223-355-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.26	8-97223-356-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.28	8-97223-357-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.30	8-97223-358-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.32	8-97223-359-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.34	8-97223-360-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.36	8-97223-361-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.38	8-97223-362-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.40	8-97223-363-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.42	8-97223-364-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.44	8-97223-365-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.46	8-97223-366-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.48	8-97223-367-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.50	8-97223-368-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.52	8-97223-369-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.54	8-97223-370-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.56	8-97223-371-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.58	8-97223-372-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.60	8-97223-373-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.62	8-97223-374-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.64	8-97223-375-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.66	8-97223-376-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.68	8-97223-377-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.70	8-97223-378-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.72	8-97223-379-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.74	8-97223-380-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.76	8-97223-381-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.78	8-97223-382-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.80	8-97223-383-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.82	8-97223-384-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.84	8-97223-385-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.86	8-97223-386-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.88	8-97223-387-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.90	8-97223-388-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.92	8-97223-389-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.94	8-97223-390-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.96	8-97223-391-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.98	8-97223-392-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=3.00	8-97223-393-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97223-339-0	04	1	0305-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0009-	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0009-		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0009-		●
45	ROD; PUSH,NOZZLE HOLDER	8-97223-341-0	04	1	0009-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97223-340-0	04	1	0009-	●	●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-94326-439-0	04	1	0009-0103	●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97287-402-1	04	1	0104-	●
59	CLAMP; NOZZLE HOLDER	8-94467-726-1	04	1	0009-0305	●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-	●
59	CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-	●
61	BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0009-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97231-578-0	01	1	0009-0305	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0306-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0009-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0306-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0009-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0009-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0009-		●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	0009-	●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0009-		●
80	BRACKET; PUMP (A) THA	8-94133-761-1	01	1	0009-	●
80	BRACKET; PUMP (B) THA	8-94133-762-2	01	1	0009-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0009-		●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	0009-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0009-	●	●
113	CLIP; INJ PIPE (B) ID=15 L=30	1-09701-132-1	02	1	0009-	●
113	CLIP; INJ PIPE (A)	8-97224-041-1	02	1	0009-	●
113	CLIP; INJ PIPE (B)	8-97213-050-0	04	1	0009-		●
113	CLIP; INJ PIPE (A)	8-97213-481-0	01	1	0009-		●
120	BRACKET; INJ PIPE	8-97224-300-0	01	1	0009-0012	●
120	BRACKET; INJ PIPE	8-97306-609-0	01	1	0101-0103	●
120	BRACKET; INJ PIPE	8-97224-300-0	01	1	0104-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0009-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0009-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	04	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	04	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.10	8-97116-029-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.10	8-97116-029-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.20	8-97116-032-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.20	8-97116-032-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.30	8-97116-033-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.30	8-97116-033-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.40	8-97116-034-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.40	8-97116-034-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.51	8-97116-036-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.51	8-97116-036-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.52	8-97116-037-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.52	8-97116-037-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.53	8-97116-038-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.53	8-97116-038-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.54	8-97116-039-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.54	8-97116-039-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.55	8-97116-040-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.55	8-97116-040-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.56	8-97116-041-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.56	8-97116-041-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.57	8-97116-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.57	8-97116-042-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.58	8-97116-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.58	8-97116-043-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.59	8-97116-044-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.59	8-97116-044-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-044-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-045-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-046-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-047-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-048-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-049-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	0009-	●	●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●

31 32 34 36 36 2 58 1 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97192-330-6	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0009-		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0009-		●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0009-		●
2	BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0009-		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0009-		●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0009-		●
31	NOZZLE ASM; INJ	8-97192-333-2	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97200-570-3	04	1	0009-0304		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0009-0304		●
32	HOLDER ASM; NOZZLE	8-97352-048-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97078-783-1	04	1	0009-0304		●
32	HOLDER ASM; NOZZLE	8-97352-048-0	04	1	0305-		●
32	HOLDER ASM; NOZZLE	8-97203-471-1	04	1	0009-	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0009-		●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	04	1	0009-		●
34	BOLT; EYE,NOZZLE HOLDER	8-94320-307-0	04	1	0009-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0009-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-347-0	08	1	0009-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97361-697-0	04	1	0305-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97361-697-0	04	1	0305-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97349-452-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97349-452-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-97223-339-0	04	1	0009-0304	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97223-339-0	04	1	0305-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.00	8-97223-343-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.02	8-97223-344-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.04	8-97223-345-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.06	8-97223-346-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.08	8-97223-347-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.10	8-97223-348-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.12	8-97223-349-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.14	8-97223-350-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.16	8-97223-351-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.18	8-97223-352-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.20	8-97223-353-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.22	8-97223-354-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.24	8-97223-355-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.26	8-97223-356-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.28	8-97223-357-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.30	8-97223-358-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.32	8-97223-359-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.34	8-97223-360-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.36	8-97223-361-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.38	8-97223-362-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.40	8-97223-363-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.42	8-97223-364-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.44	8-97223-365-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.46	8-97223-366-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.48	8-97223-367-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.50	8-97223-368-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.52	8-97223-369-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.54	8-97223-370-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.56	8-97223-371-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.58	8-97223-372-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.60	8-97223-373-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.62	8-97223-374-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.64	8-97223-375-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.66	8-97223-376-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.68	8-97223-377-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.70	8-97223-378-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.72	8-97223-379-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.74	8-97223-380-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.76	8-97223-381-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.78	8-97223-382-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.80	8-97223-383-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.82	8-97223-384-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.84	8-97223-385-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.86	8-97223-386-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.88	8-97223-387-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.90	8-97223-388-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.92	8-97223-389-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.94	8-97223-390-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.96	8-97223-391-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.98	8-97223-392-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) T=3.00	8-97223-393-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-97223-339-0	04	1	0305-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0009-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	04	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	04	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.10	8-97116-029-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.10	8-97116-029-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.20	8-97116-032-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.20	8-97116-032-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.30	8-97116-033-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.30	8-97116-033-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.40	8-97116-034-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.40	8-97116-034-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.51	8-97116-036-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.51	8-97116-036-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.52	8-97116-037-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.52	8-97116-037-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.53	8-97116-038-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.53	8-97116-038-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.54	8-97116-039-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.54	8-97116-039-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.55	8-97116-040-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.55	8-97116-040-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.56	8-97116-041-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.56	8-97116-041-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.57	8-97116-042-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.57	8-97116-042-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.58	8-97116-043-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.58	8-97116-043-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. AIR CONDITIONER MANUAL CONT<C60> T=0.59	8-97116-044-0	AR	1	0009-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. TACHOMETER<U16> T=0.59	8-97116-044-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.20	1-15349-004-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-044-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-045-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-046-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-047-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-048-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-049-0	AR	1	0009-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	0009-	●	●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●

113 19 18 17 16 68 99 36 113 63 110 62 31 2 66 161 66 158 1 219 219 2 80 2 2 84 78 167 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97192-330-6	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0009-		●
2	BOLT; INJ PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0009-		●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0009-		●
2	BOLT; INJ PUMP (C) M12X90 FLANGE	0-28181-290-0	01	1	0009-		●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0009-		●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0009-		●
16	PIPE; INJ NO.1	8-97223-923-1	01	1	0009-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0009-		●
17	PIPE; INJ NO.2	8-97223-924-1	01	1	0009-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0009-		●
18	PIPE; INJ NO.3	8-97223-925-1	01	1	0009-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0009-		●
19	PIPE; INJ NO.4	8-97223-926-1	01	1	0009-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0009-		●
31	NOZZLE ASM; INJ	8-97192-333-2	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97200-570-3	04	1	0009-0304		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
31	NOZZLE ASM; INJ	8-97367-553-0	04	1	0305-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-347-0	08	1	0009-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	04	1	0009-		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0009-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97231-578-0	01	1	0009-0305	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0306-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0009-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0306-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0009-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0009-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0009-		●
68	CLIP; INJ PIPE	1-09701-091-0	01	1	0009-		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0009-		●
80	BRACKET; PUMP (A) THA	8-94133-761-1	01	1	0009-	●
80	BRACKET; PUMP (B) THA	8-94133-762-2	01	1	0009-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0009-		●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0009-		●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE	0-28080-625-0	01	1	0009-0009		●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE	0-28680-625-0	01	1	0009-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0009-	●	●
113	CLIP; INJ PIPE (B) ID=15 L=30	1-09701-132-1	02	1	0009-	●
113	CLIP; INJ PIPE (A)	8-97224-041-1	02	1	0009-	●
113	CLIP; INJ PIPE (B)	8-97213-050-0	04	1	0009-		●
113	CLIP; INJ PIPE (A)	8-97213-481-0	01	1	0009-		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0009-		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0009-0212		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-		●
167	SPACER; GUIDE TUBE	8-97065-515-2	01	1	0009-		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0009-		●
226	PIPE; FUEL	8-97203-567-0	01	1	0009-		●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●
272	NOZZLE KIT; INJ	8-97329-208-0	04	1	0009-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
