0-32 — WATER PIPING; ENGINE (#20587) — 23 parça

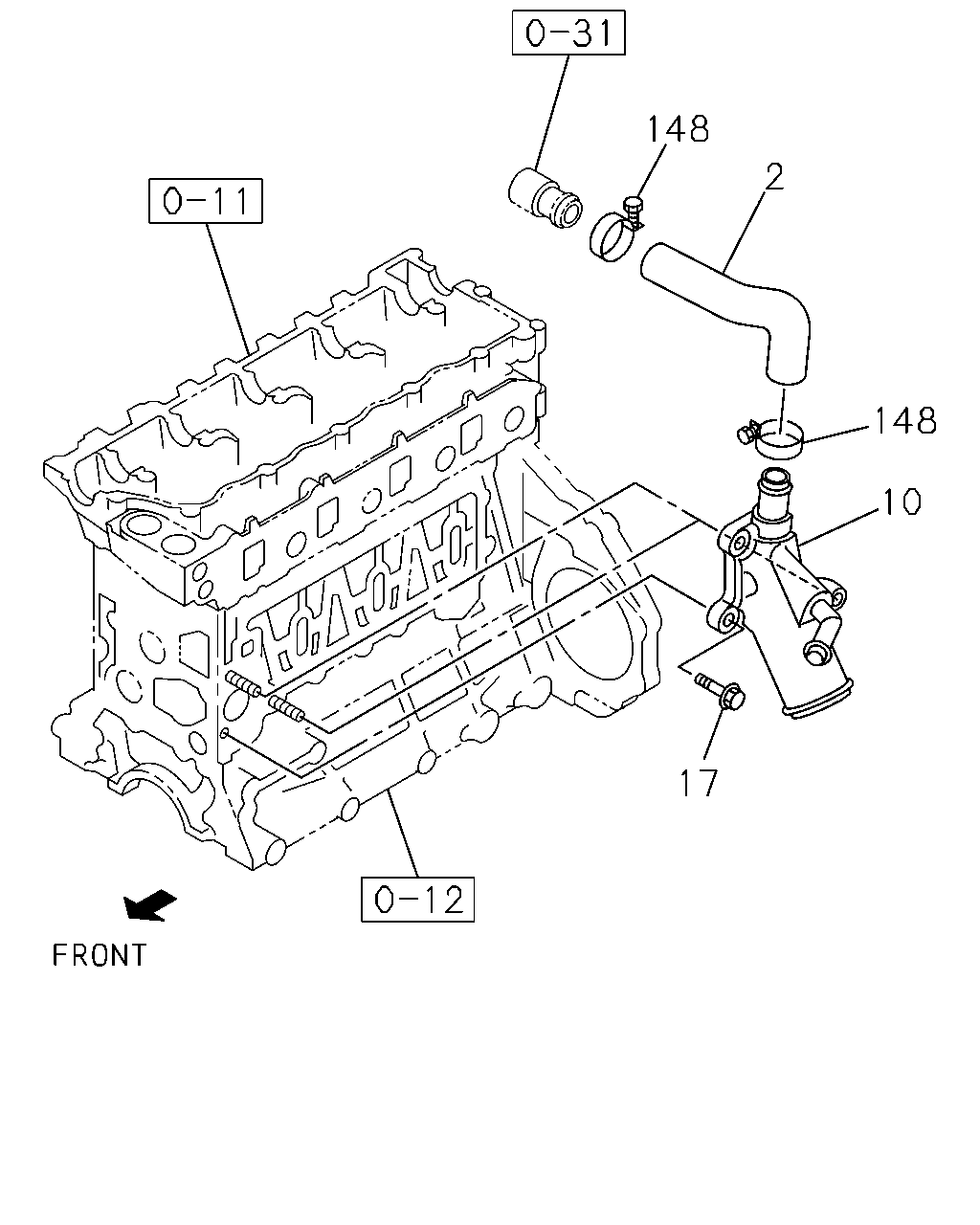

çizim 9856
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 0009- ●
2 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0009- ●
10 PIPE; SUCTION 8-97216-157-0 01 1 0009- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 0009- ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 0009- ●

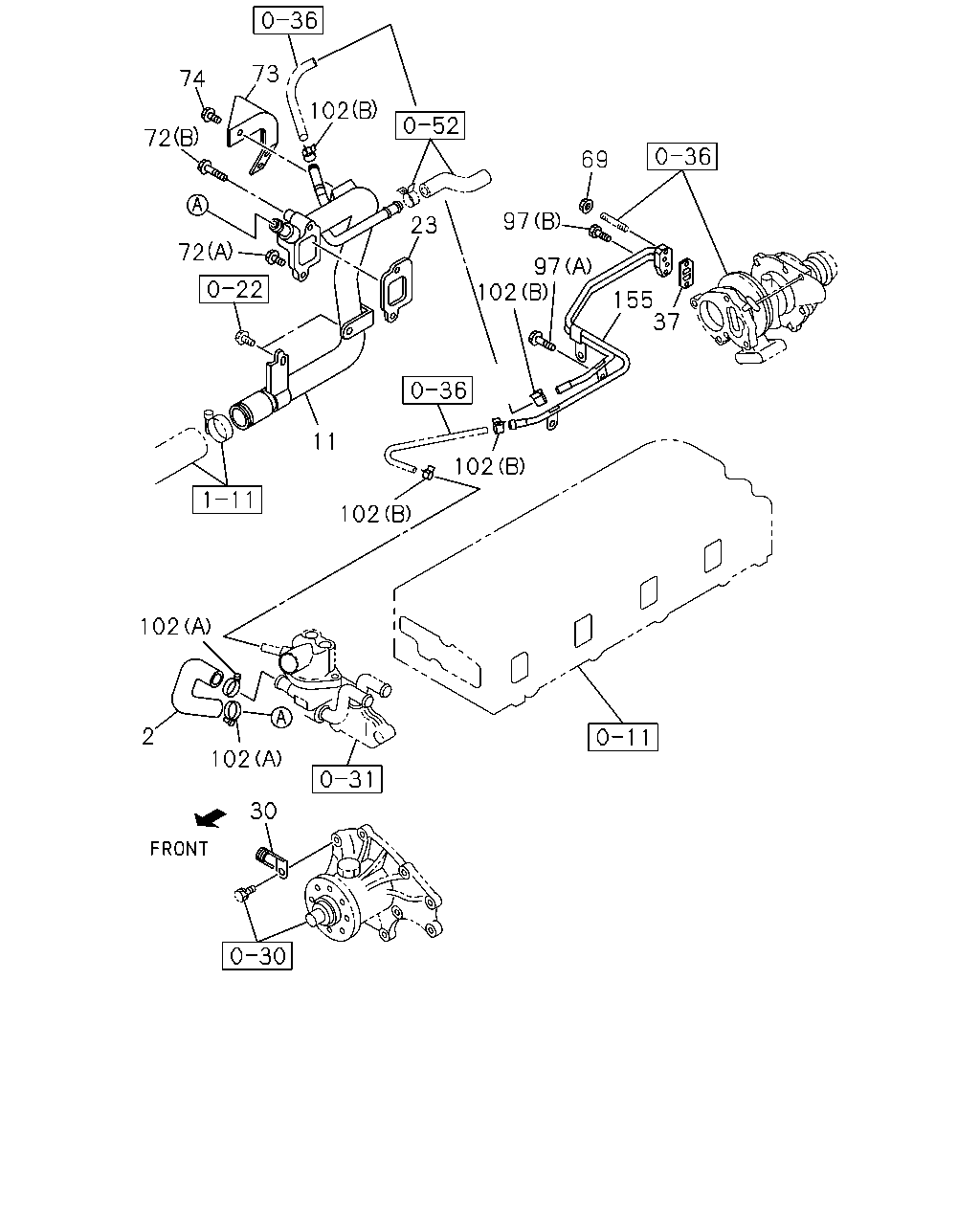

çizim 45846
73 74 102 72 69 97 23 72 97 102 155 37 11 102 102 102 2 102 30
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 0009- ●
2 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0009- ●
11 PIPE; INL,WATER PUMP 8-97213-400-1 01 1 0009- ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-94365-676-3 01 1 0009- ●
30 CLIP; HARNESS
ID=12 THA 		5-09700-331-0 01 1 0009-0302 ●
30 CLIP; HARNESS
ID=12 		8-97367-983-0 01 1 0303- ●
30 CLIP; HARNESS
ID=12 		8-97367-983-0 01 1 0303- ●
37 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-94321-135-1 01 1 0009- ●
69 NUT; WATER PIPE
M6 FLANGE 		0-91150-106-0 01 1 0009- ●
72 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0009- ●
72 BOLT; WATER PIPE
(B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0009- ●
73 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 0009- ●
74 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER 		0-50140-816-0 03 1 0009- ●
97 BOLT; WATER PIPE
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
97 BOLT; WATER PIPE
(B) M6X20 FLANGE 		0-28680-620-0 01 1 0009- ●
102 CLIP; WATER HOSE
(A) ID=20.8 		8-94125-862-1 02 1 0009- ●
102 CLIP; WATER HOSE
(B) ID=12.8 		8-94367-943-0 04 1 0009- ●
155 PIPE ASM; WATER 8-97207-954-0 01 1 0009- ●
