Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#20583) — 23 parça
Tümü
A - 4JB1 ENG
B - 4HG1 ENG
◀

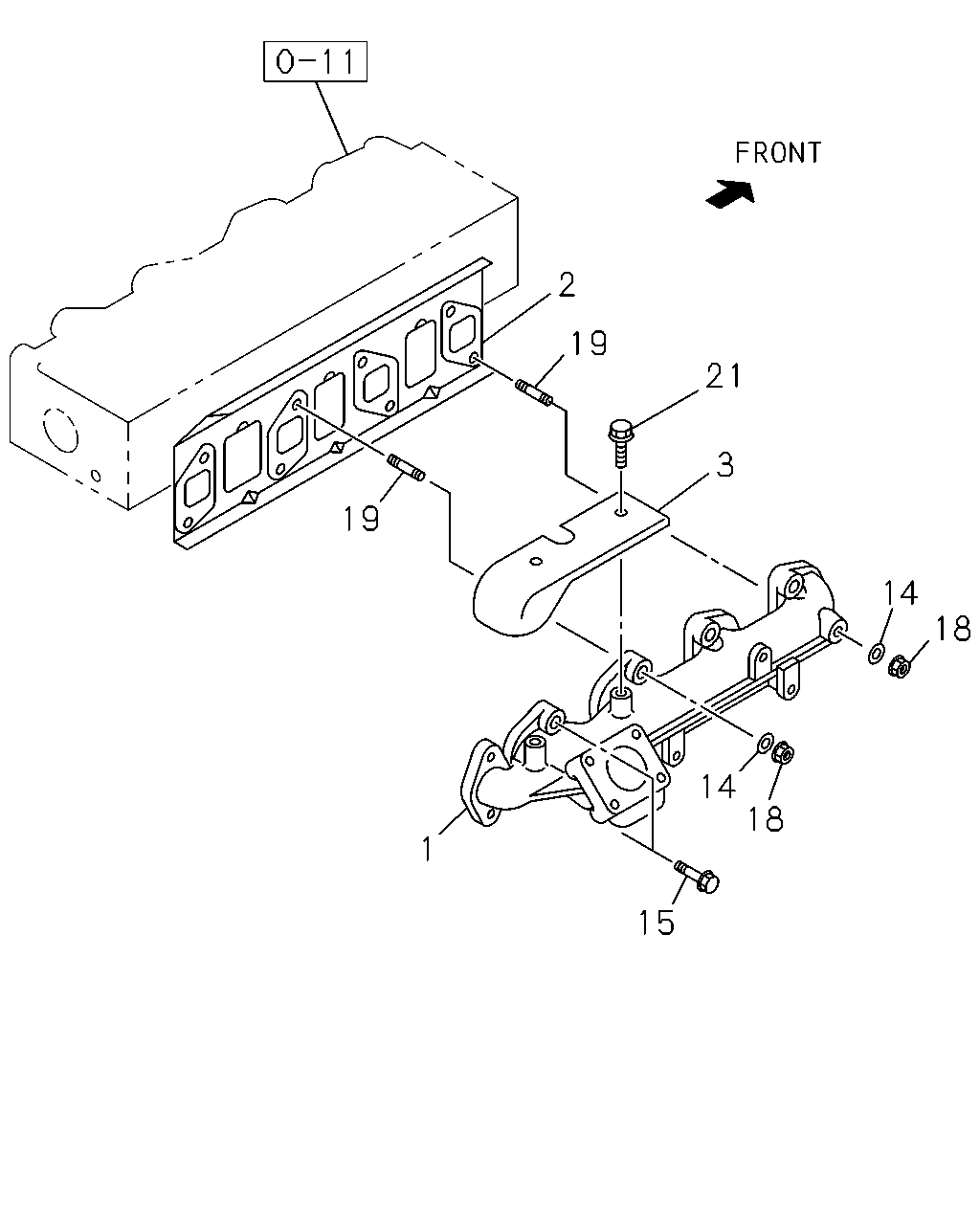

[027A] 4JB1 (13 parça)

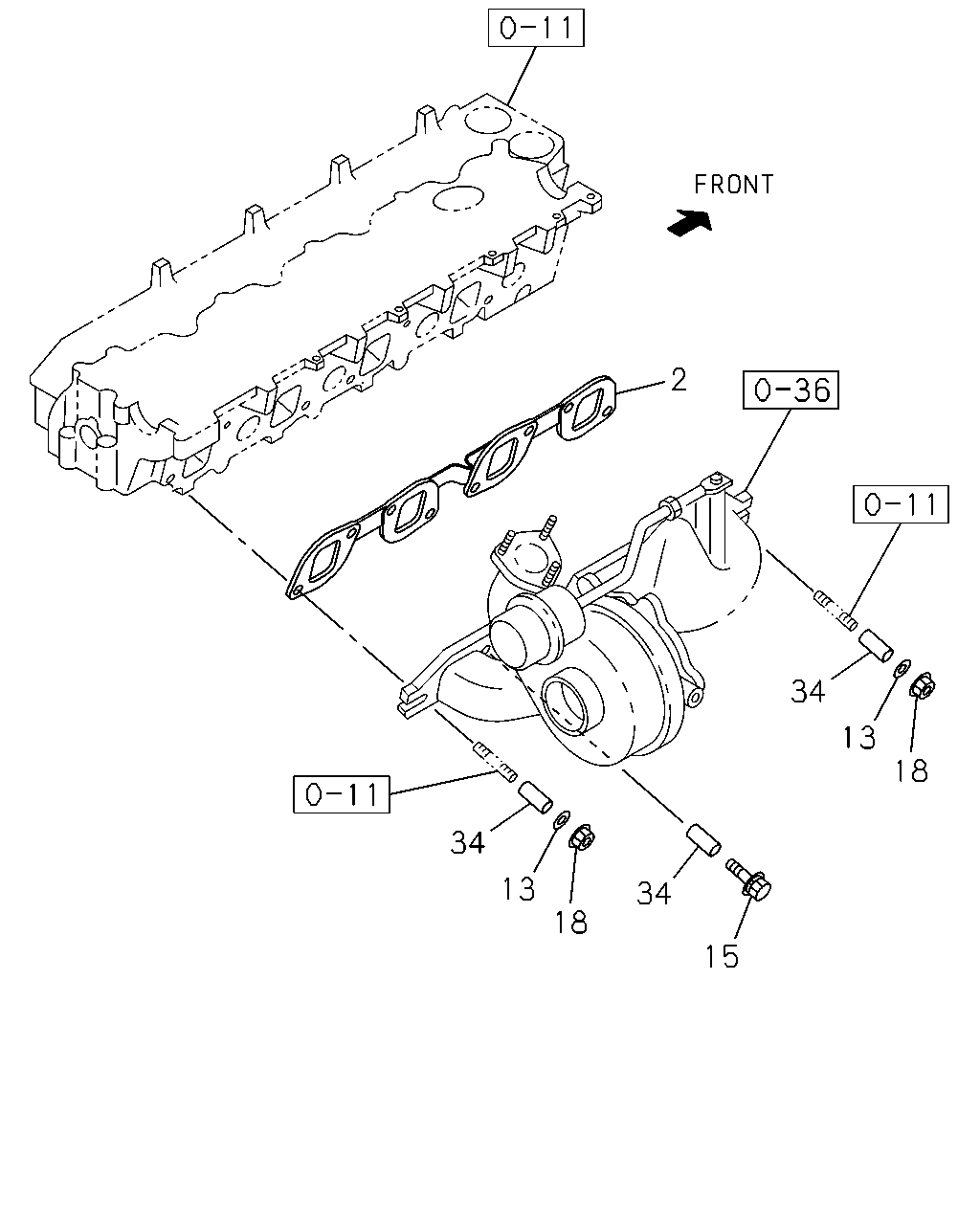

[027A] 4HG1 (10 parça)
▶
2
19
21
3
19
14
18
14
18
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
8-97217-908-0
01
1
0009-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97109-216-2
01
1
0009-0210
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97350-317-0
01
1
0211-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-0
01
1
0009-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97350-317-0
01
1
0211-
●
3
PROTECTOR; HEAT,EXH MANIF
8-97214-580-0
01
1
0009-
●
14
WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4
8-97257-914-0
02
1
0009-
●
15
BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE
8-97131-597-1
06
1
0009-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0009-
●
18
NUT; EXH MANIF
M8 FLANGE
0-91150-208-0
02
1
0009-
●
18
NUT; EXH MANIF
M10
9-09110-510-0
02
1
0009-
●
19
STUD; MANIF TO CYL HD
M8X35 L=46
8-97048-055-1
02
1
0009-
●
21
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28080-812-0
02
1
0009-
●
2
34
13
18
34
13
34
18
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97109-216-2
01
1
0009-0210
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97350-317-0
01
1
0211-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-0
01
1
0009-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97350-317-0
01
1
0211-
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
0009-
●
15
BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE
8-97131-597-1
06
1
0009-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0009-
●
18
NUT; EXH MANIF
M8 FLANGE
0-91150-208-0
02
1
0009-
●
18
NUT; EXH MANIF
M10
9-09110-510-0
02
1
0009-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0009-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
