Sayfa 2-07B - Isuzu EPC

2-07B — CLUTCH BOOSTER; MINIPACK (#2058) — 285 parça

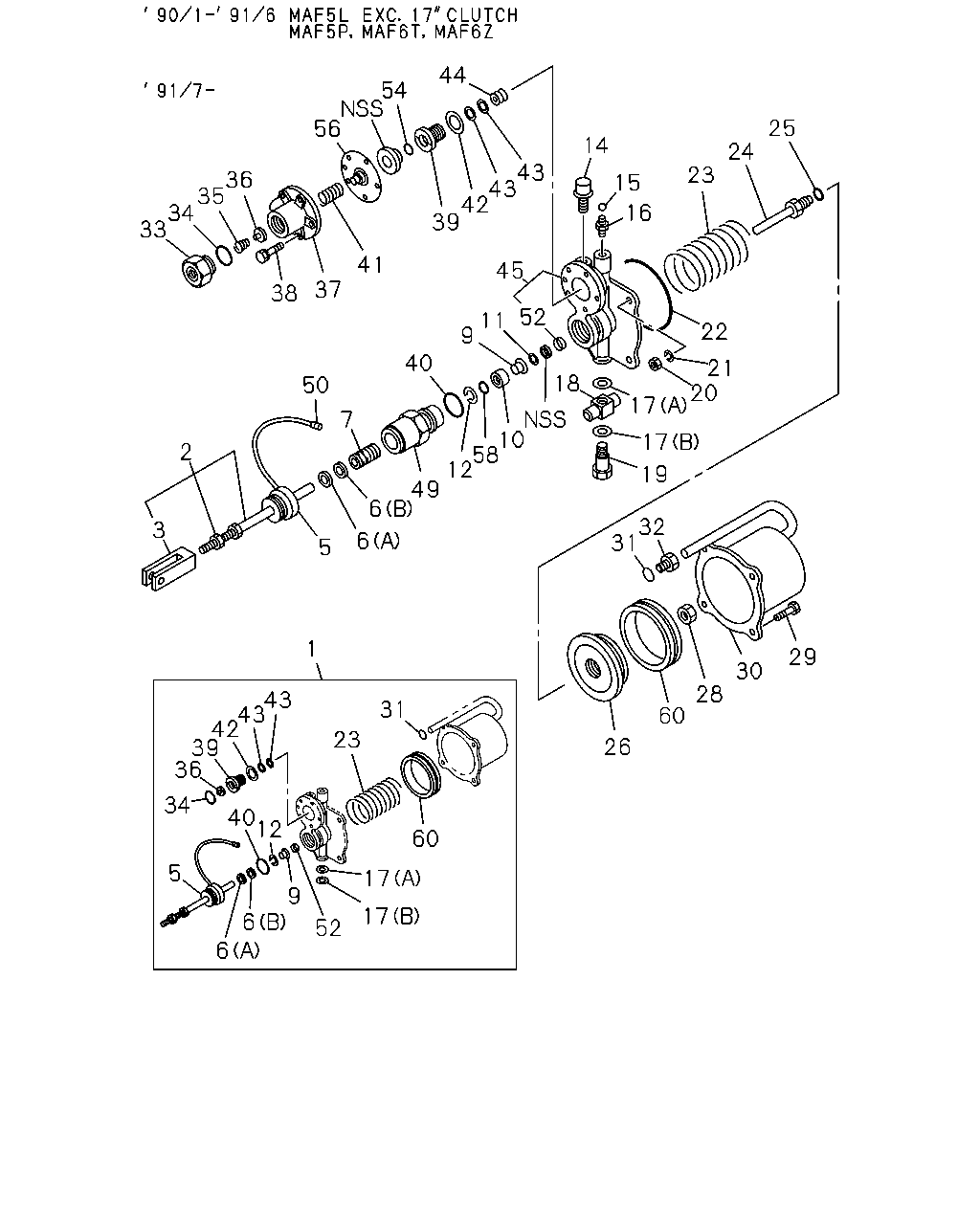

44 54 56 25 14 24 43 43 42 39 23 36 35 34 33 15 16 41 45 37 38 52 11 9 22 40 21 20 18 50 17 10 58 12 7 17 2 19 49 6 32 31 3 6 5 1 29 30 28 43 43 42 39 36 31 60 23 26 34 40 12 60 5 17 9 6 17 52 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	REPAIR KIT; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-87520-233-0	01	1	9001-9106	●
1	REPAIR KIT; CLU BOOSTER	1-87520-233-0	01	1	9001-9106		●	●	●
1	REPAIR KIT; CLU BOOSTER	1-87520-233-0	01	1	9107-	●	●		●	●
1	REPAIR KIT; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-326-0	01	1	9001-9106	●
2	ROD; PUSH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-040-0	01	1	9001-9106	●
2	ROD; PUSH,CLU BOOSTER	1-31824-040-0	01	1	9001-9106		●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-040-0	01	1	9107-	●	●		●	●
2	ROD; PUSH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-163-0	01	1	9001-9106	●
3	CLEVIS; PUSH ROD,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09768-046-0	01	1	9001-9106	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-09768-046-0	01	1	9001-9106		●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-09768-046-0	01	1	9107-	●	●		●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-287-0	01	1	9001-9106	●
5	GUARD; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-062-0	01	1	9001-9106	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	9001-9106		●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	9107-	●	●		●	●
5	GUARD; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-174-0	01	1	9001-9106	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9001-	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9001-	●	●	●	●	●
7	PISTON; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-011-0	01	1	9001-9106	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	9001-9106		●	●	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	9107-	●	●		●	●
7	PISTON; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-013-0	01	1	9001-9106	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9001-	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-034-0	01	1	9001-9106	●
10	RETAINER; PISTON,CLU BOOSTER	1-31829-034-0	01	1	9001-9106		●	●	●
10	RETAINER; PISTON,CLU BOOSTER	1-31829-034-0	01	1	9107-	●	●		●	●
10	RETAINER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	1-31829-107-0	01	1	9001-9106	●
10	RETAINER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	1-31829-108-0	01	1	9001-9106	●
11	WASHER; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-035-0	01	1	9001-9106	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-035-0	01	1	9001-9106		●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-035-0	01	1	9107-	●	●		●	●
11	WASHER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-105-0	01	1	9001-9106	●
12	RING; RET,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83325-024-0	01	1	9001-9106	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	9001-9106		●	●	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	9107-	●	●		●	●
12	RING; RET,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-142-0	01	1	9001-9106	●
14	COVER; EXH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-059-0	01	1	9001-9106	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	9001-9106		●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	9107-	●	●		●	●
14	COVER; EXH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-102-0	01	1	9001-9106	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9001-	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9001-	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	9-83331-206-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	9001-9106		●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	9107-	●	●		●	●
17	GASKET; CONN,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	9-83331-207-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	9001-9106		●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	9107-	●	●		●	●
17	GASKET; CONN,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	9-09920-267-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	9-09920-268-0	01	1	9001-9106	●
18	CONNECTOR; END PLATE,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83335-084-0	01	1	9001-9106	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-084-0	01	1	9001-9106		●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-084-0	01	1	9107-	●	●		●	●
18	CONNECTOR; END PLATE,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-248-0	01	1	9001-9106	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9001-	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-88510-051-0	04	1	9001-9106	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	9001-9106		●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	9107-	●	●		●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10	9-09111-410-0	04	1	9001-9106	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-48259-051-0	04	1	9001-9106	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	9001-9106		●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	9107-	●	●		●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2	9-09150-510-0	04	1	9001-9106	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	9001-	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-079-0	01	1	9001-9106	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	9001-9106		●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	9107-	●	●		●	●
23	SPRING; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-110-0	01	1	9001-9106	●
24	ROD; PUSH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-032-0	01	1	9001-9106	●
24	ROD; PUSH,CLU BOOSTER	1-31824-032-0	01	1	9001-9106		●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-032-0	01	1	9107-	●	●		●	●
24	ROD; PUSH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-112-0	01	1	9001-9106	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9001-	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-007-0	01	1	9001-9106	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	9001-9106		●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	9107-	●	●		●	●
26	PISTON; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-017-0	01	1	9001-9106	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9001-	●	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9001-	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-010-0	01	1	9001-9106	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	9001-9106		●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	9107-	●	●		●	●
30	SHELL; CYL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-061-0	01	1	9001-9106	●
31	GASKET; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-057-0	01	1	9001-9106	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	9001-9106		●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	9107-	●	●		●	●
31	GASKET; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-279-0	01	1	9001-9106	●
32	BUSHING; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-055-0	01	1	9001-9106	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	9001-9106		●	●	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	9107-	●	●		●	●
32	BUSHING; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-280-0	01	1	9001-9106	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-017-0	01	1	9001-9106	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	9001-9106		●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	9107-	●	●		●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-214-0	01	1	9001-9106	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9001-	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9001-	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9001-	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-012-0	01	1	9001-9106	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	9001-9106		●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	9107-	●	●		●	●
37	BODY; UPR,VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-053-0	01	1	9001-9106	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-44519-022-0	05	1	9001-9106	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	9001-9106		●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	9107-	●	●		●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-113-0	03	1	9001-9106	●
39	FITTING; POPPET VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-101-0	01	1	9001-9106	●
39	FITTING; POPPET VLV,CLU BOOSTER	9-83315-101-0	01	1	9001-9106		●	●	●
39	FITTING; POPPET VLV,CLU BOOSTER	9-83315-101-0	01	1	9107-	●	●		●	●
40	GASKET; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83335-053-0	01	1	9001-9106	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	9001-9106		●	●	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	9107-	●	●		●	●
40	GASKET; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-037-0	01	1	9001-9106	●
41	SPRING; DIAPH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-078-0	01	1	9001-9106	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	9001-9106		●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	9107-	●	●		●	●
41	SPRING; DIAPH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-422-0	01	1	9001-9106	●
42	GASKET; FITTING,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-061-0	01	1	9001-9106	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	9001-9106		●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	9107-	●	●		●	●
42	GASKET; FITTING,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-143-0	01	1	9001-9106	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9001-	●	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-009-0	01	1	9001-9106	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	9001-9106		●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	9107-	●	●		●	●
44	PISTON; UPR VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-049-0	01	1	9001-9106	●
45	PLATE; END,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-064-0	01	1	9001-9106	●
45	PLATE; END,CLU BOOSTER	1-31829-064-0	01	1	9001-9106		●	●	●
45	PLATE; END,CLU BOOSTER	1-31829-064-0	01	1	9107-	●	●		●	●
45	PLATE; END,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-074-0	01	1	9001-9001	●
45	PLATE; END,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-060-0	01	1	9001-9106	●
49	CYLINDER; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31822-001-0	01	1	9001-9106	●
49	CYLINDER; CLU BOOSTER	1-31822-001-0	01	1	9001-9106		●	●	●
49	CYLINDER; CLU BOOSTER	1-31822-001-0	01	1	9107-	●	●		●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-063-0	01	1	9001-9106	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-063-0	01	1	9001-9106		●	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-063-0	01	1	9107-	●	●		●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-118-0	01	1	9001-9106	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	9001-9106		●	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	9107-	●	●		●	●
54	RING; RET,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-102-0	01	1	9001-9106	●
54	RING; RET,CLU BOOSTER	9-83315-102-0	01	1	9001-9106		●	●	●
54	RING; RET,CLU BOOSTER	9-83315-102-0	01	1	9107-	●	●		●	●
56	DIAPHRAGM; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-054-0	01	1	9001-9106	●
56	DIAPHRAGM; CLU BOOSTER	1-31829-054-0	01	1	9001-9106		●	●	●
56	DIAPHRAGM; CLU BOOSTER	1-31829-054-0	01	1	9107-	●	●		●	●
56	DIAPHRAGM; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-067-0	01	1	9001-9001	●
58	WASHER; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83331-604-0	01	1	9001-9106	●
58	WASHER; PISTON,CLU BOOSTER	9-83331-604-0	01	1	9001-9106		●	●	●
58	WASHER; PISTON,CLU BOOSTER	9-83331-604-0	01	1	9107-	●	●		●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-058-0	01	1	9001-	●	●	●	●	●

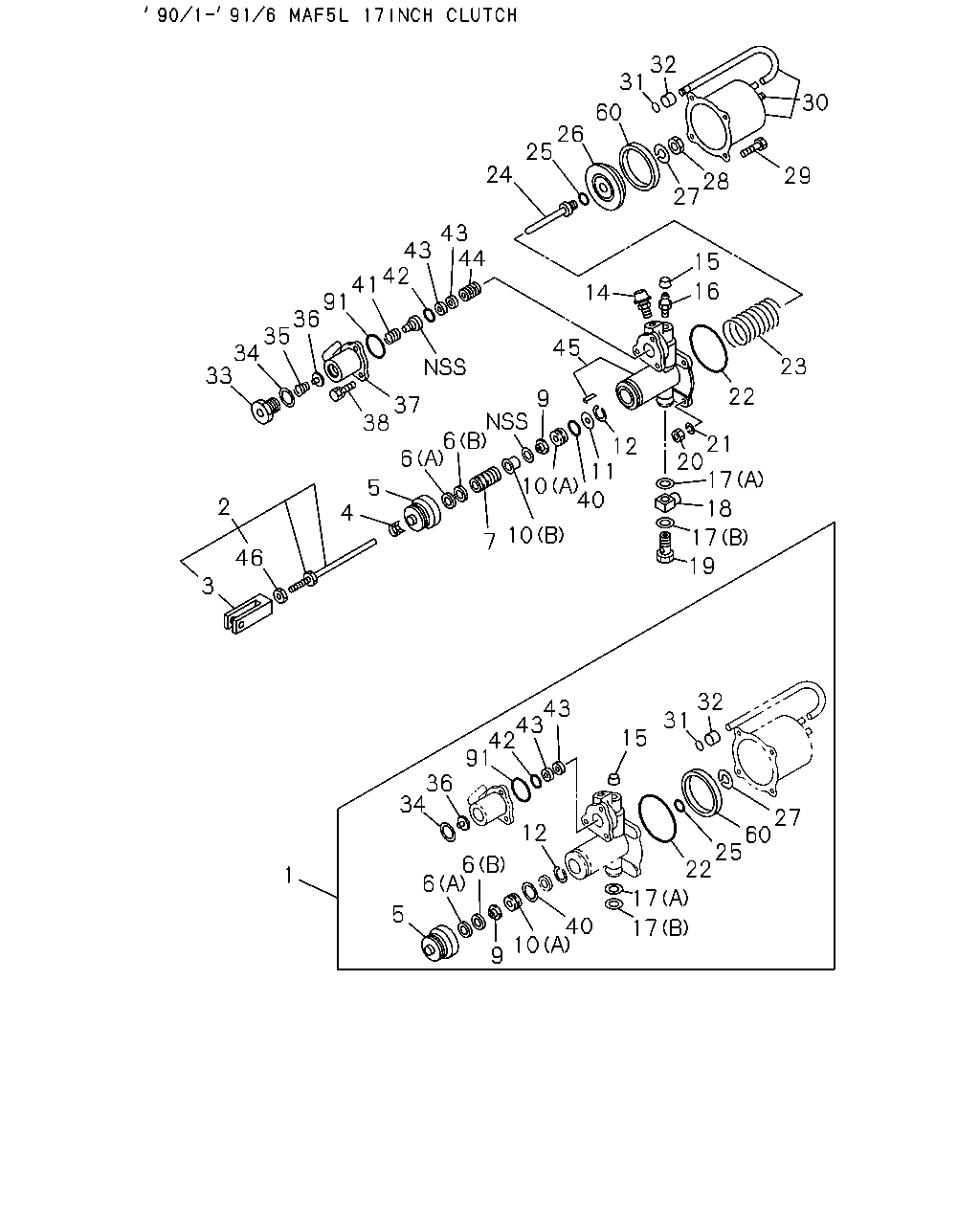

32 31 30 60 26 25 24 29 28 27 43 43 44 42 41 91 36 35 34 33 15 16 14 45 23 22 9 6 37 38 21 20 17 12 11 6 10 40 5 2 18 4 10 17 7 46 19 3 32 43 43 42 91 31 15 36 34 27 60 25 22 12 6 1 6 17 5 40 17 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	REPAIR KIT; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-87520-233-0	01	1	9001-9106	●
1	REPAIR KIT; CLU BOOSTER	1-87520-233-0	01	1	9001-9106		●	●	●
1	REPAIR KIT; CLU BOOSTER	1-87520-233-0	01	1	9107-	●	●		●	●
1	REPAIR KIT; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-326-0	01	1	9001-9106	●
2	ROD; PUSH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-040-0	01	1	9001-9106	●
2	ROD; PUSH,CLU BOOSTER	1-31824-040-0	01	1	9001-9106		●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-040-0	01	1	9107-	●	●		●	●
2	ROD; PUSH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-163-0	01	1	9001-9106	●
3	CLEVIS; PUSH ROD,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-09768-046-0	01	1	9001-9106	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-09768-046-0	01	1	9001-9106		●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-09768-046-0	01	1	9107-	●	●		●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-287-0	01	1	9001-9106	●
4	CLAMP; BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-168-0	01	1	9001-9106	●
5	GUARD; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-062-0	01	1	9001-9106	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	9001-9106		●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-062-0	01	1	9107-	●	●		●	●
5	GUARD; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-174-0	01	1	9001-9106	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9001-	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9001-	●	●	●	●	●
7	PISTON; CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-011-0	01	1	9001-9106	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	9001-9106		●	●	●
7	PISTON; CLU BOOSTER	1-31821-011-0	01	1	9107-	●	●		●	●
7	PISTON; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-013-0	01	1	9001-9106	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9001-	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-034-0	01	1	9001-9106	●
10	RETAINER; PISTON,CLU BOOSTER	1-31829-034-0	01	1	9001-9106		●	●	●
10	RETAINER; PISTON,CLU BOOSTER	1-31829-034-0	01	1	9107-	●	●		●	●
10	RETAINER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	1-31829-107-0	01	1	9001-9106	●
10	RETAINER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	1-31829-108-0	01	1	9001-9106	●
11	WASHER; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-035-0	01	1	9001-9106	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-035-0	01	1	9001-9106		●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-035-0	01	1	9107-	●	●		●	●
11	WASHER; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-105-0	01	1	9001-9106	●
12	RING; RET,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83325-024-0	01	1	9001-9106	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	9001-9106		●	●	●
12	RING; RET,CLU BOOSTER	9-83325-024-0	01	1	9107-	●	●		●	●
12	RING; RET,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-142-0	01	1	9001-9106	●
14	COVER; EXH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-059-0	01	1	9001-9106	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	9001-9106		●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-059-0	01	1	9107-	●	●		●	●
14	COVER; EXH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-102-0	01	1	9001-9106	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9001-	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9001-	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	9-83331-206-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	9001-9106		●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-83331-206-0	01	1	9107-	●	●		●	●
17	GASKET; CONN,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	9-83331-207-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	9001-9106		●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-83331-207-0	01	1	9107-	●	●		●	●
17	GASKET; CONN,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A)	9-09920-267-0	01	1	9001-9106	●
17	GASKET; CONN,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B)	9-09920-268-0	01	1	9001-9106	●
18	CONNECTOR; END PLATE,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83335-084-0	01	1	9001-9106	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-084-0	01	1	9001-9106		●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	9-83335-084-0	01	1	9107-	●	●		●	●
18	CONNECTOR; END PLATE,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-248-0	01	1	9001-9106	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9001-	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-88510-051-0	04	1	9001-9106	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	9001-9106		●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-88510-051-0	04	1	9107-	●	●		●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10	9-09111-410-0	04	1	9001-9106	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-48259-051-0	04	1	9001-9106	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	9001-9106		●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER	9-48259-051-0	04	1	9107-	●	●		●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2	9-09150-510-0	04	1	9001-9106	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	9001-	●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-079-0	01	1	9001-9106	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	9001-9106		●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-079-0	01	1	9107-	●	●		●	●
23	SPRING; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-110-0	01	1	9001-9106	●
24	ROD; PUSH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-032-0	01	1	9001-9106	●
24	ROD; PUSH,CLU BOOSTER	1-31824-032-0	01	1	9001-9106		●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-032-0	01	1	9107-	●	●		●	●
24	ROD; PUSH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-112-0	01	1	9001-9106	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9001-	●	●	●	●	●
26	PISTON; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-007-0	01	1	9001-9106	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	9001-9106		●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-007-0	01	1	9107-	●	●		●	●
26	PISTON; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-017-0	01	1	9001-9106	●
27	SPRING; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-111-0	01	1	9001-9106	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9001-	●	●	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9001-	●	●	●	●	●
30	SHELL; CYL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-010-0	01	1	9001-9106	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	9001-9106		●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-010-0	01	1	9107-	●	●		●	●
30	SHELL; CYL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-061-0	01	1	9001-9106	●
31	GASKET; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-057-0	01	1	9001-9106	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	9001-9106		●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-057-0	01	1	9107-	●	●		●	●
31	GASKET; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-279-0	01	1	9001-9106	●
32	BUSHING; SHELL,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-055-0	01	1	9001-9106	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	9001-9106		●	●	●
32	BUSHING; SHELL,CLU BOOSTER	9-83315-055-0	01	1	9107-	●	●		●	●
32	BUSHING; SHELL,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-280-0	01	1	9001-9106	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-017-0	01	1	9001-9106	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	9001-9106		●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-017-0	01	1	9107-	●	●		●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-214-0	01	1	9001-9106	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9001-	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9001-	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9001-	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-012-0	01	1	9001-9106	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	9001-9106		●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-012-0	01	1	9107-	●	●		●	●
37	BODY; UPR,VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-053-0	01	1	9001-9106	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-44519-022-0	05	1	9001-9106	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	9001-9106		●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	05	1	9107-	●	●		●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83315-113-0	03	1	9001-9106	●
40	GASKET; PISTON,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	9-83335-053-0	01	1	9001-9106	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	9001-9106		●	●	●
40	GASKET; PISTON,CLU BOOSTER	9-83335-053-0	01	1	9107-	●	●		●	●
40	GASKET; PISTON,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-037-0	01	1	9001-9106	●
41	SPRING; DIAPH,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-078-0	01	1	9001-9106	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	9001-9106		●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-078-0	01	1	9107-	●	●		●	●
41	SPRING; DIAPH,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-422-0	01	1	9001-9106	●
42	GASKET; FITTING,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-061-0	01	1	9001-9106	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	9001-9106		●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-061-0	01	1	9107-	●	●		●	●
42	GASKET; FITTING,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-143-0	01	1	9001-9106	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9001-	●	●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-009-0	01	1	9001-9106	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	9001-9106		●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-009-0	01	1	9107-	●	●		●	●
44	PISTON; UPR VLV,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31821-049-0	01	1	9001-9106	●
45	PLATE; END,CLU BOOSTER EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-064-0	01	1	9001-9106	●
45	PLATE; END,CLU BOOSTER	1-31829-064-0	01	1	9001-9106		●	●	●
45	PLATE; END,CLU BOOSTER	1-31829-064-0	01	1	9107-	●	●		●	●
45	PLATE; END,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-074-0	01	1	9001-9001	●
45	PLATE; END,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31811-060-0	01	1	9001-9106	●
46	NUT; PUSH ROD,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10	9-09111-410-0	01	1	9001-9001	●
46	NUT; PUSH ROD,CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31824-126-0	01	1	9002-9106	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-058-0	01	1	9001-	●	●	●	●	●
91	GASKET; CLU BOOSTER 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-31829-103-0	01	1	9001-9106	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
