0-13 — OIL PAN AND LEVEL GAUGE (#20577) — 62 parça

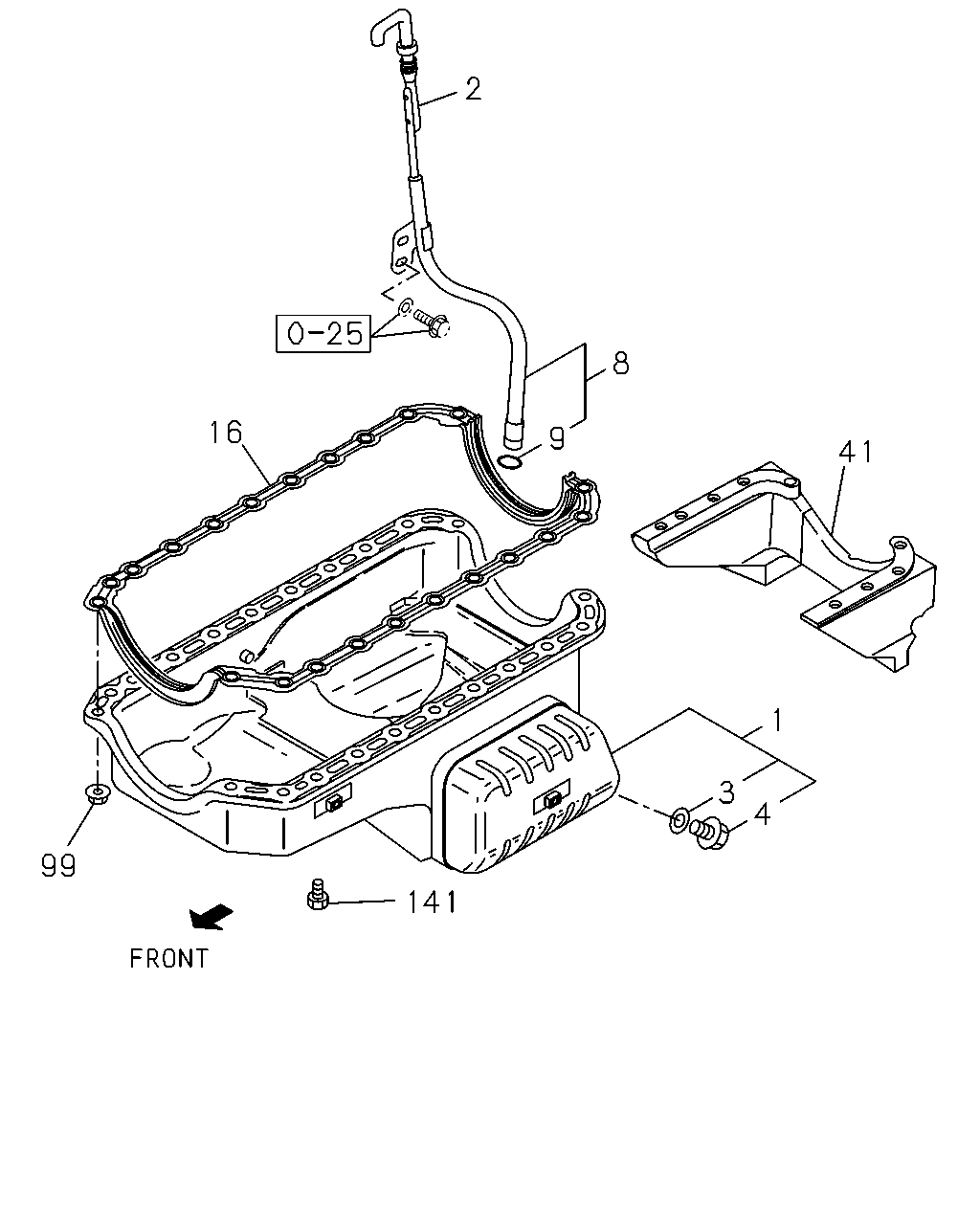

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-97083-322-3	01	1	0009-	●
1	PAN ASM; OIL	8-97087-642-2	01	1	0009-0012		●
1	PAN ASM; OIL	8-97305-077-0	01	1	0101-		●
2	GAUGE; OIL LEVEL	8-97231-295-0	01	1	0009-	●
2	GAUGE; OIL LEVEL	8-97094-460-2	01	1	0009-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0009-0012	●	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0101-0103	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0104-	●	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0009-0012	●	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0101-0103	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0104-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0009-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0009-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0212-0212		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0301-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0212-0212		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CONDITIONER MANUAL CONT<C60> ID=11 THA	5-09623-002-0	02	1	0301-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TACHOMETER<U16> ID=11 THA	5-09623-002-0	02	1	0301-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	01	1	0009-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0009-		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0009-	●
41	RUBBER; SPACE	8-97095-936-0	01	1	0009-	●
99	NUT; BRKT TO OIL PAN FIX M8 FLANGE	5-09440-010-0	10	1	0009-	●
141	BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0009-	●

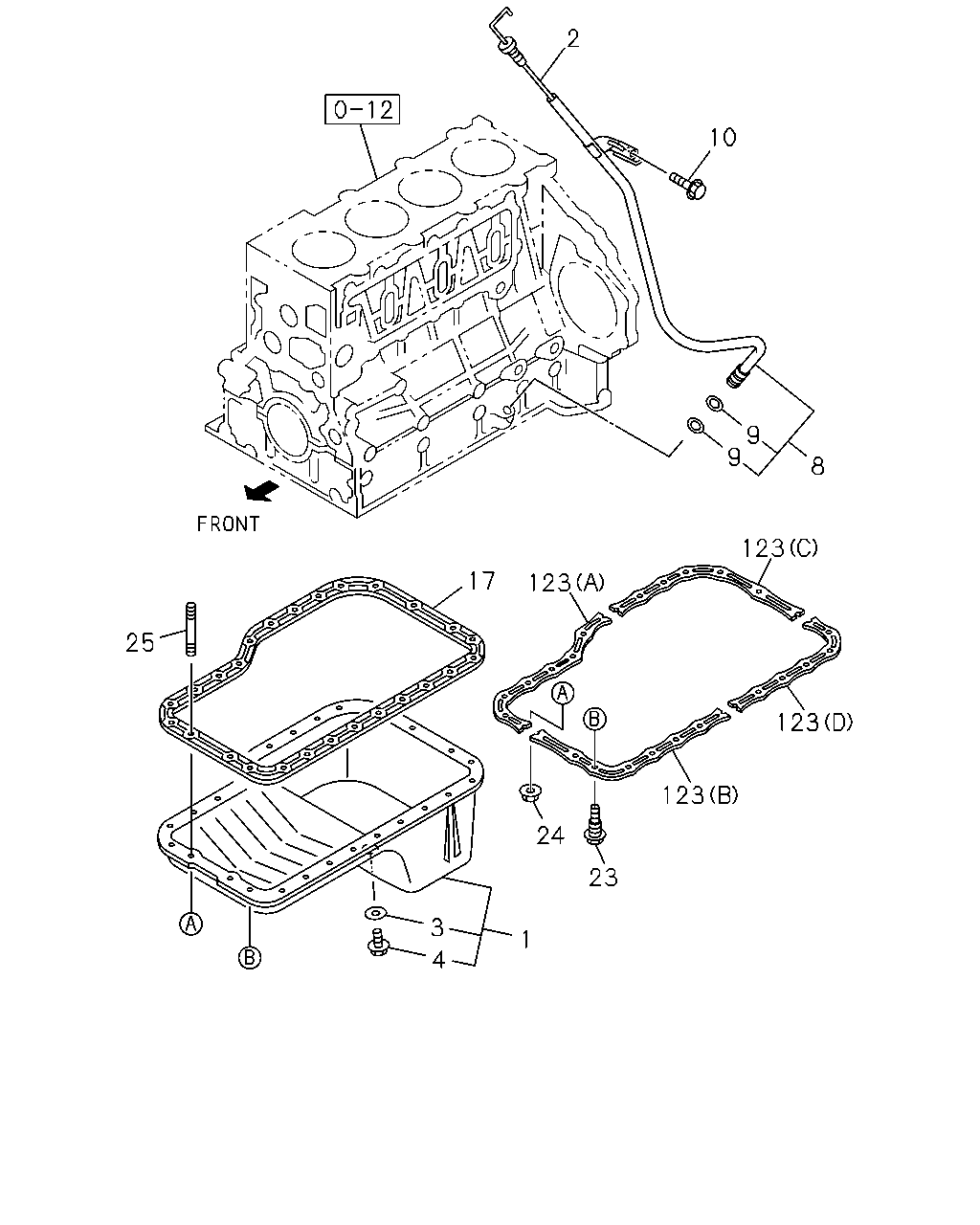

2 10 9 9 8 123 17 123 25 123 123 24 23 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-97083-322-3	01	1	0009-	●
1	PAN ASM; OIL	8-97087-642-2	01	1	0009-0012		●
1	PAN ASM; OIL	8-97305-077-0	01	1	0101-		●
2	GAUGE; OIL LEVEL	8-97231-295-0	01	1	0009-	●
2	GAUGE; OIL LEVEL	8-97094-460-2	01	1	0009-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0009-0012	●	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0101-0103	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA	8-94158-328-0	01	1	0104-	●	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0009-0012	●	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0101-0103	●
4	PLUG; DRAIN,OIL M14X14 THA	8-94152-613-0	01	1	0104-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0009-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0009-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0212-0212		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0301-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0212-0212		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CONDITIONER MANUAL CONT<C60> ID=11 THA	5-09623-002-0	02	1	0301-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TACHOMETER<U16> ID=11 THA	5-09623-002-0	02	1	0301-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	01	1	0009-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA	5-09623-002-0	02	1	0009-		●
10	BOLT; GUIDE TUBE M10X110 FLANGE	0-28186-011-0	01	1	0009-		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-2	01	1	0009-0012		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0101-		●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0009-0012		●
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	13	1	0009-		●
25	STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0009-0012		●
25	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-		●
25	STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	0009-0012		●
25	STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-		●
123	RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	0009-0012		●
123	RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0101-		●
123	RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	0009-0012		●
123	RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0101-		●
123	RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	0009-0012		●
123	RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0101-		●
123	RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	0009-0012		●
123	RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0101-		●
