0-11 — CYLINDER HEAD (#20575) — 131 parça

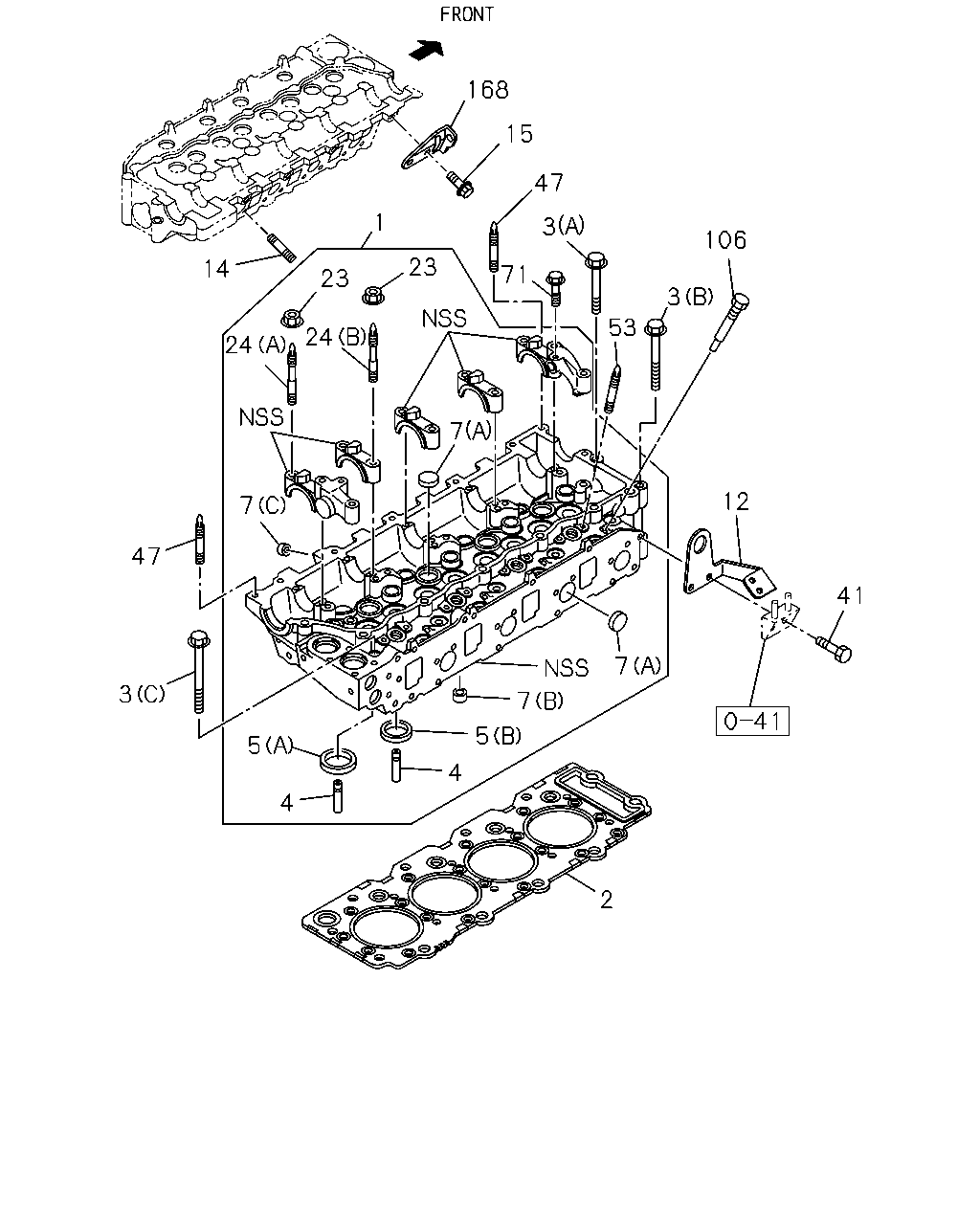

çizim 49089
168 15 47 1 3 106 23 14 71 23 3 24 53 24 7 12 7 47 41 7 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97204-376-5 01 1 0009- ●
1 HEAD ASM; CYL 8-97207-133-1 01 1 0009-0212 ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH THA 		8-94332-326-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH THA 		8-94332-327-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH THA 		8-94332-328-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0009- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0105- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0009-0009 ●
4 GUIDE; VLV 8-94396-598-0 08 1 0009- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0105-0207 ●
5 SEAT; VLV INSERT 8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT
(B) EXHUST 		8-97254-815-0 04 1 0105-0207 ●
5 SEAT; VLV INSERT 8-97231-229-0 04 1 0208- ●
5 SEAT; VLV INSERT 8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT 8-97231-229-0 04 1 0208- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0009-0009 ●
5 SEAT; VLV INSERT
(B) EXHUST 		8-97254-815-0 04 1 0009-0009 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0009- ●
5 SEAT; VLV INSERT
(B) EXHUST OD=43 		8-94396-172-0 04 1 0009- ●
7 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 0105-0207 ●
7 CUP; SEALING,CYL HEAD
OD=45 		8-97351-451-0 01 1 0208- ●
7 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=22 		8-97209-609-0 06 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=45 		8-97351-451-0 01 1 0208- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0009- ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0009- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0009- ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0009- ●
12 HANGER; ENG,RR 8-97210-326-0 01 1 0009- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0009- ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0009- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0009- ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0009- ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0009- ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0009- ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28781-020-0 02 1 0009- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0009- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0009- ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0009- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0009- ●
106 PLUG; GLOW PLUG HOLE 5-11119-007-1 04 1 0009- ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 0009- ●
168 HANGER; ENG,FRT 8-94379-714-1 01 1 0009- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 0009- ●

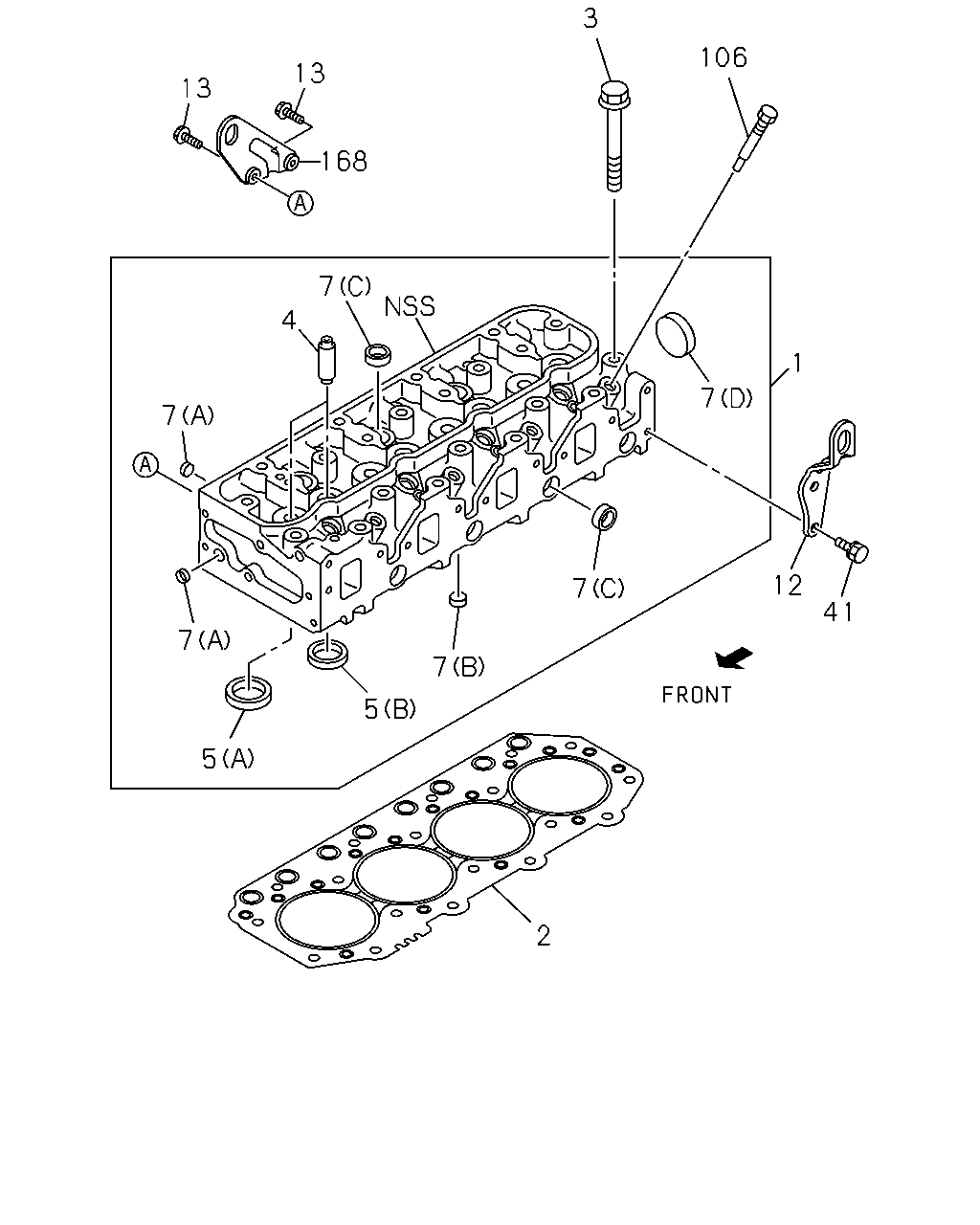

çizim 51160
3 106 13 13 168 7 4 1 7 7 12 7 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97204-376-5 01 1 0009- ●
1 HEAD ASM; CYL 8-97207-133-1 01 1 0009-0212 ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH THA 		8-94332-326-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH THA 		8-94332-327-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH THA 		8-94332-328-0 01 1 0009-0212 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0009- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0009- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0105- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0009-0009 ●
4 GUIDE; VLV 8-94396-598-0 08 1 0009- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0105-0207 ●
5 SEAT; VLV INSERT 8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT
(B) EXHUST 		8-97254-815-0 04 1 0105-0207 ●
5 SEAT; VLV INSERT 8-97231-229-0 04 1 0208- ●
5 SEAT; VLV INSERT 8-97231-228-0 04 1 0208- ●
5 SEAT; VLV INSERT 8-97231-229-0 04 1 0208- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0009-0009 ●
5 SEAT; VLV INSERT
(B) EXHUST 		8-97254-815-0 04 1 0009-0009 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0009- ●
5 SEAT; VLV INSERT
(B) EXHUST OD=43 		8-94396-172-0 04 1 0009- ●
7 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 0105-0207 ●
7 CUP; SEALING,CYL HEAD
OD=45 		8-97351-451-0 01 1 0208- ●
7 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=22 		8-97209-609-0 06 1 0105- ●
7 CUP; SEALING,CYL HEAD
OD=45 		8-97351-451-0 01 1 0208- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0009-0009 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0009- ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0009- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0009- ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0009- ●
12 HANGER; ENG,RR 8-97210-326-0 01 1 0009- ●
13 BOLT; HANGER
M10X25 FLANGE 		0-28081-025-0 01 1 0009- ●
13 BOLT; HANGER
M8X25 W/LK WASHER 		0-50040-825-0 01 1 0009- ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0009- ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28781-020-0 02 1 0009- ●
106 PLUG; GLOW PLUG HOLE 5-11119-007-1 04 1 0009- ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 0009- ●
168 HANGER; ENG,FRT 8-94379-714-1 01 1 0009- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 0009- ●
