2-07A — CLUTCH BOOSTER; MINIPACK (#2057) — 85 parça

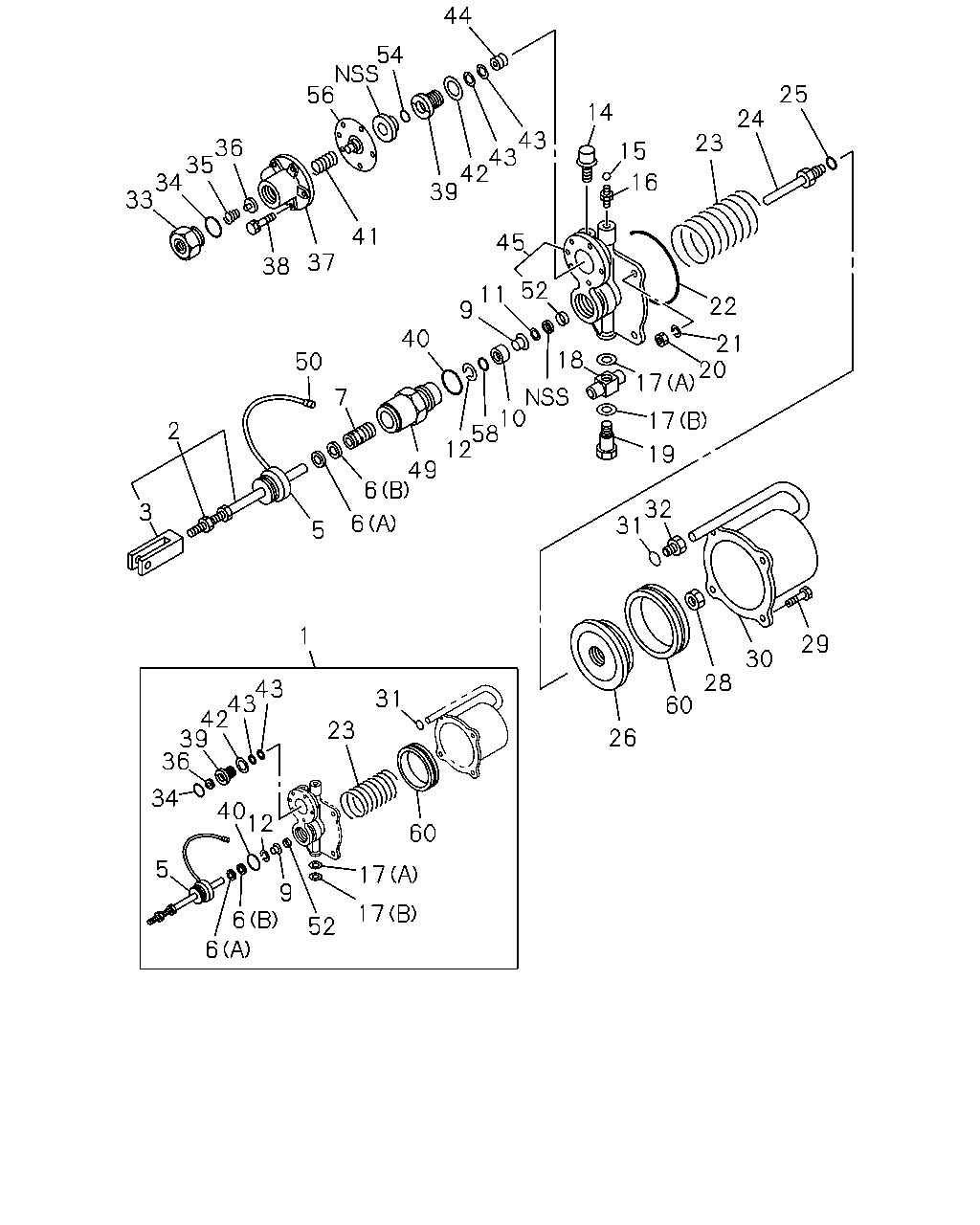

çizim 29755
44 54 56 25 14 24 43 43 42 39 23 36 35 34 33 15 16 41 45 37 38 52 11 9 22 40 21 20 18 50 17 10 58 12 7 17 2 19 49 6 32 31 3 6 5 1 29 30 28 43 43 42 39 36 31 60 23 26 34 40 12 60 5 17 9 6 17 52 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 REPAIR KIT; CLU BOOSTER 1-87520-233-0 01 1 9001-9106 ● ● ● ●
1 REPAIR KIT; CLU BOOSTER 1-87520-233-0 01 1 9107- ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-040-0 01 1 9001-9106 ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-040-0 01 1 9107- ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-09768-046-0 01 1 9001-9106 ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-09768-046-0 01 1 9107- ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-062-0 01 1 9001-9106 ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-062-0 01 1 9107- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9001- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9001- ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-011-0 01 1 9001-9106 ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-011-0 01 1 9107- ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9001- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER 1-31829-034-0 01 1 9001-9106 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER 1-31829-034-0 01 1 9107- ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-035-0 01 1 9001-9106 ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-035-0 01 1 9107- ● ● ● ●
12 RING; RET,CLU BOOSTER 9-83325-024-0 01 1 9001-9106 ● ● ● ●
12 RING; RET,CLU BOOSTER 9-83325-024-0 01 1 9107- ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-059-0 01 1 9001-9106 ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-059-0 01 1 9107- ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9001- ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9001- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-83331-206-0 01 1 9001-9106 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-83331-206-0 01 1 9107- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-83331-207-0 01 1 9001-9106 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-83331-207-0 01 1 9107- ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 9-83335-084-0 01 1 9001-9106 ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 9-83335-084-0 01 1 9107- ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9001- ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-88510-051-0 04 1 9001-9106 ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-88510-051-0 04 1 9107- ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER 9-48259-051-0 04 1 9001-9106 ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER 9-48259-051-0 04 1 9107- ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9001- ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-079-0 01 1 9001-9106 ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-079-0 01 1 9107- ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-032-0 01 1 9001-9106 ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-032-0 01 1 9107- ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9001- ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-007-0 01 1 9001-9106 ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-007-0 01 1 9107- ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9001- ● ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9001- ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-010-0 01 1 9001-9106 ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-010-0 01 1 9107- ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-057-0 01 1 9001-9106 ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-057-0 01 1 9107- ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 9-83315-055-0 01 1 9001-9106 ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 9-83315-055-0 01 1 9107- ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-017-0 01 1 9001-9106 ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-017-0 01 1 9107- ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9001- ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9001- ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9001- ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-012-0 01 1 9001-9106 ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-012-0 01 1 9107- ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 05 1 9001-9106 ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 05 1 9107- ● ● ● ●
39 FITTING; POPPET VLV,CLU BOOSTER 9-83315-101-0 01 1 9001-9106 ● ● ● ●
39 FITTING; POPPET VLV,CLU BOOSTER 9-83315-101-0 01 1 9107- ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 9-83335-053-0 01 1 9001-9106 ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 9-83335-053-0 01 1 9107- ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-078-0 01 1 9001-9106 ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-078-0 01 1 9107- ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-061-0 01 1 9001-9106 ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-061-0 01 1 9107- ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9001- ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-009-0 01 1 9001-9106 ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-009-0 01 1 9107- ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31829-064-0 01 1 9001-9106 ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31829-064-0 01 1 9107- ● ● ● ●
49 CYLINDER; CLU BOOSTER 1-31822-001-0 01 1 9001-9106 ● ● ● ●
49 CYLINDER; CLU BOOSTER 1-31822-001-0 01 1 9107- ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 9001-9106 ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 9107- ● ● ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 9001-9106 ● ● ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 9107- ● ● ● ●
54 RING; RET,CLU BOOSTER 9-83315-102-0 01 1 9001-9106 ● ● ● ●
54 RING; RET,CLU BOOSTER 9-83315-102-0 01 1 9107- ● ● ● ●
56 DIAPHRAGM; CLU BOOSTER 1-31829-054-0 01 1 9001-9106 ● ● ● ●
56 DIAPHRAGM; CLU BOOSTER 1-31829-054-0 01 1 9107- ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER 9-83331-604-0 01 1 9001-9106 ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER 9-83331-604-0 01 1 9107- ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9001- ● ● ● ●
