9-31 — REAR BODY; FLOOR AND FENDER (#20569) — 78 parça

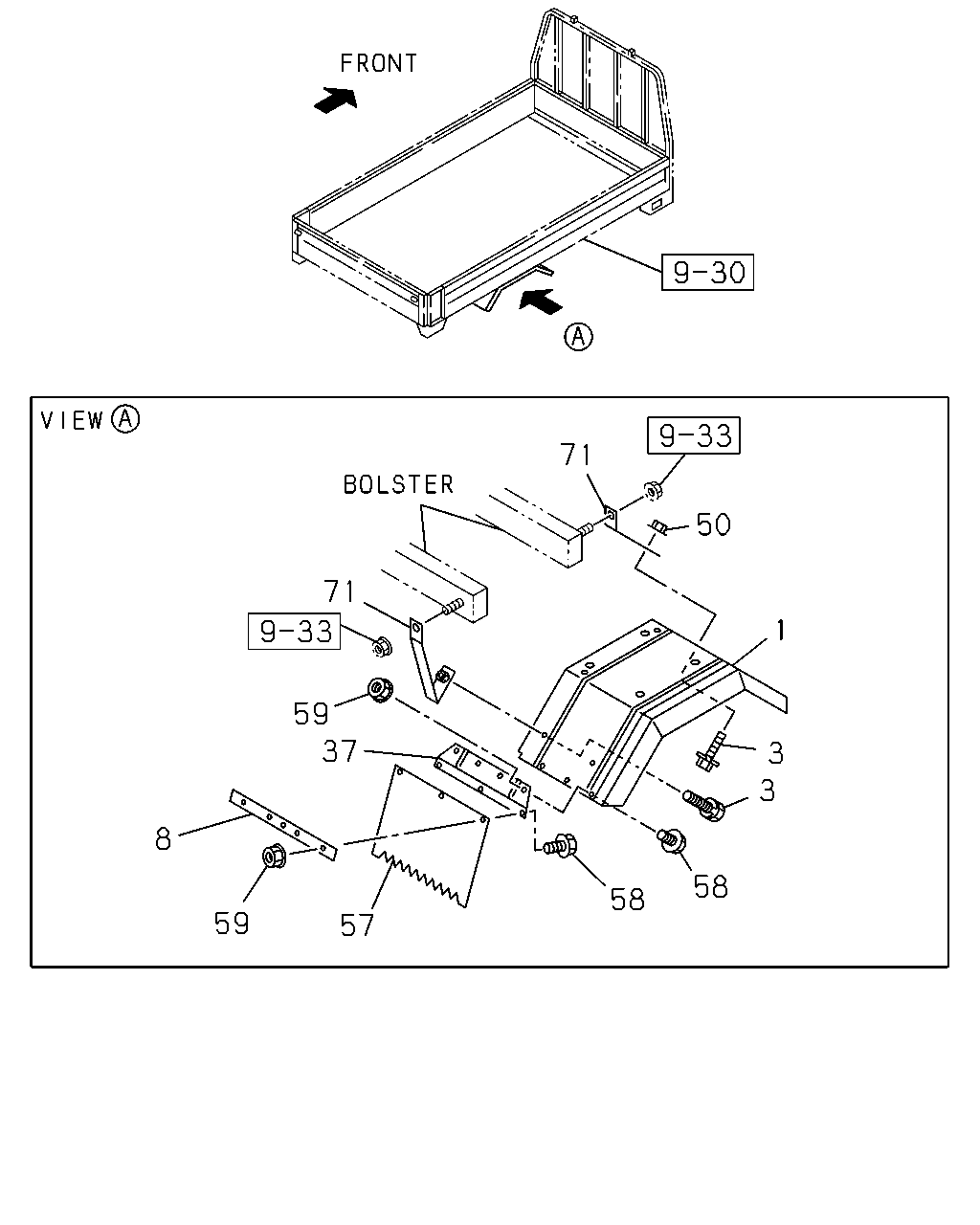

71 50 71 1 59 37 3 3 8 58 58 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6>	8-94195-139-0	02	1	9906-0105
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.447	8-94194-113-0	08	1	9906-0007
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6>	8-94194-999-0	08	1	0008-0105
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9906-
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	5-66900-382-2	02	1	9906-0105
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	08	1	9906-0105
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9906-
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9906-0105
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9906-0105
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FORWARD	8-94194-878-0	04	1	9906-0007
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> FORWARD	8-94194-878-0	04	1	0008-0105
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> REARWARD	8-94194-879-0	04	1	9906-0007
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> REARWARD	8-94194-879-0	04	1	0008-0105
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-894-0	08	1	0008-0105

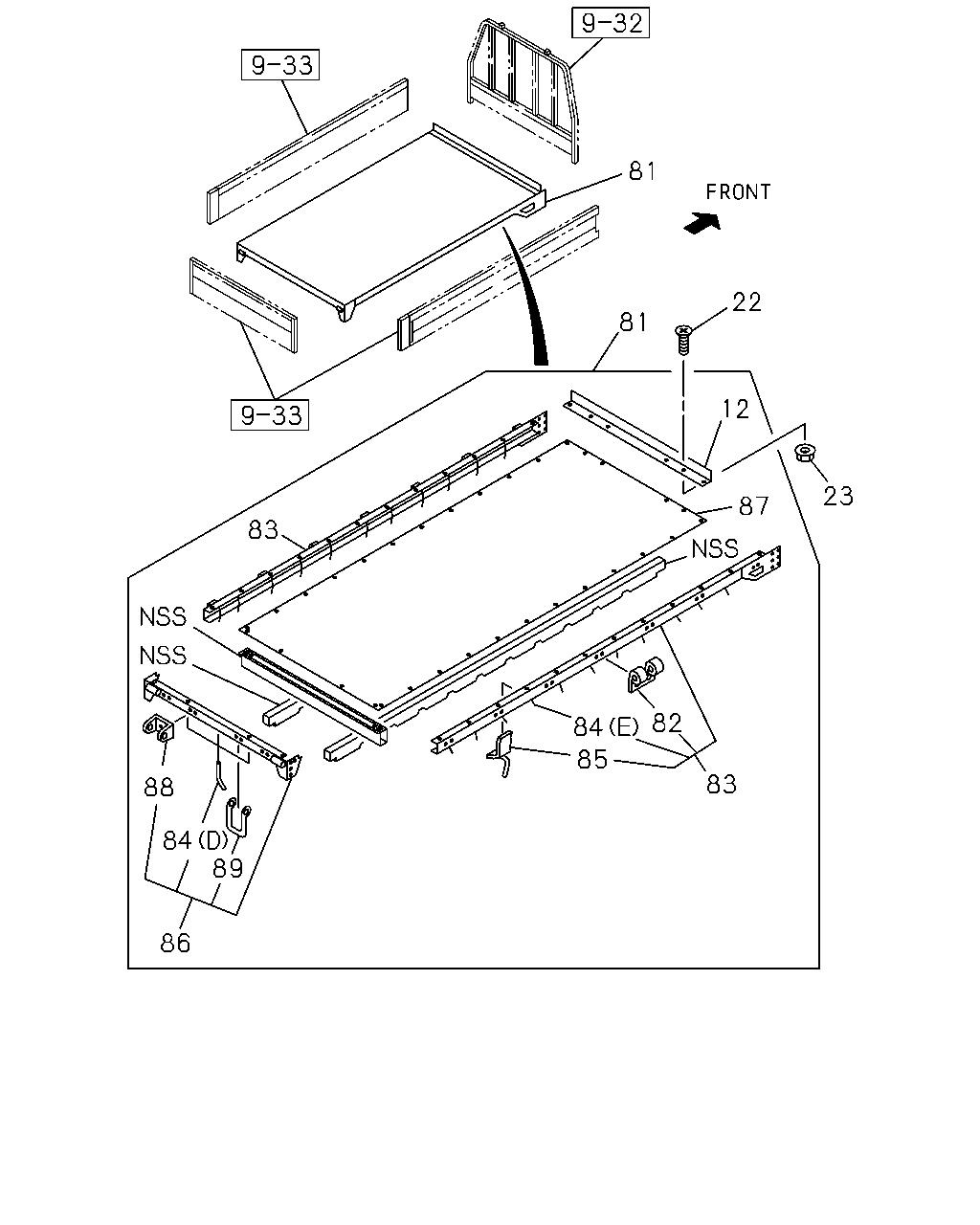

81 22 81 12 23 87 83 82 84 85 83 88 84 89 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6>	8-94196-293-0	01	1	9906-0007
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9906-0105
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9906-0105
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94194-912-2	01	1	9906-0007
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-478-0	01	1	0008-0105
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9906-0007
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-479-0	01	1	0008-0105
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9906-0007
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94196-235-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-521-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94196-234-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-520-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-524-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-523-0	01	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9906-0007
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-218-0	02	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D) TAKADA	8-94194-318-0	03	1	9906-0007
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	10	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	02	1	0008-0105
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-353-0	02	1	9906-0007
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-226-0	02	1	0008-0105
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-354-0	02	1	9906-0007
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-227-0	02	1	0008-0105
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9906-0007
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-522-0	01	1	0008-0105
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9906-0007
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-098-0	01	1	0008-0105
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9906-0007
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-250-0	03	1	0008-0105
89	17.400 STEP; RR RR BODY FLAT BED<RS6>	8-94194-289-0	01	1	9906-0007

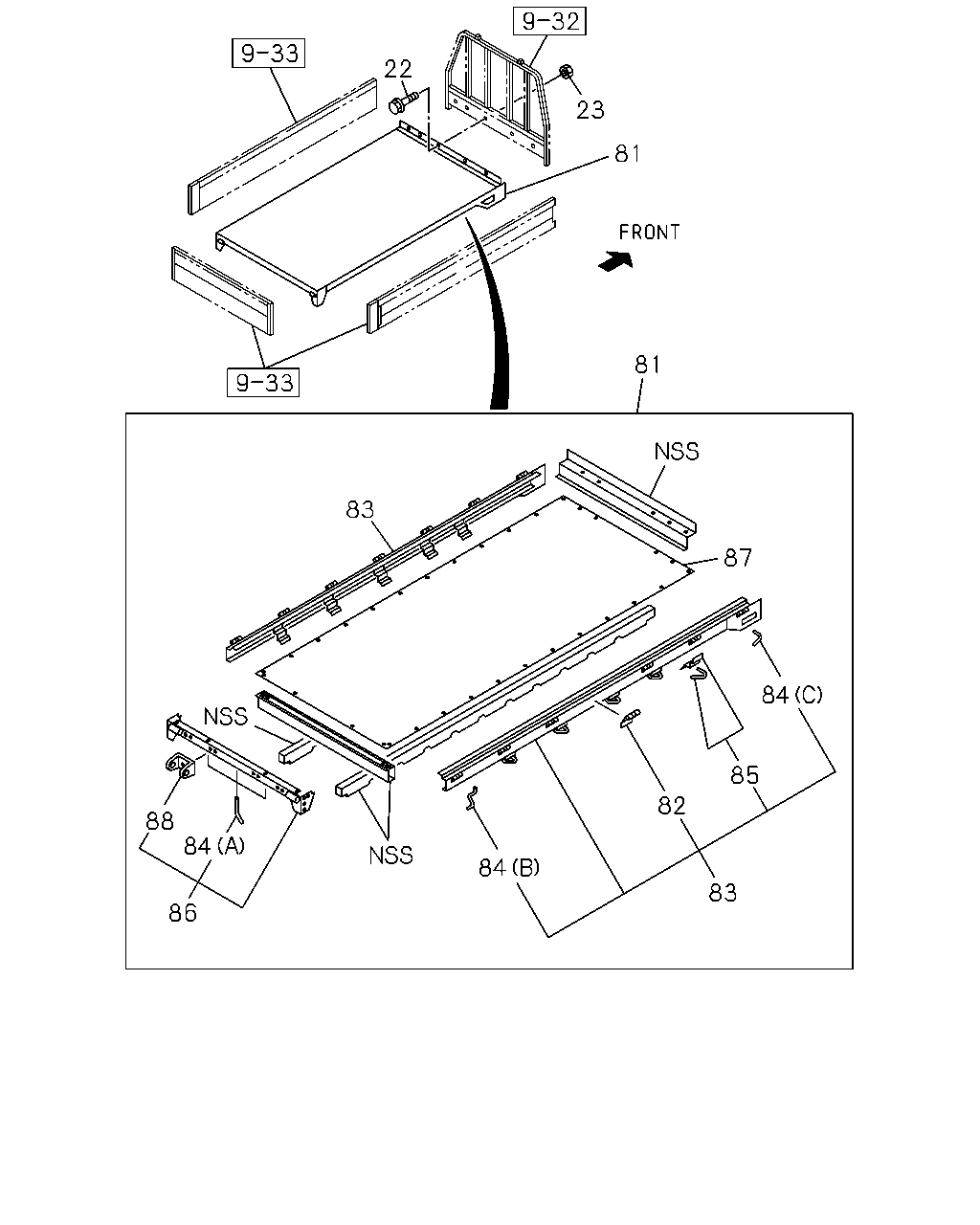

22 23 81 81 83 87 84 85 82 88 84 84 83 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9906-0105
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9906-0105
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94194-912-2	01	1	9906-0007
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-478-0	01	1	0008-0105
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9906-0007
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-479-0	01	1	0008-0105
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9906-0007
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94196-235-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-521-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-94196-234-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-520-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-524-0	01	1	0008-0105
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9906-0007
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-523-0	01	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9906-0007
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-218-0	02	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D) TAKADA	8-94194-318-0	03	1	9906-0007
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	10	1	0008-0105
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	02	1	0008-0105
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-353-0	02	1	9906-0007
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-226-0	02	1	0008-0105
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-354-0	02	1	9906-0007
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-227-0	02	1	0008-0105
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9906-0007
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-522-0	01	1	0008-0105
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9906-0007
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-098-0	01	1	0008-0105
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9906-0007
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-250-0	03	1	0008-0105
