9-01 — TOOLS (#20567) — 31 parça

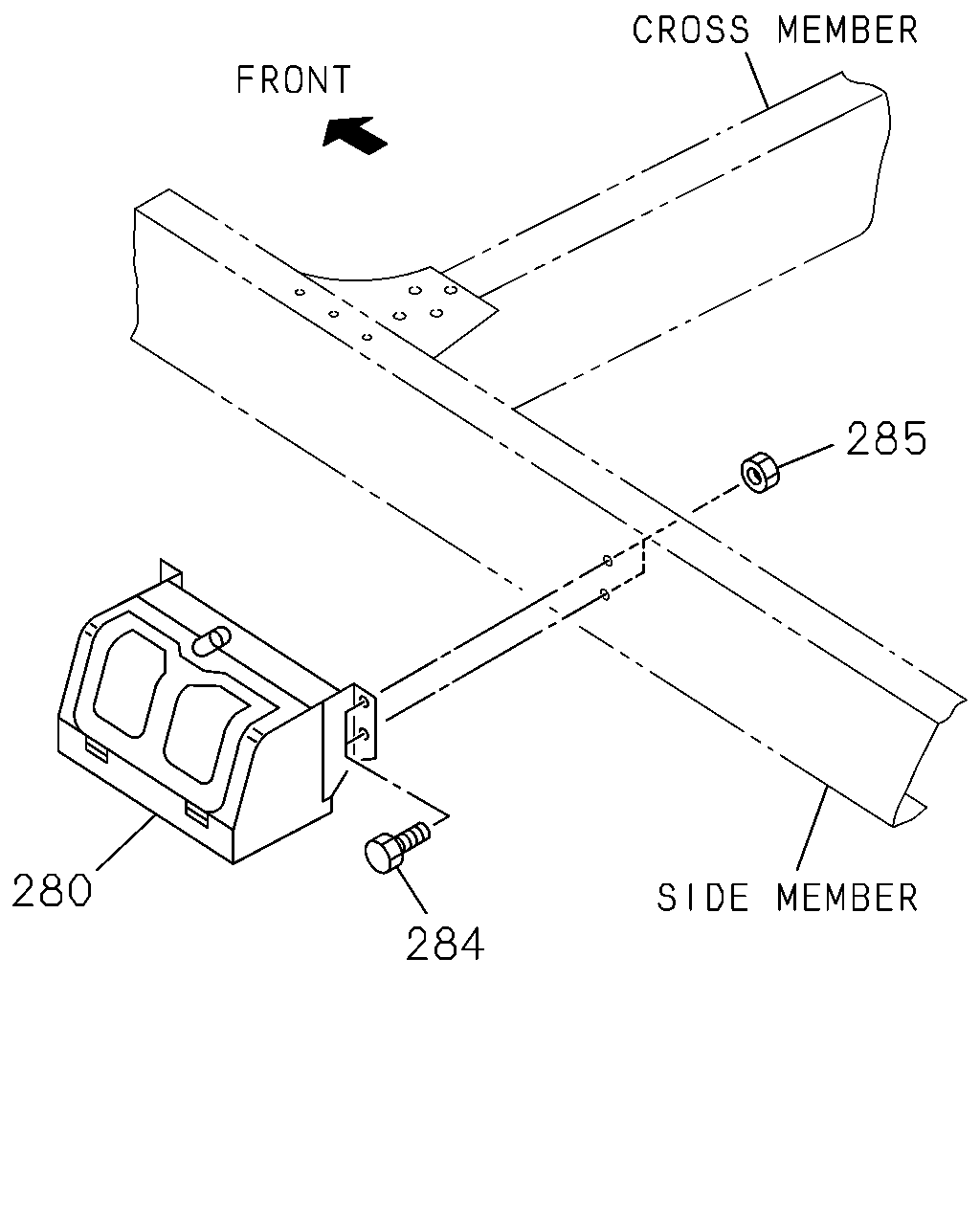

çizim 7857
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0106- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●

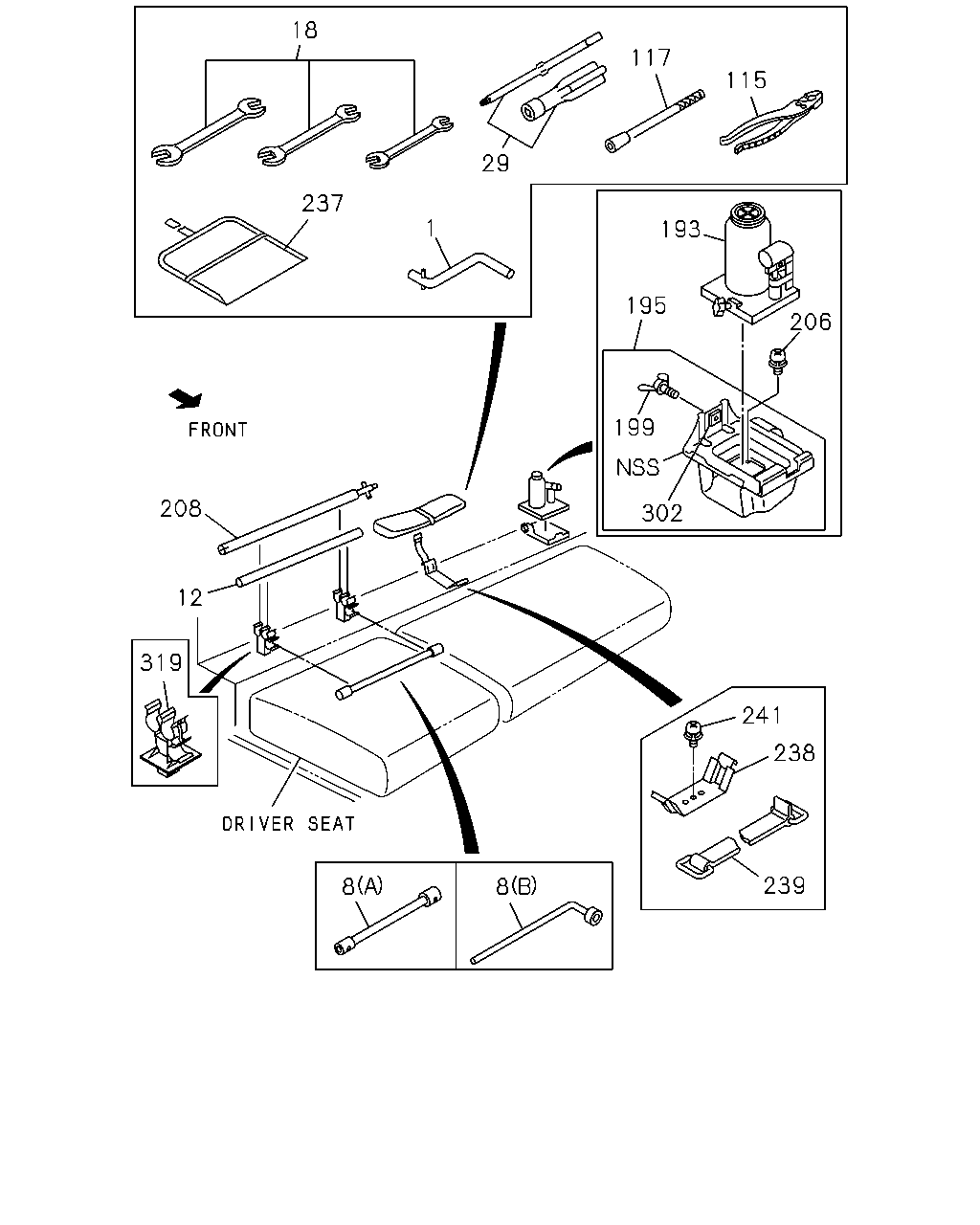

çizim 48829
18 117 115 29 237 1 193 195 206 199 208 302 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 		9-85512-608-0 01 1 9812-9902 ●
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 9903- ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 9812- ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 0106- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 0106-0204 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9812- ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9812- ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9812- ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 0106- ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-074-2 01 1 9812- ●
193 08.820 JACK ASM
4TON 		8-97131-075-2 01 1 0106- ● ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-994-2 01 1 9812- ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 0106- ● ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9812- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0106- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ●
208 08.820 HANDLE; JACK 9-85512-607-0 01 1 9812-9909 ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 9910- ● ● ●
237 08.821 BAG; TOOL 8-97130-902-0 01 1 9812-9907 ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9908- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9812-0101 ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9812- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ●
302 08.820 NUT; JACK BRKT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94279-522-0 01 1 9812- ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9812- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9812- ● ● ●
