2-05B — CLUTCH PIPING (#2056) — 118 parça

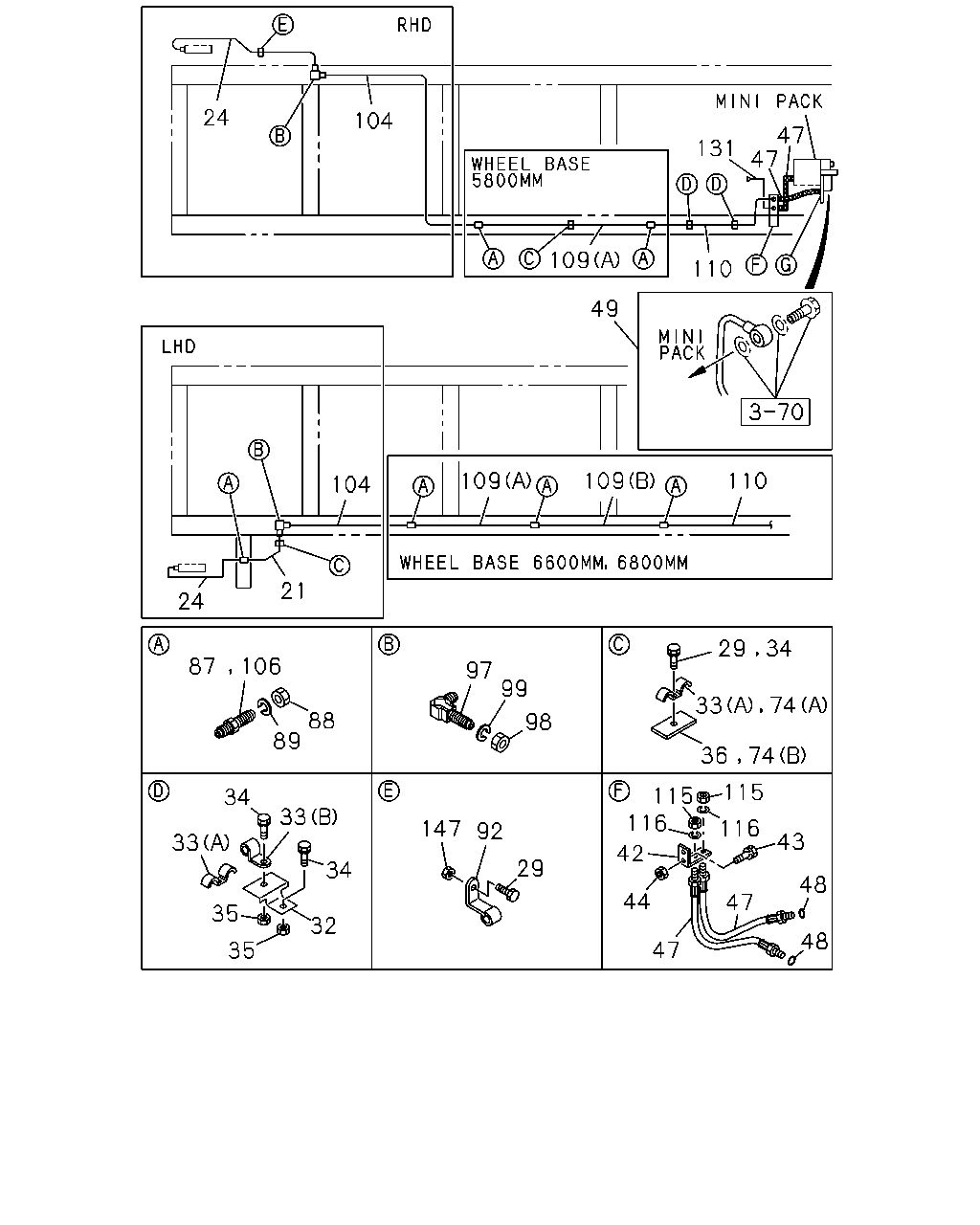

çizim 29408
24 104 47 47 131 109 110 49 109 109 110 104 21 24 29 34 87 106 97 99 33 74 88 89 98 36 74 115 115 116 34 33 116 147 92 43 33 42 29 34 48 44 47 35 32 48 47 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
21 PIPE; OIL,UNION TO FLEX HOSE
LEFT HAND DRIVE(LVR6FB) L=764 		1-47415-615-0 01 1 9001- ● ● ● ●
21 PIPE; OIL,UNION TO FLEX HOSE
L=764 		1-47415-615-0 01 1 9001- ●
24 PIPE ASM; CLU,M/CYL TO UNION
RIGHT HAND DRIVE(LVR5FB) 		1-47422-443-0 01 1 9001- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
LEFT HAND DRIVE(LVR6FB) 		1-47414-133-0 01 1 9001- ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 1-47414-133-0 01 1 9001- ●
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(LVR5FB) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9001-9204 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(LVR5FB) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9606 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(LVR5FB) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9001-9204 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9001-9204 ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9606 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(LVR6FB) M6X20 FLANGE 		0-28680-620-0 01 1 9607-9704 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M6X20 FLANGE 		0-28680-620-0 01 1 9607-9704 ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(LVR6FB) M6X25 FLANGE 		0-28680-625-0 01 1 9705- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28680-625-0 01 1 9705- ●
32 BRACKET; CLIP OIL PIPE
WHEEL BASE 5800MM(58W) 		1-47465-168-1 17 1 9001- ● ● ● ● ●
32 BRACKET; CLIP OIL PIPE
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) 		1-47465-168-1 19 1 9001- ● ● ● ● ●
33 CLIP; OIL PIPE
LEFT HAND DRIVE(LVR6FB) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=13 L=20 		9-09525-232-0 03 1 9001-9204 ● ● ●
33 CLIP; OIL PIPE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=13 L=20 		9-09525-232-0 03 1 9001-9204 ●
33 CLIP; OIL PIPE
LEFT HAND DRIVE(LVR6FB) (B) ID=13 L=20 		9-09525-232-0 02 1 9205- ● ● ● ●
33 CLIP; OIL PIPE
LEFT HAND DRIVE(LVR6FB) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13 L=20 		9-09525-232-0 02 1 9001-9204 ● ● ● ●
33 CLIP; OIL PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13 L=20 		9-09525-232-0 02 1 9001-9204 ●
33 CLIP; OIL PIPE
(A) ID=13 & 7 L=16 & 14 		1-09700-070-0 01 1 9001- ● ● ● ● ●
33 CLIP; OIL PIPE
WHEEL BASE 5800MM(58W) (A) ID=13 & 7 L=16 & 14 		1-09700-070-0 17 1 9001- ● ● ● ● ●
33 CLIP; OIL PIPE
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (A) ID=13 & 7 L=16 & 14 		1-09700-070-0 19 1 9001- ● ● ● ● ●
34 BOLT; PIPE CLIP
LEFT HAND DRIVE(LVR6FB) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X20 W/LK WASHER 		9-01900-620-0 03 1 9001-9204 ● ● ●
34 BOLT; PIPE CLIP
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X20 W/LK WASHER 		9-01900-620-0 03 1 9001-9204 ●
34 BOLT; PIPE CLIP
M6X25 W/LK WASHER 		9-01900-625-0 01 1 9001-9204 ● ● ● ● ●
34 BOLT; PIPE CLIP
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9205-9606 ● ● ● ●
34 BOLT; PIPE CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 9607-9704 ● ● ● ● ●
34 BOLT; PIPE CLIP
M6X25 FLANGE 		0-28680-625-0 03 1 9705- ● ● ● ● ●
34 BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9001-9204 ● ● ● ● ●
34 BOLT; PIPE CLIP
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9606 ● ● ● ●
34 BOLT; PIPE CLIP
M6X20 FLANGE 		0-28680-620-0 02 1 9607-9704 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER 		9-01900-620-0 34 1 9001-9204 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6X20 W/LK WASHER 		0-50040-620-0 34 1 9205-9606 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6X20 FLANGE 		0-28680-620-0 34 1 9607-9704 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6X25 FLANGE 		0-28680-625-0 34 1 9705- ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER 		9-01900-620-0 38 1 9001-9204 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 W/LK WASHER 		0-50040-620-0 38 1 9205-9606 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X20 FLANGE 		0-28680-620-0 38 1 9607-9704 ● ● ● ● ●
34 BOLT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6X25 FLANGE 		0-28680-625-0 38 1 9705- ● ● ● ● ●
35 NUT; PIPE CLIP
LEFT HAND DRIVE(LVR6FB) BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6 		9-09110-406-0 03 1 9001-9204 ● ● ●
35 NUT; PIPE CLIP
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6 		9-09110-406-0 03 1 9001-9204 ●
35 NUT; PIPE CLIP
LEFT HAND DRIVE(LVR6FB) M6 		9-09110-406-0 02 1 9205-9606 ● ● ● ●
35 NUT; PIPE CLIP
LEFT HAND DRIVE(LVR6FB) M6 FLANGE 		0-91150-106-0 02 1 9607- ● ● ● ●
35 NUT; PIPE CLIP
LEFT HAND DRIVE(LVR6FB) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 		9-09110-406-0 02 1 9001-9204 ● ● ● ●
35 NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 		9-09110-406-0 02 1 9001-9204 ●
35 NUT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6 		9-09110-406-0 17 1 9001-9606 ● ● ● ● ●
35 NUT; PIPE CLIP
WHEEL BASE 5800MM(58W) M6 FLANGE 		0-91150-106-0 17 1 9607- ● ● ● ● ●
35 NUT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6 		9-09110-406-0 19 1 9001-9606 ● ● ● ● ●
35 NUT; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M6 FLANGE 		0-91150-106-0 19 1 9607- ● ● ● ● ●
36 BRACKET; CLIP 1-47466-005-0 01 1 9001- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47465-068-0 01 1 9001- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9001-9204 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9606 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9001-9606 ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L=520 		0-07402-520-0 01 1 9001- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L=460 		1-09364-264-0 01 1 9001- ● ● ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9001- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47431-786-1 01 1 9001-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47497-839-0 01 1 9301- ● ● ● ●
74 CLIP; CLU OIL PIPE
LEFT HAND DRIVE(LVR6FB) (A) ID=11 & 7 L=15 & 15 		1-09700-071-0 01 1 9001- ● ● ● ●
74 CLIP; CLU OIL PIPE
(A) ID=11 & 7 L=15 & 15 		1-09700-071-0 01 1 9001- ●
74 CLIP; CLU OIL PIPE
LEFT HAND DRIVE(LVR6FB) (B) 		1-47466-005-0 01 1 9001- ● ● ● ●
74 CLIP; CLU OIL PIPE
(B) 		1-47466-005-0 01 1 9001- ●
87 UNION; OIL PIPE
LEFT HAND DRIVE(LVR6FB) M12 L=56.5 		9-09223-106-1 01 1 9001- ● ● ● ●
87 UNION; OIL PIPE
M12 L=56.5 		9-09223-106-1 01 1 9001- ●
88 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9001- ● ● ● ● ●
89 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9001-9312 ● ● ● ● ●
92 CLIP; OIL PIPE
RIGHT HAND DRIVE(LVR5FB) ID=6 H=20 L=20 		1-09700-603-0 01 1 9001- ● ● ● ●
97 UNION; OIL PIPE
M12 L=63 		9-09225-006-1 01 1 9001- ● ● ● ● ●
98 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9001- ● ● ● ● ●
99 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 01 1 9001-9312 ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
RIGHT HAND DRIVE(LVR5FB) L=1504 SERVICED BY L=1620 		1-47413-560-0 01 1 9001- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
LEFT HAND DRIVE(LVR6FB) L=3120 SERVICED BY L=3400 		1-47434-402-0 01 1 9001- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=3120 SERVICED BY L=3400 		1-47434-402-0 01 1 9001- ●
106 UNION; OIL PIPE
M12 L=40 		9-09223-006-0 01 1 9001-9112 ● ● ● ● ●
106 UNION; OIL PIPE
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M12 L=40 		9-09223-006-0 01 1 9001-9112 ● ● ● ● ●
106 UNION; OIL PIPE
RIGHT HAND DRIVE(LVR5FB) M12 L=40 		9-09223-006-0 01 1 9001-9112 ● ● ● ●
106 UNION; OIL PIPE
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) M12 L=40 		9-09223-006-1 01 1 9201- ● ● ● ● ●
106 UNION; OIL PIPE
RIGHT HAND DRIVE(LVR5FB) M12 L=40 		9-09223-006-1 01 1 9201- ● ● ● ●
106 UNION; OIL PIPE
M12 L=40 		9-09223-006-0 02 1 9001-9112 ● ● ● ● ●
106 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 03 1 9201- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
(A) L=3110 SERVICED BY L=3200 		1-47434-401-0 01 1 9001-9012 ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 6600MM(66W) (A) L=3110 SERVICED BY L=3200 		1-47434-401-0 01 1 9001-9012 ● ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. BUS BODY REAR OVERHANG<YK4> (A) L=3110 SERVICED BY L=3200 		1-47434-401-0 01 1 9101- ● ● ● ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 6600MM(66W) (A) L=3110 SERVICED BY L=3200 		1-47434-401-0 01 1 9101- ● ● ● ● ●
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(LVR5FB) (A) L=2535 SERVICED BY L=2650 		1-47434-399-0 01 1 9001- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) L=960 SERVICED BY L=1000 		1-47413-554-0 01 1 9001- ● ● ● ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 5800MM(58W) (A) L=3261 SERVICED BY L=3700 		1-47434-403-0 01 1 9001-9012 ● ●
109 PIPE; AIR,UNION TO UNION
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> (A) L=3261 SERVICED BY L=3700 		1-47434-403-0 01 1 9101- ● ● ● ● ●
110 PIPE; OIL,UNION TO UNION
L=1455 		1-47413-111-0 01 1 9001- ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9001- ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9001-9312 ● ● ● ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
L=310 SERVICED BY L=350 		9-47415-377-0 01 1 9001-9212 ● ● ● ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
L=310 SERVICED BY L=350 		1-47426-373-0 01 1 9301- ● ● ● ● ●
147 NUT; CLIP FIX
RIGHT HAND DRIVE(LVR5FB) M8 		9-09110-408-0 01 1 9001-9606 ● ● ● ●
147 NUT; CLIP FIX
RIGHT HAND DRIVE(LVR5FB) M8 FLANGE 		0-91150-108-0 01 1 9607- ● ● ● ●
çizim 93734
9 55 49 54 27 135 170 134 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 NUT; BRKT,FLEX HOSE
M10 		9-09110-410-0 02 1 9001-9205 ● ● ● ● ●
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ● ●
27 NUT; BRKT
M14 		9-99111-414-0 01 1 9001- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47431-786-1 01 1 9001-9212 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47497-839-0 01 1 9301- ● ● ● ●
54 BRACKET; AIR,FLEX HOSE
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31429-177-0 01 1 9001-9001 ●
54 BRACKET; AIR,FLEX HOSE 1-31429-177-0 01 1 9001-9001 ●
54 BRACKET; AIR,FLEX HOSE
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31429-177-0 01 1 9002-9012 ●
54 BRACKET; AIR,FLEX HOSE 1-31429-177-0 01 1 9002-9012 ● ●
54 BRACKET; AIR,FLEX HOSE 1-31429-177-0 01 1 9101- ● ● ● ●
54 BRACKET; AIR,FLEX HOSE
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-47475-751-1 01 1 9001-9012 ●
54 BRACKET; AIR,FLEX HOSE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-47465-711-0 01 1 9001-9001 ● ● ● ●
55 WASHER; LK,BRKT,FLEX HOSE
ID=10.2 		9-09150-510-0 02 1 9001-9205 ● ● ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK
L=920 SERVICED BY L=1800 		1-09360-320-0 01 1 9001- ● ● ● ● ●
134 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9001- ● ● ● ● ●
135 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 01 1 9001-9312 ● ● ● ● ●
170 UNION; AIR PIPE 9-09902-609-1 01 1 9001- ● ● ● ● ●
