8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#20557) — 60 parça

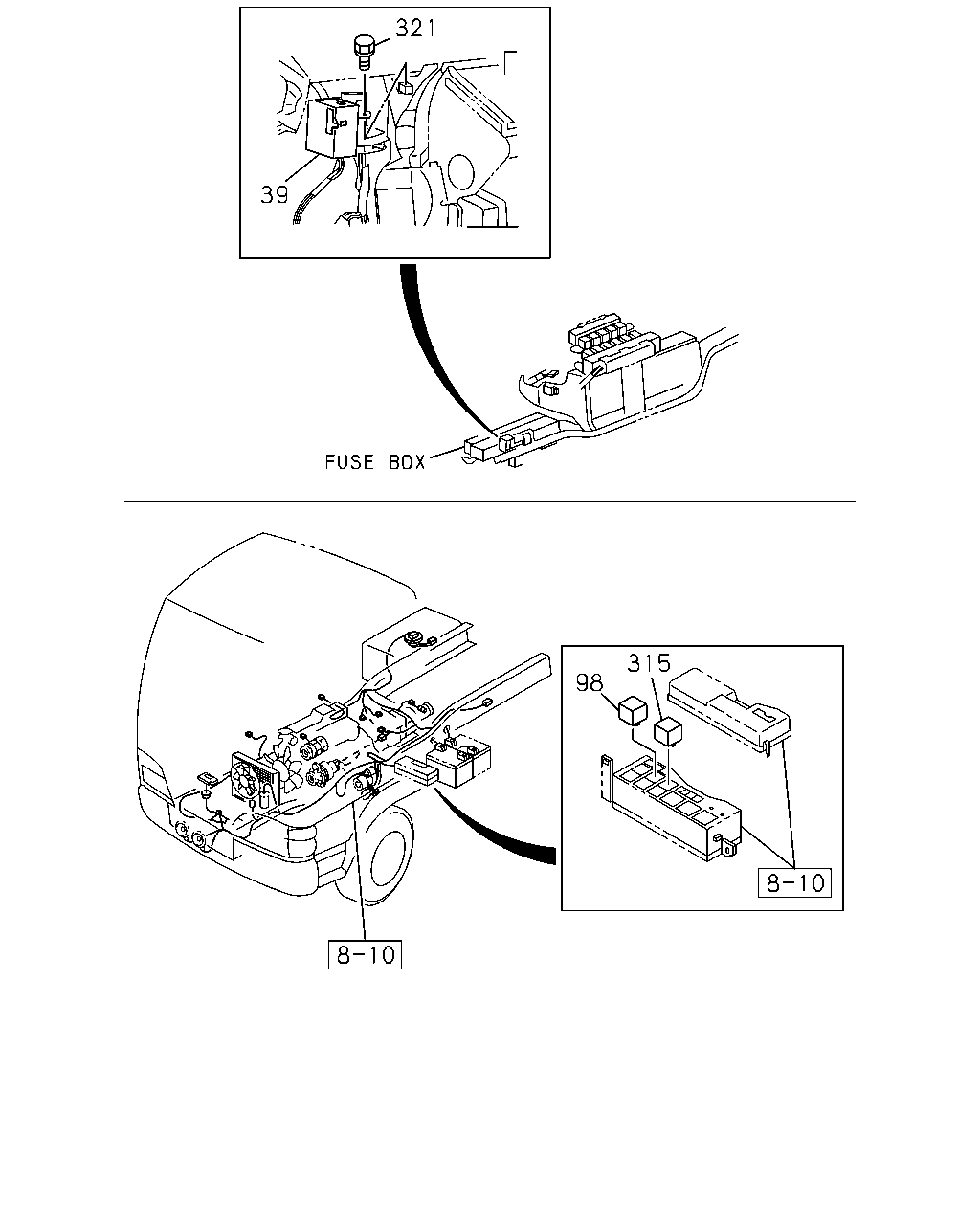

çizim 9494
321 39 315 98
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 9812-0212 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0301- ● ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9812- ● ● ●
çizim 45742
29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 9812- ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9812- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9812- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9812-0210 ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9812- ● ● ●
çizim 47296
85 531 550 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●

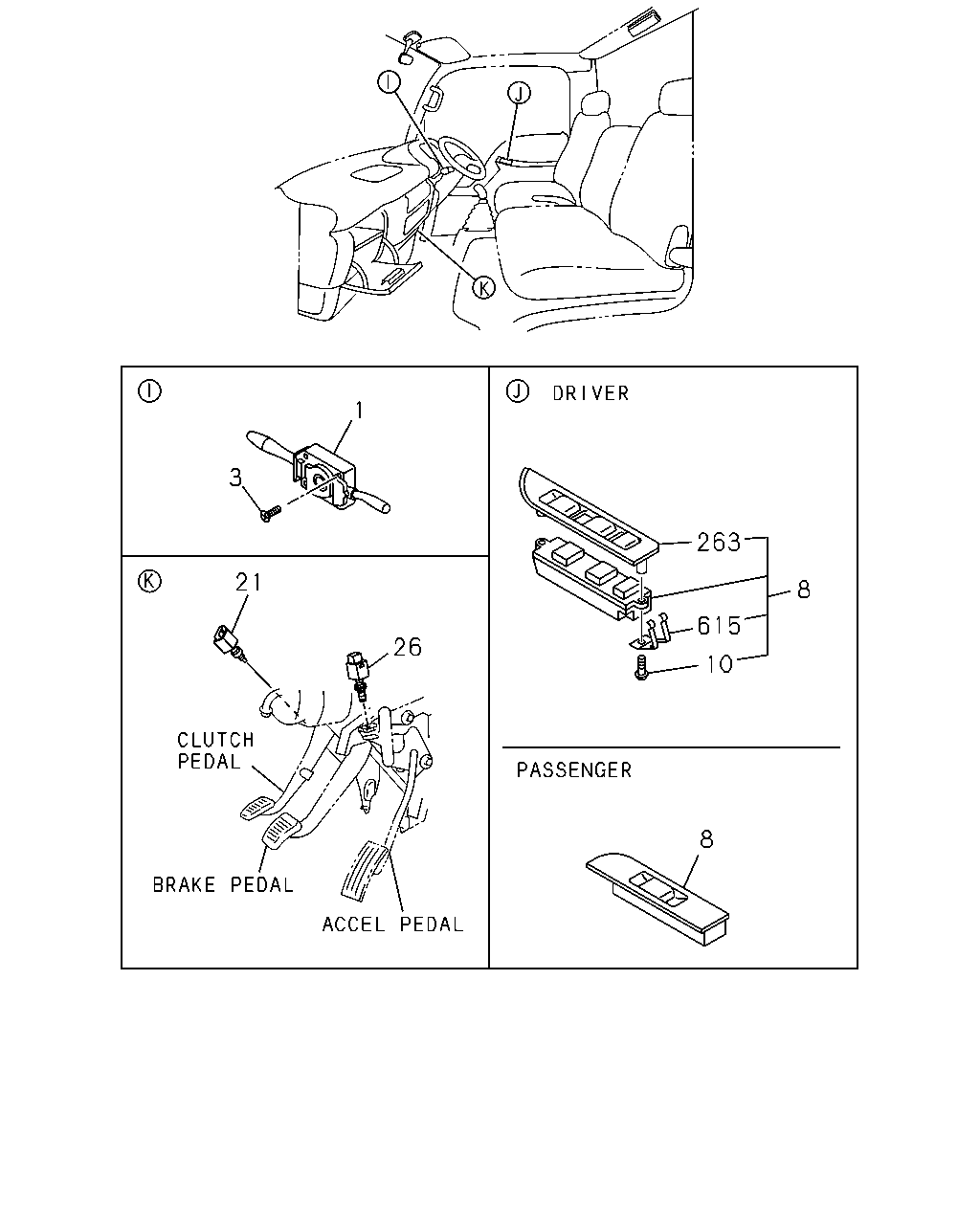

çizim 49198
1 3 263 21 8 615 26 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97202-858-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-898-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97202-862-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-900-2 01 1 0102-0301 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-080-0 01 1 0302- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97202-863-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-901-2 01 1 0102-0301 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-081-0 01 1 0302- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97202-859-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-899-2 01 1 0102- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9812- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-343-0 01 1 9812-9812 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-600-0 01 1 9812-9905 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-593-0 01 1 9906-0004 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-351-0 01 1 0005-0106 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0107-0301 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-112-0 01 1 0302- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9812-9901 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 9902- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9812- ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9812-0105 ●
21 02.575 SWITCH; CLU
4JH1 ENG(RJX) 		8-97260-603-0 01 1 0106- ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9812-0105 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9812- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9812- ● ● ●

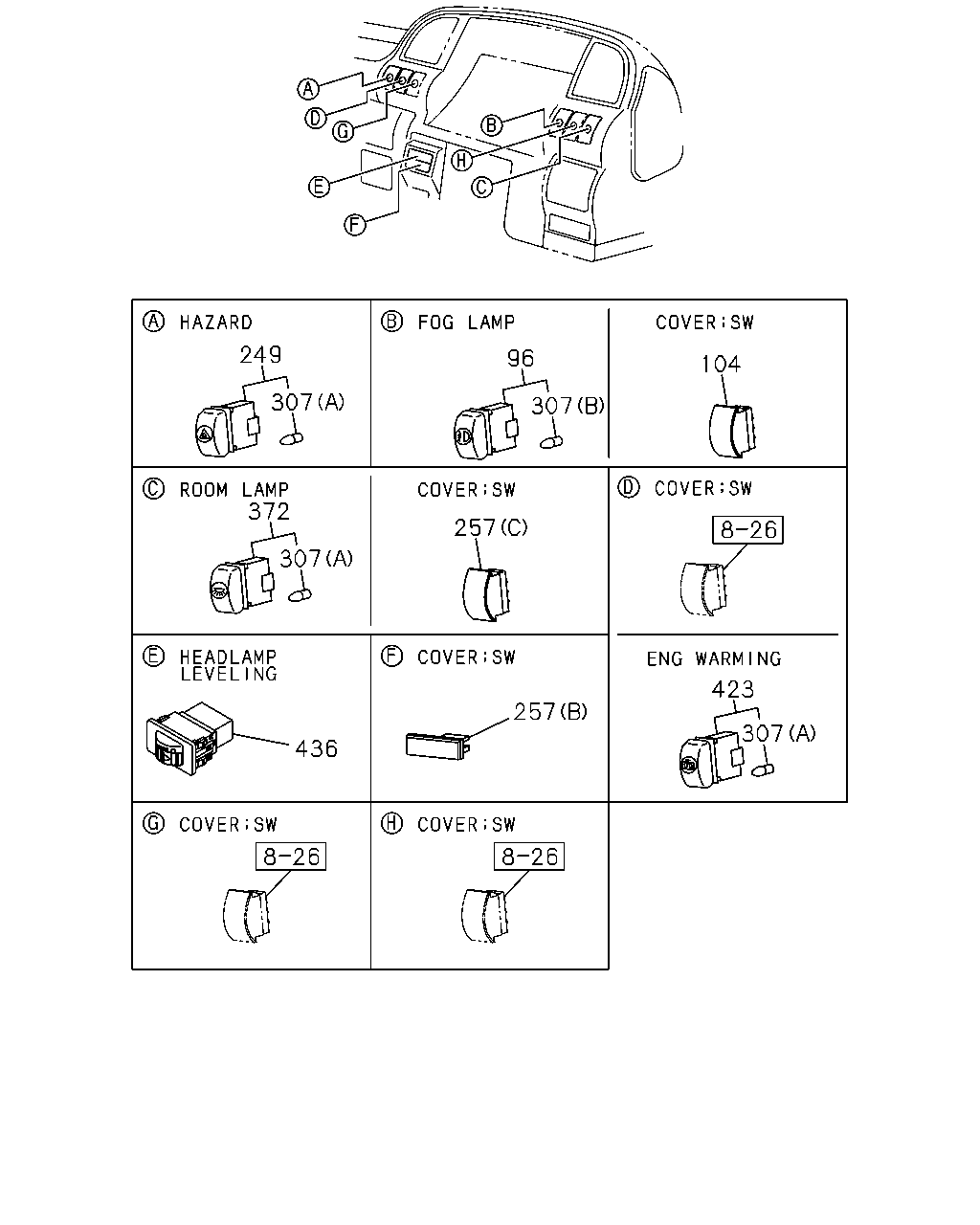

çizim 51129
249 96 104 307 307 372 257 307 423 257 307 436
BalonParca AdiParca NoAdetTipApplied Date A B C
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-020-1 01 1 9812- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9812- ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 9812- ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9812- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9812-0210 ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9812- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> (B) 14V 60MA 		8-97116-329-0 02 1 9812- ● ● ●
307 08.991 BULB ASM; SW
(B) 14V 60MA 		8-97116-329-0 02 1 9812- ● ● ●
307 08.991 BULB ASM; SW
4JB1 ENG(RLF) (A) 14V 60MA 		8-97116-329-0 01 1 9812-0105 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A) 14V 60MA 		8-97116-329-0 01 1 9812-0105 ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) (A) 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A) 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 9812- ● ● ●
423 03.883 SWITCH; ENG WARMING
4JB1 ENG(RLF) 		8-97140-965-0 01 1 9906-0105 ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-0 01 1 0106- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9812-0105 ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0106- ● ● ●
