Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#20555) — 255 parça

31 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (A) L=20	8-94165-263-1	01	1	0106-	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (B)	8-97077-845-0	02	1	0106-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (B)	8-97077-845-0	01	1	0106-		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (C)	8-97288-169-0	01	1	0106-		●	●

16 48 162 208 220 16 488 48 14 16 48 488 483 16 16 16 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (J) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (K) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (L) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (O) ID=24 H=40 L=24	1-09701-243-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (P) ID=12	5-09700-331-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=9	8-97063-874-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) T=5.5	5-09709-047-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=11 L=16	9-09525-025-0	AR	1	9906-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9912-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (M) T=9.2 & 9	5-09709-025-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (P) L=330	5-09709-118-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (Q) ID=9.6	8-94147-870-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=20	8-94169-650-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=27 H=40 L=33	1-09700-156-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (T) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) ID=33 L=63	1-09700-807-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=31 L=30	1-09700-969-0	AR	1	0202-	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	9812-9905	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10	5-09700-318-0	02	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) L=140	5-09707-031-1	01	1	9812-9905	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) L=140	5-09707-031-1	01	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (B) L=140	5-09707-031-1	01	1	9906-0105	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0106-		●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=170.3	1-09987-182-0	02	1	9812-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9812-9905	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9812-9905	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9906-	●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED<RS6> (A) L=250	5-09707-030-1	01	1	9906-	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9906-		●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (C) L=112	8-94232-618-0	04	1	9906-	●

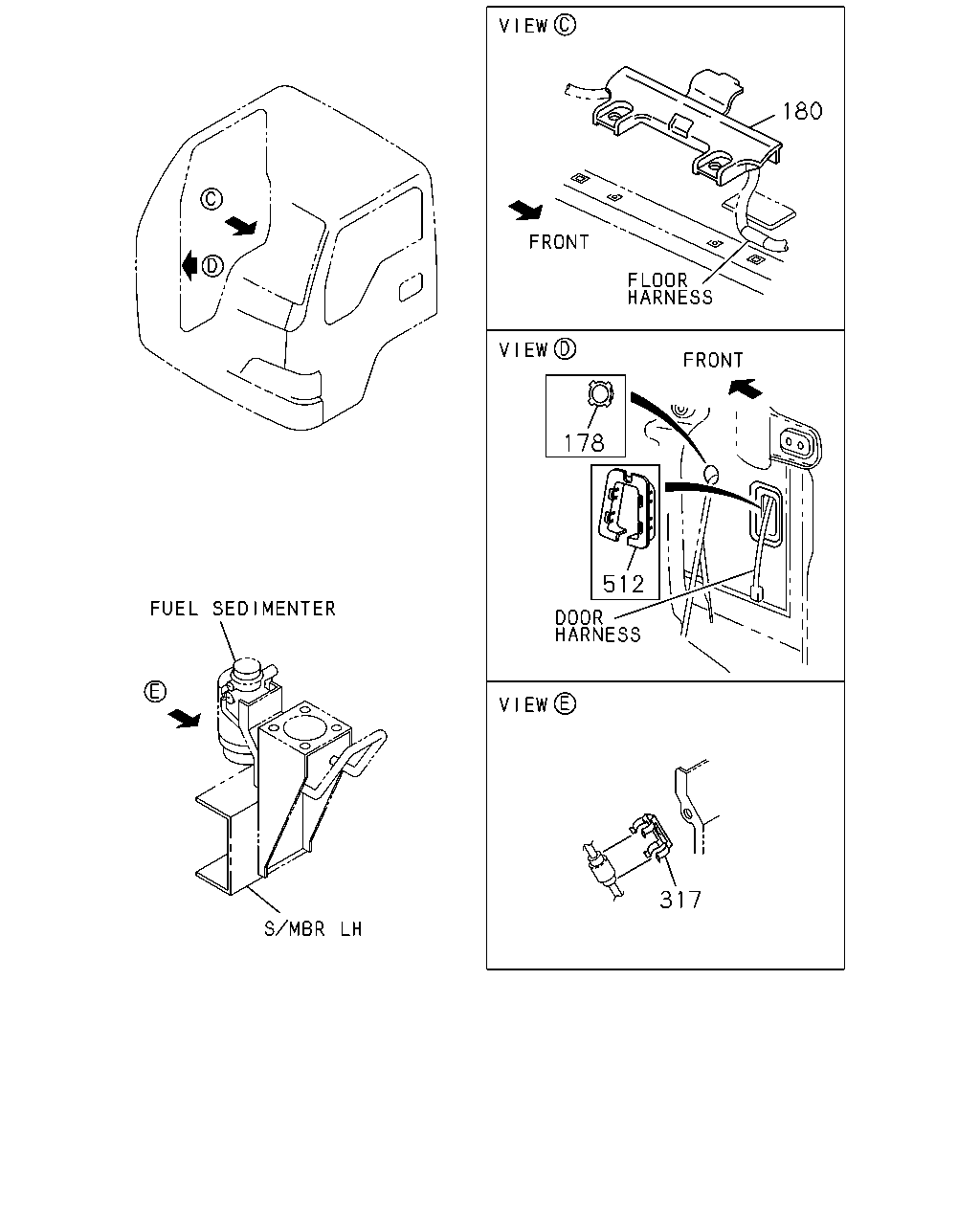

180 178 512 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9812-	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9812-	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94441-365-0	01	1	9812-0105	●
317	02.559 CLAMP; CONNECTOR 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU>	8-94441-365-0	01	1	0106-	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	9812-	●	●	●

38 460 38 38 150 8 139 150 139 377 481 38 150 466 386 159 139 511 55 219 294 469 524 219 219 515 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	0106-		●	●
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0106-		●	●
139	02.559 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9812-0105	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-0203	●		●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0204	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-	●	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) (B)	8-97028-451-3	01	1	0106-	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-0204			●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-0205	●		●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0206-	●	●	●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9812-9905	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
150	02.343 BOLT; CLIP 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9812-	●	●	●
219	02.559 NUT 4JG2 ENG(RJC) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9812-9905	●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9906-0105	●
219	02.559 NUT 4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9906-0105	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●
219	02.559 NUT FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●
219	02.559 NUT 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	9812-9905	●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	9906-0105	●
219	02.559 NUT 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0106-	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0106-		●	●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9812-	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9812-	●
466	02.483 BOLT; HEAT PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE	0-28680-835-0	02	1	9812-0105	●
466	02.483 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0106-	●
466	02.483 BOLT; HEAT PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-			●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-		●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●
469	02.559 NUT; PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●		●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0204-	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9812-	●	●	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-	●	●	●
519	02.559 NUT; EARTH CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.586 M12 FLANGE	0-91150-112-0	01	1	9812-0105	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●	●	●

16 510 514 514 504 514 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (J) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (K) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (L) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (O) ID=24 H=40 L=24	1-09701-243-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (P) ID=12	5-09700-331-0	AR	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97202-003-2	01	1	0106-0203	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (B)	8-97062-178-3	01	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97040-410-2	01	1	0106-0203			●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0106-		●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9812-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9812-0105	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9812-	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0106-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0106-	●	●	●

464 16 16 264 16 16 48 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (J) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (K) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (L) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (O) ID=24 H=40 L=24	1-09701-243-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (P) ID=12	5-09700-331-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=9	8-97063-874-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) T=5.5	5-09709-047-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=11 L=16	9-09525-025-0	AR	1	9906-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9912-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (M) T=9.2 & 9	5-09709-025-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (P) L=330	5-09709-118-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (Q) ID=9.6	8-94147-870-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=20	8-94169-650-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=27 H=40 L=33	1-09700-156-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (T) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) ID=33 L=63	1-09700-807-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=31 L=30	1-09700-969-0	AR	1	0202-	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 ID=16	8-94413-325-0	03	1	9812-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 ID=6.5	8-94257-639-0	01	1	9812-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 ID=6.5	8-94257-639-0	01	1	0106-	●	●	●

48 48 483 483 48 48 48 48 16 208 16 48 52 16 48 48 48 48 48 48 16 49 48 551 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (J) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (K) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●
16	02.559 CLIP; HARNESS (L) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	9904-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (O) ID=24 H=40 L=24	1-09701-243-0	AR	1	0106-	●	●	●
16	02.559 CLIP; HARNESS (P) ID=12	5-09700-331-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=9	8-97063-874-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (E) T=5.5	5-09709-047-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	AR	1	9812-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=11 L=16	9-09525-025-0	AR	1	9906-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9912-	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (M) T=9.2 & 9	5-09709-025-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (N) ID=27	5-09700-323-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (P) L=330	5-09709-118-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (Q) ID=9.6	8-94147-870-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=20	8-94169-650-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=27 H=40 L=33	1-09700-156-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (T) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) ID=33 L=63	1-09700-807-0	AR	1	0106-	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=31 L=30	1-09700-969-0	AR	1	0202-	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0106-		●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	9812-9905	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10	5-09700-318-0	02	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10	5-09700-318-0	02	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) L=140	5-09707-031-1	01	1	9812-9905	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) L=140	5-09707-031-1	01	1	9906-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (B) L=140	5-09707-031-1	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (B) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN 02.525 T=4.5 & 9	5-09709-023-0	02	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
