8-01 — LAMP; FRONT AND FRONT SIDE (#20552) — 98 parça

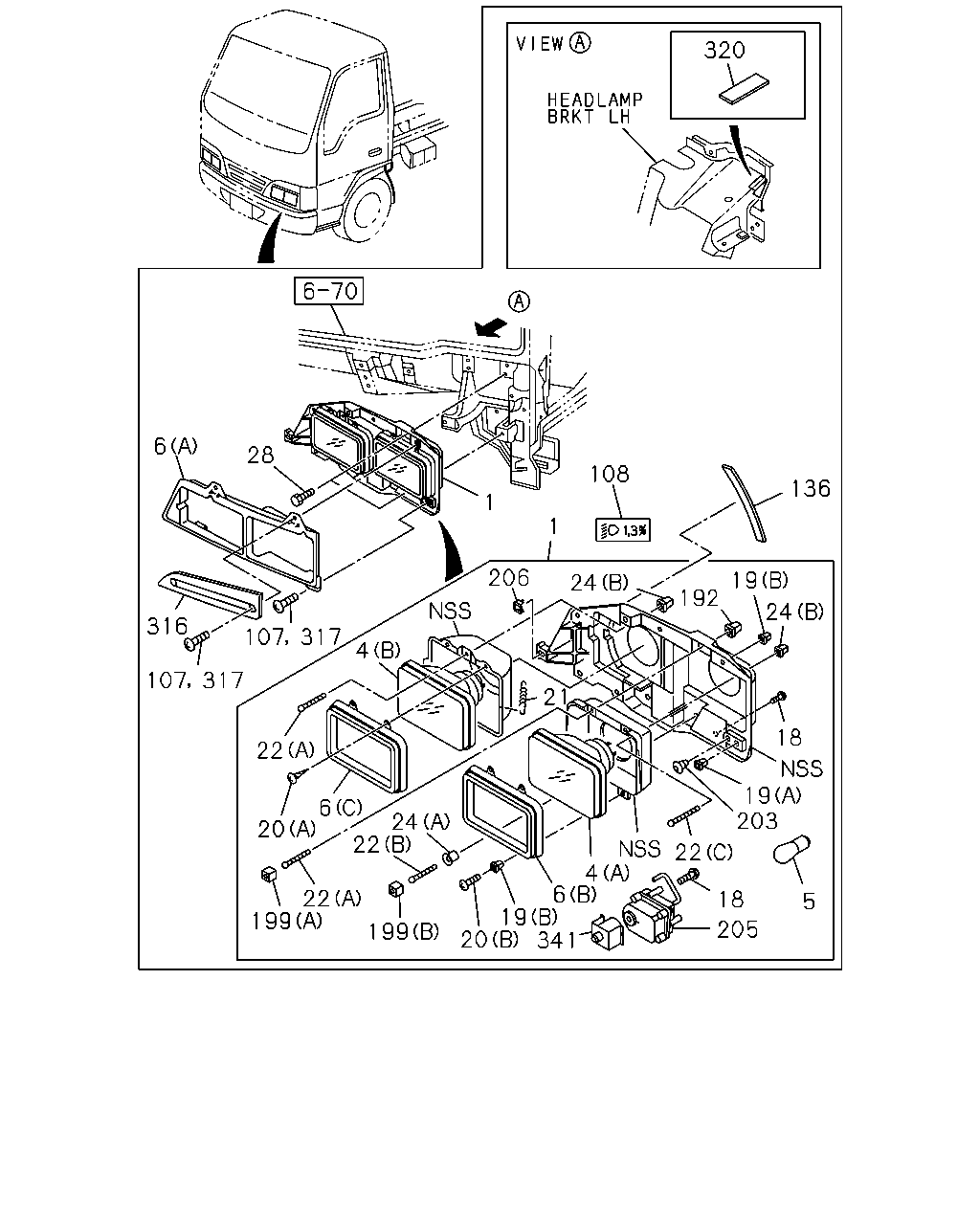

320 6 28 108 136 1 1 206 19 24 192 24 316 107 317 4 107 317 21 18 22 19 203 6 24 22 20 4 6 19 22 22 199 18 5 205 199 20 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC>	8-97855-083-4	01	1	9812-0105	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-772-0	01	1	0106-	●	●	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC>	8-97855-082-4	01	1	9812-0105	●
1	02.725 LAMP ASM; HEAD ADJUST HEADLAMP<6RC> 12V 60/55W	8-97260-771-0	01	1	0106-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-050-4	01	1	9812-	●	●	●
1	02.725 LAMP ASM; HEAD EXC. ADJUST HEADLAMP<6RC> 12V 60/55W	8-97855-049-4	01	1	9812-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (A) 12V 55/60W	8-97855-198-0	02	1	9812-0105	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (A) 12V 40/60W	8-97855-197-0	02	1	0106-	●	●	●
4	02.727 HEADLAMP UNIT ADJUST HEADLAMP<6RC> (B)	8-97855-202-0	02	1	9812-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (A)	8-97855-200-0	02	1	9812-	●	●	●
4	02.727 HEADLAMP UNIT EXC. ADJUST HEADLAMP<6RC> (B)	8-97855-204-0	02	1	9812-	●	●	●
5	02.727 BULB; HEADLAMP 12V 55W	5-82195-001-0	02	1	9812-	●	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-94217-817-0	02	1	9812-	●	●	●
6	02.728 RIM; HEADLAMP (C)	1-82114-016-0	02	1	9812-	●	●	●
6	02.728 RIM; HEADLAMP (B)	8-97855-211-0	02	1	9812-	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97890-801-0	01	1	9812-0211	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97581-089-0	01	1	0212-	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97890-800-0	01	1	9812-0211	●	●	●
6	02.728 RIM; HEADLAMP (A)	8-97581-088-0	01	1	0212-	●	●	●
18	02.726 SCREW; GEAR CASE ADJUST HEADLAMP<6RC>	1-82119-086-0	06	1	9812-	●	●	●
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	9812-	●	●	●
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	9812-	●	●	●
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	9812-	●	●	●
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	9812-	●	●	●
21	02.737 SPRING; ADJ HEADLAMP	1-82119-021-0	02	1	9812-	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP (A)	8-97855-205-0	04	1	9812-	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP (C)	8-97855-207-0	02	1	9812-	●	●	●
22	02.726 SCREW; ADJ,HEADLAMP EXC. ADJUST HEADLAMP<6RC> (B)	8-97855-206-0	02	1	9812-	●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP (B)	8-94387-097-0	06	1	9812-	●	●	●
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. ADJUST HEADLAMP<6RC> (A)	8-97855-208-0	02	1	9812-	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9812-	●	●	●
107	02.729 SCREW; RIM,HEADLAMP M4X20 TAPPING	8-94279-391-0	04	1	9812-0202	●		●
107	02.729 SCREW; RIM,HEADLAMP M4X20 TAPPING	8-97326-998-0	04	1	0203-	●	●	●
108	02.729 SEAL; HEADLAMP RIM ADJUST HEADLAMP<6RC>	8-97049-114-0	01	1	9812-	●	●	●
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	9812-9905	●
136	02.726 SEAL; HEADLAMP AIR INTAKE SYSTEM FRONT<6PC> 170X15	8-97853-541-0	01	1	9906-0105	●
192	02.765 PIVOT; HEADLAMP 02.737	8-94381-595-0	02	1	9812-	●	●	●
199	02.737 BUSHING (A)	8-94381-605-0	04	1	9812-	●	●	●
199	02.737 BUSHING (B)	8-97855-212-0	02	1	9812-	●	●	●
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	9812-	●	●	●
205	02.727 ACTUATOR; HEADLAMP ADJUST HEADLAMP<6RC>	8-97855-209-0	02	1	9812-0105	●
205	02.727 ACTUATOR; HEADLAMP ADJUST HEADLAMP<6RC>	8-97309-102-0	02	1	0106-	●	●	●
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	9812-	●	●	●
316	02.726 ORNAMENT; HEAD LAMP	8-97855-010-5	01	1	9812-9905	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE SYSTEM FRONT<6PC>	8-97855-010-5	01	1	9906-0105	●
316	02.726 ORNAMENT; HEAD LAMP	8-97863-622-0	01	1	9812-	●	●	●
316	02.726 ORNAMENT; HEAD LAMP AIR INTAKE REAR VERTICAL<KJ3>	8-97859-500-0	01	1	9906-0105	●
316	02.726 ORNAMENT; HEAD LAMP	8-97859-500-0	01	1	0106-	●	●	●
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-94279-391-0	04	1	9812-0202	●		●
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0203-	●	●	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9812-	●	●	●
341	02.726 BRACKET; ACTUATOR ADJUST HEADLAMP<6RC>	8-97855-210-0	02	1	9812-	●	●	●

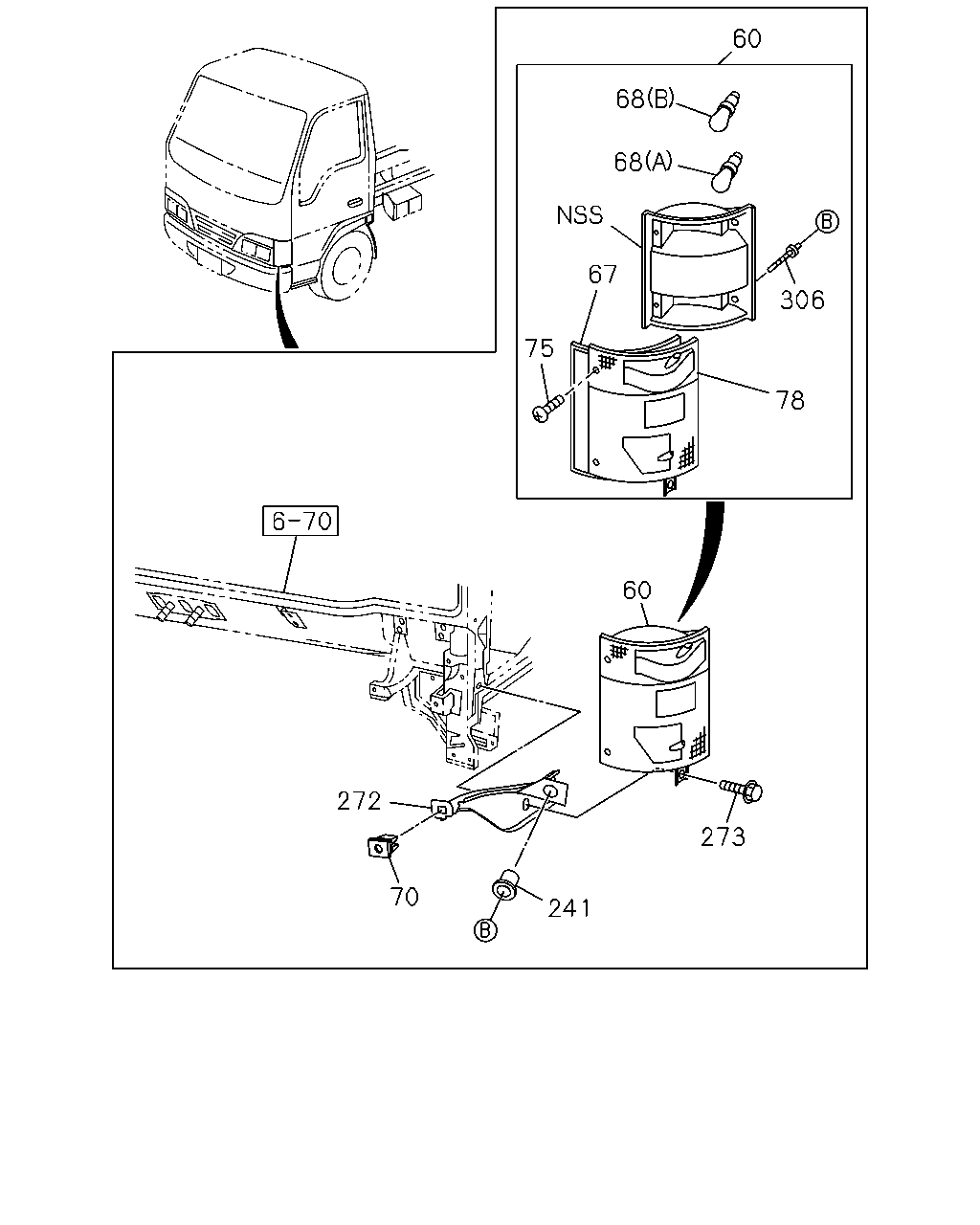

60 68 68 67 306 75 78 60 272 273 70 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
60	02.585 LAMP ASM; FRT COMB	8-97855-111-2	01	1	9812-	●	●	●
60	02.585 LAMP ASM; FRT COMB	8-97855-110-2	01	1	9812-	●	●	●
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	9812-	●	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-94124-074-0	02	1	9812-	●	●	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 10W	8-94126-494-0	02	1	9812-	●	●	●
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	9812-	●	●	●
75	02.587 SCREW; FRT COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9812-	●	●	●
78	02.589 LENS ASM; FRT COMB	8-97855-133-0	01	1	9812-	●	●	●
78	02.589 LENS ASM; FRT COMB	8-97855-130-0	01	1	9812-	●	●	●
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	9812-	●	●	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	9812-	●	●	●
272	02.726 BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	9812-	●	●	●
273	02.726 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-	●	●	●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE	0-28691-030-0	01	1	0106-			●
306	02.587 PIVOT; FRT COMB LAMP	8-97219-053-0	04	1	9812-	●	●	●

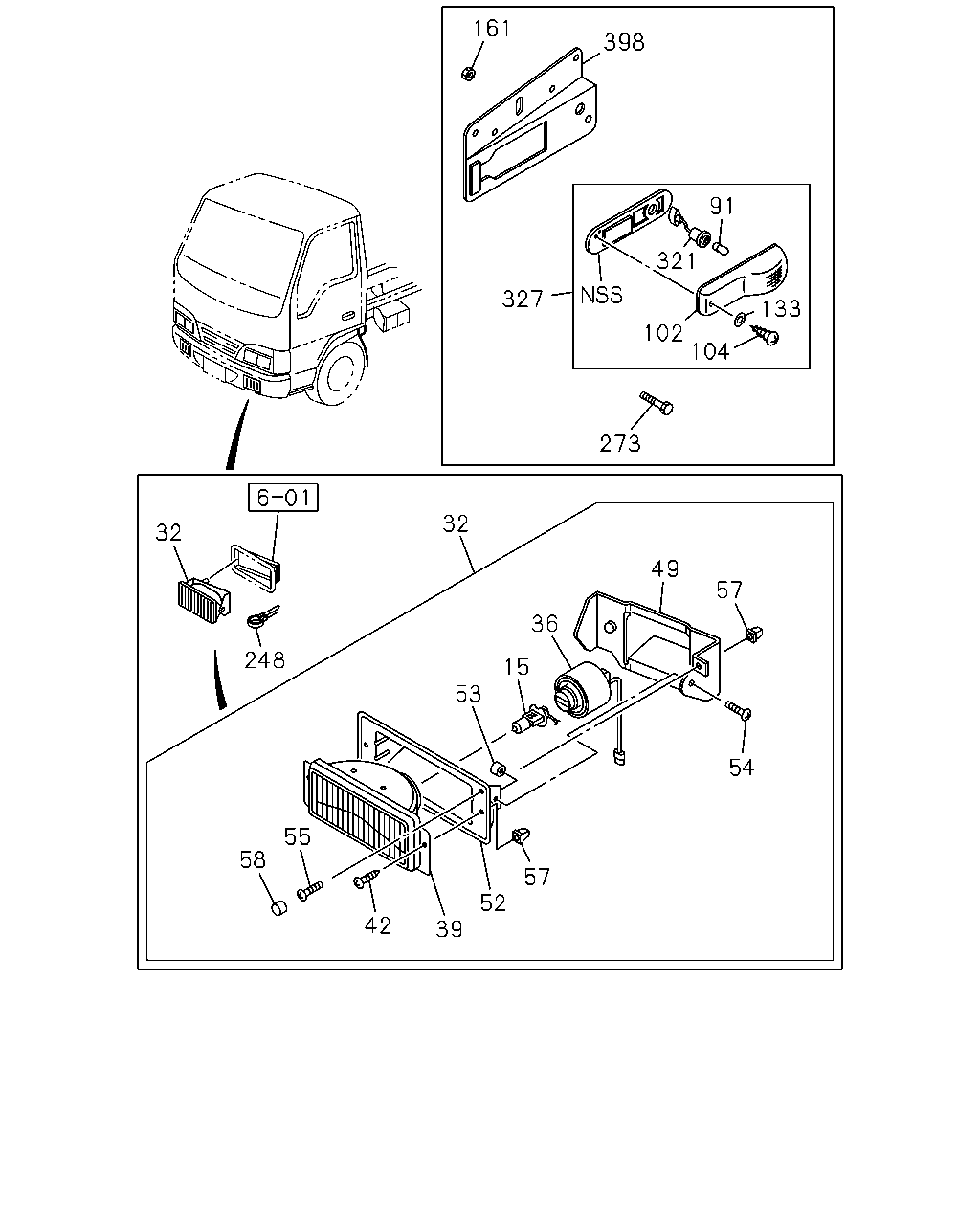

161 398 91 321 133 327 102 104 273 32 32 49 57 36 248 15 53 54 55 58 57 52 42 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	9812-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97070-959-1	01	1	9812-0003	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-540-0	01	1	0004-	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97070-958-1	01	1	9812-0003	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-97248-539-0	01	1	0004-	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	9812-	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97119-300-0	01	1	9812-	●	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-97104-060-0	01	1	9812-	●	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	9812-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	9812-	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	9812-	●	●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	9812-	●	●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	9812-	●	●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	9812-	●	●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	9812-	●	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	9812-	●	●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	9812-	●	●	●
91	08.991 BULB; SIDE TURN SIGNAL 12V 21W	8-94124-074-0	02	1	0106-			●
102	02.589 LENS; SIDE TURN SIGNAL 02.682	1-82213-021-0	01	1	0106-			●
102	02.589 LENS; SIDE TURN SIGNAL 02.682	1-82213-020-0	01	1	0106-			●
104	02.587 SCREW; SIDE TURN SIGNAL 02.688	8-97224-571-0	02	1	0106-			●
133	02.587 WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0106-			●
161	02.726 NUT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE	0-91150-210-0	01	1	0106-			●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	9812-	●	●	●
273	02.726 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-	●	●	●
273	02.726 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE	0-28691-030-0	01	1	0106-			●
321	02.596 HARNESS; SIDE FLASHER LAMP 02.664	8-97224-569-0	02	1	0106-			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-277-0	01	1	0106-			●
327	02.585 LAMP ASM; SIDE TURN SIGNAL 02.679	8-97221-276-0	01	1	0106-			●
398	02.726 BRACKET; TURN SIGNAL	8-97222-071-0	01	1	0106-			●
398	02.726 BRACKET; TURN SIGNAL	8-97222-070-0	01	1	0106-			●
