7-10 — CAUTION PLATE AND LABEL (#20543) — 54 parça
çizim 7488
35 96 130 9 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) CAUTION SPANISH<YN1> 		8-97188-833-0 01 1 0106- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 		8-97188-832-0 01 1 9812-0105 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) EXC. CAUTION SPANISH<YN1> 		8-97188-832-0 01 1 0106- ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSB5S(R45) EXC. TACHOMETER<U16> 		8-94158-944-0 01 1 9812-9812 ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) EXC. TACHOMETER<U16> 		8-94158-944-0 01 1 9901-9905 ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-94158-944-0 01 1 9906-9911 ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-94158-944-0 01 1 9912-0105 ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0106- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0106- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0106- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (B) 		5-85881-328-1 01 1 9812-0105 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0106- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-97856-228-0 01 1 9812-0105 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0106- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0106- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97066-479-0 01 1 9906-0105 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97066-479-1 01 1 0106- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) 		8-97092-930-0 01 1 9812-9905 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97092-930-0 01 1 9906-0105 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 9906-0105 ●
çizim 48783
84 59 190
BalonParca AdiParca NoAdetTipApplied Date A B C
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT(S9Z) 10 PER 1 SHEET 		8-97116-760-0 02 1 9812- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 9812- ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0203-0205 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0203-0205 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0206- ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0206- ● ●

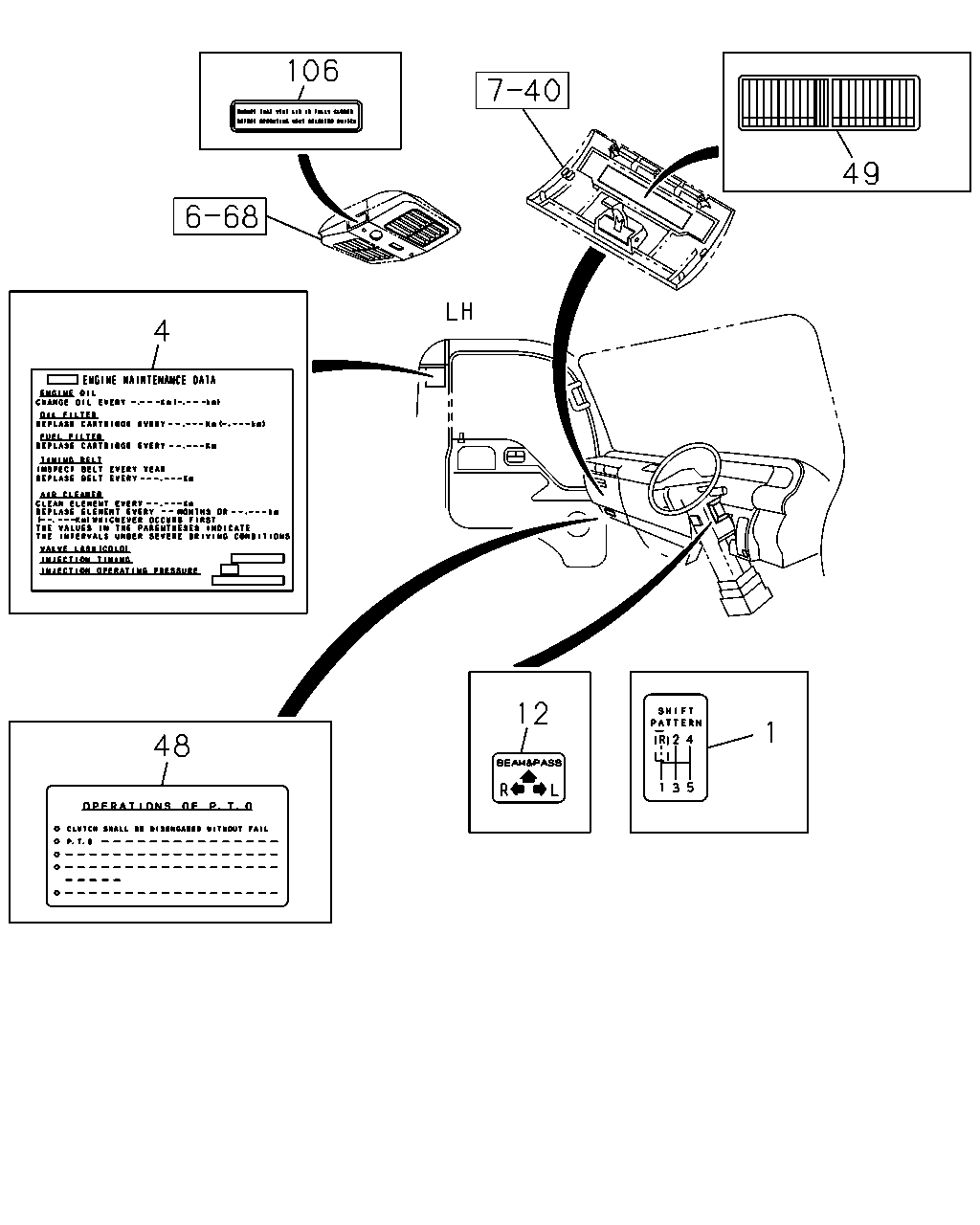

çizim 49094
106 49 4 12 1 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN
FLOOR REMOTE SHIFT<M11> 		8-97305-983-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97231-256-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> 		8-97260-427-1 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97189-415-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97189-413-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) 		8-97189-419-0 01 1 9812-9905 ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97189-419-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> 		8-97260-428-1 01 1 0106- ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 9812- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) 		8-94469-277-0 01 1 9812-0105 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0106-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0106-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 0211- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-190-0 01 1 9812-0105 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1 ENG(RJX) 		8-97260-561-0 01 1 0106- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> 		8-94273-602-0 01 1 9812-0105 ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 0106- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 0106- ● ● ●

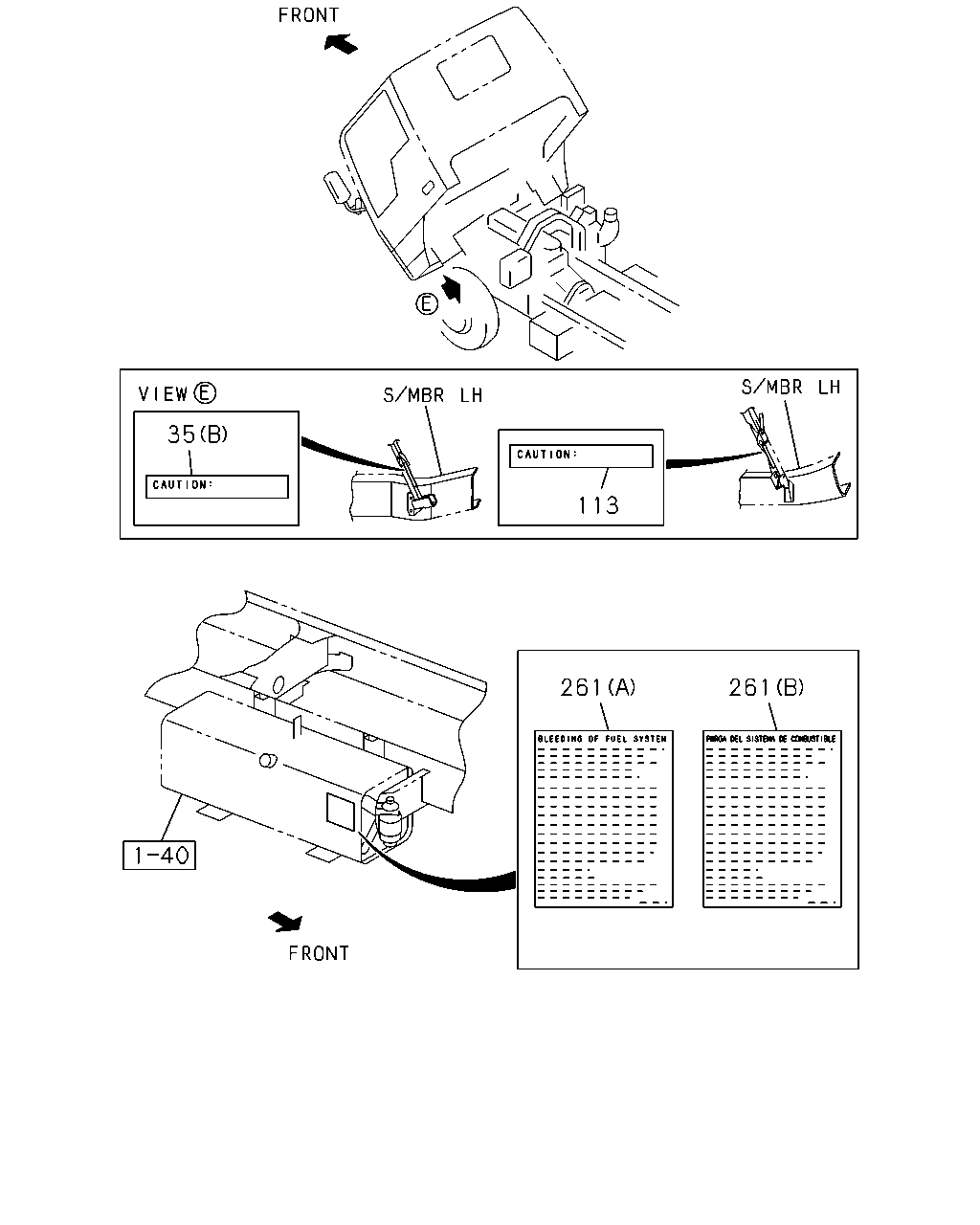

çizim 49199
35 113 261 261
BalonParca AdiParca NoAdetTipApplied Date A B C
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (B) 		5-85881-328-1 01 1 9812-0105 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0106- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-97856-228-0 01 1 9812-0105 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0106- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0106- ● ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 9812- ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) (A) 		8-97315-725-0 01 1 0106-0106 ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0107- ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0107- ● ● ●
