2-03 — CLUTCH PEDAL AND CONTROL (#2054) — 131 parça

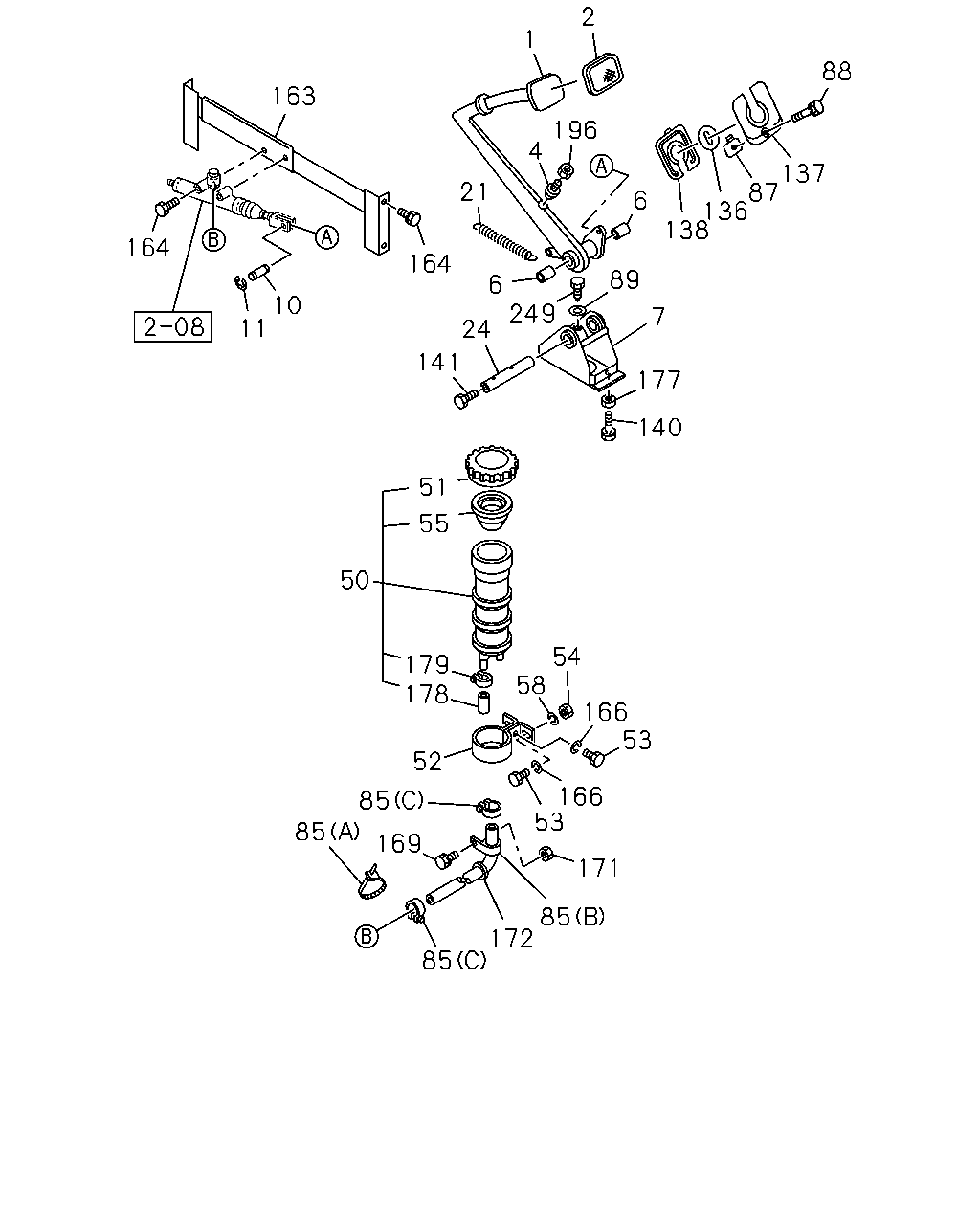

çizim 29411
2 1 88 163 196 4 137 87 136 138 21 6 164 164 89 6 249 10 7 11 24 141 177 140 51 55 50 54 58 179 178 166 53 52 166 53 85 85 169 171 85 172 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-31411-139-0 01 1 9001- ●
1 PEDAL; CLU
M/T<X9C> 		1-31411-139-0 01 1 9001- ●
2 COVER; CLU PEDAL 9-47313-015-0 01 1 9001- ●
2 COVER; CLU PEDAL
M/T<X9C> 		9-47313-015-0 01 1 9001- ●
4 STOPPER; CLU PEDAL 1-47515-001-0 01 1 9001- ●
4 STOPPER; CLU PEDAL
M/T<X9C> 		1-47515-001-0 01 1 9001- ●
6 BUSHING; CLU PEDAL 9-47315-005-0 04 1 9001- ●
6 BUSHING; CLU PEDAL
M/T<X9C> 		9-47315-005-0 04 1 9001- ●
7 BRACKET; CLU PEDAL 1-31416-013-0 01 1 9001- ●
7 BRACKET; CLU PEDAL
M/T<X9C> 		1-31416-013-0 01 1 9001- ●
10 PIN; CLU PEDAL 9-08254-235-0 01 1 9001- ●
10 PIN; CLU PEDAL
M/T<X9C> 		9-08254-235-0 01 1 9001- ●
11 PIN; SNAP,PUSH ROD TO PEDAL
ID=9 		9-09185-409-0 02 1 9001- ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T<X9C> ID=9 		9-09185-409-0 02 1 9001- ●
21 SPRING; RETURN,CLU PEDAL 9-09942-561-0 01 1 9001- ●
21 SPRING; RETURN,CLU PEDAL
M/T<X9C> 		9-09942-561-0 01 1 9001- ●
24 SHAFT; CLU PEDAL 9-31415-040-1 01 1 9001- ●
24 SHAFT; CLU PEDAL
M/T<X9C> 		9-31415-040-1 01 1 9001- ●
50 TANK; OIL,CLU 1-47530-165-0 01 1 9001-9204 ●
50 TANK; OIL,CLU
M/T<X9C> 		1-47530-165-0 01 1 9001-9204 ●
50 TANK; OIL,CLU 1-47530-149-1 01 1 9205-0009 ●
50 TANK; OIL,CLU
M/T<X9C> 		1-47530-149-1 01 1 9205-0009 ●
50 TANK; OIL,CLU 1-47530-183-0 01 1 0010- ●
50 TANK; OIL,CLU
M/T<X9C> 		1-47530-183-0 01 1 0010- ●
51 CAP; OIL TANK,CLU 1-47525-027-0 01 1 9001-9204 ●
51 CAP; OIL TANK,CLU
M/T<X9C> 		1-47525-027-0 01 1 9001-9204 ●
51 CAP; OIL TANK,CLU 9-47525-032-1 01 1 9205- ●
51 CAP; OIL TANK,CLU
M/T<X9C> 		9-47525-032-1 01 1 9205- ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-009-1 01 1 9001-0009 ●
52 BRACKET; OIL TANK,CLU M/CYL
M/T<X9C> 		9-47537-009-1 01 1 9001-0009 ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-023-1 01 1 0010- ●
52 BRACKET; OIL TANK,CLU M/CYL
M/T<X9C> 		9-47537-023-1 01 1 0010- ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		9-92040-516-0 03 1 9001-9204 ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M/T<X9C> M5X16 		9-92040-516-0 03 1 9001-9204 ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		0-20800-516-0 03 1 9205- ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M/T<X9C> M5X16 		0-20800-516-0 03 1 9205- ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M5 		9-99110-405-0 02 1 9001- ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M/T<X9C> M5 		9-99110-405-0 02 1 9001- ●
55 BAFFLE; RUBBER,CLU M/CYL 1-47529-013-0 01 1 9001-9204 ●
55 BAFFLE; RUBBER,CLU M/CYL
M/T<X9C> 		1-47529-013-0 01 1 9001-9204 ●
55 BAFFLE; RUBBER,CLU M/CYL 9-47529-031-0 01 1 9205- ●
55 BAFFLE; RUBBER,CLU M/CYL
M/T<X9C> 		9-47529-031-0 01 1 9205- ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3 		9-09160-505-0 02 1 9001- ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
M/T<X9C> ID=5.3 		9-09160-505-0 02 1 9001- ●
85 CLIP; HOSE TO M/CYL
(A) L=100 		5-09707-036-1 01 1 9001- ●
85 CLIP; HOSE TO M/CYL
M/T<X9C> (A) L=100 		5-09707-036-1 01 1 9001- ●
85 CLIP; HOSE TO M/CYL
(B) ID=15 		9-09521-535-0 01 1 9001- ●
85 CLIP; HOSE TO M/CYL
M/T<X9C> (B) ID=15 		9-09521-535-0 01 1 9001- ●
85 CLIP; HOSE TO M/CYL
(C) ID=15 		9-09715-098-0 02 1 9001- ●
85 CLIP; HOSE TO M/CYL
M/T<X9C> (C) ID=15 		9-09715-098-0 02 1 9001- ●
87 SPACER; COVER 9-61165-419-0 01 1 9001-9204 ●
87 SPACER; COVER
M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-61165-419-0 01 1 9001-9204 ●
87 SPACER; COVER 9-61165-419-0 01 1 9205- ●
87 SPACER; COVER
M/T<X9C> 		9-61165-419-0 01 1 9205- ●
87 SPACER; COVER
M/T<X9C> BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		9-61165-419-0 02 1 9001-9204 ●
88 BOLT; SPACER
M6X14 W/LK WASHER 		9-01900-614-0 01 1 9001-9204 ●
88 BOLT; SPACER
M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9001-9204 ●
88 BOLT; SPACER
M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9606 ●
88 BOLT; SPACER
M/T<X9C> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9606 ●
88 BOLT; SPACER
M6X12 FLANGE 		0-28080-612-0 01 1 9607- ●
88 BOLT; SPACER
M/T<X9C> M6X12 FLANGE 		0-28080-612-0 01 1 9607- ●
88 BOLT; SPACER
M/T<X9C> BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9001-9204 ●
89 WASHER; LK,SHAFT
ID=8.2 		9-09150-508-0 01 1 9001- ●
89 WASHER; LK,SHAFT
M/T<X9C> ID=8.2 		9-09150-508-0 01 1 9001- ●
136 PLATE; SEAL,CLU PEDAL 9-47319-059-0 01 1 9001- ●
136 PLATE; SEAL,CLU PEDAL
M/T<X9C> 		9-47319-059-0 01 1 9001- ●
137 COVER; UPR,CLU PEDAL 1-73927-027-0 01 1 9001-9204 ●
137 COVER; UPR,CLU PEDAL
M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-73927-027-0 01 1 9001-9204 ●
137 COVER; UPR,CLU PEDAL 1-73927-027-0 01 1 9205- ●
137 COVER; UPR,CLU PEDAL
M/T<X9C> 		1-73927-027-0 01 1 9205- ●
137 COVER; UPR,CLU PEDAL
M/T<X9C> BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-73927-027-0 02 1 9001-9204 ●
138 COVER; LWR,CLU PEDAL 9-61165-422-0 01 1 9001-9204 ●
138 COVER; LWR,CLU PEDAL
M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-61165-422-0 01 1 9001-9204 ●
138 COVER; LWR,CLU PEDAL 9-61165-422-0 01 1 9205- ●
138 COVER; LWR,CLU PEDAL
M/T<X9C> 		9-61165-422-0 01 1 9205- ●
138 COVER; LWR,CLU PEDAL
M/T<X9C> BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		9-61165-422-0 02 1 9001-9204 ●
140 BOLT; BRKT
M10X30 W/LK WASHER 		9-01911-030-0 04 1 9001-9002 ●
140 BOLT; BRKT
M/T<X9C> M10X30 W/LK WASHER 		9-01911-030-0 04 1 9001-9002 ●
140 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9003-9606 ●
140 BOLT; BRKT
M/T<X9C> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9003-9606 ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607- ●
140 BOLT; BRKT
M/T<X9C> M10X30 FLANGE 		0-28681-030-0 04 1 9607- ●
141 NIPPLE; GREASE,SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9001- ●
141 NIPPLE; GREASE,SHAFT
M/T<X9C> PT1/8 ELBOW 		9-09031-210-0 01 1 9001- ●
163 BRACKET; CLU M/CYL 1-65600-225-1 01 1 9001-9204 ●
163 BRACKET; CLU M/CYL
M/T<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-65600-225-1 01 1 9001-9204 ●
163 BRACKET; CLU M/CYL 1-65600-225-1 01 1 9205- ●
163 BRACKET; CLU M/CYL
M/T<X9C> 		1-65600-225-1 01 1 9205- ●
163 BRACKET; CLU M/CYL
M/T<X9C> BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-65600-236-1 01 1 9001-9204 ●
164 BOLT; CLU M/CYL
M10X22 		9-01911-022-0 02 1 9001-9002 ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X22 		9-01911-022-0 02 1 9001-9002 ●
164 BOLT; CLU M/CYL
M10X22 W/LK WASHER 		0-50041-022-0 02 1 9003-9606 ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X22 W/LK WASHER 		0-50041-022-0 02 1 9003-9606 ●
164 BOLT; CLU M/CYL
M10X20 FLANGE 		0-28681-020-0 02 1 9607- ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X20 FLANGE 		0-28681-020-0 02 1 9607- ●
164 BOLT; CLU M/CYL
M10X40 W/LK WASHER 		9-01931-040-0 02 1 9001-9002 ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X40 W/LK WASHER 		9-01931-040-0 02 1 9001-9002 ●
164 BOLT; CLU M/CYL
M10X40 W/LK WASHER 		0-50051-040-0 02 1 9003-9606 ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X40 W/LK WASHER 		0-50051-040-0 02 1 9003-9606 ●
164 BOLT; CLU M/CYL
M10X40 FLANGE 		0-28781-040-0 02 1 9607- ●
164 BOLT; CLU M/CYL
M/T<X9C> M10X40 FLANGE 		0-28781-040-0 02 1 9607- ●
166 WASHER; LK,BRKT,OIL TANK,CLU M/CYL
ID=5.1 		9-09150-505-0 03 1 9001- ●
166 WASHER; LK,BRKT,OIL TANK,CLU M/CYL
M/T<X9C> ID=5.1 		9-09150-505-0 03 1 9001- ●
169 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9001-9204 ●
169 BOLT; CLIP
M/T<X9C> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9001-9204 ●
169 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9606 ●
169 BOLT; CLIP
M/T<X9C> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9606 ●
169 BOLT; CLIP
M6X20 FLANGE 		0-28680-620-0 01 1 9607-9704 ●
169 BOLT; CLIP
M/T<X9C> M6X20 FLANGE 		0-28680-620-0 01 1 9607-9704 ●
169 BOLT; CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 9705- ●
169 BOLT; CLIP
M/T<X9C> M6X25 FLANGE 		0-28680-625-0 01 1 9705- ●
171 NUT; CLIP,HOSE
M6 		9-09110-406-0 01 1 9001-9606 ●
171 NUT; CLIP,HOSE
M/T<X9C> M6 		9-09110-406-0 01 1 9001-9606 ●
171 NUT; CLIP,HOSE
M6 FLANGE 		0-91150-106-0 01 1 9607- ●
171 NUT; CLIP,HOSE
M/T<X9C> M6 FLANGE 		0-91150-106-0 01 1 9607- ●
172 GROMMET; RUBBER HOSE 9-09956-008-0 01 1 9001- ●
172 GROMMET; RUBBER HOSE
M/T<X9C> 		9-09956-008-0 01 1 9001- ●
177 NUT; BRKT
M10 		9-09110-410-0 02 1 9001-9606 ●
177 NUT; BRKT
M/T<X9C> M10 		9-09110-410-0 02 1 9001-9606 ●
177 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607- ●
177 NUT; BRKT
M/T<X9C> M10 FLANGE 		0-91150-210-0 02 1 9607- ●
178 CAP; OIL TANK HOSE 1-47539-005-0 01 1 9001- ●
178 CAP; OIL TANK HOSE
M/T<X9C> 		1-47539-005-0 01 1 9001- ●
179 CLIP; CAP TO OIL TANK
ID=15 		9-09715-098-0 01 1 9001- ●
179 CLIP; CAP TO OIL TANK
M/T<X9C> ID=15 		9-09715-098-0 01 1 9001- ●
196 NUT; STOPPER LOCK
M10 		9-09110-410-0 01 1 9001-9606 ●
196 NUT; STOPPER LOCK
M/T<X9C> M10 		9-09110-410-0 01 1 9001-9606 ●
196 NUT; STOPPER LOCK
M10 FLANGE 		0-91150-210-0 01 1 9607- ●
196 NUT; STOPPER LOCK
M/T<X9C> M10 FLANGE 		0-91150-210-0 01 1 9607- ●
249 SCREW; SHAFT
M8X12 		9-06120-812-0 01 1 9001- ●
249 SCREW; SHAFT
M/T<X9C> M8X12 		9-06120-812-0 01 1 9001- ●
