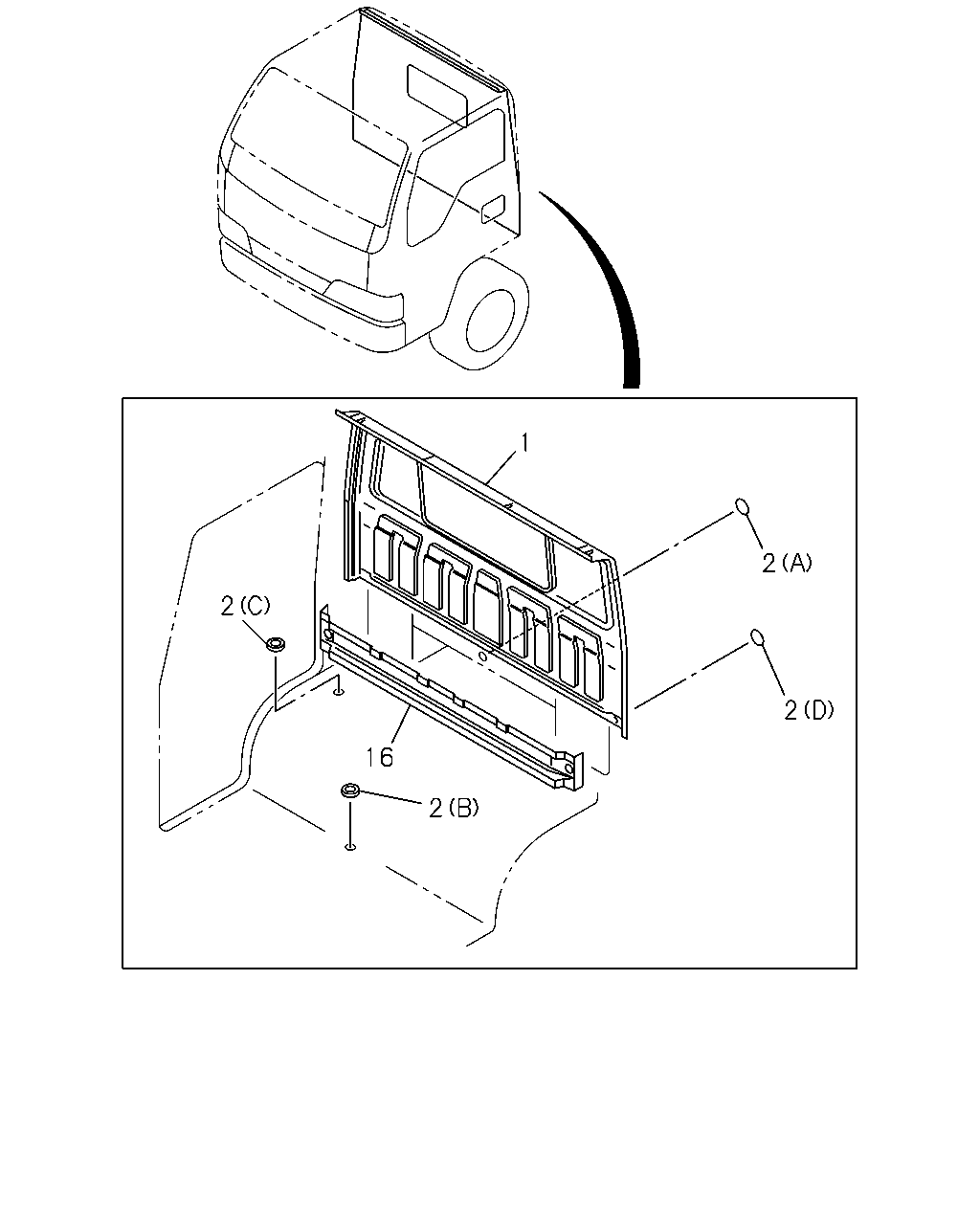

1 2 2 2 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.587 PANEL; BACK OUTER	8-97851-352-2	01	1	9812-0205	●	●
1	16.587 PANEL; BACK OUTER 4JH1 ENG(RJX)	8-97851-352-2	01	1	0206-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9812-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (D) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9812-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 08.155 (B) OD=28.5	8-94279-711-0	02	1	9812-	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (C) OD=16.2	8-94492-493-0	02	1	9812-	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL	8-97867-215-0	01	1	9812-0205	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1 ENG(RJX)	8-97867-215-0	01	1	0206-	●	●	●

6 5 8 6 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	16.587 PANEL; CAB BACK 4JB1 ENG(RLF) MANUAL TILT CAB<RWZ>	8-97205-942-4	01	1	9906-0105	●
5	16.587 PANEL; CAB BACK 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ>	8-97084-132-4	01	1	9812-0105	●
5	16.587 PANEL; CAB BACK 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ>	8-97259-949-1	01	1	0106-	●	●	●
6	16.587 BOLT; BACK PANEL 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●
6	16.587 BOLT; BACK PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●
6	16.587 BOLT; BACK PANEL 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●
8	16.587 NUT; BACK PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
8	16.587 NUT; BACK PANEL 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
