◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#20536) — 86 parça

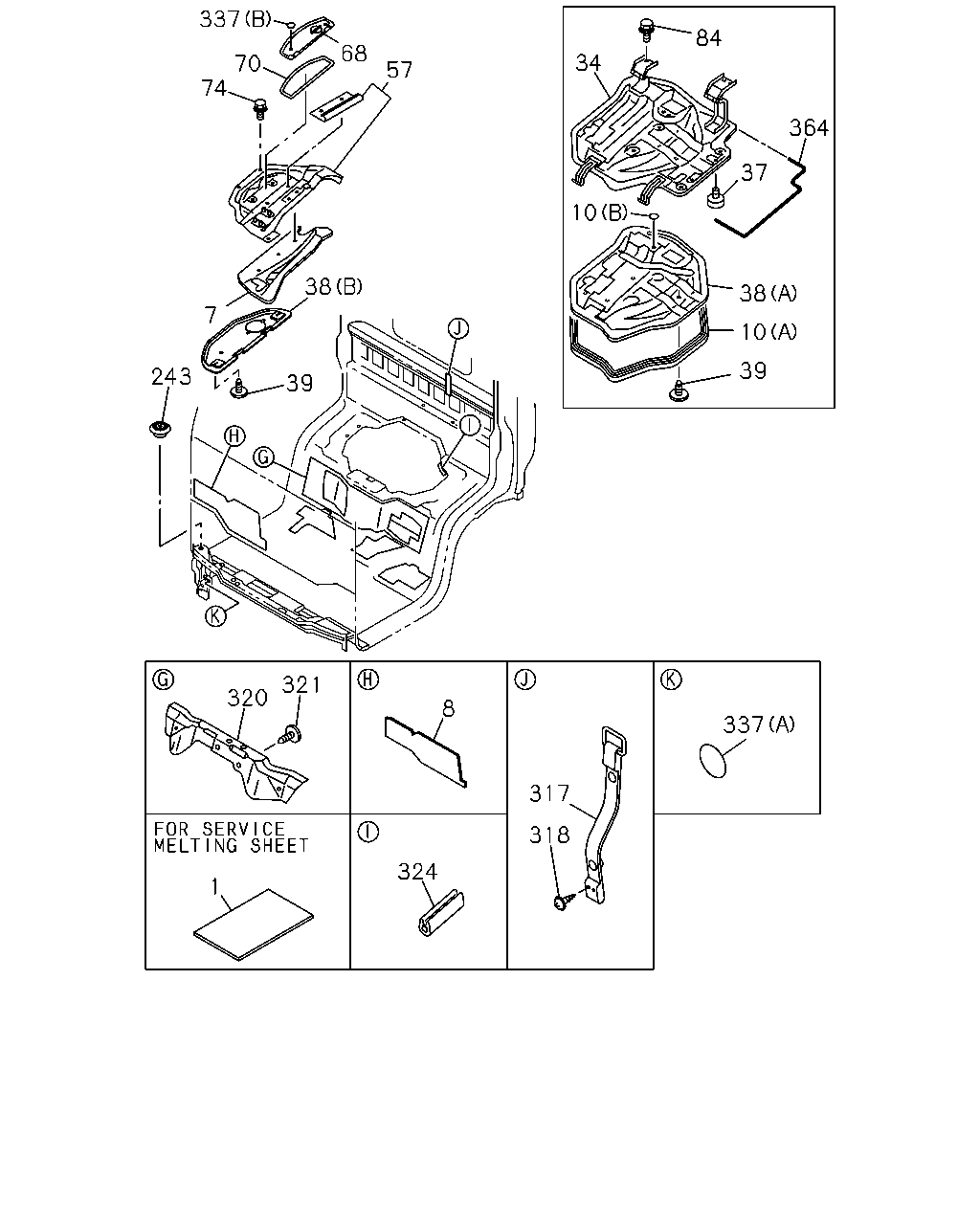

çizim 47275
337 84 68 34 70 74 57 364 37 10 38 38 7 10 39 243 39 321 320 8 337 317 318 324 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 9812- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 9812- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0106- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9812- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-3 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE(RBB) 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE(RBB) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 9812- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9812- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9812- ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0106- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9812-9904 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX) EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0106-0207 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0208- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9812-9904 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9905- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0106- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0106- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 9812- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0106- ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0106- ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0106- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812- ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9812-0002 ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9812- ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 9812- ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9812-9904 ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9905- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=140 		8-97867-865-0 01 1 9812-9812 ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=140 		8-97892-742-0 01 1 9901-9905 ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) L=140 		8-97892-742-0 01 1 9906-0105 ●
324 16.545 FINISHER; FLOOR PANEL
4JH1 ENG(RJX) L=140 		8-97892-742-0 01 1 0106-0108 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0109- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106- ● ● ●
337 16.545 SEAL; CLIP HOLE
MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0208-0210 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9812-9812 ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 9901- ● ● ●

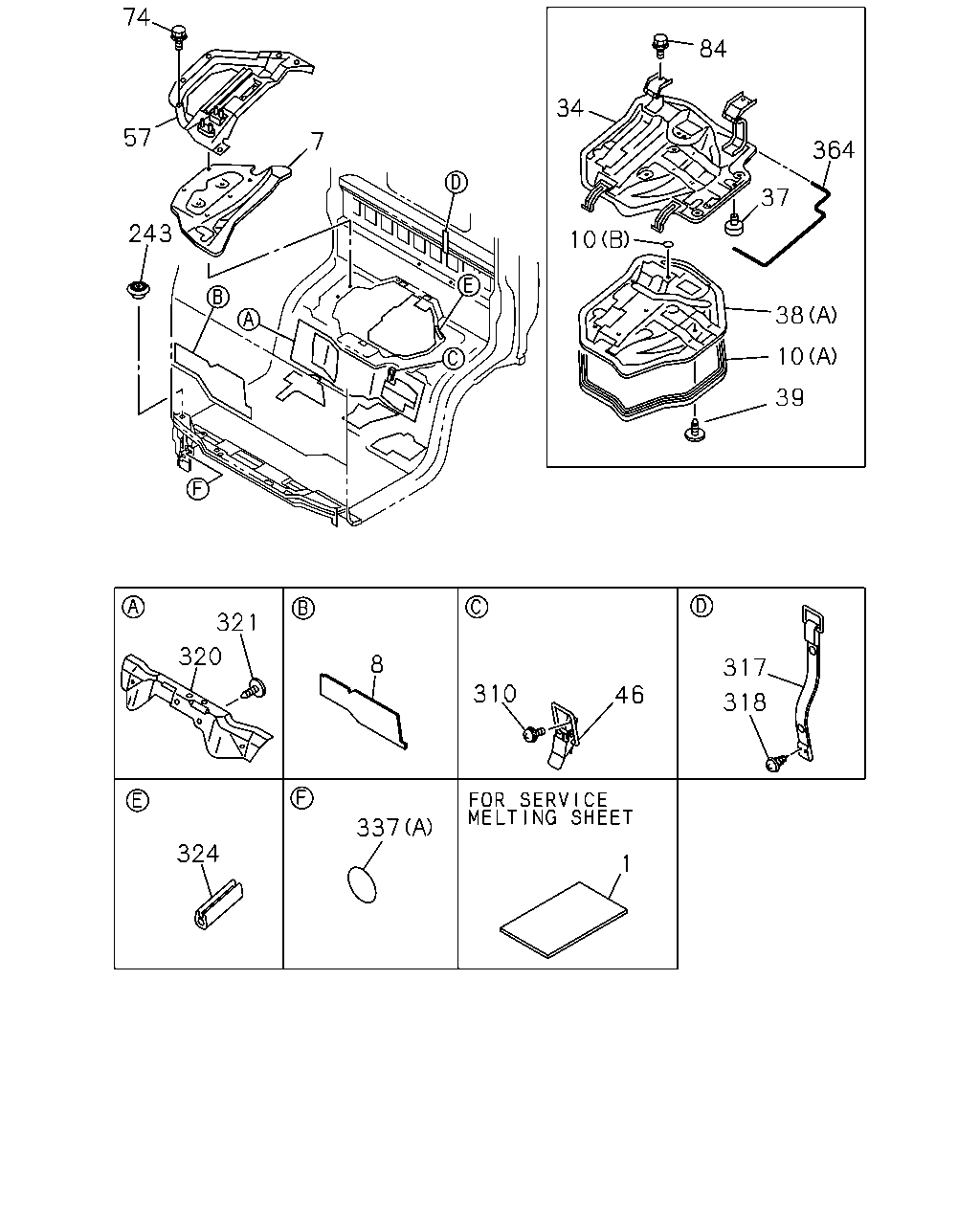

çizim 47331
74 84 34 57 7 364 37 243 10 38 10 39 321 320 8 317 310 46 318 337 324 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 9812- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-543-3 01 1 9812- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 0106- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9812- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-010-3 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE(RBB) 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE(RBB) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 9812- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9812- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9812- ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0106- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9812-9904 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX) EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0106-0207 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0208- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 07 1 9812-9904 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 9905- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0106- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0106- ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9812- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-687-1 01 1 9812- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 0106- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812- ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9812-0002 ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9812- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9812- ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 9812- ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9812-9904 ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9905- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=140 		8-97867-865-0 01 1 9812-9812 ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=140 		8-97892-742-0 01 1 9901-9905 ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) L=140 		8-97892-742-0 01 1 9906-0105 ●
324 16.545 FINISHER; FLOOR PANEL
4JH1 ENG(RJX) L=140 		8-97892-742-0 01 1 0106-0108 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0109- ● ● ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106- ● ● ●
337 16.545 SEAL; CLIP HOLE
MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0208-0210 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9812-9812 ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 9901- ● ● ●
