Isuzu WW
▶
TRUCKS
▶
NKR
▶
50813 - NKR(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

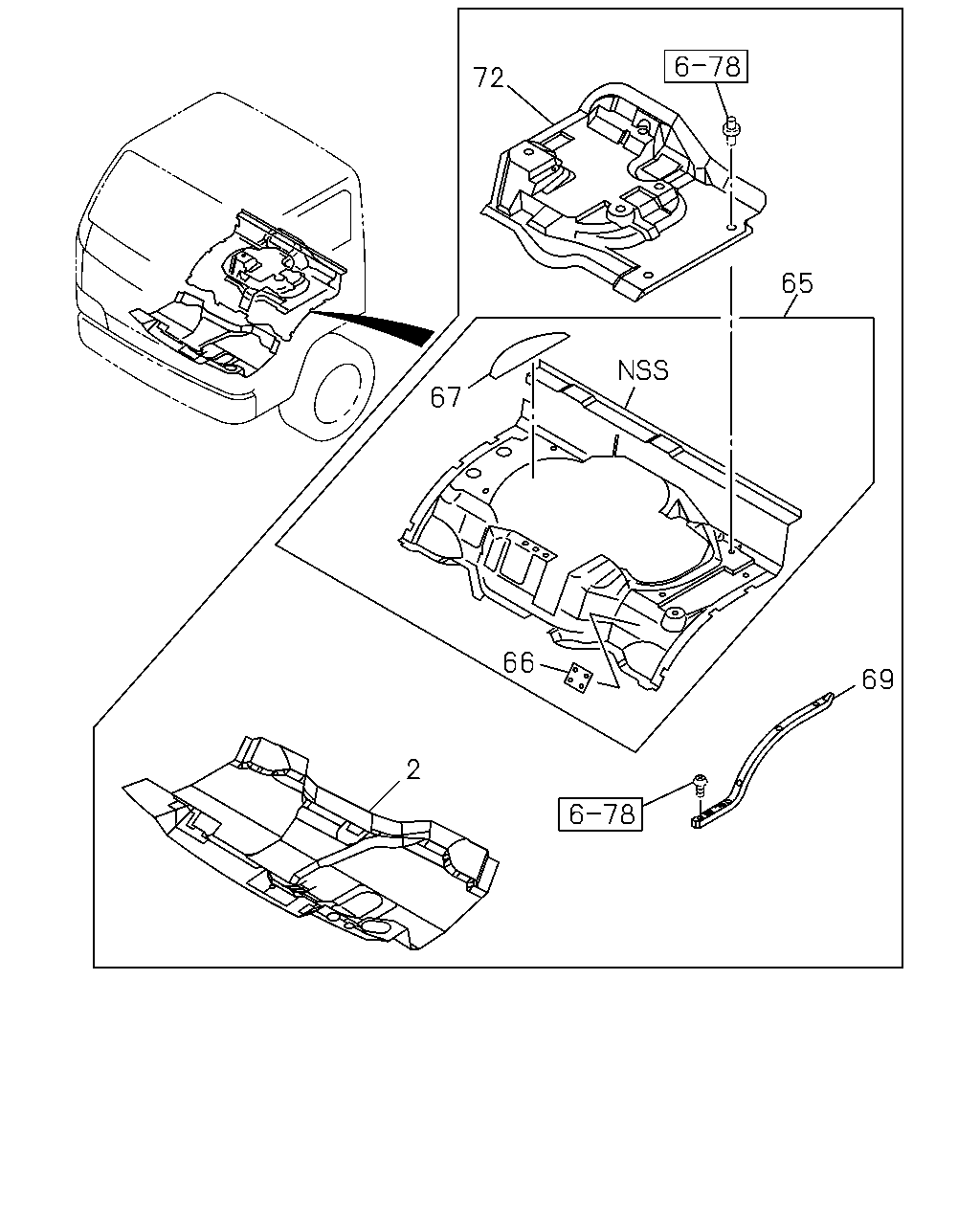

6-75 — MAT AND CARPET
(#20535) — 16 parça
Tümü
A - NKB5SC
B - NKC5SF
C - NKC5SC
72
65
67
66
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97859-691-4
01
1
9812-0203
●
●
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-644-1
01
1
0204-
●
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97867-120-4
01
1
9812-0203
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-642-1
01
1
0204-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY
8-97868-636-1
01
1
9812-0203
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY
8-97996-694-0
01
1
0204-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> DARK GRAY
8-97868-637-1
01
1
0106-0203
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> DARK GRAY
8-97996-696-0
01
1
0204-
●
●
●
66
16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY
8-97859-705-0
02
1
9812-0105
●
66
16.549 HOOK; COVER
DARK GRAY
8-97997-582-0
02
1
0106-
●
●
●
67
16.549 LID; COVER
EXC. MANUAL TILT CAB<RWZ> DARK GRAY
8-97859-704-0
01
1
0106-0203
●
●
67
16.549 LID; COVER
EXC. MANUAL TILT CAB<RWZ> DARK GRAY
8-97997-586-0
01
1
0204-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-552-0
01
1
9812-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-551-0
01
1
9812-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
DARK GRAY
8-97859-707-0
01
1
9812-0203
●
●
72
16.800 MAT; SILENCER,ENG COVER
DARK GRAY
8-97996-720-0
01
1
0204-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
