6-70 — FLOOR PANEL (#20534) — 58 parça

377 378 380 398 381 380 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-049-6	01	1	9812-0105	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11>	8-97850-049-8	01	1	0106-	●	●	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-672-1	01	1	9812-0105	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97850-672-1	01	1	0106-	●	●	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-671-0	01	1	9812-0105	●
378	16.545 GASSET; LWR FLOOR REMOTE SHIFT<M11>	8-97850-671-0	01	1	0106-	●	●	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-705-0	01	1	9812-0105	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11>	8-97850-705-0	01	1	0106-	●	●	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-090-2	01	1	9812-0105	●
380	16.545 BRACKET; HEAD LAMP FLOOR REMOTE SHIFT<M11>	8-97850-090-2	01	1	0106-	●	●	●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-221-5	01	1	9812-0105	●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT FLOOR REMOTE SHIFT<M11>	8-97850-221-5	01	1	0106-	●	●	●
398	16.545 BRACKET; PIPE SUPPORT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-318-1	01	1	9812-0105	●
398	16.545 BRACKET; PIPE SUPPORT FLOOR REMOTE SHIFT<M11>	8-97850-318-1	01	1	0106-	●	●	●

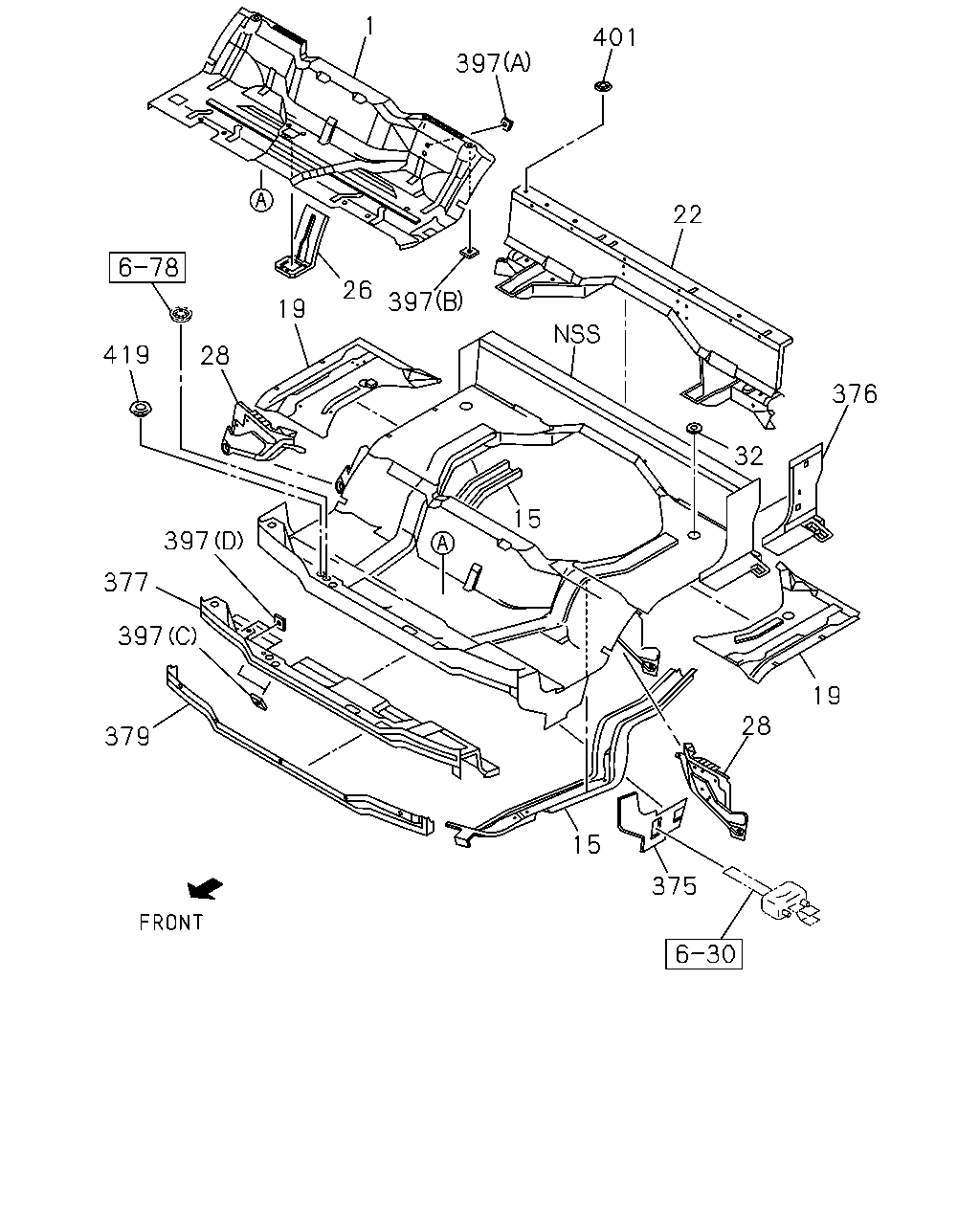

1 401 397 22 26 397 19 419 28 376 32 15 397 377 397 19 28 379 15 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-004-7	01	1	9812-0105	●
1	16.545 PANEL; FLOOR FLOOR REMOTE SHIFT<M11>	8-97850-004-7	01	1	0106-	●	●	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-060-9	01	1	9812-0105	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-97850-060-9	01	1	0106-	●	●	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-059-9	01	1	9812-0105	●
15	16.545 FRAME; UNDER FLOOR REMOTE SHIFT<M11>	8-97850-059-9	01	1	0106-	●	●	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-008-4	01	1	9812-0105	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11>	8-97850-008-4	01	1	0106-	●	●	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-002-6	01	1	9812-0105	●
19	16.545 PANEL; FLOOR SIDE,REAR FLOOR REMOTE SHIFT<M11>	8-97850-002-6	01	1	0106-	●	●	●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97866-659-1	01	1	9812-	●	●	●
22	16.545 FRAME; FLOOR REAR FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>	8-97850-519-5	01	1	0106-	●	●	●
26	16.545 PANEL; GEAR CONT REINF FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-005-6	01	1	9812-0105	●
26	16.545 PANEL; GEAR CONT REINF FLOOR REMOTE SHIFT<M11>	8-97850-005-6	01	1	0106-	●	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-017-7	01	1	9812-0105	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-017-7	01	1	0106-	●	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-338-5	01	1	9812-0105	●
28	16.545 GUSSET; FLOOR PANEL SIDE FLOOR REMOTE SHIFT<M11>	8-97850-338-5	01	1	0106-	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 08.131 OD=53.5	8-94356-253-0	02	1	9812-	●	●	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-087-3	01	1	9812-0105	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-087-3	01	1	0106-	●	●	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-086-4	01	1	9812-0105	●
375	16.545 CLOSING; PILLAR FLOOR REMOTE SHIFT<M11>	8-97850-086-4	01	1	0106-	●	●	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-024-6	01	1	9812-9812	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-923-1	01	1	9812-0105	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-923-1	01	1	0106-	●	●	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-320-6	01	1	9812-0105	●
376	16.545 CLOSING; PILLAR,LWR FLOOR REMOTE SHIFT<M11>	8-97850-320-6	01	1	0106-	●	●	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-049-6	01	1	9812-0105	●
377	16.545 RAIL ASM; MTG,FRT FLOOR REMOTE SHIFT<M11>	8-97850-049-8	01	1	0106-	●	●	●
379	16.545 PANEL FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ>	8-97850-050-2	01	1	9812-0105	●
379	16.545 PANEL FLOOR REMOTE SHIFT<M11>	8-97850-050-2	01	1	0106-	●	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (D) M10	9-09114-030-0	03	1	9812-0105	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> (D) M10	9-09114-030-0	03	1	0106-	●	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (A) M6	9-09114-046-0	04	1	9812-0105	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> (A) M6	9-09114-046-0	04	1	0106-	●	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	05	1	9812-0105	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> 16.588 (B) M8	9-09114-048-0	05	1	0106-	●	●	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (C) M8	9-09114-048-0	04	1	9812-0105	●
397	16.545 NUT; PIERCE FLOOR REMOTE SHIFT<M11> 16.588 (C) M8	9-09114-048-0	04	1	0106-	●	●	●
401	16.545 GROMMET; HOLE OD=26.1 T=7.8	8-94279-963-0	01	1	9812-9902	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	9903-	●	●	●
419	04.012 GROMMET; CONT SHAFT,FLOOR PANEL 16.802 OD=36	1-09983-092-0	01	1	9812-	●
419	04.012 GROMMET; CONT SHAFT,FLOOR PANEL EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36	1-09983-092-0	01	1	9812-		●	●
