◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01B - CLUTCH ▶
2-01B — CLUTCH (#2053) — 344 parça

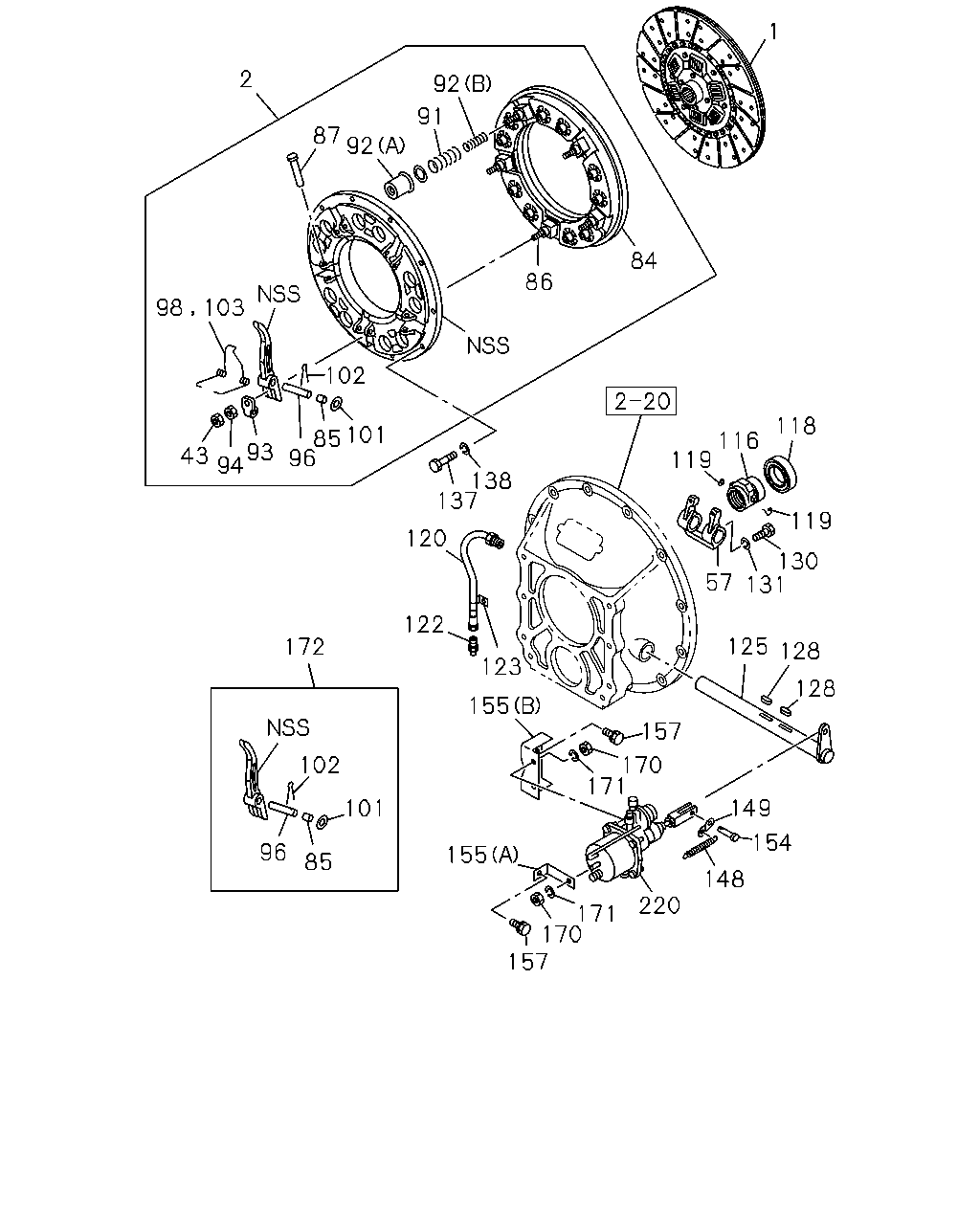

çizim 27947
1 2 92 91 87 92 84 86 98 103 102 118 85 101 96 116 119 43 93 94 138 137 119 120 130 131 57 122 125 172 128 123 128 155 157 102 170 171 149 101 154 96 155 85 148 220 171 170 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DISC; CLUTCH
6QA1 STD ENG(L24),6RB1 STD ENG(07L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-199-0 01 1 9001-9207 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-284-0 01 1 9001-9309 ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-678-0 01 1 9310-0105 ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-922-0 01 1 0106- ● ●
1 DISC; CLUTCH
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-419-0 01 1 9001-9207 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-419-0 01 1 9208-9309 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-641-0 01 1 9310-0105 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-913-0 01 1 0106- ● ● ● ●
1 DISC; CLUTCH
6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-287-0 01 1 9001-9011 ● ● ● ●
1 DISC; CLUTCH
6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-503-0 01 1 9012-9207 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-503-0 01 1 9208-9510 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-699-0 01 1 9511-0105 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-904-0 01 1 0106- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-225-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-246-1 01 1 9006-9009 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-244-1 01 1 9010-0108 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-249-1 01 1 0109- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-127-0 01 1 9001-9005 ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-242-0 01 1 9006-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-389-0 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-226-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-221-1 01 1 9006-9009 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-234-1 01 1 9010- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-128-0 01 1 9001-9005 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-243-0 01 1 9006-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-388-0 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-210-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-212-1 01 1 9006-0109 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-383-0 01 1 0110- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-213-1 01 1 9208-0109 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-384-0 01 1 0110- ● ● ● ●
43 NUT; LK
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31235-016-0 05 1 9001-9005 ● ●
57 FORK; SHIFT,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31341-029-0 01 1 9001- ● ● ● ●
57 FORK; SHIFT,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31341-031-0 01 1 9001- ● ●
84 PLATE; PRESSURE
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31221-039-0 01 1 9001-9005 ● ● ● ●
84 PLATE; PRESSURE
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31221-041-0 01 1 9006- ● ● ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31221-029-0 01 1 9001-9005 ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31221-080-0 01 1 9006- ● ●
84 PLATE; PRESSURE
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-070-0 01 1 9001-9005 ● ● ● ●
84 PLATE; PRESSURE
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-069-0 01 1 9006-9207 ● ● ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-069-0 01 1 9208- ● ● ● ●
85 BUSHING; RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31239-003-0 08 1 9001- ● ● ● ●
85 BUSHING; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31235-059-0 10 1 9001- ● ●
85 BUSHING; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-116-0 08 1 9001-9207 ● ● ● ●
85 BUSHING; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-116-0 08 1 9208- ● ● ● ●
86 STUD; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-09300-035-1 05 1 9001- ● ●
87 RIVET; STUD TO PRESSURE PLATE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-09871-021-0 05 1 9001- ● ●
91 SEAT; SPR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31219-032-0 04 1 9001- ● ● ● ●
91 SEAT; SPR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31219-033-0 04 1 9001- ● ● ● ●
91 SEAT; SPR
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31213-015-0 10 1 9001- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31214-022-0 12 1 9001-0108 ● ● ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31214-032-0 12 1 0109- ● ● ● ●
92 SPRING; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		9-31214-114-0 10 1 9001-0109 ● ●
92 SPRING; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		1-31214-067-0 10 1 0110- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-003-0 10 1 9001-0109 ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-069-0 10 1 0110- ● ●
92 SPRING; CLU
6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09580-273-0 12 1 9001- ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		9-31214-115-0 10 1 9001-0109 ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-068-0 10 1 0110- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-004-0 16 1 9001- ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-001-0 16 1 9208-0109 ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-071-0 16 1 0110- ● ● ● ●
93 PIECE; DIST
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31239-121-0 05 1 9001- ● ●
94 NUT; TENSION STUD
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M14 		9-99111-414-0 05 1 9001- ● ●
96 PIN; RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31232-010-0 08 1 9001- ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-09876-519-0 05 1 9001- ● ●
96 PIN; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 10X77 		1-31232-001-0 04 1 9001-9207 ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 10X77 		1-31232-001-0 04 1 9208- ● ● ● ●
96 PIN; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) D10X57 		9-31232-019-0 04 1 9001-9207 ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) D10X57 		9-31232-019-0 04 1 9208- ● ● ● ●
98 SPRING; RETURN
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31233-001-0 04 1 9001- ● ● ● ●
98 SPRING; RETURN
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31233-011-0 05 1 9001- ● ●
101 WASHER; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) ID=12.5 OD=26 		9-09164-612-0 10 1 9001- ● ●
102 PIN; SPLIT,RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) OD=2.7 L=22 		9-08113-022-0 08 1 9001-9207 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) OD=2.7 L=22 		9-08113-022-0 08 1 9208- ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) OD=2.7 L=22 		9-08113-022-0 08 1 9208- ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) OD=2.8 L=25 		9-08113-025-0 10 1 9001- ● ●
102 PIN; SPLIT,RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) OD=2.7 L=22 		9-08103-022-0 08 1 9001- ● ● ● ●
103 SPRING; LEVER HOLD
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31233-011-0 05 1 9001- ● ●
116 BLOCK; SHIFT,CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31321-039-0 01 1 9001- ● ● ● ●
116 BLOCK; SHIFT,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31321-047-0 01 1 9001- ● ●
116 BLOCK; SHIFT,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31321-040-0 01 1 9001- ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09820-112-0 01 1 0003-0003 ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09820-112-0 01 1 0004- ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-00095-044-1 01 1 9001-0002 ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-09820-008-0 01 1 9001- ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9001- ● ● ● ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9001- ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=500 		1-09364-651-0 01 1 9001- ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) L=315 		9-09919-042-0 01 1 9001- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001- ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-09917-576-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 9-09917-576-0 01 1 9001- ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31378-001-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 9-31378-001-0 01 1 9001- ●
125 SHAFT; CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31342-188-0 01 1 9001-9106 ● ●
125 SHAFT; CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31342-188-0 01 1 9107- ●
125 SHAFT; CLU 1-31342-188-0 01 1 9107- ● ● ●
125 SHAFT; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31342-130-0 01 1 9001- ●
125 SHAFT; CLU 1-31342-130-0 01 1 9001- ●
125 SHAFT; CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=469 		1-31342-186-0 01 1 9001-9106 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9001- ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9001- ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9001- ● ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X25 		9-02351-025-0 12 1 9001-9002 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X25 		0-23801-025-0 12 1 9003-9504 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28181-020-0 12 1 9505-9606 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28781-020-0 12 1 9607-9608 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28181-020-0 12 1 9609- ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X25 		9-02351-025-0 10 1 9001-9002 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X25 		0-23801-025-0 10 1 9003-9003 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X28 		0-23801-028-0 10 1 9004-9606 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X30 FLANGE 		0-28781-030-0 10 1 9607- ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		9-02351-228-0 08 1 9001-9005 ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		0-23801-228-0 08 1 9006-9012 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		0-23801-228-0 08 1 9101-9606 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X30 		0-28781-230-0 08 1 9607- ● ● ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		9-02351-238-0 04 1 9001-9005 ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9006-9012 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9101-9606 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X35 FLANGE 		0-28781-235-0 04 1 9607-9608 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9609- ● ● ● ●
138 WASHER; LK,CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2 		9-09150-510-0 12 1 9001-9504 ● ● ● ●
138 WASHER; LK,CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) ID=10.2 		9-09150-510-0 10 1 9001-9012 ● ●
138 WASHER; LK,CLU COVER
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2 		9-09150-510-0 10 1 9101-9504 ●
138 WASHER; LK,CLU COVER
ID=10.2 		9-09150-510-0 10 1 9101-9504 ●
138 WASHER; LK,CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.2 		9-09150-612-0 12 1 9001-9012 ● ●
138 WASHER; LK,CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.2 		9-09150-612-0 12 1 9101-9606 ● ● ● ●
148 SPRING; CLU RETURN
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-09942-530-1 01 1 9001-9106 ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9001-9106 ● ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9107- ● ● ● ● ●
148 SPRING; CLU RETURN
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09583-212-0 01 1 9001-9106 ●
149 EYE; SPRING,RETURN SPRING
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31426-019-1 01 1 9001-9106 ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9001-9106 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9107- ● ● ● ●
149 EYE; SPRING,RETURN SPRING
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31426-010-0 01 1 9001-9106 ●
154 PIN; JAW JOINT 1-31424-001-1 01 1 9001-9312 ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9401- ● ● ● ● ●
155 BRACKET; MINIPACK
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31429-021-0 01 1 9001-9106 ●
155 BRACKET; MINIPACK
(A) 		1-31429-021-0 01 1 9001-9106 ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-021-0 01 1 9107- ● ● ● ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-018-0 01 1 9001-9106 ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-018-0 01 1 9107- ● ● ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		1-31429-075-0 01 1 9001- ● ●
155 BRACKET; MINIPACK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-113-2 01 1 9001-9106 ●
155 BRACKET; MINIPACK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31429-128-1 01 1 9001-9106 ●
157 BOLT; BRKT
M10X20 W/LK WASHER 		9-01931-020-0 03 1 9001-9002 ● ● ● ● ●
157 BOLT; BRKT
M10X20 W/LK WASHER 		0-50051-020-0 03 1 9003-9205 ● ● ● ● ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 9206- ● ● ● ● ●
170 NUT; BOOSTER FIX
M10 		9-09110-410-0 03 1 9001-9205 ● ● ● ● ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9206- ● ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=10.2 		9-09150-510-0 03 1 9001-9205 ● ● ● ● ●
172 LEVER KIT; RELEASE,CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-526-1 01 1 9001- ● ● ● ●
172 LEVER KIT; RELEASE,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-87410-039-0 01 1 9001- ● ●
172 LEVER KIT; RELEASE,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-87830-502-1 01 1 9001- ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31800-141-0 01 1 9001-9106 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-141-0 01 1 9001-9106 ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-141-0 01 1 9107- ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31800-344-0 01 1 9001-9106 ●

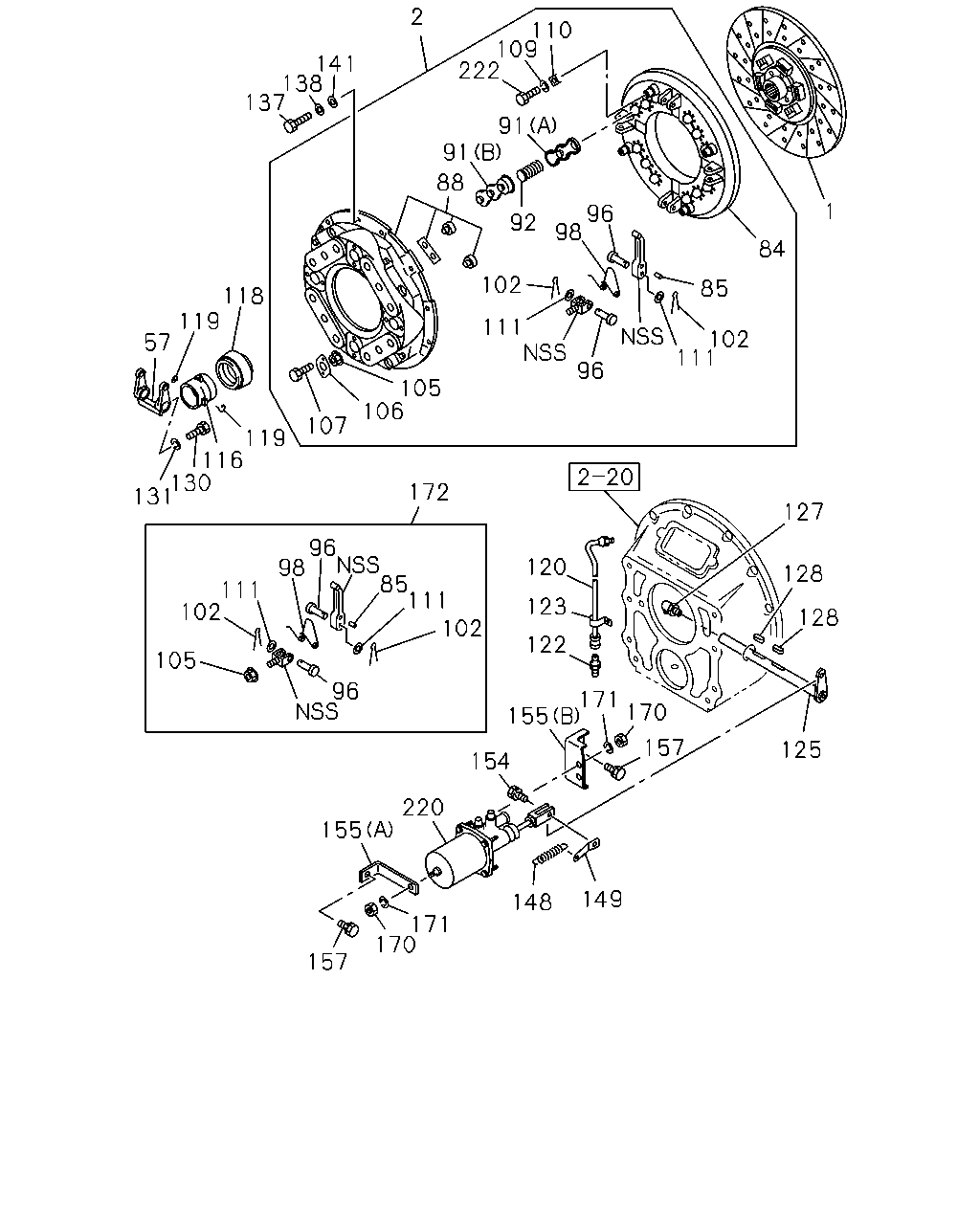

çizim 29021
2 110 109 222 141 138 137 91 91 88 1 96 98 92 84 102 85 118 119 111 102 111 57 96 105 106 107 119 116 130 131 172 127 96 98 85 111 102 120 128 111 102 123 128 122 105 96 171 155 170 157 125 154 220 155 149 148 171 170 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DISC; CLUTCH
6QA1 STD ENG(L24),6RB1 STD ENG(07L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-199-0 01 1 9001-9207 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-284-0 01 1 9001-9309 ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-678-0 01 1 9310-0105 ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 16" 		1-31240-922-0 01 1 0106- ● ●
1 DISC; CLUTCH
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-419-0 01 1 9001-9207 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-419-0 01 1 9208-9309 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-641-0 01 1 9310-0105 ● ● ● ●
1 DISC; CLUTCH
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 16" 		1-31240-913-0 01 1 0106- ● ● ● ●
1 DISC; CLUTCH
6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-287-0 01 1 9001-9011 ● ● ● ●
1 DISC; CLUTCH
6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-503-0 01 1 9012-9207 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-503-0 01 1 9208-9510 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-699-0 01 1 9511-0105 ● ● ● ●
1 DISC; CLUTCH
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 17" 		1-31240-904-0 01 1 0106- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-225-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-246-1 01 1 9006-9009 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-244-1 01 1 9010-0108 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-249-1 01 1 0109- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-127-0 01 1 9001-9005 ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-242-0 01 1 9006-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-389-0 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-226-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-221-1 01 1 9006-9009 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31220-234-1 01 1 9010- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-128-0 01 1 9001-9005 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-243-0 01 1 9006-0109 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31220-388-0 01 1 0110- ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-210-0 01 1 9001-9005 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-212-1 01 1 9006-0109 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-383-0 01 1 0110- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-213-1 01 1 9208-0109 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31220-384-0 01 1 0110- ● ● ● ●
57 FORK; SHIFT,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31341-029-0 01 1 9001- ● ● ● ●
57 FORK; SHIFT,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31341-031-0 01 1 9001- ● ●
84 PLATE; PRESSURE
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31221-039-0 01 1 9001-9005 ● ● ● ●
84 PLATE; PRESSURE
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31221-041-0 01 1 9006- ● ● ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31221-029-0 01 1 9001-9005 ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31221-080-0 01 1 9006- ● ●
84 PLATE; PRESSURE
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-070-0 01 1 9001-9005 ● ● ● ●
84 PLATE; PRESSURE
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-069-0 01 1 9006-9207 ● ● ● ●
84 PLATE; PRESSURE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31221-069-0 01 1 9208- ● ● ● ●
85 BUSHING; RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31239-003-0 08 1 9001- ● ● ● ●
85 BUSHING; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31235-059-0 10 1 9001- ● ●
85 BUSHING; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-116-0 08 1 9001-9207 ● ● ● ●
85 BUSHING; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-116-0 08 1 9208- ● ● ● ●
88 COVER SUB ASM; CLU
6RB1 STD ENG(07L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31210-008-0 01 1 9001-9007 ● ● ● ●
88 COVER SUB ASM; CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31210-008-0 01 1 9008- ● ● ● ●
88 COVER SUB ASM; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31210-009-0 01 1 9001-9207 ● ● ● ●
88 COVER SUB ASM; CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31210-009-0 01 1 9208- ● ● ● ●
91 SEAT; SPR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31219-032-0 04 1 9001- ● ● ● ●
91 SEAT; SPR
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31219-033-0 04 1 9001- ● ● ● ●
91 SEAT; SPR
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31213-015-0 10 1 9001- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31214-022-0 12 1 9001-0108 ● ● ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31214-032-0 12 1 0109- ● ● ● ●
92 SPRING; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		9-31214-114-0 10 1 9001-0109 ● ●
92 SPRING; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		1-31214-067-0 10 1 0110- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-003-0 10 1 9001-0109 ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-069-0 10 1 0110- ● ●
92 SPRING; CLU
6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09580-273-0 12 1 9001- ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		9-31214-115-0 10 1 9001-0109 ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (A) 		1-31214-068-0 10 1 0110- ● ●
92 SPRING; CLU
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-004-0 16 1 9001- ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-001-0 16 1 9208-0109 ● ● ● ●
92 SPRING; CLU
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31214-071-0 16 1 0110- ● ● ● ●
96 PIN; RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31232-010-0 08 1 9001- ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-09876-519-0 05 1 9001- ● ●
96 PIN; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 10X77 		1-31232-001-0 04 1 9001-9207 ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 10X77 		1-31232-001-0 04 1 9208- ● ● ● ●
96 PIN; RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) D10X57 		9-31232-019-0 04 1 9001-9207 ● ● ● ●
96 PIN; RELEASE LEVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) D10X57 		9-31232-019-0 04 1 9208- ● ● ● ●
98 SPRING; RETURN
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31233-001-0 04 1 9001- ● ● ● ●
98 SPRING; RETURN
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31233-011-0 05 1 9001- ● ●
102 PIN; SPLIT,RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) OD=2.7 L=22 		9-08113-022-0 08 1 9001-9207 ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) OD=2.7 L=22 		9-08113-022-0 08 1 9208- ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
6RA1 STD ENG(14L) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) OD=2.7 L=22 		9-08113-022-0 08 1 9208- ● ● ● ●
102 PIN; SPLIT,RELEASE LEVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) OD=2.8 L=25 		9-08113-025-0 10 1 9001- ● ●
102 PIN; SPLIT,RELEASE LEVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) OD=2.7 L=22 		9-08103-022-0 08 1 9001- ● ● ● ●
105 NUT; SUPPORT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31235-012-0 04 1 0110- ● ● ● ●
105 NUT; SUPPORT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-31235-061-0 04 1 9001-0109 ● ● ● ●
105 NUT; SUPPORT
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-31235-061-0 04 1 0110- ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31239-002-0 04 1 9001-9007 ● ● ● ●
106 PLATE; LK,LEVER SUPPORT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31239-019-0 04 1 9008- ● ● ● ●
107 BOLT; LK PLATE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31239-010-0 08 1 9001-9007 ● ● ● ●
107 BOLT; LK PLATE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9008- ● ● ● ●
109 WASHER; LK,STRAP
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=12.2 		9-09150-512-0 04 1 9001- ● ● ● ●
109 WASHER; LK,STRAP
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=10.2 		9-09150-610-0 04 1 9001-9207 ● ● ● ●
109 WASHER; LK,STRAP
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=10.2 		9-09150-610-0 04 1 9208- ● ● ● ●
110 WASHER; SPECIAL,STRAP
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=12 		1-31229-006-0 04 1 9001- ● ● ● ●
110 WASHER; SPECIAL,STRAP
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-09854-125-0 04 1 9001-9207 ● ● ● ●
110 WASHER; SPECIAL,STRAP
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-09854-125-0 04 1 9208- ● ● ● ●
111 WASHER; PL,STRAP
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=14 		9-09651-098-0 08 1 9001- ● ● ● ●
111 WASHER; PL,STRAP
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-039-0 08 1 9001-9207 ● ● ● ●
111 WASHER; PL,STRAP
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		9-31239-039-0 08 1 9208-0109 ● ● ● ●
111 WASHER; PL,STRAP
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31239-058-0 08 1 0110- ● ● ● ●
116 BLOCK; SHIFT,CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31321-039-0 01 1 9001- ● ● ● ●
116 BLOCK; SHIFT,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31321-047-0 01 1 9001- ● ●
116 BLOCK; SHIFT,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-31321-040-0 01 1 9001- ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09820-112-0 01 1 0003-0003 ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09820-112-0 01 1 0004- ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-00095-044-1 01 1 9001-0002 ● ● ● ●
118 BEARING; CLU RELEASE
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-09820-008-0 01 1 9001- ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9001- ● ● ● ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9001- ● ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=500 		1-09364-651-0 01 1 9001- ● ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) L=315 		9-09919-042-0 01 1 9001- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9001- ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ● ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-09917-576-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 9-09917-576-0 01 1 9001- ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		9-31378-001-0 01 1 9001- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK 9-31378-001-0 01 1 9001- ●
125 SHAFT; CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31342-188-0 01 1 9001-9106 ● ●
125 SHAFT; CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31342-188-0 01 1 9107- ●
125 SHAFT; CLU 1-31342-188-0 01 1 9107- ● ● ●
125 SHAFT; CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-31342-130-0 01 1 9001- ●
125 SHAFT; CLU 1-31342-130-0 01 1 9001- ●
125 SHAFT; CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=469 		1-31342-186-0 01 1 9001-9106 ●
127 NIPPLE; GREASE,CLU SHAFT
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) PT1/8 ELBOW 		9-09031-210-0 02 1 9001- ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9001- ● ● ● ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 9001- ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9001- ● ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X25 		9-02351-025-0 12 1 9001-9002 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X25 		0-23801-025-0 12 1 9003-9504 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28181-020-0 12 1 9505-9606 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28781-020-0 12 1 9607-9608 ● ● ● ●
137 BOLT; CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M10X20 FLANGE 		0-28181-020-0 12 1 9609- ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X25 		9-02351-025-0 10 1 9001-9002 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X25 		0-23801-025-0 10 1 9003-9003 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X28 		0-23801-028-0 10 1 9004-9606 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) M10X30 FLANGE 		0-28781-030-0 10 1 9607- ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		9-02351-228-0 08 1 9001-9005 ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		0-23801-228-0 08 1 9006-9012 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X28 		0-23801-228-0 08 1 9101-9606 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X30 		0-28781-230-0 08 1 9607- ● ● ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		9-02351-238-0 04 1 9001-9005 ● ●
137 BOLT; CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9006-9012 ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9101-9606 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X35 FLANGE 		0-28781-235-0 04 1 9607-9608 ● ● ● ●
137 BOLT; CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M12X38 		0-23801-238-0 04 1 9609- ● ● ● ●
138 WASHER; LK,CLU COVER
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2 		9-09150-510-0 12 1 9001-9504 ● ● ● ●
138 WASHER; LK,CLU COVER
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) ID=10.2 		9-09150-510-0 10 1 9001-9012 ● ●
138 WASHER; LK,CLU COVER
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) ID=10.2 		9-09150-510-0 10 1 9101-9504 ●
138 WASHER; LK,CLU COVER
ID=10.2 		9-09150-510-0 10 1 9101-9504 ●
138 WASHER; LK,CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.2 		9-09150-612-0 12 1 9001-9012 ● ●
138 WASHER; LK,CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.2 		9-09150-612-0 12 1 9101-9606 ● ● ● ●
141 WASHER; PL,CLU COVER
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.5 OD=26 		9-09164-612-0 04 1 9001-9012 ● ●
141 WASHER; PL,CLU COVER
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) ID=12.5 OD=26 		9-09164-612-0 04 1 9101-9606 ● ● ● ●
148 SPRING; CLU RETURN
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		9-09942-530-1 01 1 9001-9106 ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9001-9106 ● ●
148 SPRING; CLU RETURN 9-09942-530-1 01 1 9107- ● ● ● ● ●
148 SPRING; CLU RETURN
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-09583-212-0 01 1 9001-9106 ●
149 EYE; SPRING,RETURN SPRING
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31426-019-1 01 1 9001-9106 ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9001-9106 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9107- ● ● ● ●
149 EYE; SPRING,RETURN SPRING
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31426-010-0 01 1 9001-9106 ●
154 PIN; JAW JOINT 1-31424-001-1 01 1 9001-9312 ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9401- ● ● ● ● ●
155 BRACKET; MINIPACK
EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31429-021-0 01 1 9001-9106 ●
155 BRACKET; MINIPACK
(A) 		1-31429-021-0 01 1 9001-9106 ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-021-0 01 1 9107- ● ● ● ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-018-0 01 1 9001-9106 ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-018-0 01 1 9107- ● ● ● ●
155 BRACKET; MINIPACK
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) (B) 		1-31429-075-0 01 1 9001- ● ●
155 BRACKET; MINIPACK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (B) 		1-31429-113-2 01 1 9001-9106 ●
155 BRACKET; MINIPACK
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) (A) 		1-31429-128-1 01 1 9001-9106 ●
157 BOLT; BRKT
M10X20 W/LK WASHER 		9-01931-020-0 03 1 9001-9002 ● ● ● ● ●
157 BOLT; BRKT
M10X20 W/LK WASHER 		0-50051-020-0 03 1 9003-9205 ● ● ● ● ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 9206- ● ● ● ● ●
170 NUT; BOOSTER FIX
M10 		9-09110-410-0 03 1 9001-9205 ● ● ● ● ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9206- ● ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=10.2 		9-09150-510-0 03 1 9001-9205 ● ● ● ● ●
172 LEVER KIT; RELEASE,CLU
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-87830-526-1 01 1 9001- ● ● ● ●
172 LEVER KIT; RELEASE,CLU
16"CLUTCH SINGLE PLATE BOSS DRIVE(RF1) 		1-87410-039-0 01 1 9001- ● ●
172 LEVER KIT; RELEASE,CLU
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) 		1-87830-502-1 01 1 9001- ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. EXC. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31800-141-0 01 1 9001-9106 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-141-0 01 1 9001-9106 ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-141-0 01 1 9107- ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-31800-344-0 01 1 9001-9106 ●
222 BOLT; STRAP
17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) M12X30 		1-09040-016-0 04 1 9001- ● ● ● ●
222 BOLT; STRAP
6QA1 STD ENG(L24) 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M10X30 		9-09809-126-0 04 1 9001-9207 ● ● ● ●
222 BOLT; STRAP
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) M10X30 		9-09809-126-0 04 1 9208- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
