Isuzu WW
▶
TRUCKS
▶
NKR
▶
50813 - NKR(EUROPE)-RHD
▶
5 - Frame, Cab Mounting
▶

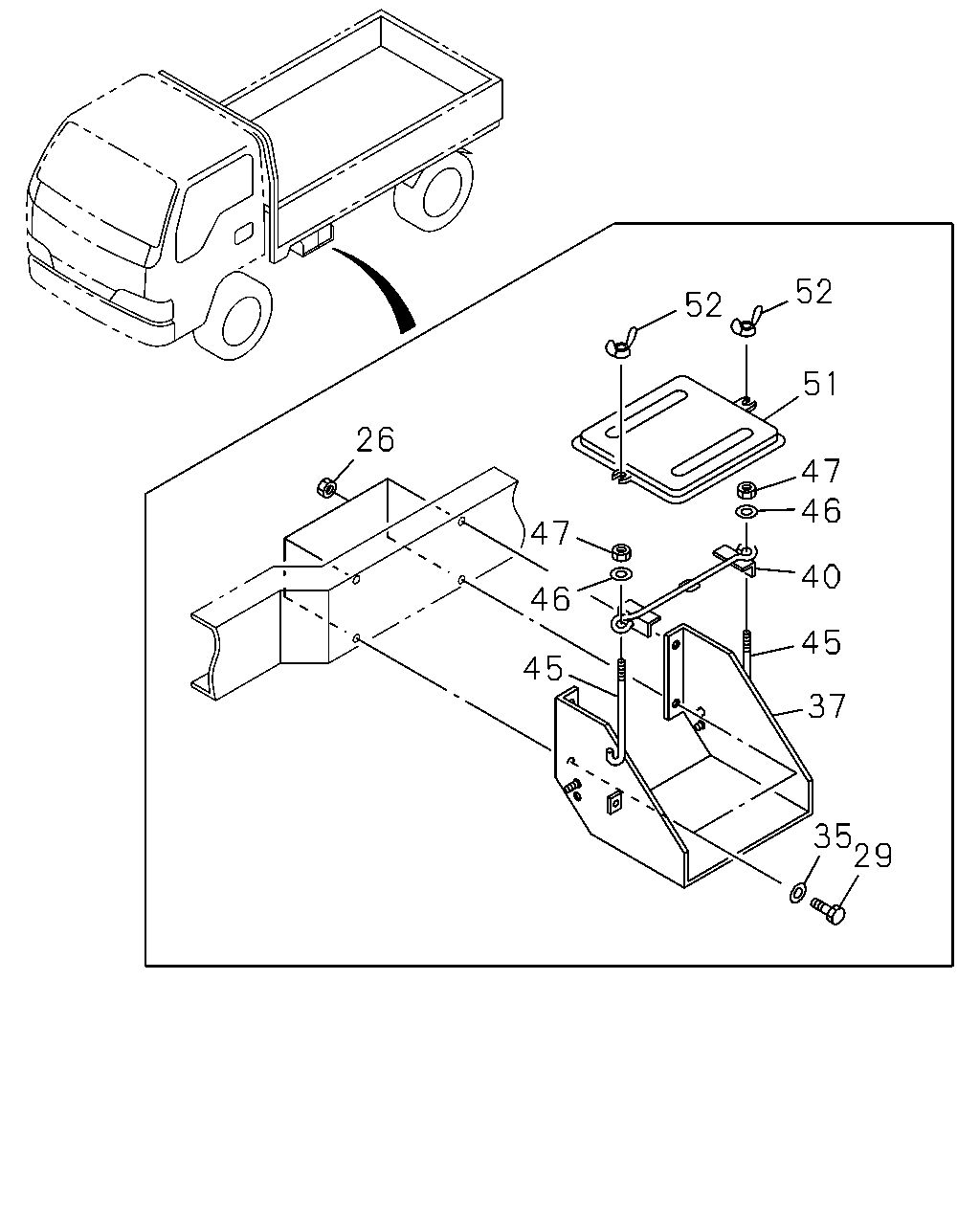

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#20517) — 19 parça
Tümü
A - NKB5SC
B - NKC5SF
C - NKC5SC
52
52
51
26
47
46
47
40
46
45
45
37
35
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
26
02.334 NUT; BRKT
4JG2 ENG(RJC) 08.917 M10 FLANGE
0-91150-210-0
02
1
9812-9905
●
26
02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE
0-91150-210-0
02
1
9906-9911
●
26
02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE
0-91150-210-0
02
1
9912-0105
●
26
02.334 NUT; BRKT
4JH1 ENG(RJX) 08.917 M10 FLANGE
0-91150-210-0
02
1
0106-
●
26
02.334 NUT; BRKT
4JH1 ENG(RJX) 08.917 M10 FLANGE
0-91150-210-0
04
1
0106-
●
26
02.334 NUT; BRKT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE
0-91150-210-0
04
1
0106-
●
26
02.334 NUT; BRKT
EXC. REAR WIDE TREAD(V4T) 08.917 M10 FLANGE
0-91150-210-0
03
1
0206-
●
29
02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER
0-50041-030-0
04
1
9812-
●
●
●
35
02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22
9-09160-610-0
04
1
9812-
●
●
●
37
02.333 BRACKET; BATTERY
5-53613-009-5
01
1
9812-0203
●
●
37
02.333 BRACKET; BATTERY
8-97327-537-0
01
1
0204-0207
●
●
●
37
02.333 BRACKET; BATTERY
8-97356-174-0
01
1
0208-
●
●
●
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
9812-
●
●
●
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
9812-
●
●
●
46
02.334 WASHER; PL,BATTERY TO CARRIER
07.633 ID=8.4 OD=22
9-09164-708-0
02
1
9812-
●
●
●
47
02.334 NUT; BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
9812-
●
●
●
51
02.335 COVER; BATTERY
8-97122-813-0
01
1
9812-0105
●
51
02.335 COVER; BATTERY
8-97218-309-0
01
1
0106-
●
●
●
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
9812-
●
●
●
