5-10 — CAB MOUNTING; FRAME SIDE (#20515) — 82 parça

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	9812-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9812-	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	9812-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0106-	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0106-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0106-		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0106-	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0106-	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0106-		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	9812-		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9812-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97076-469-2	01	1	0106-		●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	9812-0105	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	9812-0105	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0106-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0106-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0106-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0106-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-0	02	1	0106-		●	●

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
140	09.003 NUT; BRKT 03.417 M8 FLANGE	8-94279-517-0	04	1	9812-	●	●	●
141	09.003 BOLT; BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9812-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-423-4	01	1	9812-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-422-4	01	1	9812-	●	●	●

105 104 7 1 20 7 1 20 7 18 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	9812-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9812-	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	9812-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0106-	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0106-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0106-		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0106-	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0106-		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	9812-		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9812-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97076-469-2	01	1	0106-		●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	9812-0105	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	9812-0105	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0106-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0106-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0106-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0106-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-0	02	1	0106-		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0106-		●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	9812-	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	9812-	●	●	●

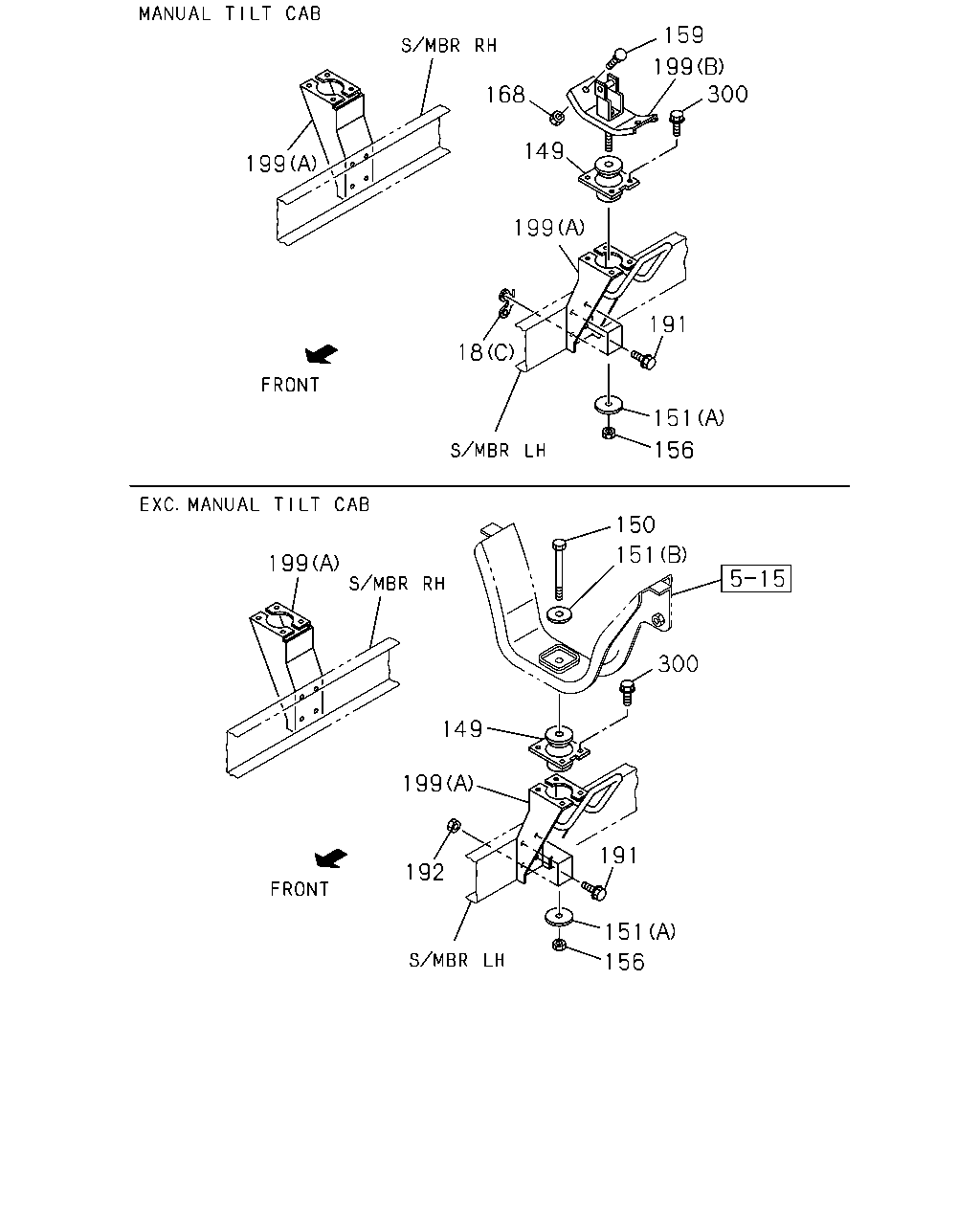

159 199 300 168 149 199 199 191 18 151 156 150 151 199 300 149 199 191 192 151 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	9812-		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9812-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9812-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0106-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97076-469-2	01	1	0106-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97216-458-0	02	1	9812-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-97086-442-3	02	1	0106-	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-97095-149-1	02	1	0106-		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ>	0-28881-690-0	02	1	0106-	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.4 OD=62	8-97034-382-0	02	1	9812-	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0106-	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 M16	9-99111-416-0	02	1	9812-	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	9812-	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	9812-	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	9812-	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0106-		●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0106-		●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-528-1	01	1	9812-	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-527-1	01	1	9812-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97035-310-4	02	1	9812-	●	●	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97187-526-0	01	1	0106-		●	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97187-525-0	01	1	0106-		●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9812-	●	●	●
