Isuzu WW
▶
TRUCKS
▶
NKR
▶
50813 - NKR(EUROPE)-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

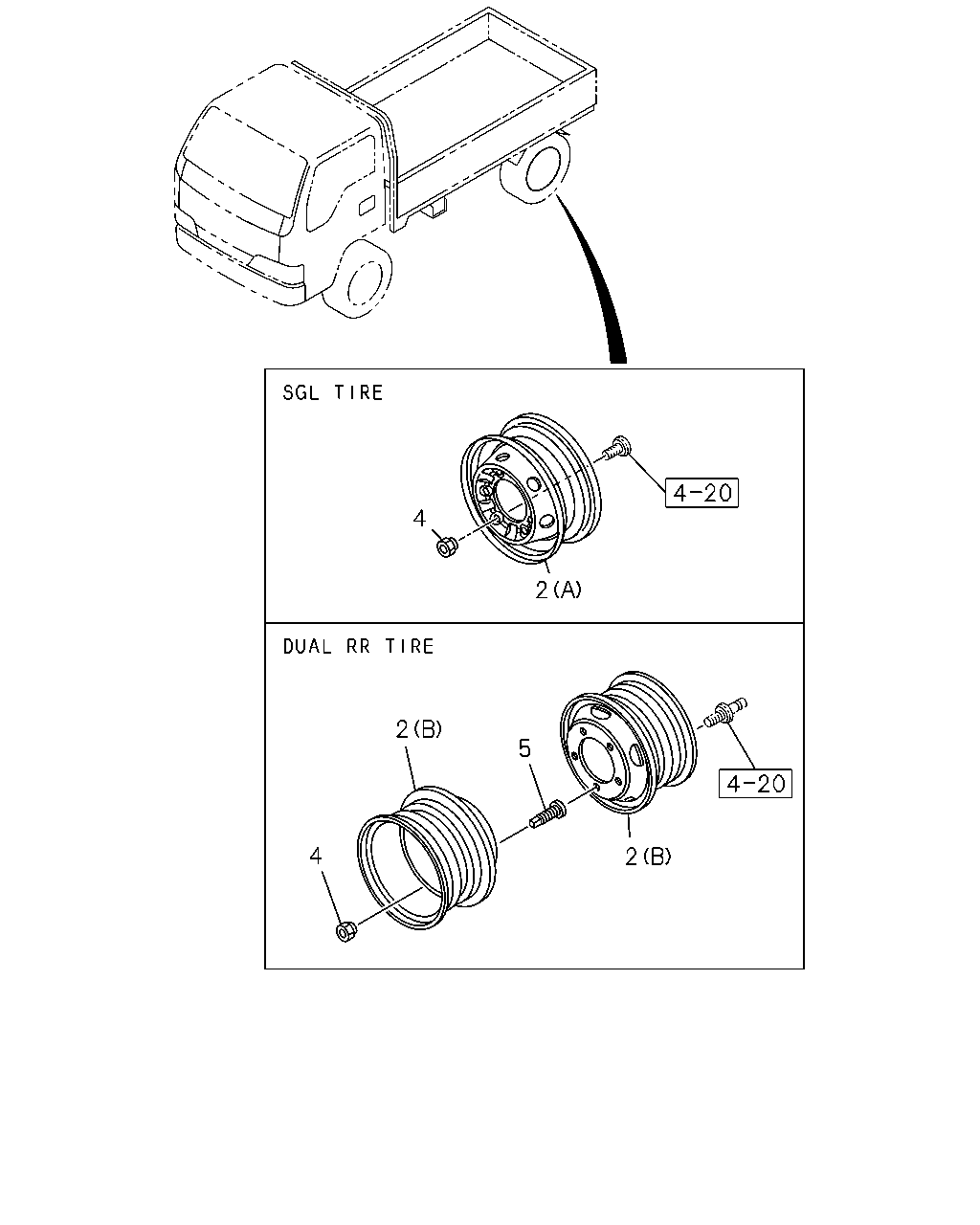

4-80 — ROAD WHEEL
(#20513) — 37 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[480A] REAR (14 parça)
[480A] SPARE (8 parça)
[480A] FRONT (15 parça)
▶
4
2
2
5
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
06
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
06
1
0106-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD
5-42334-002-0
06
1
9812-
●
4
05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD
5-42333-008-0
06
1
9812-
●
4
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
8-94365-146-0
05
1
0106-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
8-94365-145-0
05
1
0106-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-94365-144-1
05
1
0106-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-94365-143-1
05
1
0106-
●
●
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
06
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
06
1
0106-
●
●
3
2
2
28
33
27
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97162-604-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
01
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) 5.5JX16 OFFSET=85 6-HOLE
8-97210-494-0
04
1
9812-
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR TIRE 195-75R16C DISC 16X5.5J-116. 5(ARN),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (B) 16X5.5J OFFSET=116.5 WHITE 5-HOLE
8-97213-256-0
06
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
01
1
0106-
●
●
2
05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) 16X5.5J OFFSET=116.5 BLACK 5-HOLE
8-97213-255-1
06
1
0106-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD
5-42334-002-0
06
1
9812-
●
3
05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD
5-42333-008-0
06
1
9812-
●
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-94365-148-0
05
1
0106-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-94365-147-0
05
1
0106-
●
●
27
05.871 BOLT; COVER
03.611 M10X20 FLANGE
0-28681-020-0
06
1
0106-
●
●
28
05.864 BRACKET; COVER
8-97169-249-0
02
1
0106-
●
●
33
05.858 COVER; WHEEL
8-97167-658-0
02
1
0106-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
