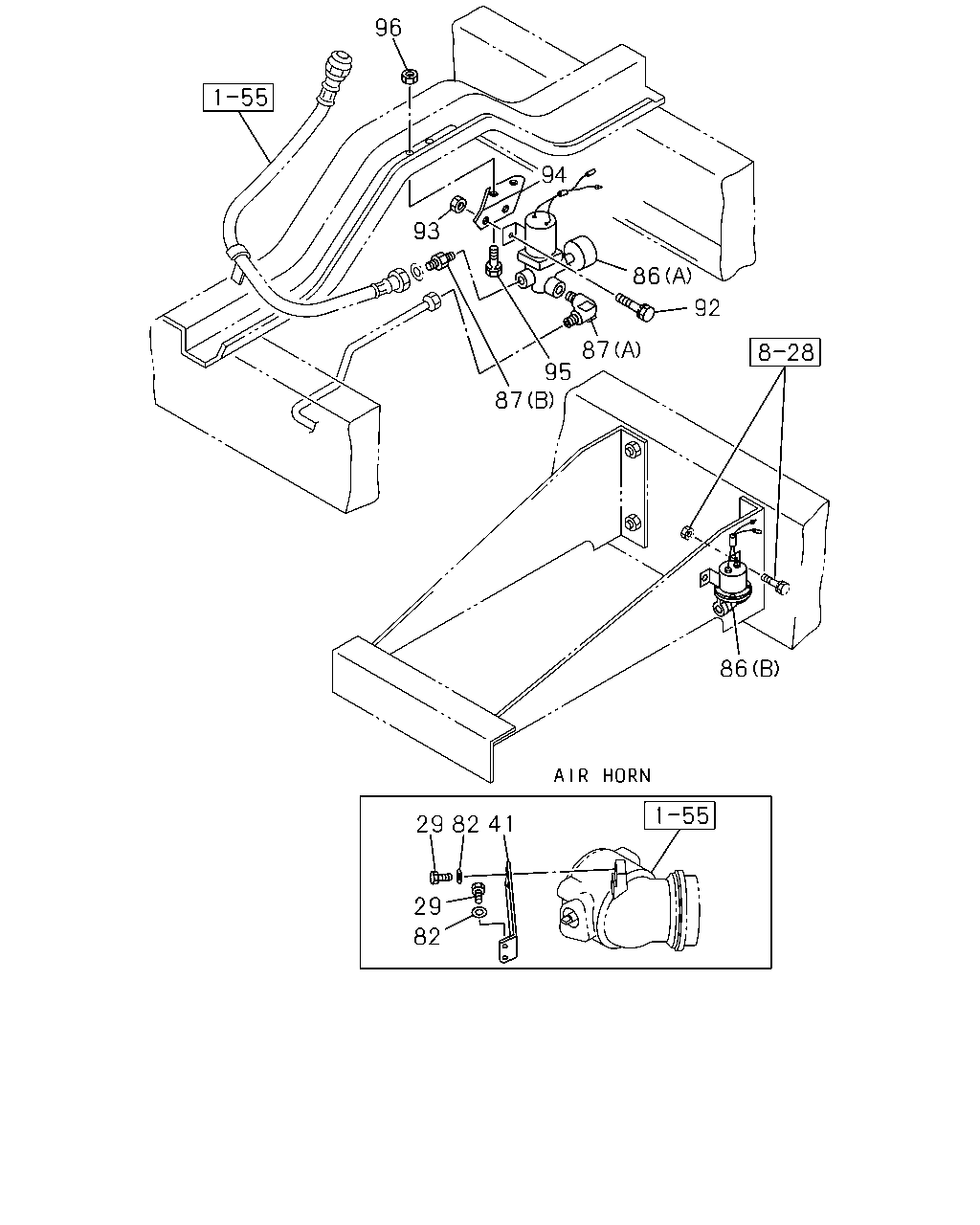

1-56 — EXHAUST BRAKE SYSTEM
(#2051) — 21 parça
Tümü
A - 6RA1 TC ENG
B - 6RB1 STD ENG
C - 6RA1 STD ENG
D - 6QA1 STD ENG
96
94
93
86
92
87
95
87
86
29
29
82
82
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
29
BOLT; CONT CYL
M10X20
1-09020-073-2
04
1
9101-
●
41
BRACKET
1-14149-114-0
01
1
9101-
●
82
WASHER; DISH
1-09500-007-0
04
1
9101-
●
86
VALVE; MAG,EXH BRK
(A)
1-82563-296-0
01
1
9001-
●
●
●
●
86
VALVE; MAG,EXH BRK
AIR HORN(WB8) (B)
1-82563-020-0
01
1
9001-9012
●
●
●
●
86
VALVE; MAG,EXH BRK
AIR HORN(WB8) (B)
1-82563-165-0
01
1
9101-9106
●
●
●
●
86
VALVE; MAG,EXH BRK
AIR HORN(WB8) (B)
1-82563-456-1
01
1
9107-
●
●
●
●
87
CONNECTOR
(A)
1-09650-266-1
01
1
9001-9302
●
●
●
●
87
CONNECTOR
(A) M14 & PT1/4 ELBOW
1-09650-432-0
01
1
9303-
●
●
●
●
87
CONNECTOR
(B) M20 & PT1/4
9-09902-386-0
01
1
9001-
●
●
●
●
92
BOLT; MAG VLV
M8X20 W/LK WASHER
9-01900-820-0
02
1
9001-9204
●
●
●
●
92
BOLT; MAG VLV
M8X20 W/LK WASHER
0-50040-820-0
02
1
9205-9606
●
●
●
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
9607-
●
●
●
●
93
NUT; MAG VLV
M8
9-09110-408-0
02
1
9001-9606
●
●
●
●
93
NUT; MAG VLV
M8 FLANGE
0-91150-108-0
02
1
9607-
●
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-109-0
01
1
9001-
●
●
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 W/LK WASHER
9-01900-820-0
02
1
9001-9204
●
●
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 W/LK WASHER
0-50040-820-0
02
1
9205-9606
●
●
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28680-820-0
02
1
9607-
●
●
●
●
96
NUT; BRKT,MAG VLV,EXH BRAKE
M8
9-09110-408-0
02
1
9001-9606
●
●
●
●
96
NUT; BRKT,MAG VLV,EXH BRAKE
M8 FLANGE
0-91150-108-0
02
1
9607-
●
●
●
●
