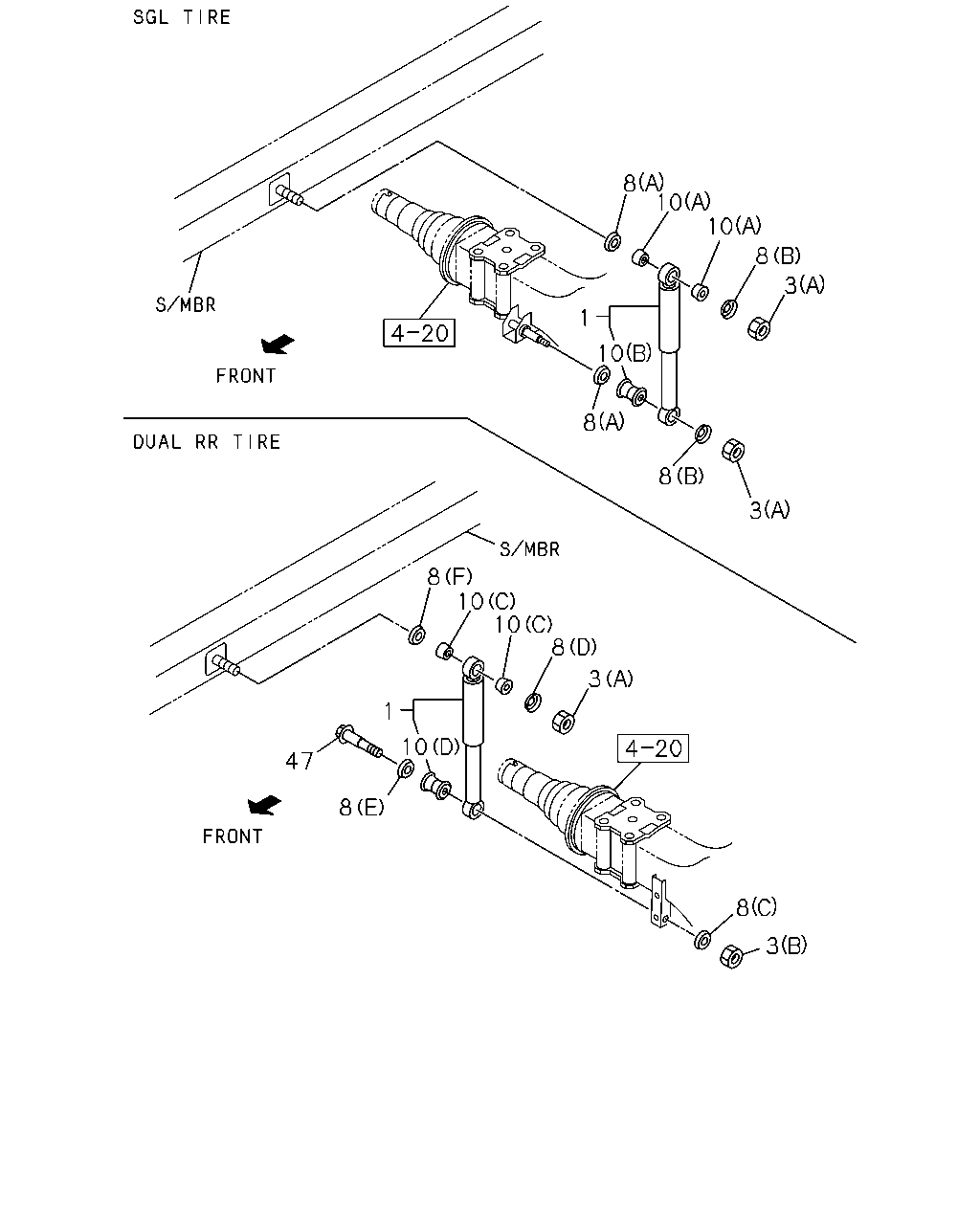

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#20509) — 36 parça

8 10 10 8 3 1 10 8 8 3 8 10 10 8 3 1 10 47 8 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.395 ABSORBER ASM; SHOCK,RR	8-97107-986-0	02	1	9812-9908	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97231-573-0	02	1	9909-0003	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-657-0	02	1	0004-	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 3.5-4.0TON(RPQ)	8-97253-654-0	02	1	0106-		●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 5.0-5.5TON(RPT)	8-97253-651-0	02	1	0106-		●	●
1	07.395 ABSORBER ASM; SHOCK,RR G.V.W. 3.5-4.0TON(RPQ)	8-97253-664-0	02	1	0206-			●
3	07.347 NUT; S/ABS 05.816 (A) M12	9-99110-412-0	04	1	9812-	●
3	07.347 NUT; S/ABS 08.915 (B) M16	9-99110-516-0	02	1	0106-0204		●
3	07.347 NUT; S/ABS 04.681 (B) M16	9-99111-516-0	02	1	0205-0205		●
3	07.347 NUT; S/ABS 04.681 (B) M16	9-99111-516-0	02	1	0206-		●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 04.681 (B) M16	9-99111-516-0	02	1	0206-			●
3	07.347 NUT; S/ABS 06.172 (A) M14	9-99111-414-0	02	1	0106-0205		●
3	07.347 NUT; S/ABS 06.172 (A),(B) M14	9-99111-414-0	02	1	0206-		●	●
3	07.347 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.172 (A),(B) M14	9-99111-414-0	02	1	0206-			●
8	07.347 WASHER; S/ABS (A) ID=16.5	9-51679-021-0	04	1	9812-	●
8	07.347 WASHER; S/ABS (B) ID=12.5	9-51679-022-0	04	1	9812-	●
8	07.347 WASHER; S/ABS 07.516 (E) ID=16.4	8-94137-482-1	02	1	0106-0205		●
8	07.347 WASHER; S/ABS 07.516 (E) ID=16.4	8-94137-482-1	02	1	0206-		●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.516 (E) ID=16.4	8-94137-482-1	02	1	0206-			●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5	8-97070-925-1	02	1	0106-0205		●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5	8-97070-925-1	02	1	0206-		●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5	8-97070-925-1	02	1	0206-			●
8	07.347 WASHER; S/ABS (D) ID=15.0	9-51679-012-0	02	1	0106-0205		●
8	07.347 WASHER; S/ABS (D),(C) ID=15.0	9-51679-012-0	02	1	0206-		●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (D),(C) ID=15.0	9-51679-012-0	02	1	0206-			●
8	07.347 WASHER; S/ABS (F) ID=20.0	9-51679-013-0	02	1	0106-0205		●
8	07.347 WASHER; S/ABS (F),(E) ID=20.0	9-51679-013-0	02	1	0206-		●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (F),(E) ID=20.0	9-51679-013-0	02	1	0206-			●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (A) KAYABA	8-94132-727-1	04	1	9812-	●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 (B) TOKICO	8-94224-694-0	02	1	9812-	●
10	07.388 BUSHING; RUBBER,S/ABS (D) TOKICO	8-94382-149-0	02	1	0106-		●	●
10	07.388 BUSHING; RUBBER,S/ABS (C) TOKICO	9-51631-014-0	04	1	0106-		●	●
47	07.347 PIN; S/ABS SETTING	8-97076-931-2	02	1	0106-0204		●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	0205-0205		●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	0206-		●
47	07.347 PIN; S/ABS SETTING REAR WIDE TREAD(V4T)	8-97316-972-0	02	1	0206-			●
