◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40B - STEERING UNIT ▶
4-40B — STEERING UNIT (#20503) — 17 parça

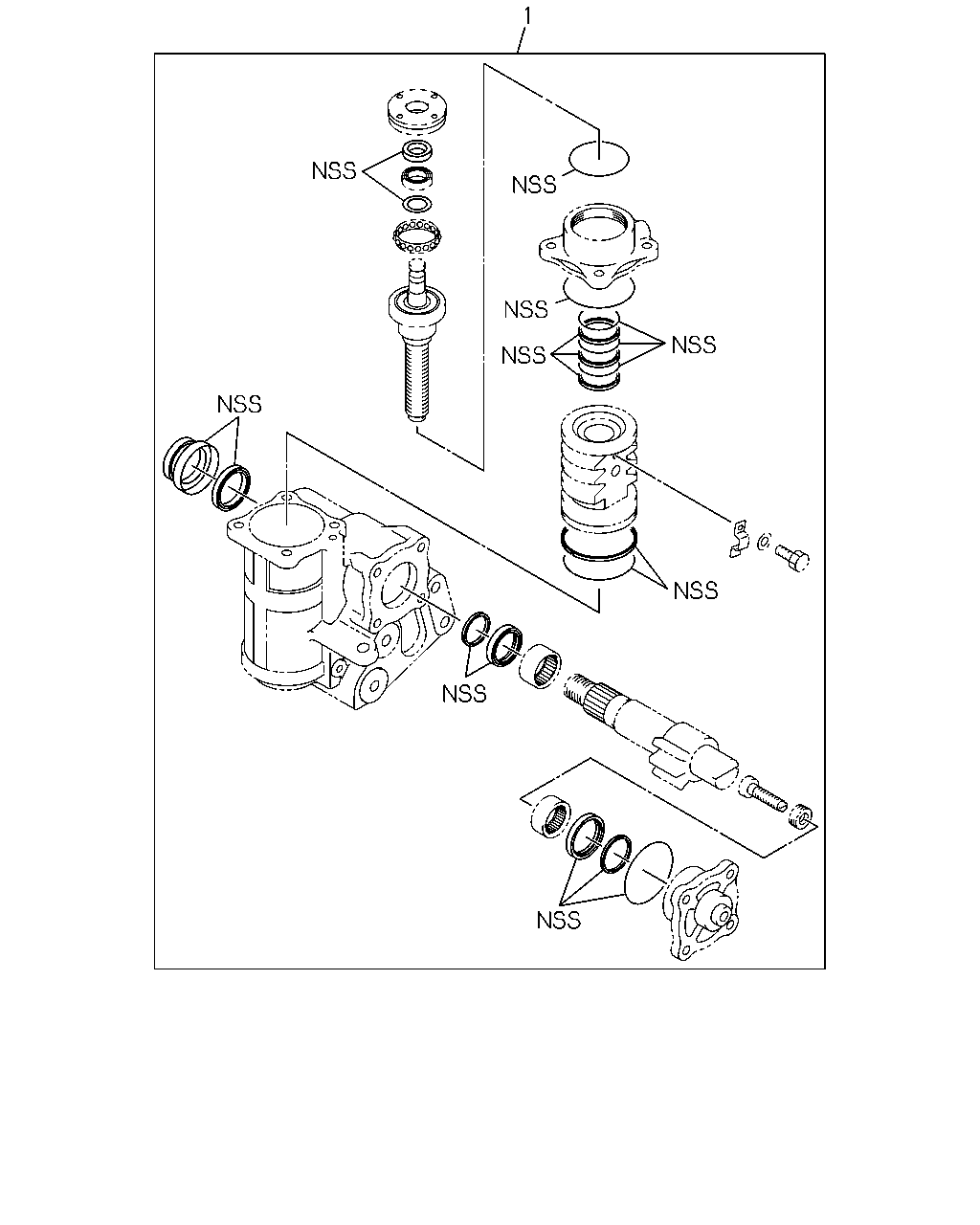

çizim 10642
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97300-420-0, 97300420 		8-97218-602-1 01 1 -

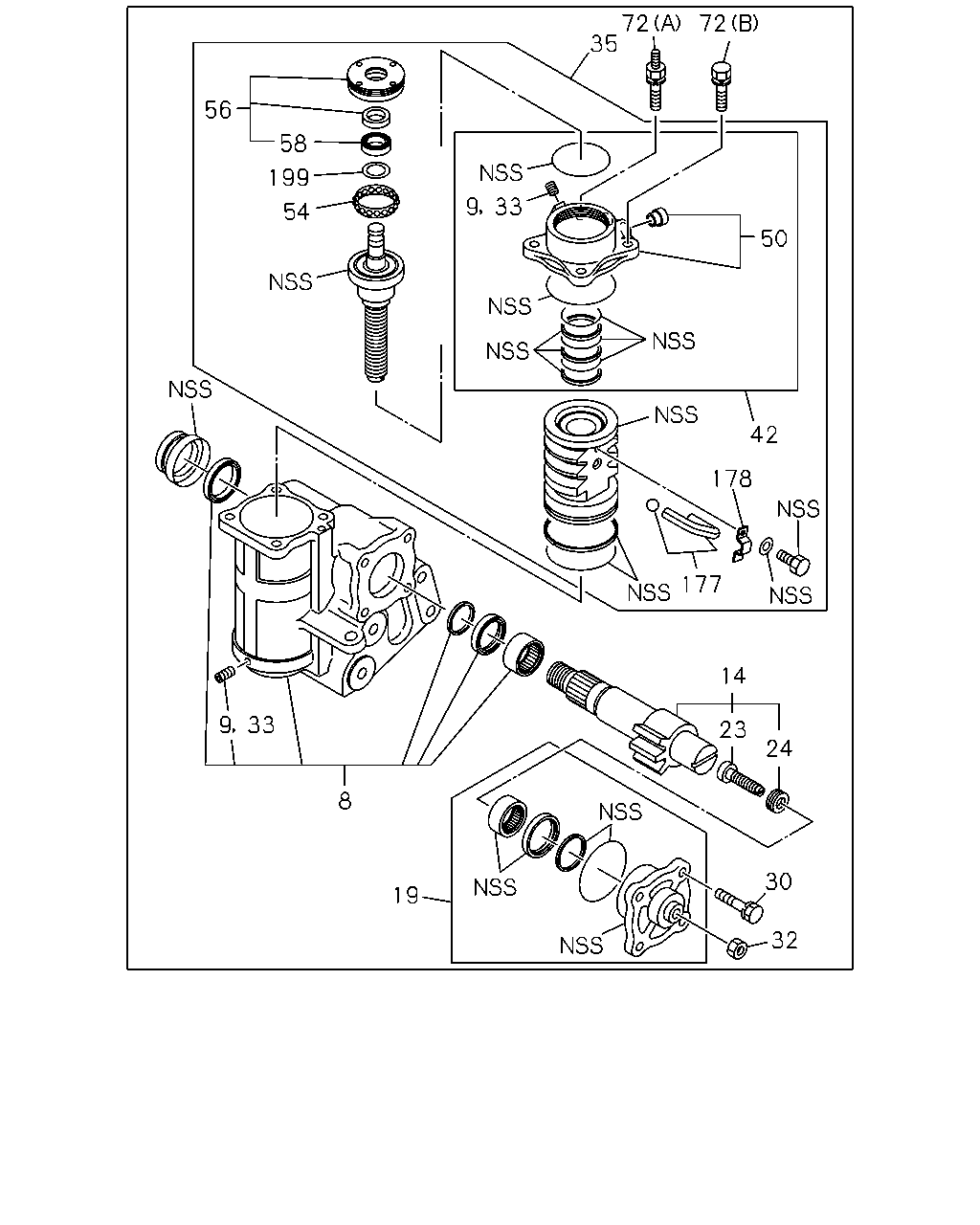

çizim 51085
72 35 72 56 58 199 9 33 54 50 42 178 177 14 9 33 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97261-061-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97300-350-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-841-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97300-352-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97076-365-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: A = 8-97300-420-0, 97300420 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: A = 8-97300-420-0, 97300420 		8-97014-835-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97014-808-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: A = 8-97300-420-0, 97300420 		8-97201-812-0 01 1 -
